Pre-built Microservices

The pre-built microservices (or pre-built components) that are available in the Fiorano Platform are grouped under various categories according to its functionality, which can be found in the Micro Service Palette and also in the Microservice Repository panel in eStudio application.

To create an Event Process, microservices are used from the Micro Service Palette. The figure below displays the Micro Service Palette with the microservice categories. Bridges category is opened displaying the microservices.

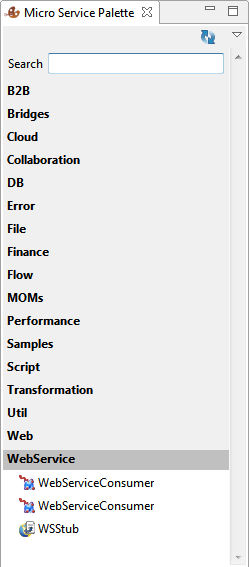

Figure 1: Micro Service Palette with the Microservice Categories displayed

The Pre-built Microservices which are available in Fiorano Platform are listed below:

Category	Function	Microservices
Bridges	To enable connectivity to classical enterprise systems such as email, FTP and others.	DataQueueWriter, DataQueueReader, EBMSAdapter, EJBAdapter, FTPGet, FTPPut, HL7Sender, HL7Receiver, IWay, POP3, SAPB1, SAPR3_4.0, SAPR3_5.0, SapR3Monitor, SAPStub, SMPPSend, SMSBridge, SMTP, SocketAdapter, T24Inbound, T24Outbound, and WebSocket.
Cloud	Cloud components act as connectors to connect to the cloud instances.	DynamoDB, KinesisConsumer, KinesisProducer, LambdaConnector, MSCRM, S3Download, S3Upload, SalesForce4.0, SalesForce5.0, SplunkEventCollector, SQSReceiver, and SQSSender.
Collaboration	To enable you to collaborate across different platforms by communicating through conversations.	chat, csChat, vbChat, and vcChat.
DataBase	To connect and execute database operations on a variety of relational databases.	DB, DBProc, DBQuery, DBQueryOnInput, and MongoDB.
Error	To ease the handling of errors in complex applications.	ExceptionListener.
File	To enable Read/Write of files and have advanced capabilities such as handling large sized files and scheduled execution.	FileWriter, FileReader, FileTransmitter, FileReceiver, FilePoller, and HDFSConnector.
Finance	To enable communication between trading partners using various protocols.	FIXAcceptor, FIXInitiator, ISO20022Validator, and SWIFTMTValidator.
Flow	To enable complex flow-control to be implemented in SOA applications.	Aggregator, Cache, CBR, DistributionService, DuplicateContentCheck, Join, JsonCBR, Sequencer, Sleep, TextSplitter, Timer, WorkList, WorkListManager, XMLSplitter, and XMLVerification.
MOMs	To enable the exchange of messages with all JMS compliant and other proprietary message brokers.	JMSIn4.0, JMSIn5.0, JMSOut4.0, JMSOut5.0, JMSRequestor4.0, JMSRequestor5.0, JMSReplier, KafkaConnector, MQSeriesIn, MQSeriesOut, MQSeriesRequestor, MQSeriesReplier, MQTT, MSMQSender4.0, MSMQSender5.0, MSMQReceiver4.0, MSMQReceiver5.0, TibcoRVIn, and TibcoRVOut.
Performance	To send and receive JMS messages.	Sender and Receiver.
Samples	These are sample components to handle complex tasks which you might encounter.	BinaryFileReader, CompositeBC, CRM, ERP, LdapAuthenticator, LDAPLookup, MarketPricesGUI, Prices, RFQManager, and TradeBus.
Script	To provide a quick and simple way of plugging business logic into business processes.	Beanshell, GroovyScript, JavaScript, PerlScript, and Python.
Transformation	To enable the transformation of data from XML to native formats and vice versa.	EDI2XML, HL72XML, JSONConverter, MT2XML, NEFTConverter, OFSConverter, Text2XML, XML2EDI, XML2HL7, XML2MT, XML2Text, XML2PDF, and Xslt.
Util (Utility)	General purpose business infrastructure components which are extremely useful in building business process flows.	Compression, Decompression, DiskUsageMonitor, Encryption, Decryption, EventLogWriter, Feeder, Display, PrintPdf, and XMLSecurityProvider.
Web	To handle send and receive requests over the web and are extremely useful for portal integration and B2B interactions.	AS2Connector, AS4Connector, HTTPAdapters, HTTPReceive, HTTPStub, RESTStub, RESTConsumer, and SimpleHTTP.
WebService	To enable business processes to interact with externally hosted web services.	WSStub, WebServiceConsumer4.0, and WebServiceConsumer5.0
B2B	To send and receive messages from Core B2B Event Processes.	B2BConnector.
