LdapAuthenticator

The LdapAuthenticator is used to authenticate an LDAP server. It Is a light-weight component which does authentication alone and does not do lookup or bind.

The source code for this component is available with the installer.

Configuration

Component Configuration

Drag the LDAPAuthenticator adapter from the Micro Service Palette and double-click the LDAPAuthenticator icon to launch the Configuration Property Sheet (CPS).

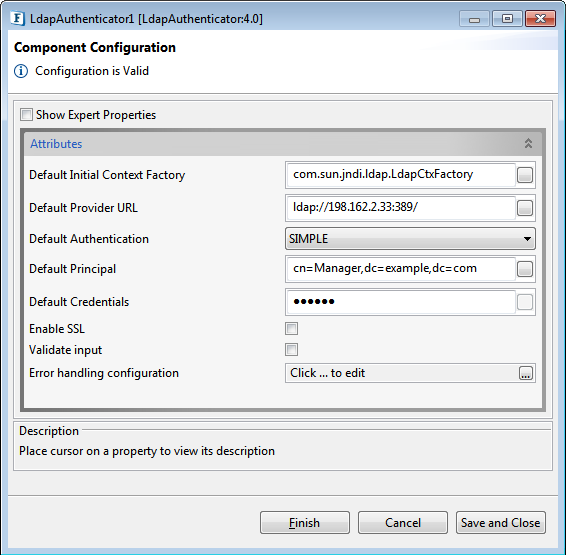

Figure 1: LdapAuthenticator Configuration properties

Attributes

Default Initial Context Factory

The JNDI framework allows different initial context implementations. Default context is set by providing the respective value for Initial Context Factory.

Default Provider URL

URL of the LDAP Server

Default Authentication

Type of security authentication required. Including the default value 'SIMPLE'; other options available are:

NONE

Does not use a default Authentication.

SIMPLE

Default Principal: The distinguished name of the entry that is to be authenticated.

Authentication ID has to be specified in the case of SASL mechanisms.
Default Credentials: Password of the entry represented by 'Default Principal'.

CRAM-MD5

It has the same options as that of SIMPLE.

DIGEST-MD5

Below are the options apart from the ones present in SIMPLE:

Default Authorization Id: The authorization Id for SASL mechanisms. If this property is not selected, ID will be derived from the client's authentication credentials.
Default SASL Realm: The realm information required by SASL mechanisms. On selecting this, a mechanism-specific default is used.

GSSAPI

Default Authorization Id: The authorization Id for SASL mechanisms. If this property is not selected, ID will be derived from the client's authentication credentials.
krb5.conf Location: Path of the kerberos configuration file which contains the kerberos configuration information. If this property is not set, the default location is used.
krb5 KDC: Kerberos KDC (Key Distribution Centre) used for the kerberos tickets.
krb5 Realm: The default realm for kerberos.
Login config file: The JAAS Login Configuration file.

EXTERNAL

The options Key Store Location, Key Store Type and Key Store Password gets added to the Attributes section.

Error Handling Configuration

Refer Error Handling Configuration section in Common Configurations page (ignore Connection Error section and refer JMS Error, Response Generation Error, Request Processing Error and Invalid Request Error).

Enable SSL

SSL Support Mode

The two support modes available in the drop-down are:

SSL Ports
Start TLS Request

Specifies whether you like to enable SSL through the use of SSL Ports or via the use of Start TLS extension in LDAP.

The two options below appear after selecting Enable SSL checkbox.

True Store Location: Location of Trust Store
True Store Type: Type of Trust Store

Validate Input

If this check box is selected, the service validates the input received.

If the Input validation is disabled, it does not validate the input and thereby increases the performance. However, it may cause undesired results if the input XML is not valid.

Expert Properties

Enable the Expert Properties view to configure these properties.

Figure 2: LdapAuthenticator CPS with the Expert Properties enabled and highlighted

Expert properties are meant for advanced users.

Pre Processing XSL Configuration

Pre Processing XSL configuration can be used to transform request message before processing it. Click the ellipses button against the property to configure the properties.

Refer to the Pre/Post Processing XSL Configuration section under the Common Configurations page for details regarding Pre Processing XSL configuration and Post Processing XSL configuration (below).

Post Processing XSL Configuration

Post Processing XSL configuration can be used to transform the response message before sending it to the output port.

Process Message Based on Property

The property helps components to skip certain messages from processing.

Refer to the Process Message Based On a Property section under the Common Configurations page.

Threadpool Configuration

This property is used when there is a need to process messages in parallel within the component, still maintaining the sequence from the external perspective.

Refer to the Threadpool Configuration section under the Common Configurations page.

Functional Demonstration

Scenario 1

Configure LdapAuthenticator with default configuration as in Figure 1. Connect Feeder and Display microservices to send a message to LDAPAuthenticator and display the output respectively.

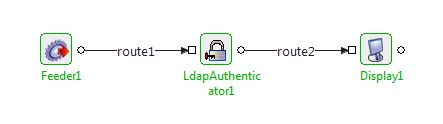

Figure 3: Sample Event Process

Sample Input

Provide the following sample in the Feeder microservice and run the sample event process.

CODE

<ns1:AuthenticationRequest xmlns:ns1="http://www.fiorano.com">
   <INITIAL_CONTEXT_FACTORY>com.sun.jndi.ldap.LdapCtxFactory</INITIAL_CONTEXT_FACTORY>
   <PROVIDER_URL>ldap://192.168.2.251:389</PROVIDER_URL>
   <SECURITY_AUTHENTICATION>SIMPLE</SECURITY_AUTHENTICATION>
   <SECURITY_PRINCIPAL>CN=Administrator,CN=Users,DC=fiohydtest,DC=com</SECURITY_PRINCIPAL>
   <SECURITY_CREDENTIALS>fiorano@222</SECURITY_CREDENTIALS>
</ns1:AuthenticationRequest>

The LdapAuthenticator takes the above input and authenticates user details internally using libraries.

Output

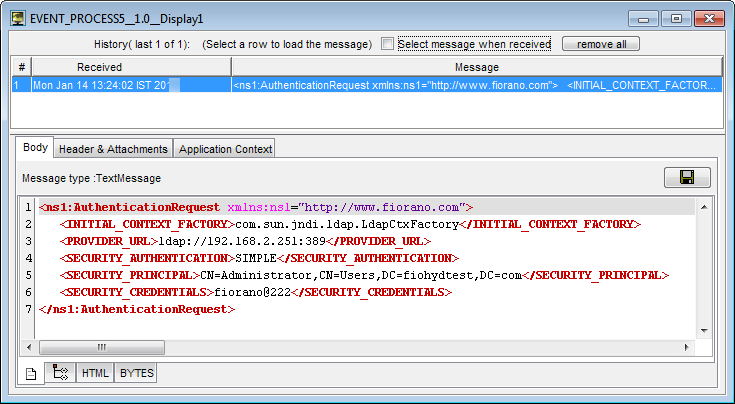

Figure 4: Output showed in the Display window

If the authentication is successful, output reflects the same as input, else it throws authentication failed error in the component error logs.
