LDAPLookup

The LDAPLookup component enables the lookup of information organized in a directory-like fashion on a Lightweight Directory Access Protocol (LDAP) server. This information could be encryption certificates, pointers to printers and other services on a network, and provide a single logon facility where one password for a user is shared between many services. The adapter performs the LDAP client operations by connecting and authenticating to the server. The operations performed are bind, lookup, modify, add, delete, rename, change password.

Points to note

• In case of Authentication/Lookup/Binding failure, messages are sent to the output portwith the appropriate messages like Authentication failed/Lookup failed and so on... No message comes out onto the Error port.
• In the Lookup operation, when you enter the Root node (in CPS), the substring starting with 'dc' is checked against the substring starting with 'dc' of the string'SECURITY_PRINCIPAL' specified in Managed Connection Factory panel. In case of mismatch, an appropriate error message is shown. If it matches, the Base node and Filter is cleared.
• In the Bind operation, adding new attributes/ adding multiple values to an existing attribute can be achieved with the help of the attribute 'AdditionalAttribute'. Always make sure that 'cn' (at least one, if you are giving multiple 'cn's) holds the value of 'cn' given in 'dn'. Also make sure that 'sn' is provided if the value of 'objectClass' is 'person'. You can add multiple users at a time also.
• The source code for this component is available with the installer.

Configuration

Managed Connection Factory

Drag the LDAPlookup adapter present in the Samples section of the Micro Service Palette. Double-click the component from Fiorano Orchestrator to launch the configuration wizard.

Attributes

Initial Context Factory

Name of the initial context factory.

Provider URL

URL of the LDAP server.

Security Authentication

Specify the security level to use.

Security Principle

Specify the identity of the principal for authenticating the caller of the service.

• Authentication id has to be specified in the case of SASL mechanisms
• Security Principle and Credentials have to be provided only for the Authentication types - Simple, CRAM-MD5 and DIGEST-MD5.

Security Credentials

Specifies the credentials of the principal for authenticating the caller of the service.

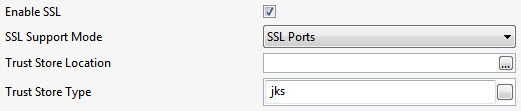

Enable SSL

Specify if SSL is to be used during connection.

SSL support Mode

Specify whether to enable SSL via SSL Ports or bu using Start TLS extension in LDAP.

Trust Store Location

Location of the Trust Store

Trust Store Type

Provide type of the Trust Store; default value is "jks".

Connection Pool Params

Various parameters to be used in connection pooling of EIS connection.

Refer to the Connection Pool Params section in the Common Configurations page.

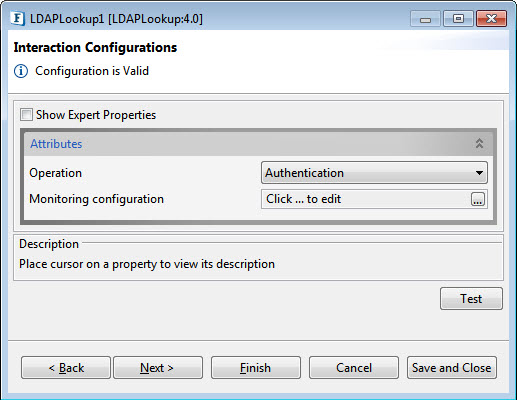

Interaction Configurations

Attributes

Operation

Choose the LDAP operation to be performed from the list of operations as below:

• Authentication
• Lookup
• Compare
• Bind
• Modify
• Delete
• Rename
• Change Password.
• Poll

There are separate attributes for different Operation options; each one is described below disabling Expert Properties as it appears the same for all options.

Authentication operation

The component acts as an authenticator. The properties configured in the Managed Connection Factory panel are the ones required for authentication.

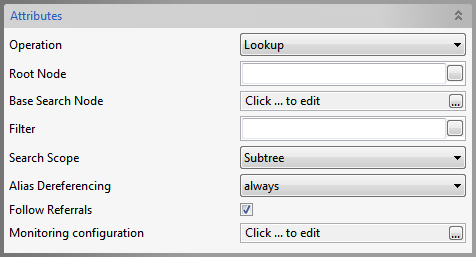

Lookup operation

Root Node

Specify the Distinguished Name (DN) of an entry, the sub-tree of which you want to view in the editor that opens with the property.

Base Search Node

Choose the DN of the entry whose sub-tree and the entry by itself have to be searched for

Filter

Specify the search constraints to be applied on the entry represented by 'Base Search Node' and the entries in its sub-tree.

Search Scope

Specify the scope of the search.

Alias Dereferencing

Specify how aliases are to be dereferencing during search operation.

Follow referrals

Specify whether referrals are to be followed or ignored.

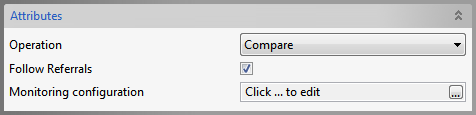

Compare operation

Follow Referrals

Specifies whether referrals are to be followed or ignored.

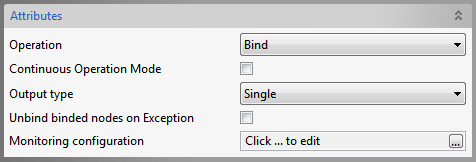

Bind operation

Continuous Operation Mode

If true, operations on the subsequent nodes are continued if an exception occurs while processing some node, in case of processing multiple nodes in a single input. If false, operation is stopped if any exception occurs.

Output Type

Single- A single output for success of operations on all nodes. Multiple-Multiple outputs.

Unbind binded nodes on Exception

Specifies the action(Unbind already binded nodes/Leave them binded) when an exception occurs while adding some node.

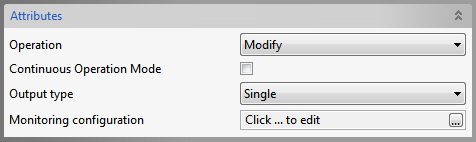

Modify operation

Continuous Operation Mode and Output Type

Refer the Bind section above.

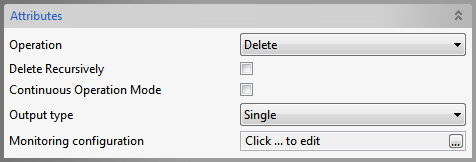

Delete operation

Delete Recursively

Specifies whether a recursive delete must be done. If true, and if the DN specified isn't a leaf, its children and all their children are deleted are down the tree. If false, only the leaf entries are deleted

Continuous Operation Mode and Output Type

Refer the Bind section above.

Rename operation

Delete old RDN

Delete previous Relative Distinguished Name

Continuous Operation Mode and Output Type

Refer the Bind section above.

Change Password operation

The properties configured in the Managed Connection Factory panel are the ones required for Change Password operation.

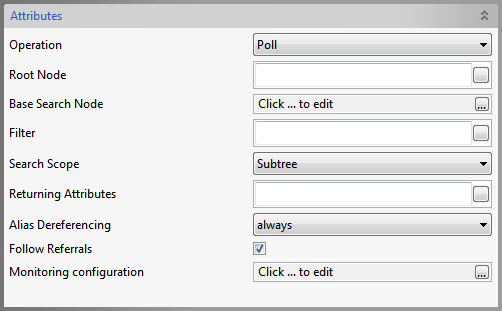

Poll operation

Returning Attributes

Specify the list of attributes to be returned when a change occurs.

Example

mail,cn

For all other attributes like Root Node, Filter etc., refer to the Lookup section above.

Monitoring Configuration

Refer to the Monitoring Configuration section in the Common Confirmation.

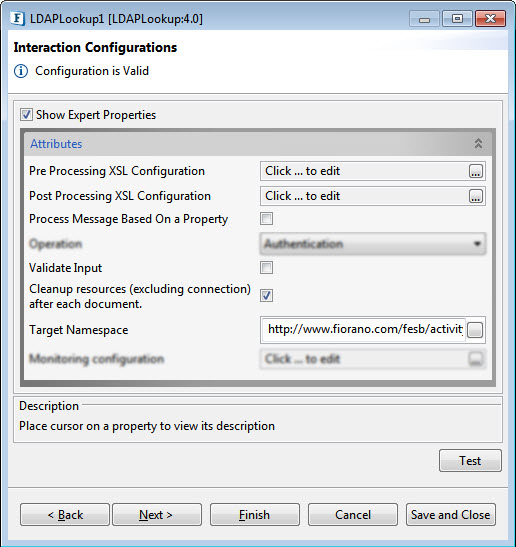

Expert Properties

Enable the Expert Properties view to configure these properties.

Expert properties are meant for advanced users. Use with caution!

Pre Processing XSL Configuration

Pre Processing XSL configuration can be used to transform request message before processing it. Click the ellipses button against the property to configure the properties.

Refer to the Pre/Post Processing XSL Configuration section under the Common Configurations page for details regarding Pre Processing XSL configuration and Post Processing XSL configuration (below).

Post Processing XSL Configuration

Post Processing XSL configuration can be used to transform the response message before sending it to the output port.

Process Message Based on Property

The property helps components to skip certain messages from processing.

Refer to the Process Message Based On a Property section under the Common Configurations page.

Validate Input

If enabled, LDAPLookup validates the input received.

If the Input validation is disabled, it does not validate the input and thereby increases the performance. However, it may cause undesired results if the input XML is not valid.

Cleanup resources (excluding connection) after each document

This closes all the resources except for the connection after every request. If the less processing time is more important than the less memory usage, then it is recommended to disable this property and vice versa.

For more details, refer to the respective section under in the Common Configurations page.

Target Namespace

Target Namespace for the request and response XML messages.

For more details, refer to the respective section under in the Common Configurations page.

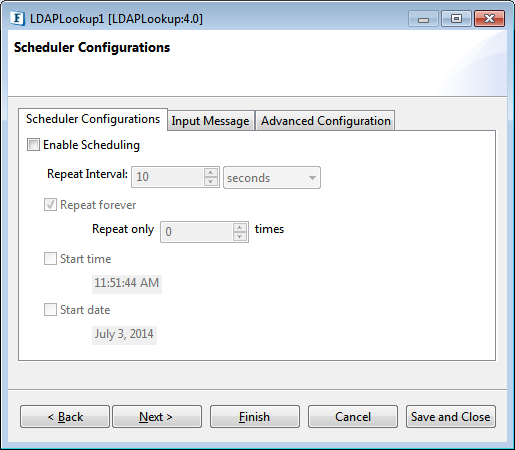

Scheduler Configurations

On enabling scheduling, we can set the repeat interval in milliseconds/seconds/hours/minutes/days unit and the repeat period can be set as Repeat forever or the number times can be specified too as an alternative.
Another scheduling option is to set the start time and date which helps to control the start of scheduling process.

Please refer Scheduler Configurations section in the Common Configurations page.

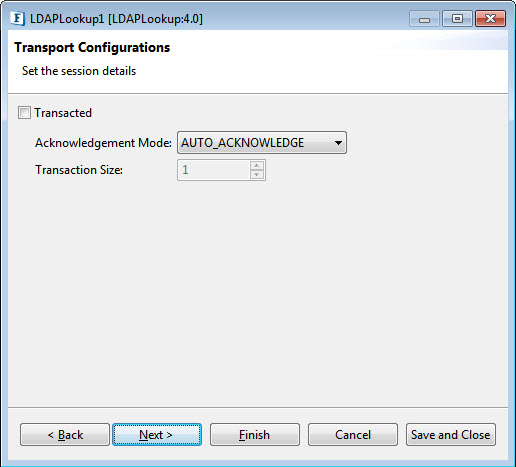

Transport Configurations

Transport Configurations panel is used to configure messaging properties when the component is configured in Scheduling mode.

Please refer to the Transport Configurations section in the Common Configurations page.

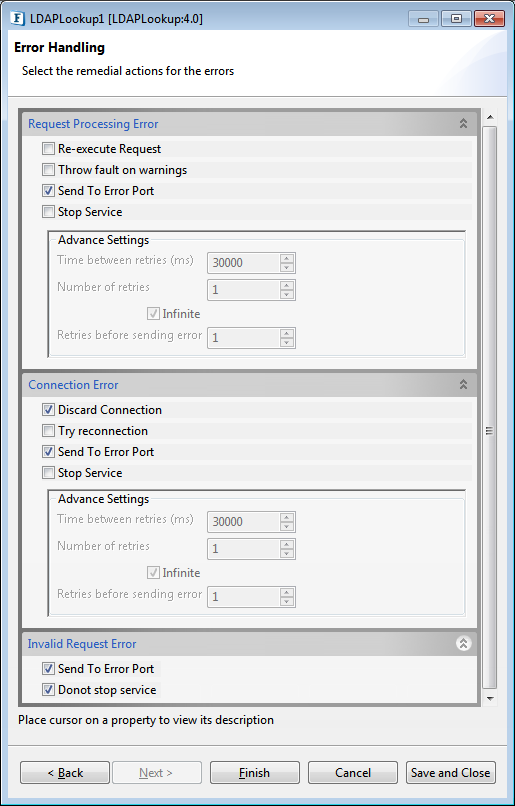

Error Handling Configuration

The remedial actions to be taken when a particular error occurs can be configured here. Click the ellipsis button against this property to configure Error Handling properties for different types of Errors. By default, the options Log to Error Logs and Send to error port are enabled

Refer to Error Handling section in Common Configurations for more information.

Functional Scenario

Sample 1: Bind Configuration

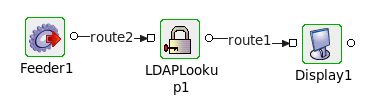

1. Connect the LDAPLookup1 adapter to a Feeder and a Display as shown in the figure above.
2. Launch the configuration wizard by double-clicking the LDAPlookup icon in the Fiorano Orchestrator.

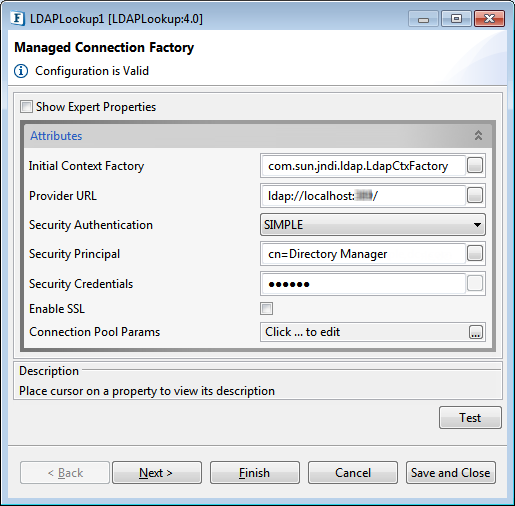

3. Set the fields in the Managed Connection Factory configuration page as shown in Figure 1.
4. Choose the Operation as 'Bind' in Interaction Configuration panel.
5. Save and close the wizard and open feeder CPS.

6. To create a user in the server, enter the following in the feeder :

   XML

   <?xml version="1.0" encoding="UTF-8"?>
   <ns1:Input xmlns:ns1="http://www.fiorano.com/fesb/activity/LDAPLookup1/In">
      <Node>
         <dn>cn=testuser,dc=fiorano,dc=com</dn>
         <objectClass>person</objectClass>
         <cn>testname</cn>
         <sn>surnam</sn>
         <userPassword>fiorano</userPassword>
         <Description>Description</Description>
         <AdditionalAttribute>
            <Name>location</Name>
            <Value>hyd</Value>
         </AdditionalAttribute>
      </Node>
   </ns1:Input>



   The value of "dn" will depend on server type. The above is for 389-ds server.

7. Perform CRC (resource and connectivity) and then launch the event process. This will create a new user in the 389-ds server.

Sample 2: Lookup configuration

1. Follow steps 1-3 from sample 1.
2. Choose the Operation as 'Lookup' in Interaction Configuration panel.
3. Provide the following values:
   1. Root Node: dc=localdomain
   2. Filter: cn=Directory Manager,dc=localdomain
4. Save and close the LDAPLookup CPS and open the Feeder CPS.

5. Copy the following and specify the filter .

   XML

   <?xml version="1.0" encoding="UTF-8"?>
   <ns1:Input xmlns:ns1="http://www.fiorano.com/fesb/activity/LDAPLookup1/In">
      <Filter>uid=brawal</Filter>
   </ns1:Input>

6. Perform CRC and launch the event process. This will display all the details of the user.

   XML

   <?xml version="1.0" encoding="UTF-8"?>
   <ns1:Output xmlns:ns1="http://www.fiorano.com/fesb/activity/LDAPLookup1/Out">
      <Node>uid=brawal,cn=support_group,ou=Support Division,dc=localdomain
    mail: bhuvan.mohan@in.fiorano.com
    uid: brawal
    objectClass: top, person, organizationalPerson, inetorgperson
    givenName: bhuvan
    sn: rawal
    cn: bhuvan rawal</Node>
   </ns1:Output>

Sample 3: Authentication Configuration

1. Follow steps 1-3 from sample 1.
2. Choose the Operation as 'Authentication' in Interaction Configuration panel.
3. Click the Test button.






   Figure 18: Authentication Configuration

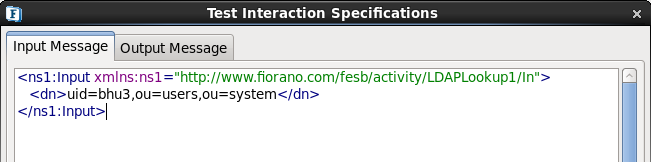

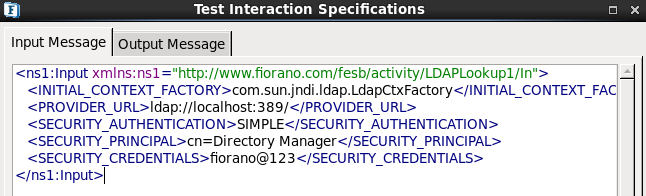

4. Enter the above details in the Input Message tab.
5. Click the Validate button and then click the Execute button to get the following result.

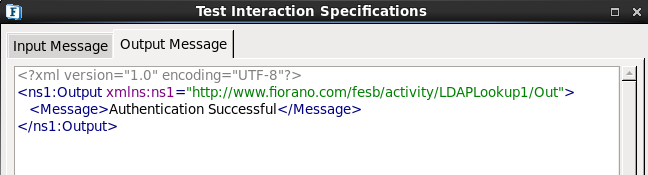

   Figure 19: Authentication Configuration Result

Sample 4: Change Password Configuration

1. Follow steps 1-3 from Sample 1.
2. Choose the Operation as 'Change Password' in Interaction Configuration panel.
3. Click the Test button.






   Figure 20: Password Change Configuration

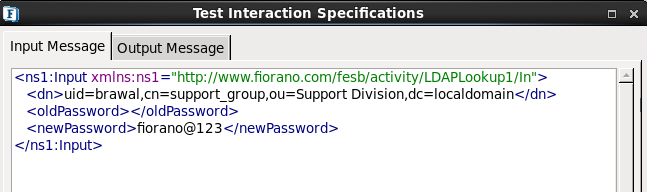

4. Specify the Distinguished Name, old password and new password
5. Click Validate then click Execute to get the following result.

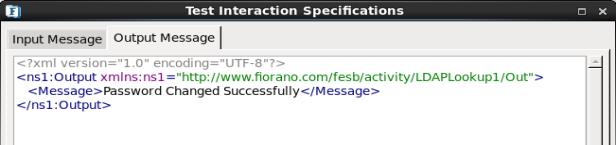

   Figure 21: Password Change Configuration – Result

Sample 5: Delete Configuration

1. Follow steps 1-3 from Sample 1.
2. Choose the Operation as 'Delete' in Interaction Configuration panel.
3. Click the Test button.






   Figure 22: Delete Configuration specify-dn

4. Specify the distinguished name of the entry to delete.

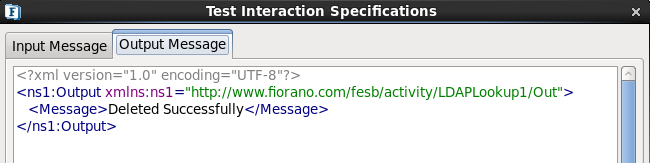

5. Click Validate and then click Execute to get the following output.






   Figure 23: Delete Configuration - Result

Sample 6: Rename Configuration

1. Follow steps 1-3 from Sample 1.
2. Choose the Operation as 'Rename' in Interaction Configuration panel.

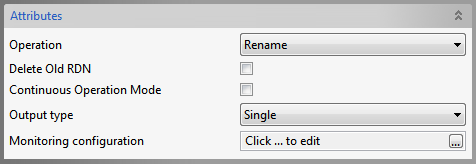

   Figure 24: Rename Configuration

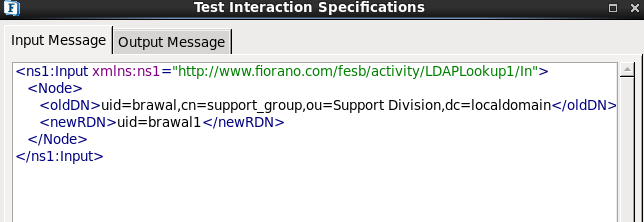

3. Enter the old Distinguished Name and the new relative distinguished name.
4. Click Validate and click Execute to get the following result.

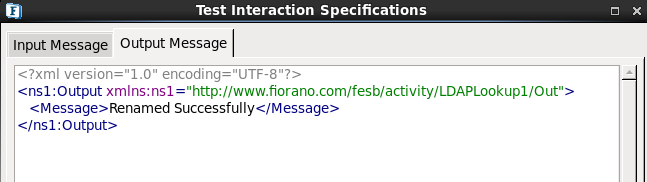

   Figure 25: Rename Configuration - Result
