TibcoRVOut
The TibcoRVOut component is used to receive messages from the messaging queue server of TIBCO Rendezvous. The name of the queue from which a message needs to be retrieved can be specified using the CPS.
Points to note
The following required files need to be copied from the TIBCO installation directory for the component to run on windows platform. All these should be added as resources Tibrv system library.
- tibrvj.jar
- libeay32.dll
- ssleay32.dll
- TIBCO.Rendezvous.dll
- tibrv.dll
- tibrvcm.dll
- tibrvcmq.dll
- tibrvcom.dll
- tibrvft.dll
- tibrvjsd.dll
- tibrvj.dll
- tibrvsd.dll
- tibrvsdcom.dll
Configuration
Managed Connection Factory

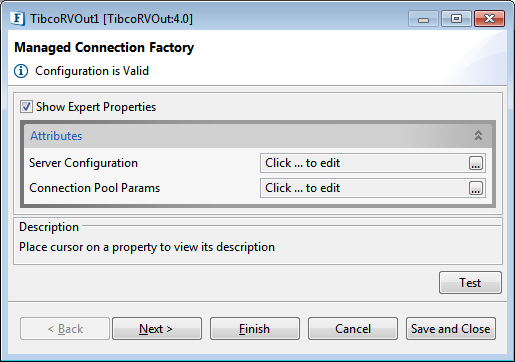

Figure 1: Managed Connection Factory panel
Attributes
Server Configuration
TibcoRV Service
TibcoRV Service name.
TibcoRV Network
TibcoRV Network name.
TibcoRV Daemon
TibcoRV Daemon name.
Connection Pool Params
Please refer Connection Pool Params section in Common Configurations page.
Interaction Configurations

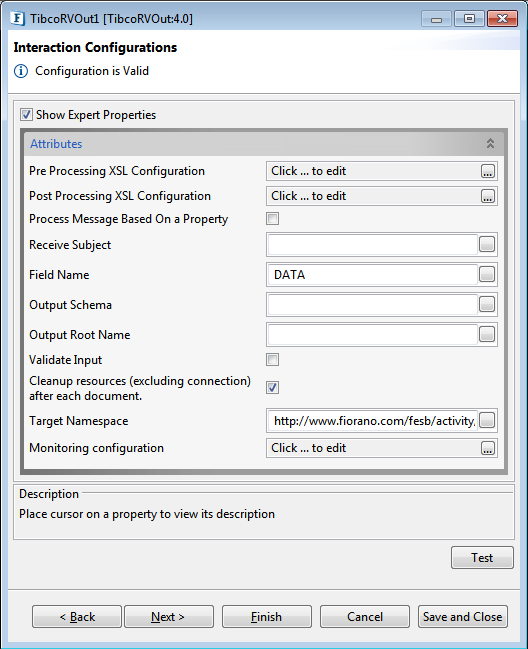

Figure 2: Interaction Configurations panel
Attributes
- Receive Subject: Receive Subject name
- Field Name: Field Name
- OutputSchema: Output Schema
- OutputRootName: Output Root Name
For the attributes given below (all except the last one are Expert Properties), please refer Interaction Configurations section in Common Configurations page.
- Pre Processing XSL Configuration
- Post Processing XSL Configuration
- Validate Input
- Cleanup Resources (excluding connection) after each input document
- TargetNamespace
- Monitoring Configuration
Refer to the Processing Message based on a Property section for the description of this property.
Scheduler Configurations
Please refer Scheduler Configurations section in Common Configurations page.
Error Handling
Please refer Error Handling section in Common Configurations page.
