DataQueueWriter
The DataQueueWriter microservice writes messages to AS400 Queues.
Configuration and Testing
Configuration
The Configuration Property Sheet (CPS) of DataQueueWriter is shown in the figure below with the Expert Properties view enabled.
Figure 1: Sample DataQueue Reader Configuration
The table below provides descriptions for properties in the CPS.
Property | Description |
|---|---|
| Error handling configuration | The remedial actions to be taken when a particular error occurs can be configured using this attribute. Refer Error Handling section in Common Configurations for detailed information. |
Host Name | Hostname or IP of AS/400 Server. |
User Name | Username. |
Password | Password pertaining to the username. |
Queue Name | Name of AS/400 Queue. The complete path of the Queue has to be provided. |
Queue Size(bytes) | Size of the AS/400 Queue. To write data to a queue whose exact size is not known, set the value to "-1" so that the microservice uses the maximum entry length. If it is set to "-1", make sure that the queue is already created. |
Auto Create Queue | Create queue automatically if it does not exist. It will also try to create the library (FIORANO1.LIB in Figure 1) if it does not exist, but make sure that the user has sufficient privileges. |
Close Connection | If set to yes, then the connection will be closed for each successful writing of a message. |
Expert Properties
Pre Processing XSL Configuration
Pre Processing XSL configuration can be used to transform request message before processing it. Click the small button against the property to configure the properties.
Refer to the Pre/Post Processing XSL Configuration section under Common Configurations topic for details regarding XSL configuration. The properties comprising this XSL configuration are:
- Provide XSL
- XSLT Engine
- Transformation source data
- Set transformation result as
Post Processing XSL Configuration
Post Processing XSL configuration can be used to transform response message before sending it to the output port.
As mentioned in the above section, refer to the Pre/Post Processing XSL Configuration section under the Common Configurations topic for details regarding XSL configuration.
Process Message Based on Property
The property helps components to skip certain messages from processing.
Refer the Process Message Based On a Property section under the Common Configurations topic.
Testing
The configuration can be validated using the Validate button. A sample result of the Validate operation is shown below.
Figure 2: Validating the configuration
Input Port: Message that should be sent to AS/400 Queue.
Output Port: Sends the status, if the message was written in the queue.
Functional Demonstration
Configure the DataQueueWriter microservice as shown in Figure 1.
The figure below shows a sample event process in which DataQueueWriter writes messages sent by the Feeder microservice to the Queue.

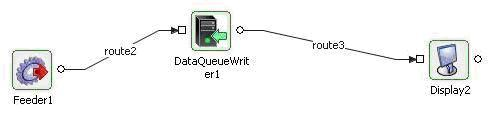

Figure 3: Sample event process using the DataQueueReader microservice
Sample Scenario
Sending a sample text message from the Feeder microservice to DataQueueWriter.
Sample Input
The figure below shows a sample input from the Feeder microservice.

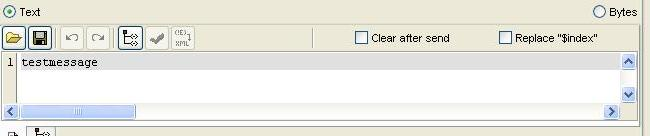

Figure 4: Sample input from the Feeder microservice
Sample Output
The figure below shows status messages sent by the DataQueueWriter microservice.

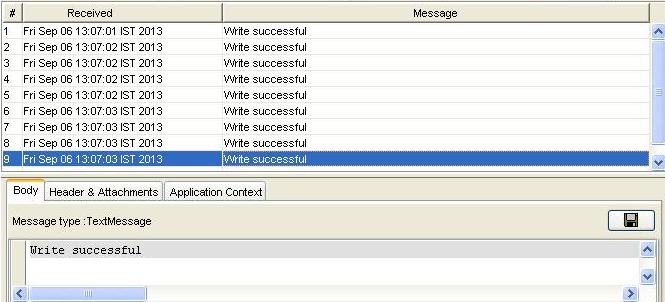

Figure 5: Status messages sent by DataQueueWriter
