Setting up SMTP Mail Server

Configure the mail server as below:

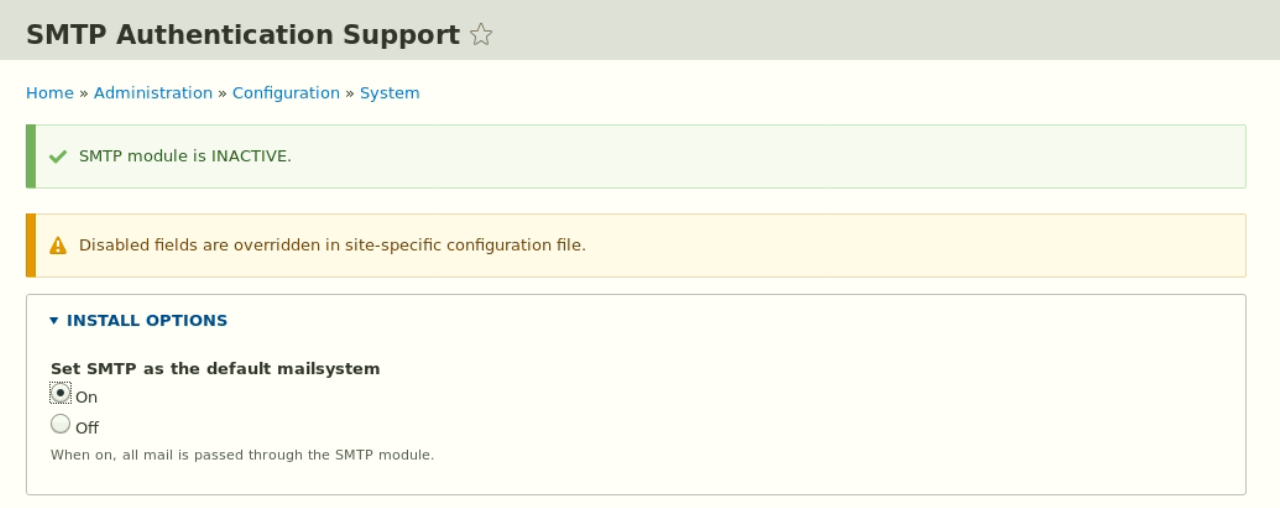

1. Go to Configuration > System > SMTP Authentication Support.


2. Turn on the SMTP Module ("Turn on this module on or off" option) in the INSTALL OPTIONS section.

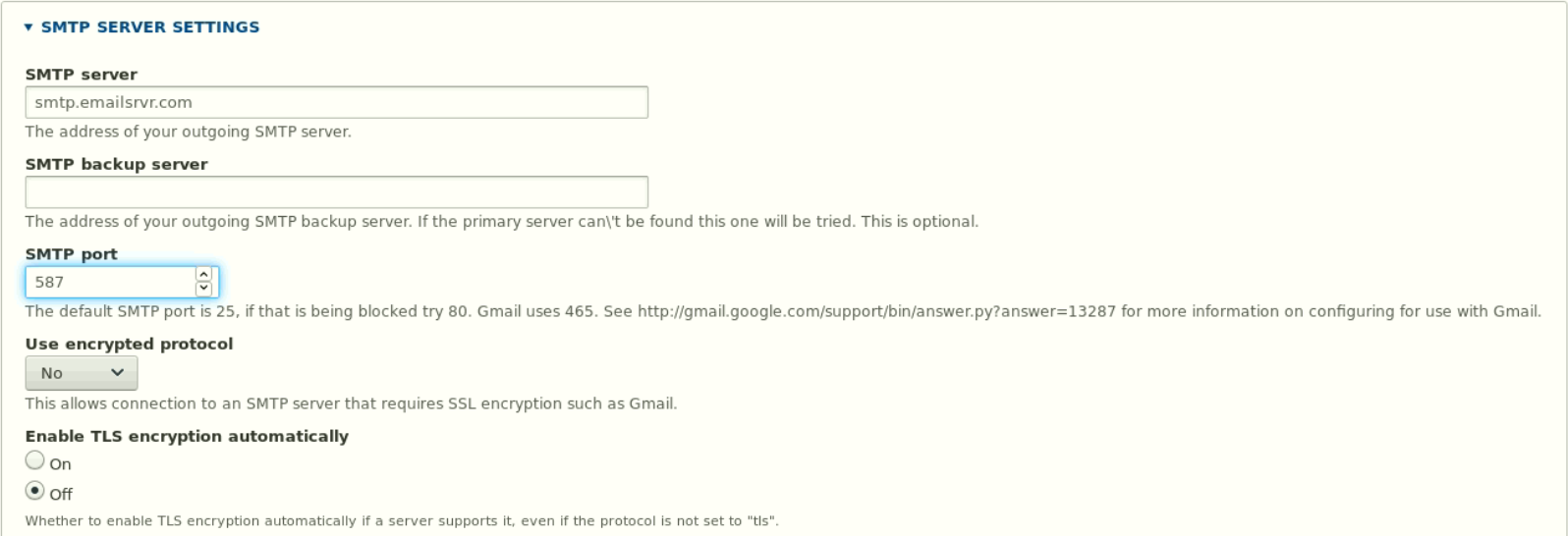

3. In the SMTP server settings section, provide the outgoing SMTP Server address in the SMTP server text box and provide the port number in the SMTP port text box.



    Backup Server is optional; it may be left blank.

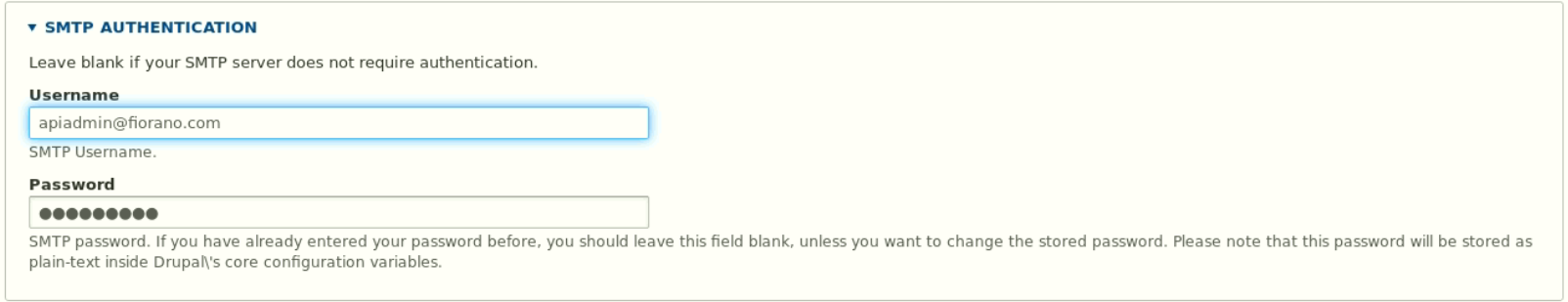

4. Provide username and password of the mail server in SMTP Authentication section.

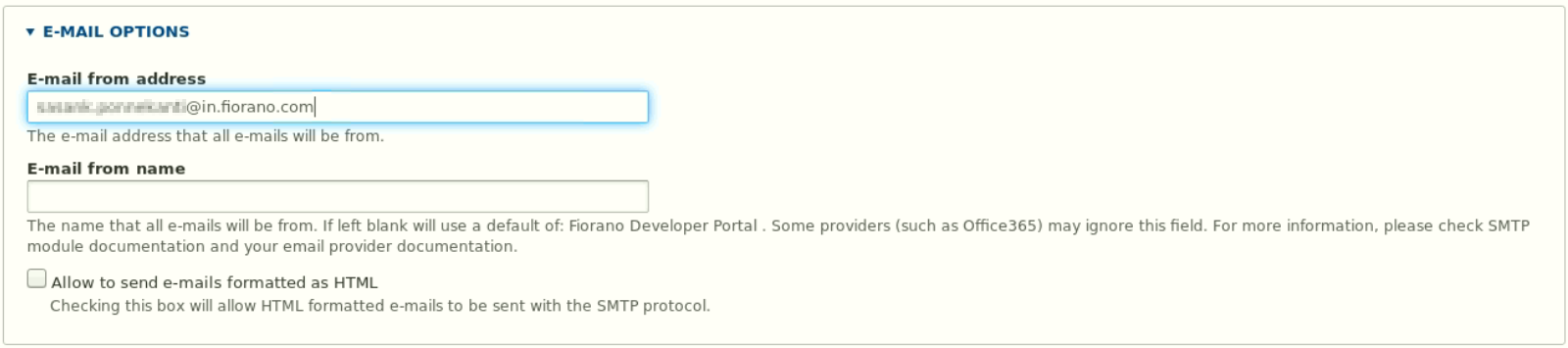

5. Provide From e-mail address in E-MAIL OPTIONS section.

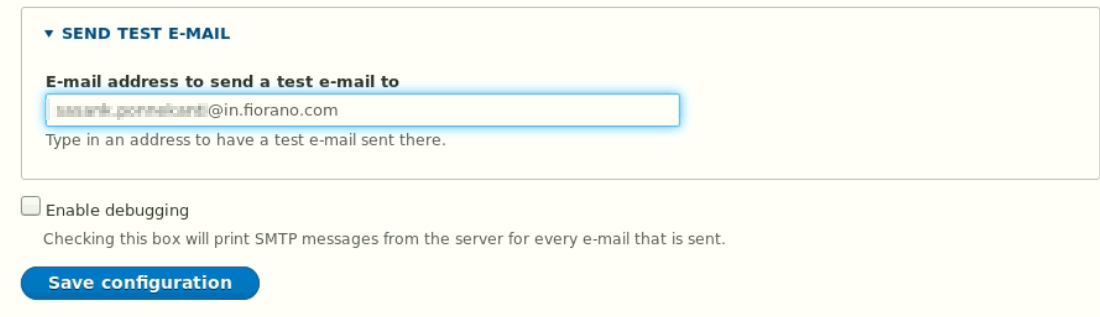

6. Provide a valid email in the E-mail address to send a test e-mail to text box under SEND TEST E-MAIL section to test if the configuration was successful.








7. Click Save Configuration. If the test mail is successfully received, it implies that the SMTP server is ready to send emails.
