Users
Click the icon on the left side of the Administration screen to open the Users page.
In this section, it is possible to view all the users and groups that have access to the API Manager. With access to appropriate permissions, it is possible to add new users/groups, remove existing users/groups, change Access Rights (permissions) of users/groups. Users and Groups can be added to other groups as well.

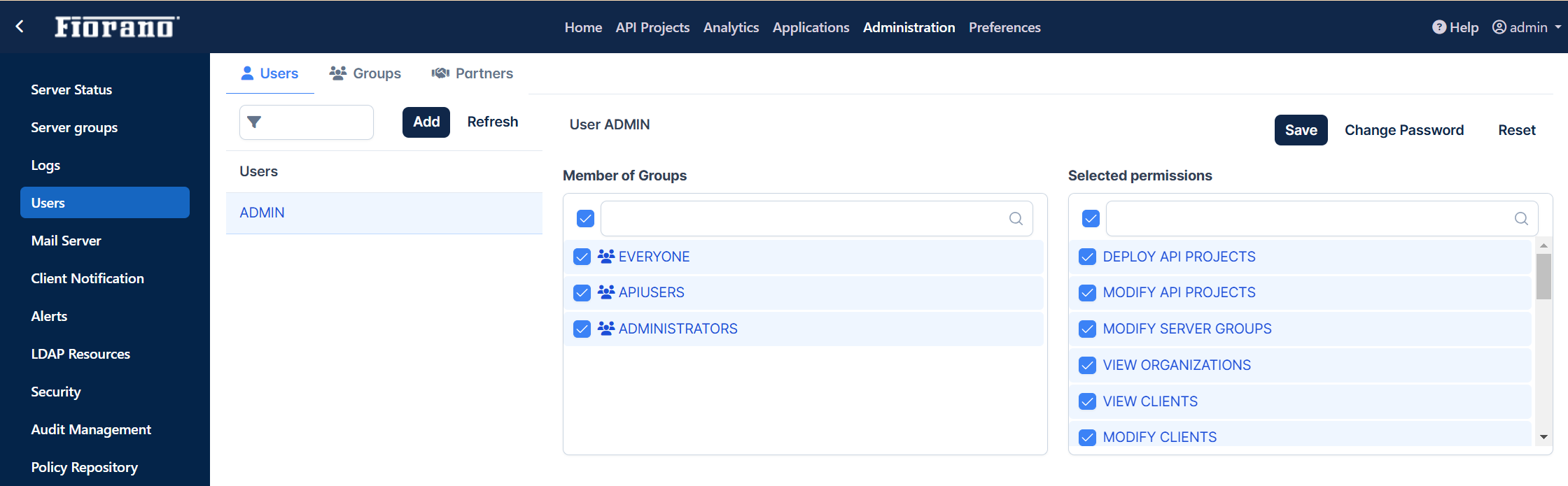

Figure 1: Default user ADMIN and its details
The tasks which can be accomplished with this section are:
- Add a User/Group
- Change permissions for users/groups
- Change password for users
- Remove a User/Group
The sections below demonstrate the working of the functions mentioned above.
Users
In the Users section, the Admin user will be a default user.
Admin User
Click the Admin user to see in which groups the Admin user is a member and what permissions an Admin has.
Member of Groups
The Member of Groups section has details about the groups in which the selected user is a member.
Admin user is a member of the following groups:
- Everyone
- Administrators
- API Users
To remove from a group, select the group from which the user should be removed and click the Remove from Group button.
Permissions
This section has the permissions available to the selected user/group.
To add permissions to the selected user/group, click the Add button, and then select all the permissions to be assigned to the user.
To remove permissions from the selected user, select the permission to be removed and click the Remove button.
| Permission | Description |
|---|---|
API LOGIN | To log on to API Dashboard |
| VIEW SERVER GROUPS | To view server groups |
| VIEW API PROJECTS | To view API projects To view and select API projects in Products. |
| VIEW TRACE | To view trace. |
| VIEW API PRODUCTS | To view the API Products page. To view and select products in Organizations. To view and select Subscribed Products in Client Subscriptions |
| VIEW ORGANIZATIONS | To view Organizations list |
| VIEW CLIENTS | To view clients |
| VIEW CLIENT SUBSCRIPTIONS | To view subscriptions of clients To view subscriptions in the monetization section of clients |
| VIEW PARTNERS | To view the partners' page |
| VIEW ANALYTICS | To view the Analytics page and to view analytics of products. To view the Analytics section of clients To view the Analytics section in Client Subscriptions |
| CREATE, MODIFY USERS AND GROUPS | To add, delete, and change passwords of users To add and delete groups |
| DEPLOY API PROJECTS | To deploy and undeploy |
| MODIFY SERVER GROUPS | To add, save, delete, and refresh |
| MODIFY API PROJECTS | To add, delete, save as, and version control. |
| MODIFY TRACE | To start and stop Trace |
| MODIFY API PRODUCTS | To add, save, delete, and reset the products |
| MODIFY ORGANIZATIONS | To add, save, delete, and reset organizations |
| MODIFY CLIENTS | To add, save, delete, and reset CLIENTS |
| MODIFY CLIENT SUBSCRIPTIONS | To add, save, delete, and reset CLIENT SUBSCRIPTIONS |
| MODIFY ANALYTICS | To add, save, delete notifications, purge analytics data, and save as a report To save, start monitor, and stop monitor backup configurations |
| MODIFY PERMISSIONS FOR USERS AND GROUPS | To modify permissions for users and groups |
| MODIFY PARTNERS | To modify partners |
Admin users will have all the permissions.
Changing Admin Password
To change the password of a user/group, select that user/group and click the Change Password button.
Provide the old password as well as the new password, and then click OK to save the change.
If the same user is being used in profile configuration to create MQ connections, then perform the steps mentioned in the Editing configurations after changing Admin Password section.
When user/group is selected, its details are displayed.
Adding a User

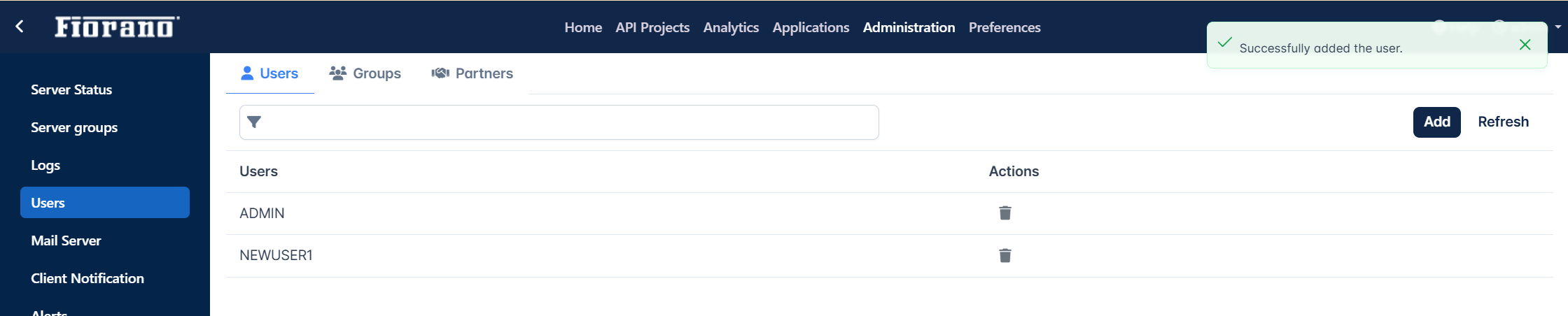

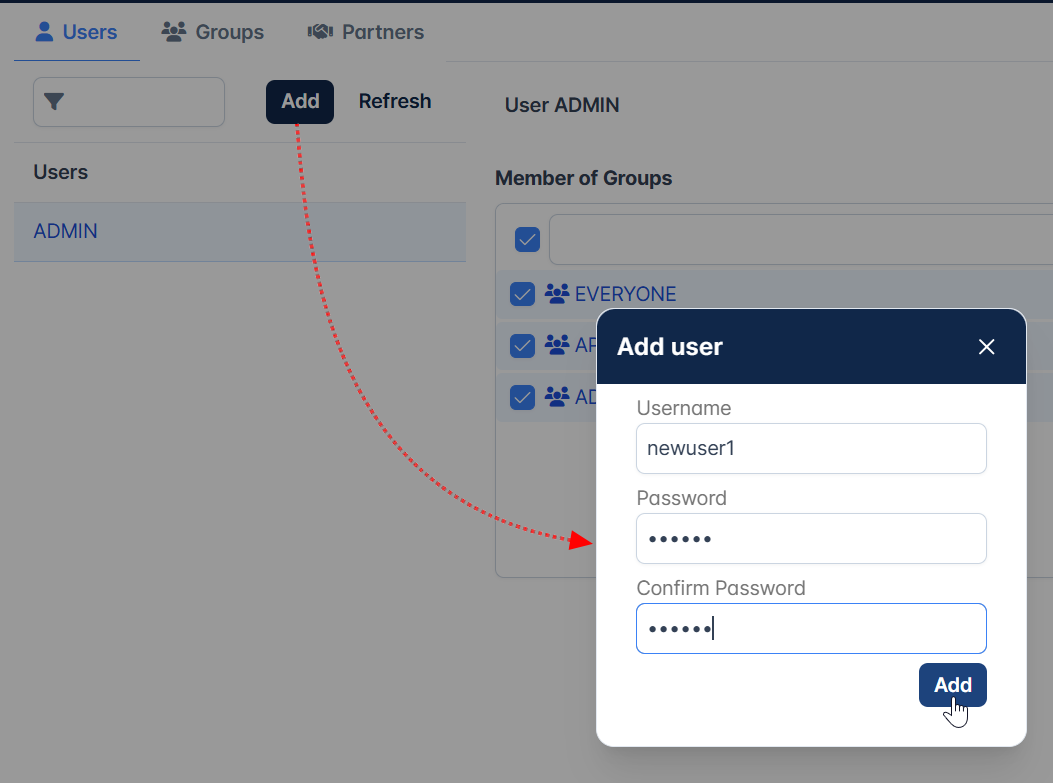

Click the Add button and add new credentials to create a new user.
Removing a User
To remove a user/group, select the particular user/group and click the Remove button.
Groups
This panel comprises of members of the selected group.

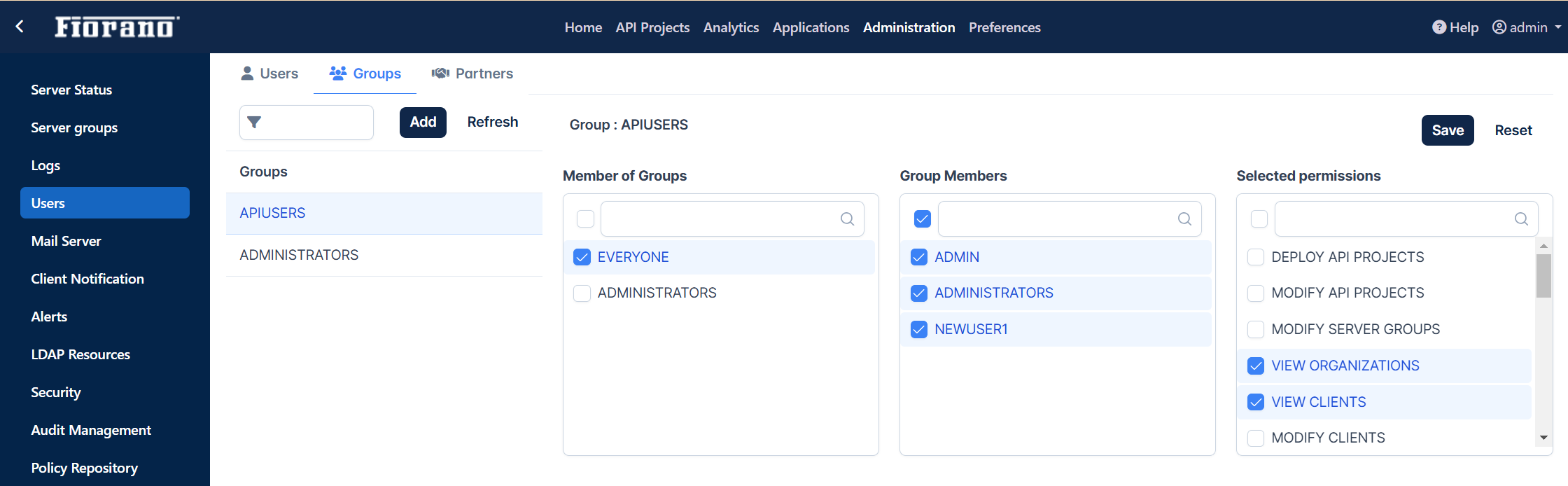

Figure: Members in the group displayed in the Group Members panel

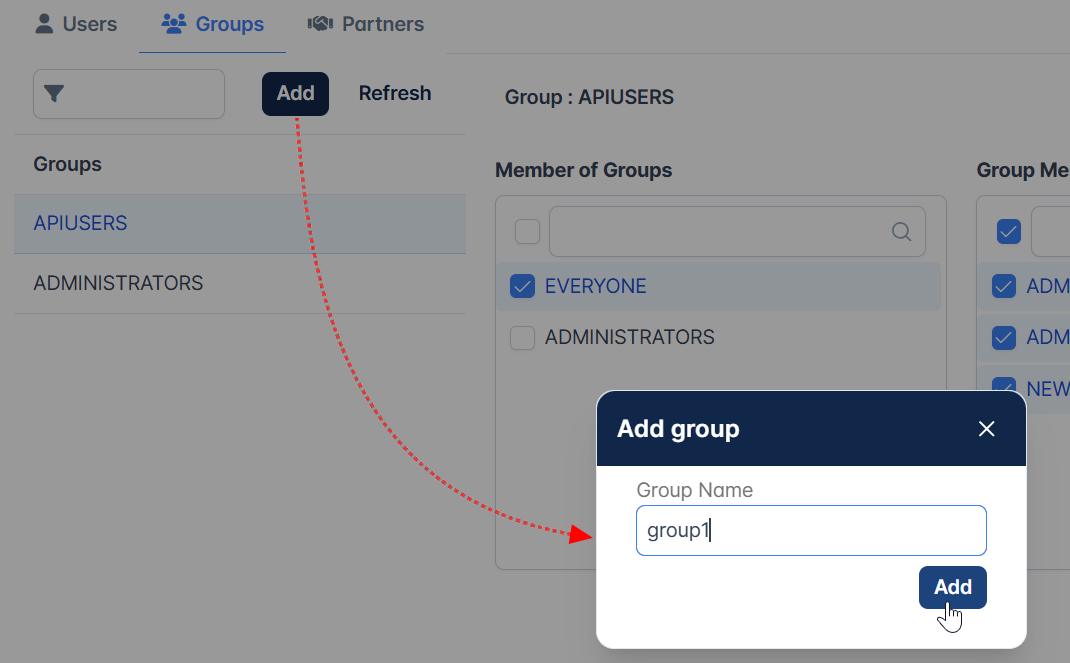

To add a new group, click the Add button, provide details, and then click OK. Click the Save icon to add the new group.
Figure: Available users/groups which can be added to the selected group

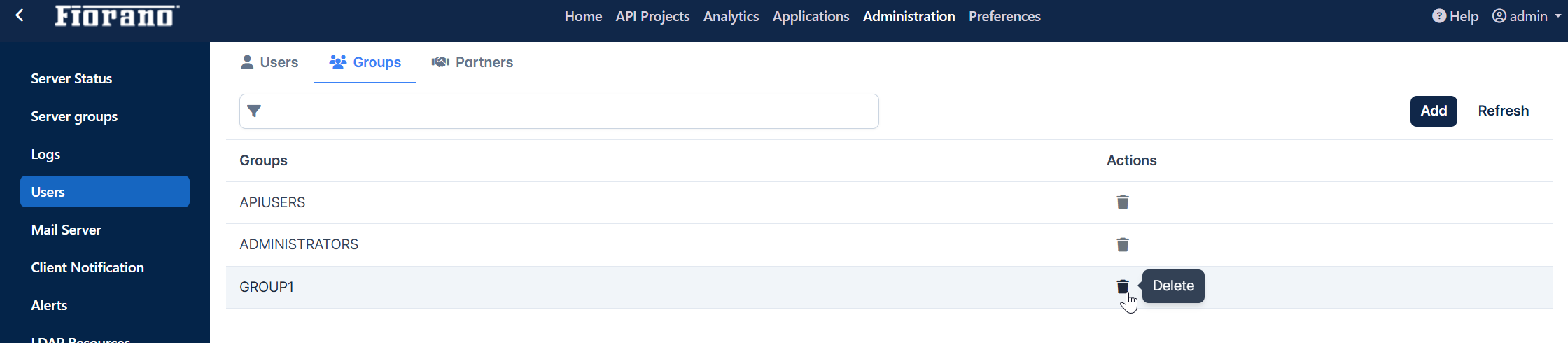

To remove a member from the selected group, select the member to be removed and then click the Remove button.
Partners
Partners help to create a collaboration of users, groups and other partners.
API partner
The default partner is API; click the partner node to see the list of members. In the Partner Details section, it allows to add as well as delete its members who can be a user, group, or partner.
The API partner cannot be removed/deleted.

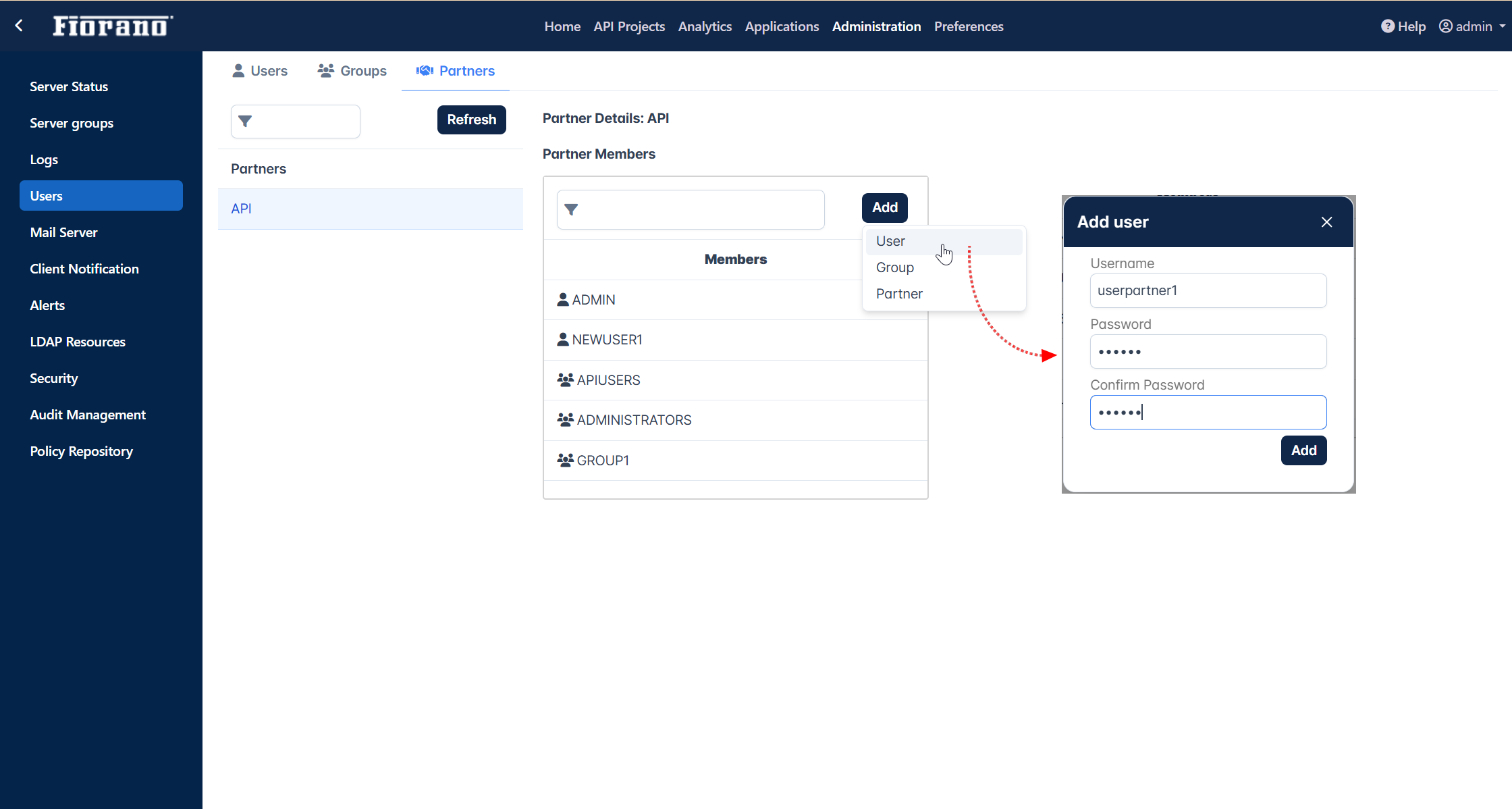

Adding a user as a partner member
Click the Add button and add new credentials to create a new user.
The user with default permissions gets added to the Member table in the Partners tab and Users tab as well.

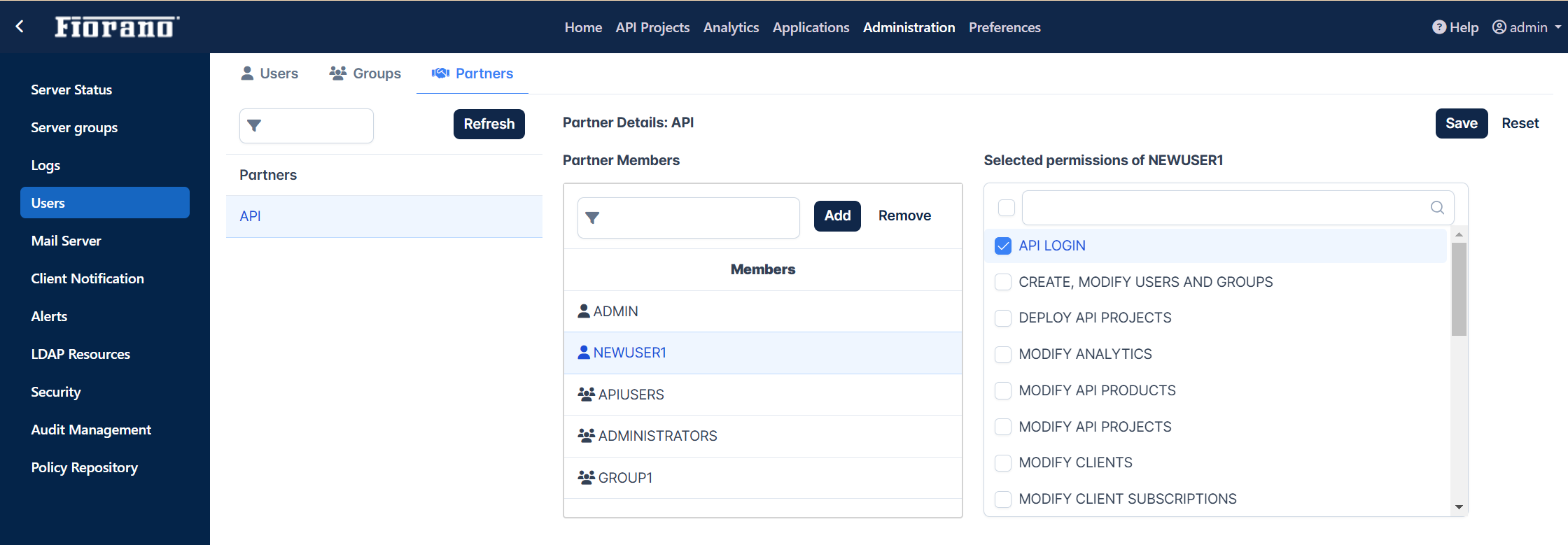

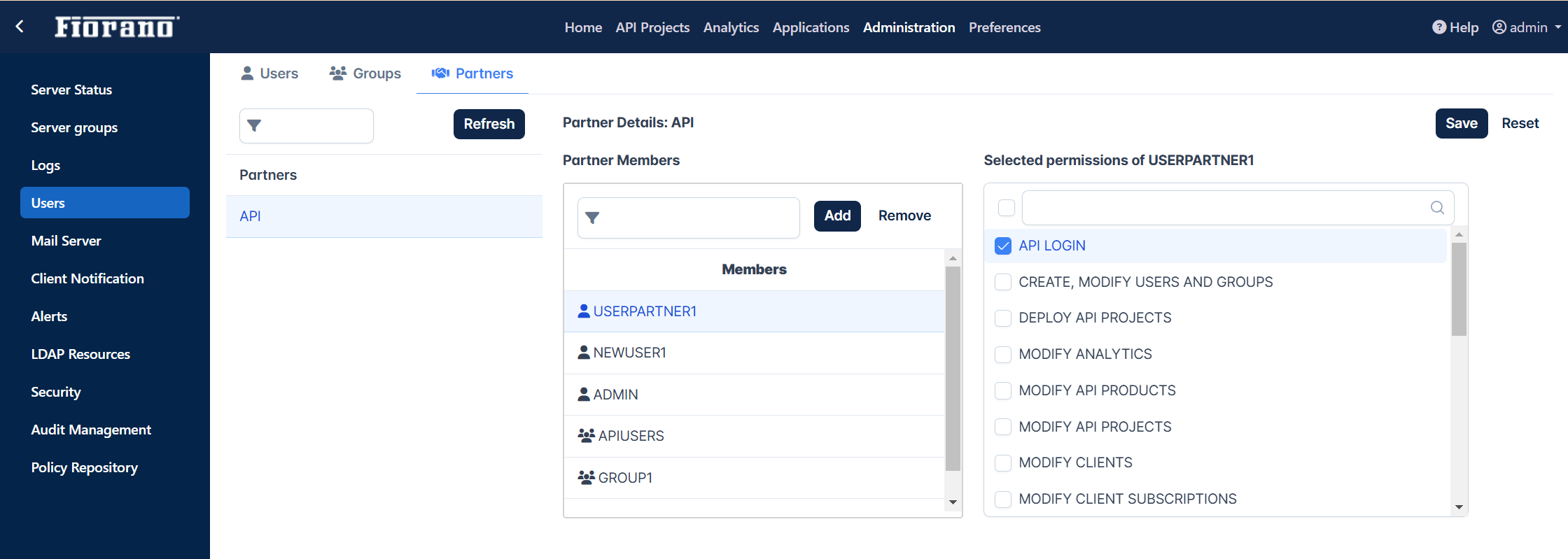

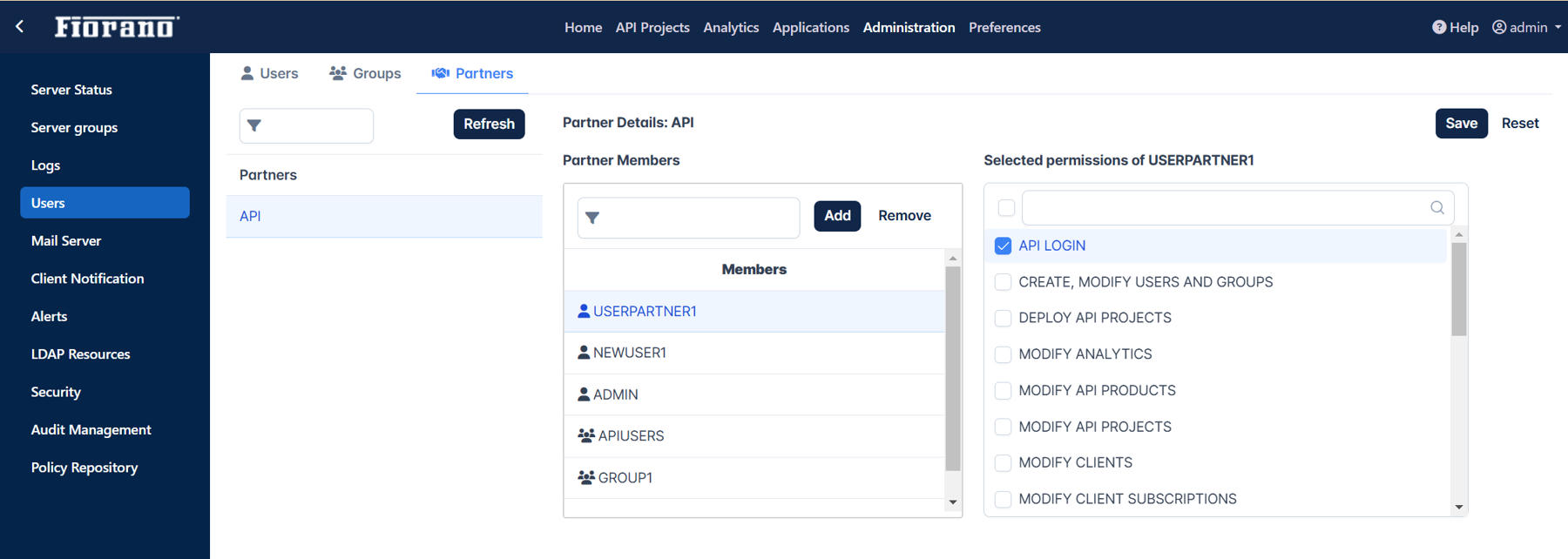

Figure: User added in the Partners tab

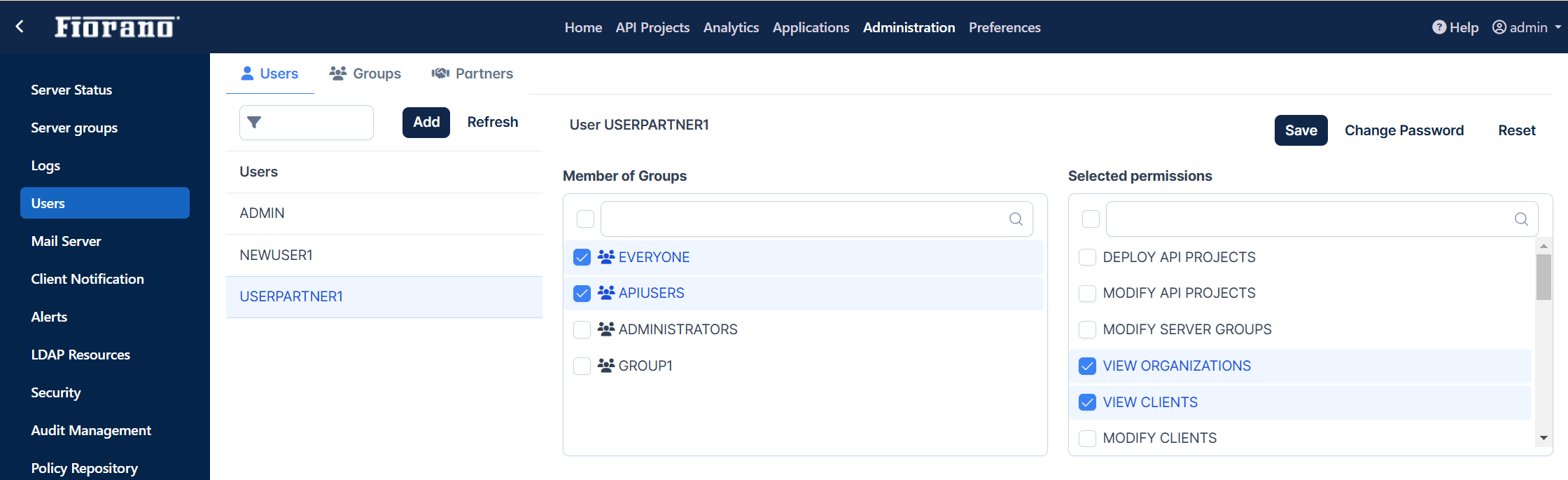

Figure: User added in the Users tab
The permissions for this user can be seen by clicking the user name in both the tables. Modifications made in permissions for the user in the Partners Member table reflects in the Users table as well and vice versa. Similarly, deleting a user from one tab deletes the one in the other tab too.
Adding a group as a partner member
Adding a group works in the same manner as explained in the section above.
Adding a partner as a partner member

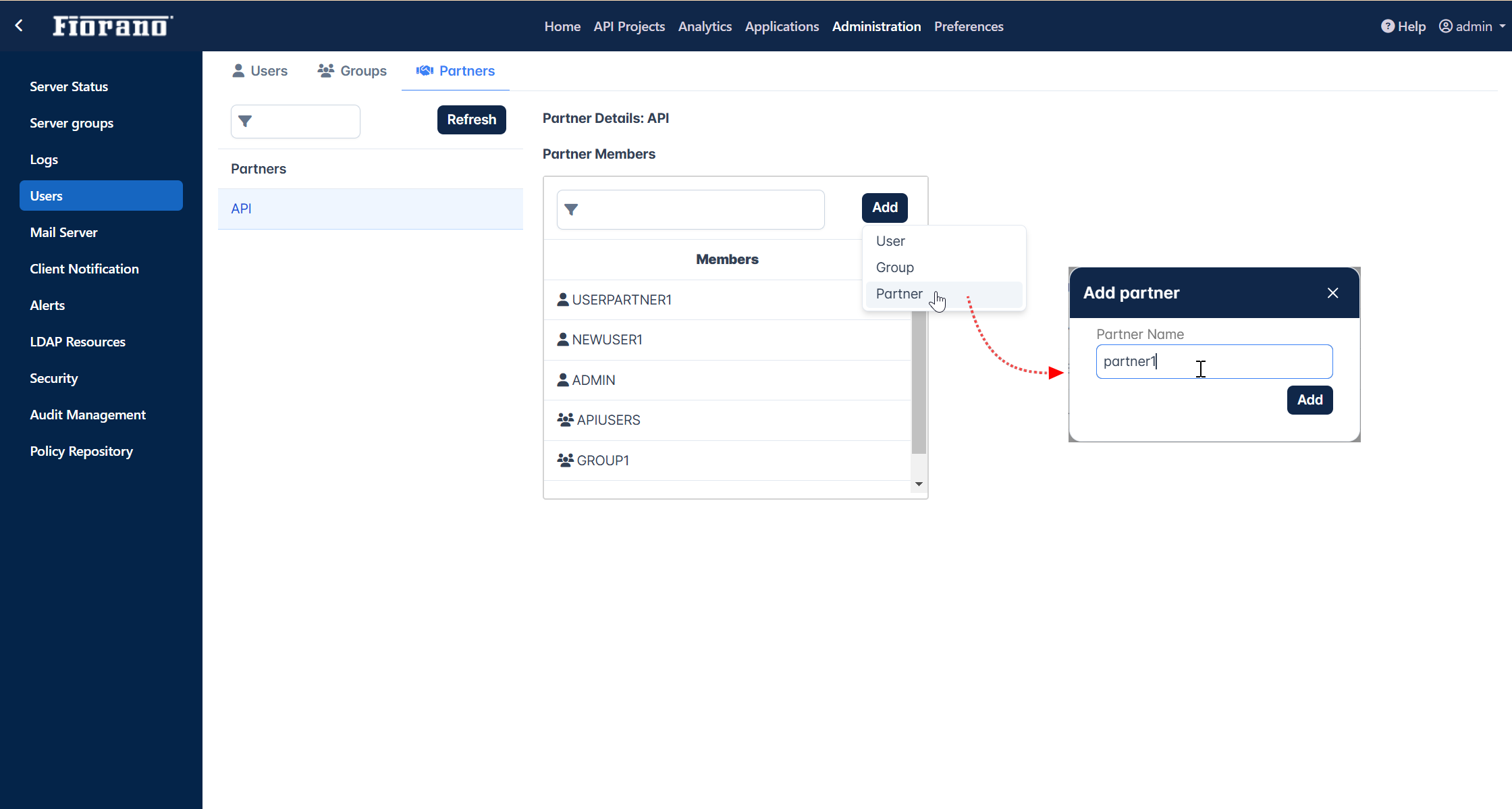

Use the Partner option from the Add button drop-down in the Partner Details: API panel to add a partner for the API partner.
Figure: Partner added in the Partners table
The added partner gets added to the Partners table as well as API Members table.

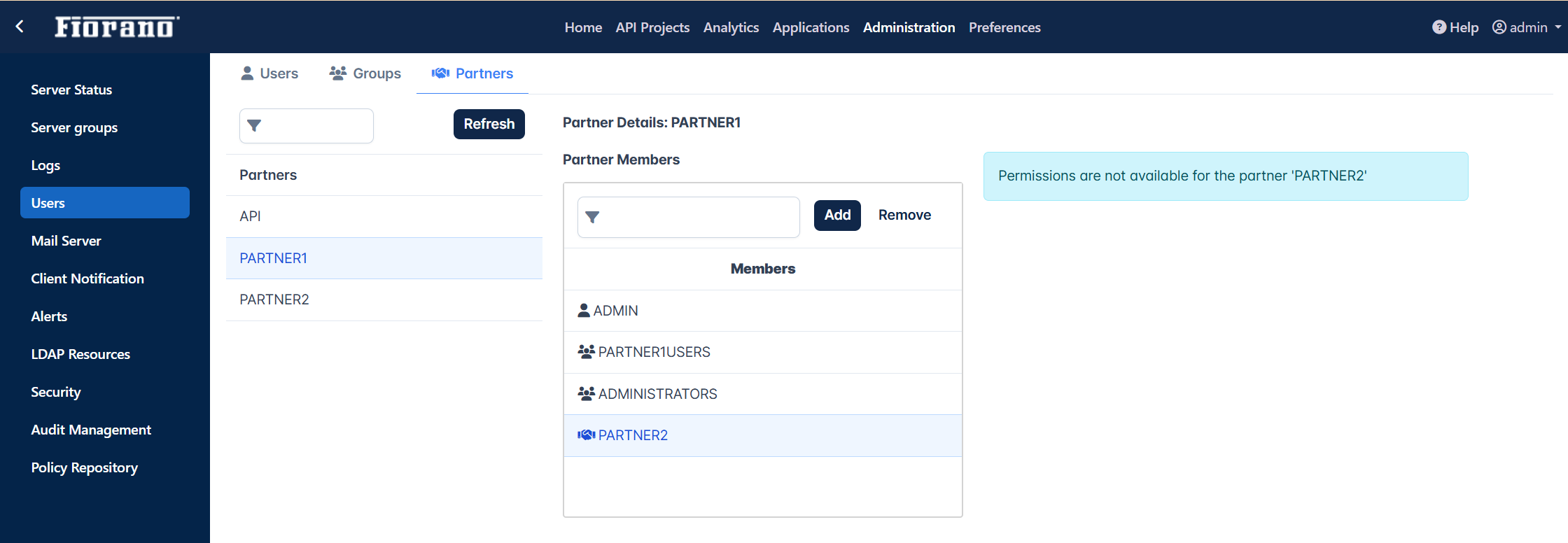

Partners do not have permissions.

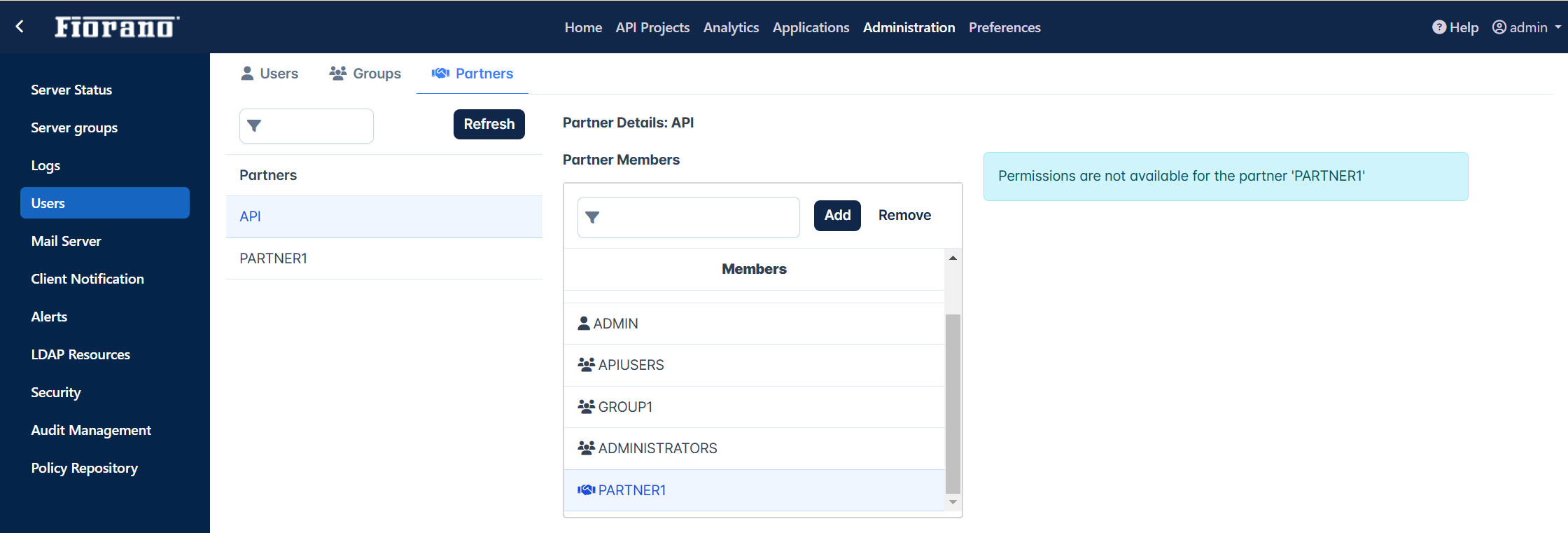

Figure: Partner added in the API Members table
Other Partners
This section explains about the partners added other than the deafult API partner, for example, the one created in the Adding a partner as a partner member section.
Adding user/group/partner as partner member

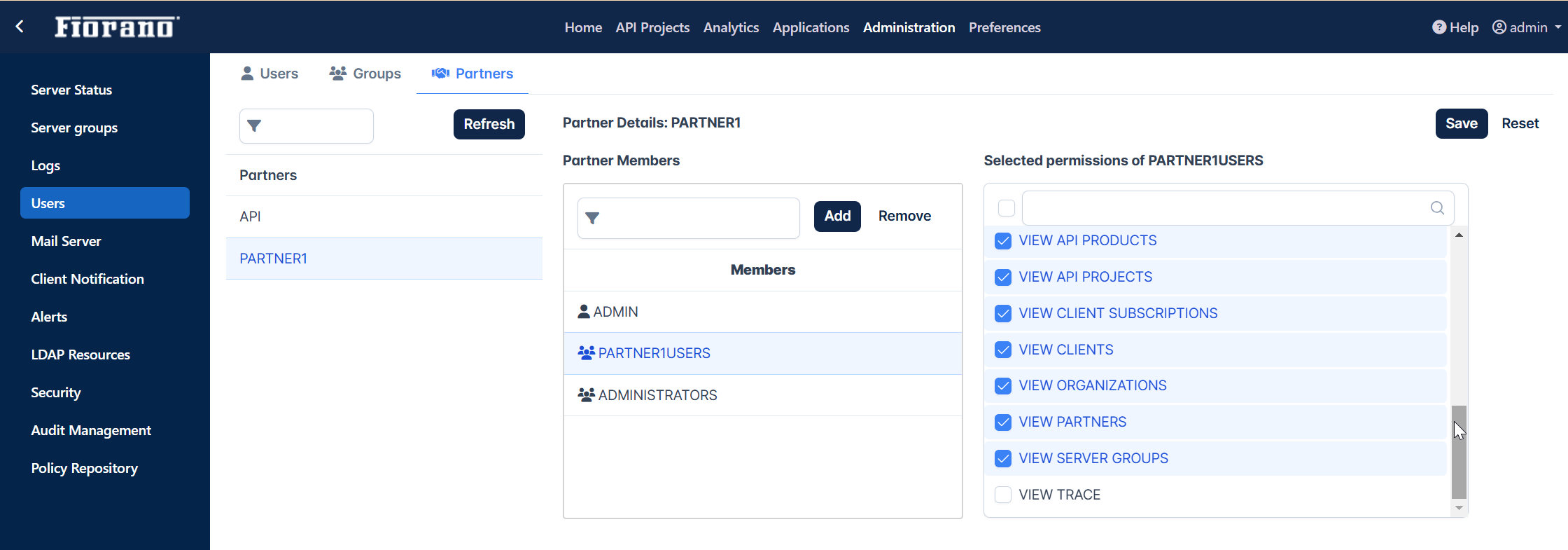

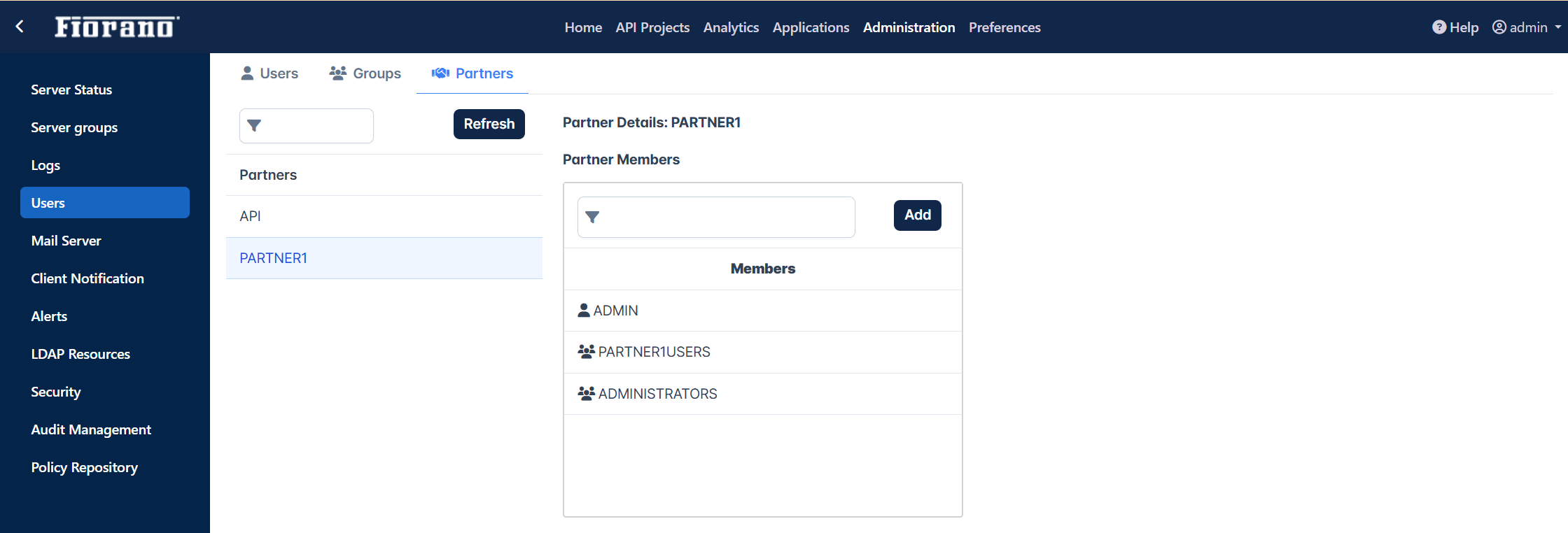

When a new partner is created, by default, its members will be ADMIN, ADMINISTRATORS and a partner user (<partner name>USERS). Permissions of these members are created by default; click the member name for permissions.
For a partner added to the API partner or to another partner added, a user/group/partner can be added just like how it is added to the .
Unlike API partner, the user/group added here won't get reflected in the Users/Groups table but is specific to that individual partner. Thus, addition or deletion of user/groups and their permissions won't get reflected in User/Group tab.
Removing Partners

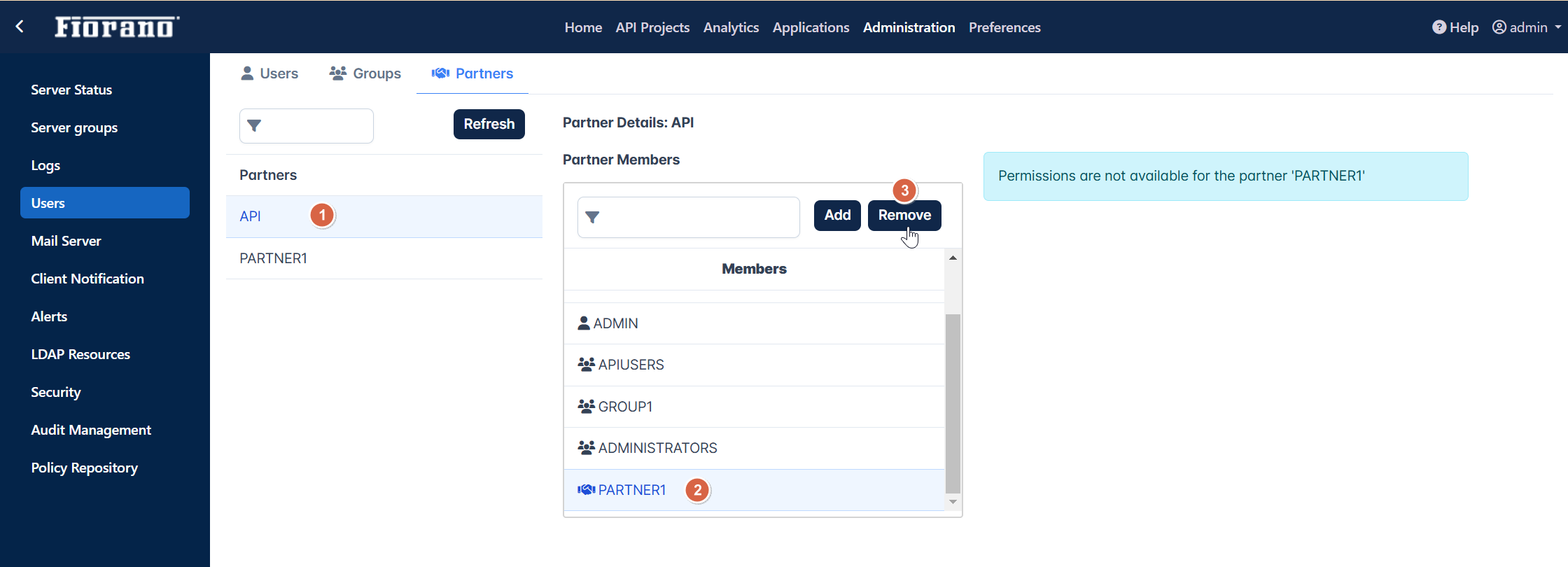

Select the partner name in the Partner Members table of the parent partner ("API" in the figure below) and click the Remove button.
Partners cannot be deleted directly from the Partners list.
On removing a partner, all associated members (can be another partner as in the figure below) will also be removed.
Figure: PARTNER2 is the partner of PARTNER1; removing PARTNER1 from API removes PARTNER2 also
