Server Status

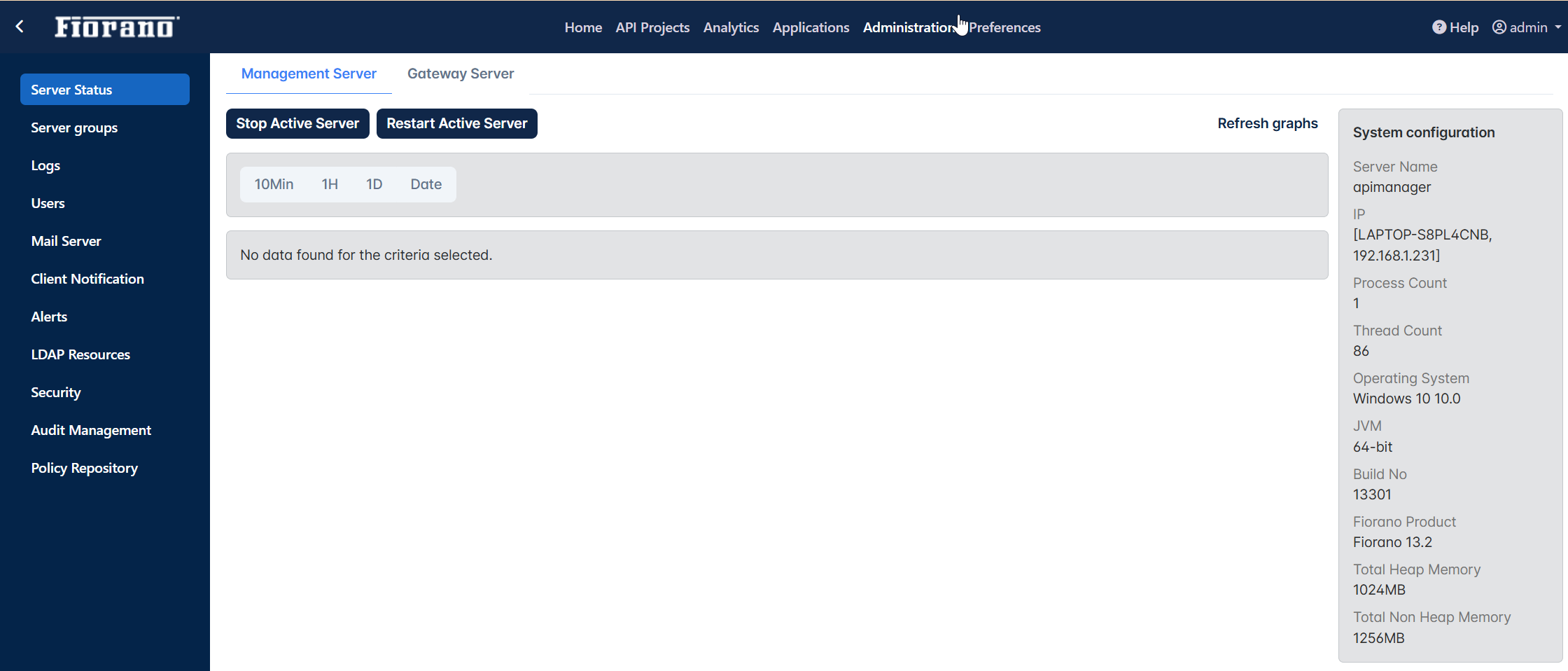

Server Status page is the landing page of the Administration section.

Server Status page

  • displays the system details of the Management Servers and Gateway Servers

  • provides a graphical view of the CPU utilization and memory usage statistics

  • enables stopping and restarting of a running Active/Passive server

The Server Details displayed on the right side of the screen.

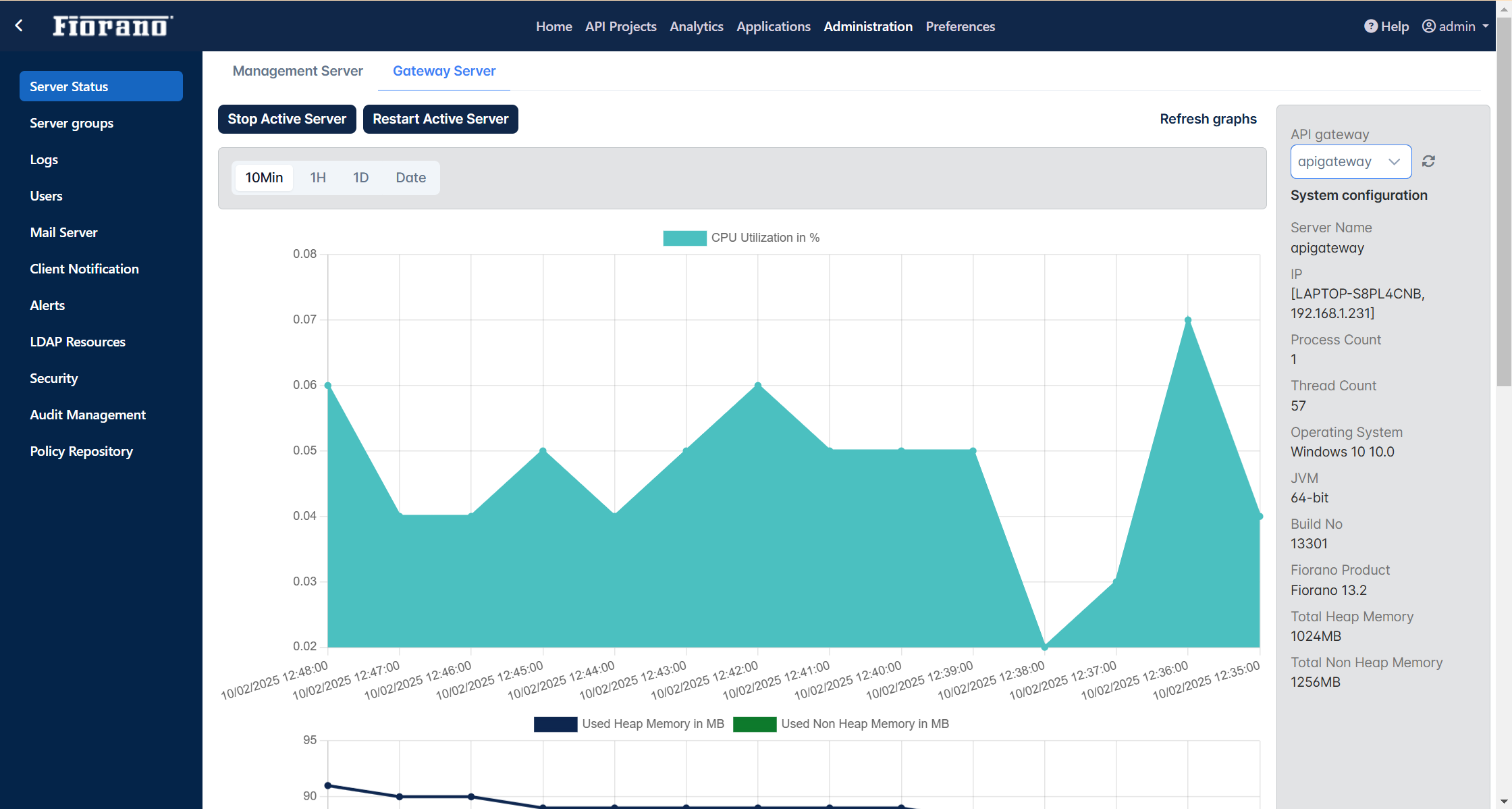

Figure 1: Server Status page in the Administration section

Analyzing CPU and Memory Utilisation using Graphs

Select the Time Interval to generate graphs for the respective period after clicking the Management Server or Gateway Server tab (select the server name also in case of Gateway server).


  • The Refresh graphs button on the upper-right part of the Management Server and Gateway Server screens helps to update the graph reflecting the latest data.

  • By default, the chart type will be "Line" type. This can be changed to "Bar" type in Preferences > Analytics.

Time Interval

To analyze CPU utilization and memory, select the given set of time intervals to see the performance during that time. Select the Time Interval from the following options:

  • 10 min (minute)

  • 1 H (hour)

  • 1 D (day)

  • Date

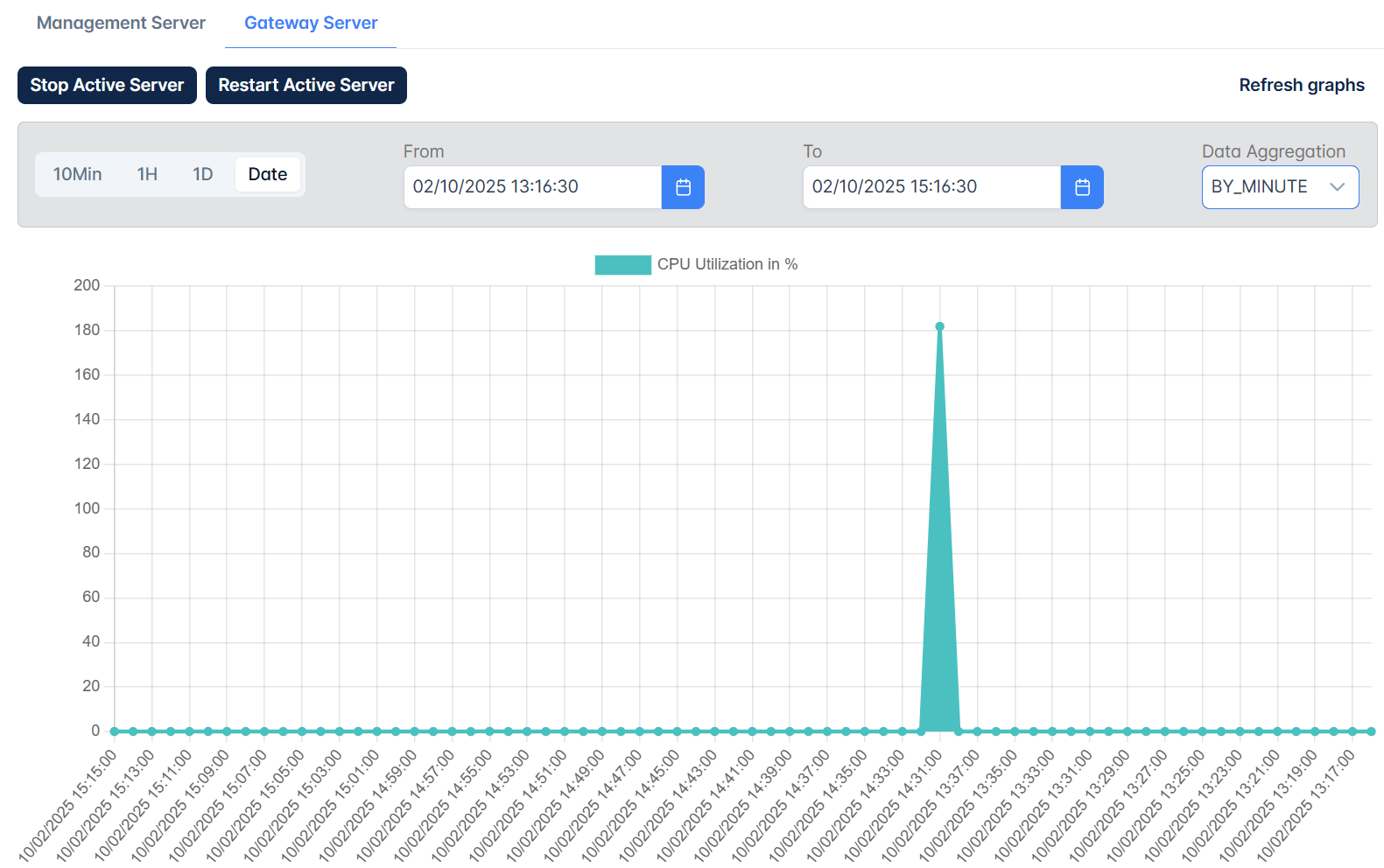

Date option

Set the start and end timing and choose the Data Aggression option from the below:

  • By Day

    This option is available only if the time interval is above 1 day. This will be the only option available after 3 days interval.

  • By Hour

    This option is available only if the time interval is 1-2 days.

  • By Minute

    This option is available only if the time interval is 1 day.

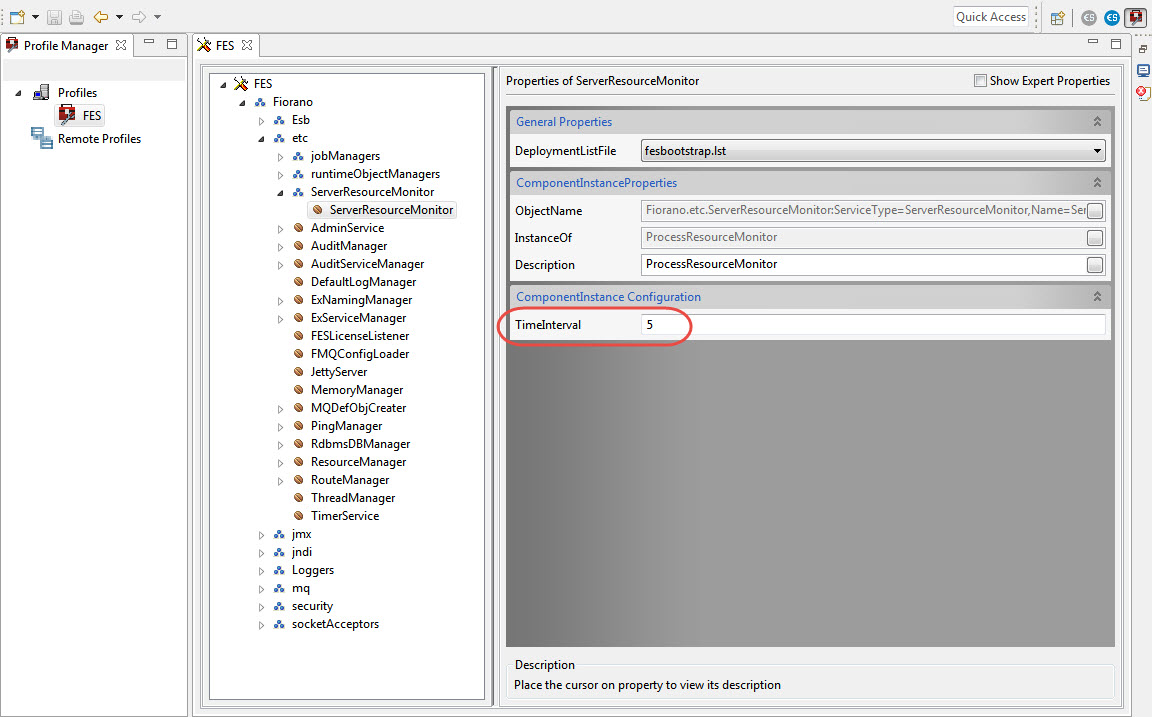

The default time interval for logging server memory details is 5 minutes. This can be changed in eStudio Profile Management Fiorano > etc > ServerResourceMonitor.


Stopping and Restarting Servers

Stopping Servers

Refer the Shutting down servers section to know how to stop active/passive servers.

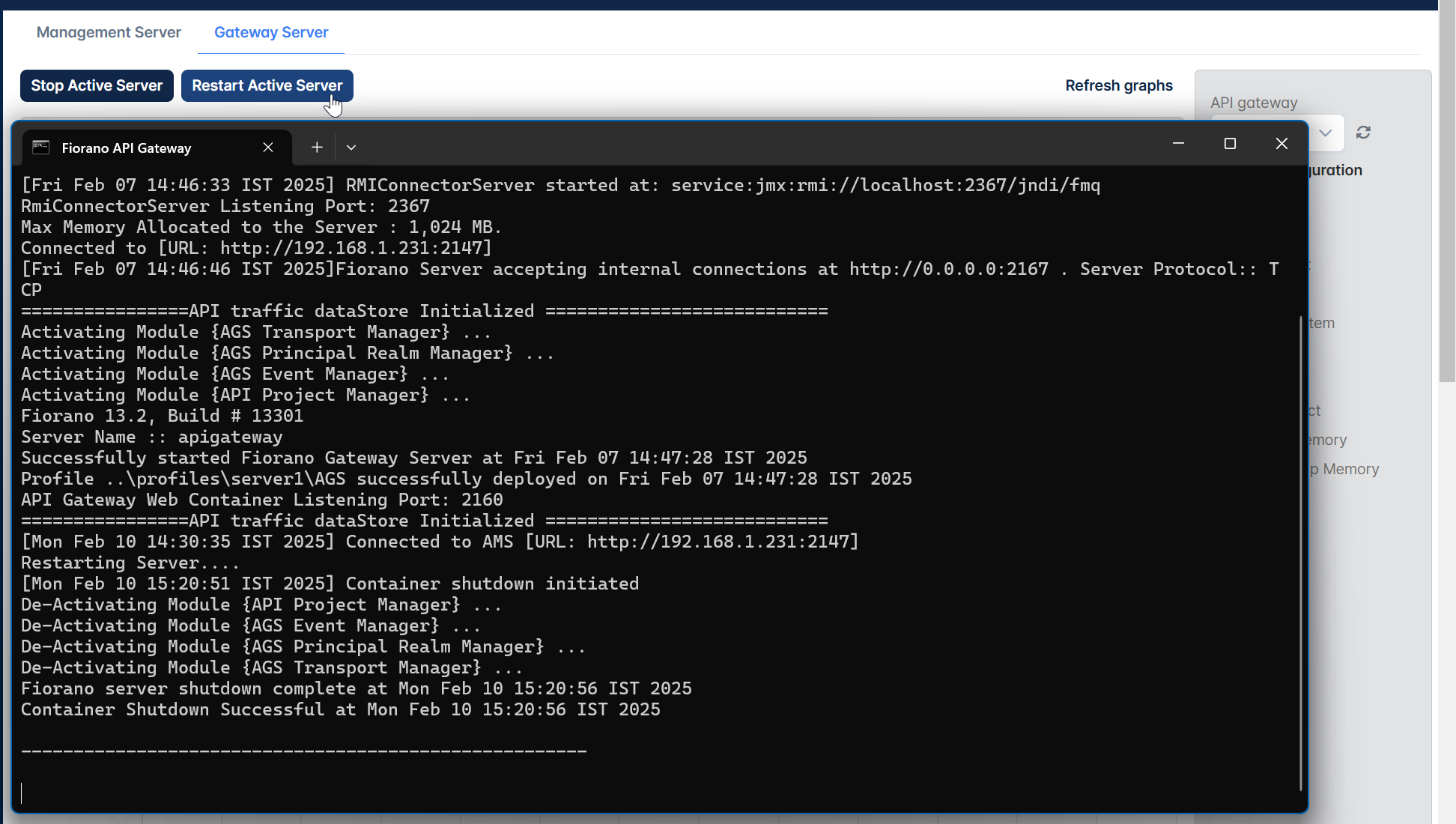

Restarting Servers

  • Management Server: Click the Management Server tab and click the Restart Active Server button to restart an active server.

  • Gateway Servers: Click the Gateway Server tab, select the server name from the Gateway Name drop-down, and click the Restart Active Server button to restart an active server.


Saving Charts

Right-click the graph and click the Save image as option or the Copy Image option to save the graph.
