Mail Server
The Mail Server enables sending Analytics notification emails, connecting with the Developer Portal.
A valid SMTP configuration is required to configure the mail server and use this server to send and receive emails. The SMTP server can be secured by setting authentication using username and password credentials.

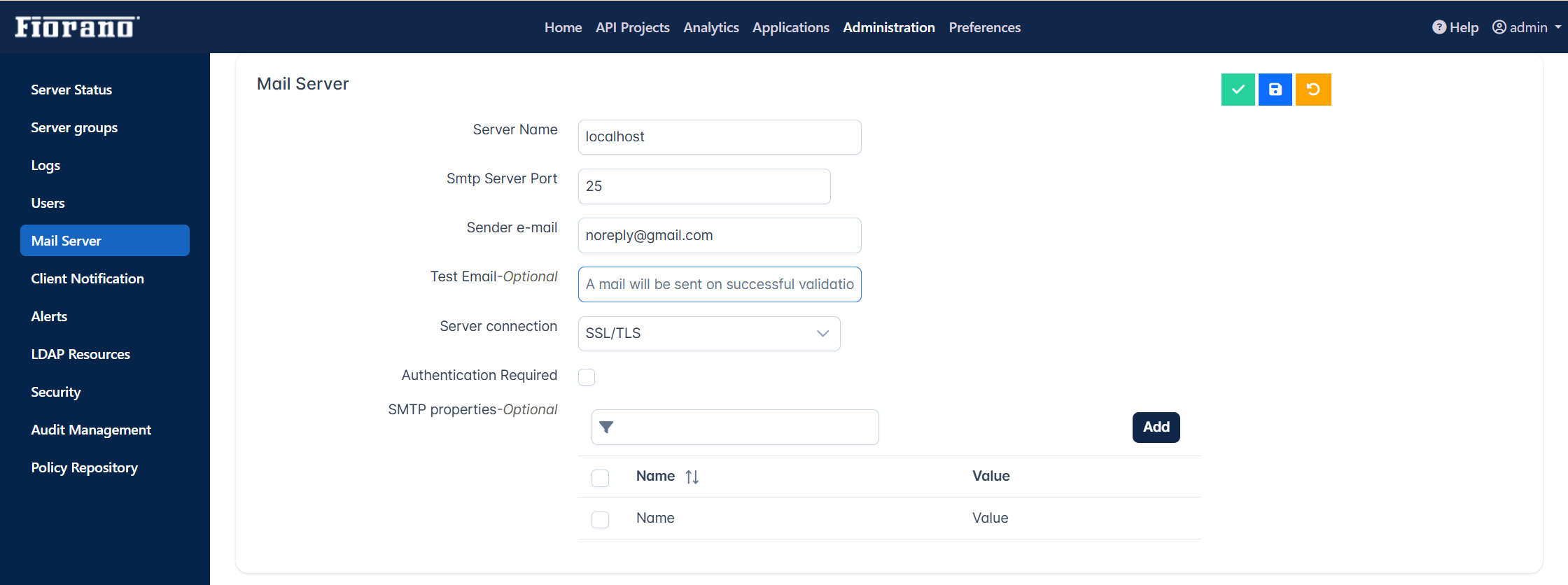

Figure 1: SMTP configuration properties for the Mail Server
| Attributes | Description |
|---|---|
| Server Name | Provide the SMTP Server name. Provide 'localhost' if the server is running in the local system. |
| Smtp Server Port | Provide the port number of the SMTP server port. |
| Sender Email | Email address of the sender. |
| Test Email | To send a notification mail upon validation. |
| Server Connection Type | Select from the options below:
|

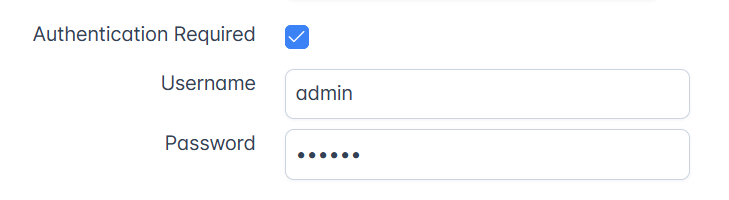

| Authentication Required | Enable to set authentication using username and password credentials.
After providing the authentication details, click the Validate icon to check the test authentication. |
| SMTP properties | Settings are used to provide access to an SMTP server. Provide property and value. |
Ensure clicking the Save icon to save the configuration
.
