IP Ports Reference Matrix
Below are the default ports configured in given profiles:
| Ports | Profiles | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FES (profile1) | FPS (profile1) | FPS1 (profile2) | FES (server1) | FPS (server1) | FPS (server2) | AMS (server1) | AGS (server1) | AGS1 (server2) | FES HA Primary (Rpl) (haserver1) | FES HA Secondary (Rpl) (haserver1) | FPS HA Primary (Rpl) (haserver1) | FPS HA Secondary (Rpl) (haserver1) | FPS1 HA Primary (Rpl) (haserver2) | FPS1 HA Secondary (Rpl) (haserver2) | FES HA Primary (Rpl) (haprofile1) | FES HA Secondary (Rpl) (haprofile1) | FPS HA Primary (Rpl) (haprofile1) | FPS HA Secondary (Rpl) (haprofile1) | FPS1 HA Primary (Rpl) (haprofile2) | FPS1 HA Secondary (Rpl) (haprofile2) | FES HA Primary (Sh) (haprofile_shared) | FES HA Secondary (Sh) (haprofile_shared) | FPS HA Primary (Sh) (haprofile_shared) | FPS HA Secondary (Sh) (haprofile_shared) | AMS HA Primary | AMS HA Secondary (haserver1) | AGS HA Primary (haserver1) | AGS HA Secondary (haserver1) | |
| RMI Port | 2047 | 2067 | 2077 | 2047 | 2067 | 2077 | 2347 | 2367 | 2377 | 2047 | 2048 | 2067 | 2068 | 2077 | 2078 | 2047 | 2048 | 2067 | 2068 | 2077 | 2078 | 2047 | 2048 | 2087 | NA | 2347 | 2348 | 2367 | 2368 |
| External Port | 1947 | NA | NA | 1947 | NA | NA | 2248 | NA | NA | 1947 | 1948 | NA | NA | NA | NA | 1947 | 1948 | NA | NA | NA | NA | 1947 | 1948 | NA | NA | 2247 | 2248 | NA | NA |
| Internal Port | 1847 | 1867 | 1877 | 1847 | 1867 | 1877 | 2147 | 2167 | 2177 | 1847 | 1848 | 1867 | 1868 | 1877 | 1878 | 1847 | 1848 | 1867 | 1868 | 1877 | 1878 | 1847 | 1848 | 1887 | 1888 | 2147 | 2148 | 2167 | 2168 |
| Backup Server Port | NA | NA | NA | NA | NA | NA | NA | NA | NA | 1848 | 1847 | 1868 | 1867 | 1878 | 1877 | 1848 | 1847 | 1868 | 1867 | 1878 | 1877 | 1848 | 1847 | 1888 | 1887 | 2148 | 2147 | 2168 | 2167 |
| HA Port | NA | NA | NA | NA | NA | NA | NA | NA | NA | 1747 | 1748 | 1767 | 1768 | 1777 | 1778 | 1747 | 1748 | 1767 | 1768 | 1777 | 1778 | 1747 | 1748 | 1787 | 1788 | 1757 | 1758 | 1787 | 1788 |
| Backup HA Port | NA | NA | NA | NA | NA | NA | NA | NA | NA | 1748 | 1747 | 1768 | 1767 | 1778 | 1777 | 1748 | 1747 | 1768 | 1767 | 1778 | 1777 | 1748 | 1747 | 1788 | 1787 | 1758 | 1757 | 1788 | 1787 |
| Primary FES Port | NA | 1847 | 1847 | NA | 1847 | 1847 | NA | 2147 | 2147 | NA | NA | 1847 | 1847 | 1847 | 1847 | NA | NA | 1847 | 1847 | 1847 | 1847 | Na | Na | 1847 | 1847 | NA | NA | 2147 | 2147 |
| Backup FES Port | NA | 1848 | 1848 | NA | 1848 | 1848 | NA | 2148 | 2148 | NA | NA | 1848 | 1848 | 1848 | 1848 | NA | NA | 1848 | 1848 | 1848 | 1848 | Na | Na | 1848 | 1848 | NA | NA | 2148 | 2148 |
| Jetty Port | 1980 | 1880 | 1890 | 1980 | 1880 | 1890 | NA | NA | NA | 1980 | 1980 | 1880 | 1880 | 1890 | 1890 | 1980 | 1980 | 1880 | 1880 | 1890 | 1890 | 1980 | 1980 | 1900 | 1900 | NA | NA | NA | NA |
| API Jetty Port | NA | NA | NA | 1981 | 1860 | 2170 | 1981 | 2160 | 2170 | 1981 | 1981 | 1860 | 1860 | 2170 | 2170 | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | 1981 | 1981 | 2160 | 2160 |
| Cassandra DB Port | NA | NA | NA | 9042 | 9042 | 9042 | 9042 | 9042 | 9042 | 9042 | 9042 | 9042 | 9042 | 9042 | 9042 | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA | 9042 | 9042 | 9042 | 9042 |
- FES: Fiorano Enterprise Server
- FPS: Fiorano Peer Server
- AMS: API Management Server
- AGS: API Gateway Server
- Rpl: Replicated Mode
- Clients only need to be aware of the ports below; details of other ports are for informational purposes:
- 1947 to connect to the Primary Fiorano Server from external tools.
- 1948 to connect to Secondary Fiorano Server from external tools.
- RMI Ports are used to edit server parameters in the online mode.

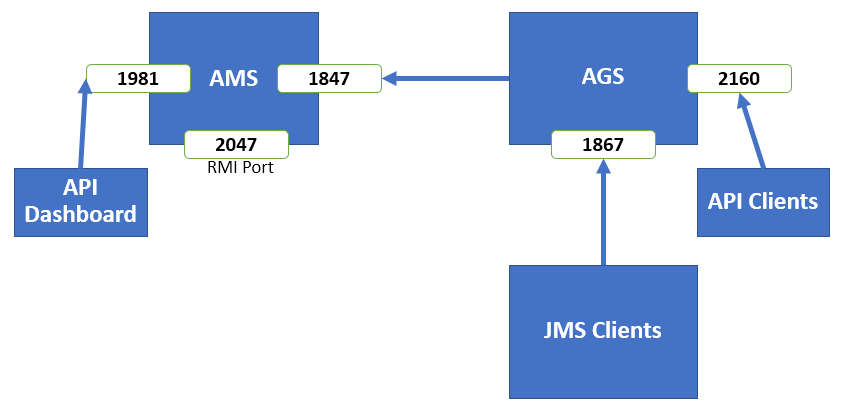

API Management Standalone Architecture
