Group By conditions
Group By option
After selecting the Metrics to Analyze from the Analyze drop-down list, it is possible to deepen the analysis by using the Group by option with the appropriate value set.
Click the Add button to choose a Group by option and provide the appropriate value under the Advanced Search section.
Group by has the following options in the drop-down list:
- Server
- Product
- Project
- Resource
- Client
- Client Subscription
- Client IP
- Client Host
- Project Version
- Proxy Request Verb
- Proxy Response Code
- Target Request Verb
- Target Response Code
- Target URL
- User-defined Dimension

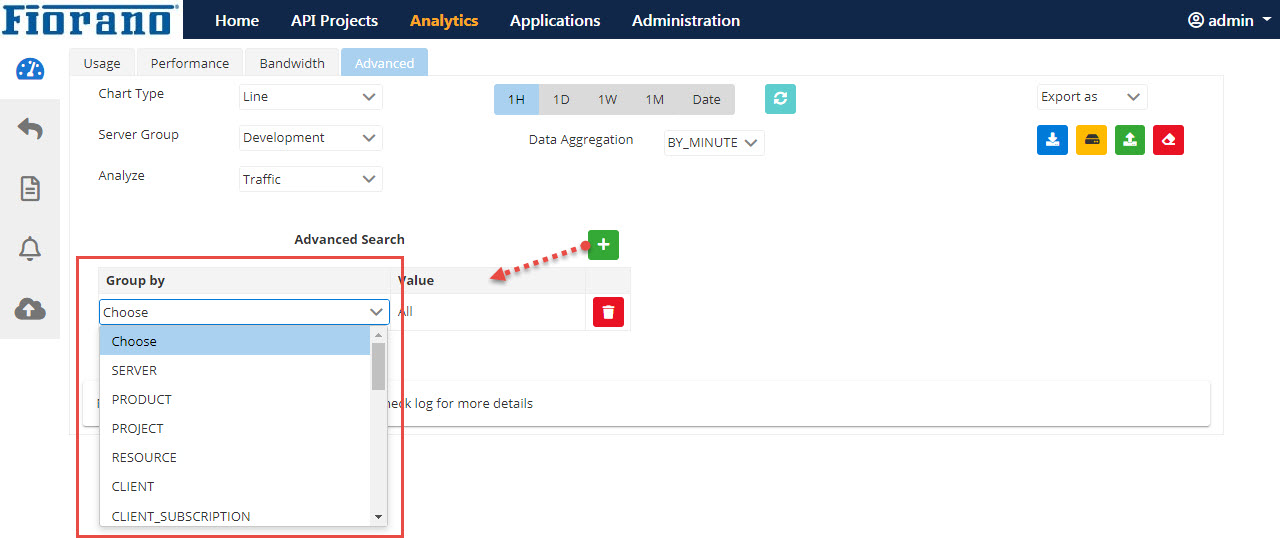

Figure 1: Analytics page with 'group by' drop-down list expanded
Setting a value
After selecting a Group by option, the value property helps to choose the value for the selected option that needs to be grouped. For example, if grouped by 'Server', it is possible to narrow down to a particular server to analyze the data related to that server.

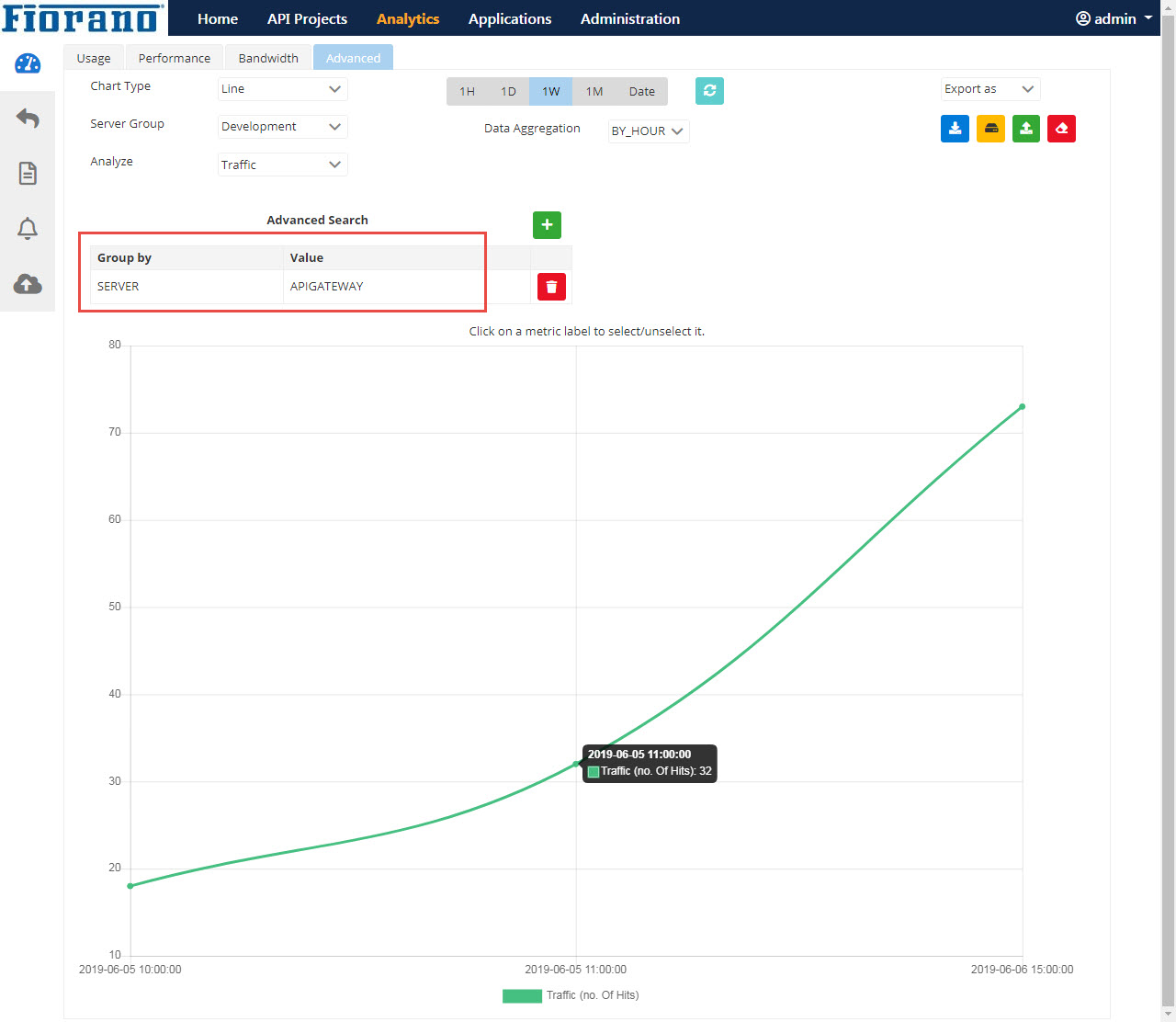

Figure 2: Group by option selected as 'SERVER' and further narrowed down selecting a particular server - APIGATEWAY
Further Conditions
After setting a Group by condition, more criteria may be set using the Advanced Search option. More conditions may be added to further narrow down the criteria.

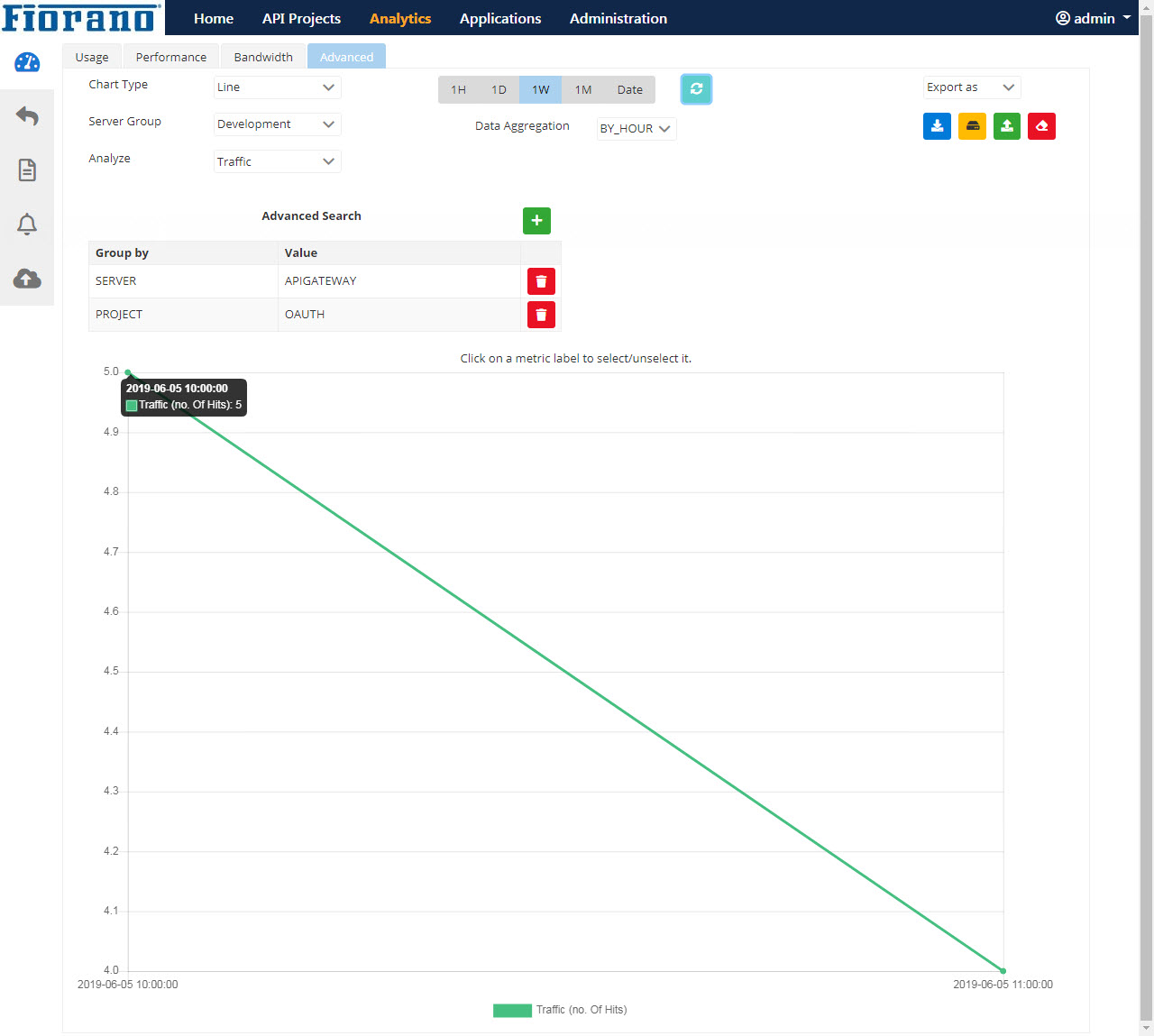

Figure 3: Line chart displayed for conditional criteria
In the above figure, the statement reads as "Analyze TRAFFIC where SERVER is APIGATEWAY and PROJECT is OAUTH".
Filter using more options to build elaborate conditional criteria depending on the depth of analysis.
