This option allows selecting the type of recorded data that is to be analyzed and the X-Y axis representation for each merics as mentioned below.

analyse_by_metrics 1.png

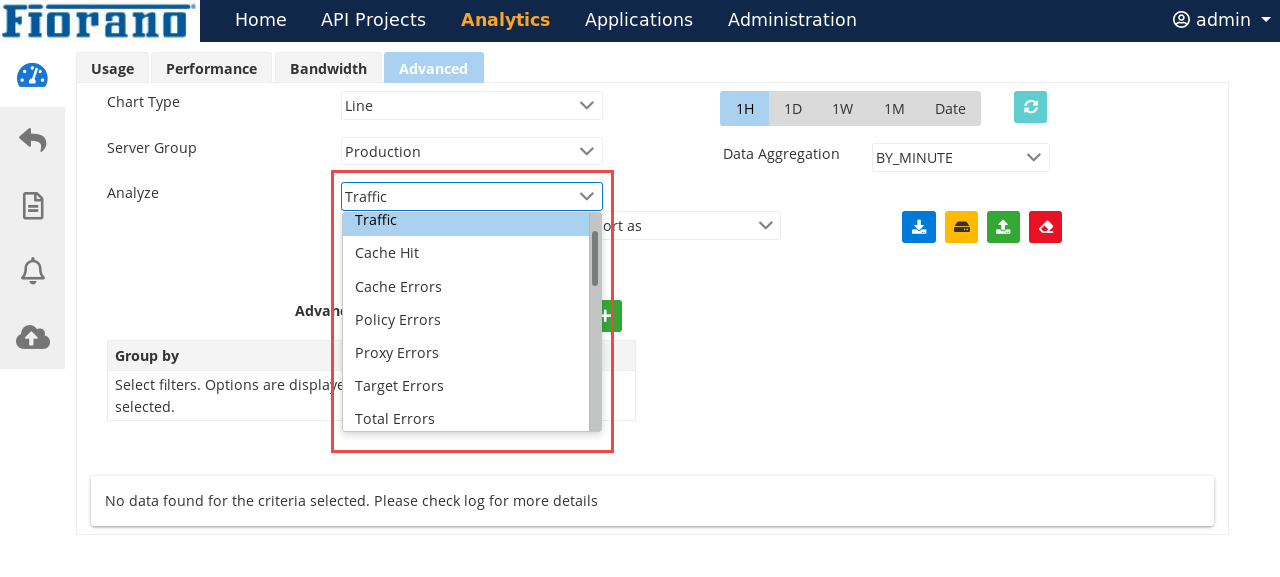

Figure 1: Analytics section with the list of Metrics displayed under Analyze drop-down list

To change from one metrics option to the other, select the desired option from the Analyze drop-down list as shown above.

Refer to the table below for the descriptions of all Metric options

Metric Option	Description	Metric Option	Description
TRAFFIC	Number of calls received by the server.	AVG_PROXY_REQUEST_SIZE	Average size in bytes that is received from the client.
CACHE_HIT	Number of times a response is retrieved from the cache without calling the backend server	MAX_PROXY_REQUEST_SIZE	Maximum size in bytes that is received from the client.
PROXY_ERRORS	Number of errors occurred in the proxy pipeline.	MIN_PROXY_REQUEST_SIZE	Minimum size in bytes that is received from the client.
CACHE_ERRORS	Number of errors occurred while accessing the cache.	AVG_PROXY_RESPONSE_SIZE	Average size in bytes that is sent to the client.
TOTAL_ERRORS	Total number of Errors occurred in the Proxy as well as the backend server.	MAX_PROXY_RESPONSE_SIZE	Maximum size in bytes that is sent to the client.
POLICY_ERRORS	Number of Errors occurred due to violation of policies.	MIN_PROXY_RESPONSE_SIZE	Minimum size in bytes that is sent to the client.
AVG_PROXY_PROCESSING_TIME	Average time in milliseconds that a request is processed in the proxy server.	AVG_TARGET_REQUEST_SIZE	Average size of the request in bytes sent to the target server.
MAX_PROXY_PROCESSING_TIME	Maximum time in milliseconds that a request is processed in the proxy server.	MAX_TARGET_REQUEST_SIZE	Maximum size of the request in bytes sent to the target server.
MIN_PROXY_PROCESSING_TIME	Minimum time in milliseconds that a request is processed in the proxy server.	MIN_TARGET_REQUEST_SIZE	Minimum size of the request in bytes sent to the target server.
AVG_TARGET_PROCESSING_TIME	Average time in milliseconds that a request is processed by the backend server.	AVG_TARGET_RESPONSE_SIZE	Average size of the response in bytes received from the target server.
MAX_TARGET_PROCESSING_TIME	Maximum time in milliseconds that a request is processed by the backend server.	MAX_TARGET_RESPONSE_SIZE	Maximum size of the response in bytes received from the target server.
MIN_TARGET_PROCESSING_TIME	Minimum time in milliseconds that a request is processed by the backend server.	MIN_TARGET_RESPONSE_SIZE	Minimum size of the response in bytes received from the target server.

Table 1: X-Y axis representation for the recorded Metric Type selected

analyse_by_metrics 2.png
Figure 2: Analyze option with the Porxy_Error metrics selected
