Time Frame and Data Aggregation

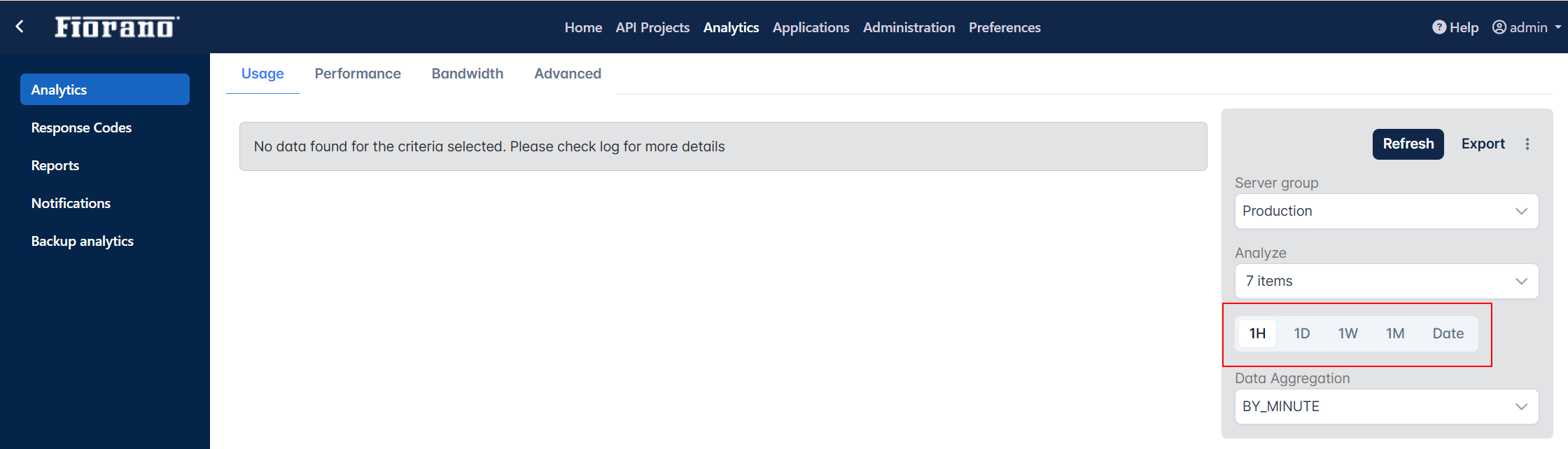

Predefined Time Frame

API Management provides predefined options of Time Period such as:

• 1H: Last Hour
• 1D: Last 24 Hours
• 1W: Last Week
• 1M: Last Month
• Date: Date Range

The first four options are fixed time options, whereas the last option is a user-defined time option to pick the desired time period by choosing the start and end date.

When the Date Range option is selected, a calendar is displayed using which the Start and End dates may be specified.

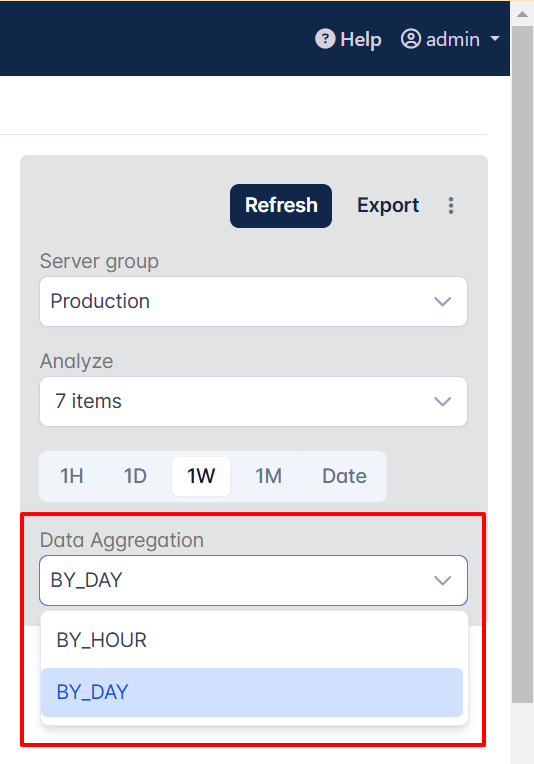

Data Aggregation

Depending on the time period selected, Data Aggregation option allows to group the data to further narrow down the data analysis:

• By Minute: this option is available for only 1 Hour period
• By Hour: this option is not available for 1 Hour and 1 Month period
• By Day: this option is not available for 1 Hour period

• By Week: this option is only available for 1 Month or more (Date range)

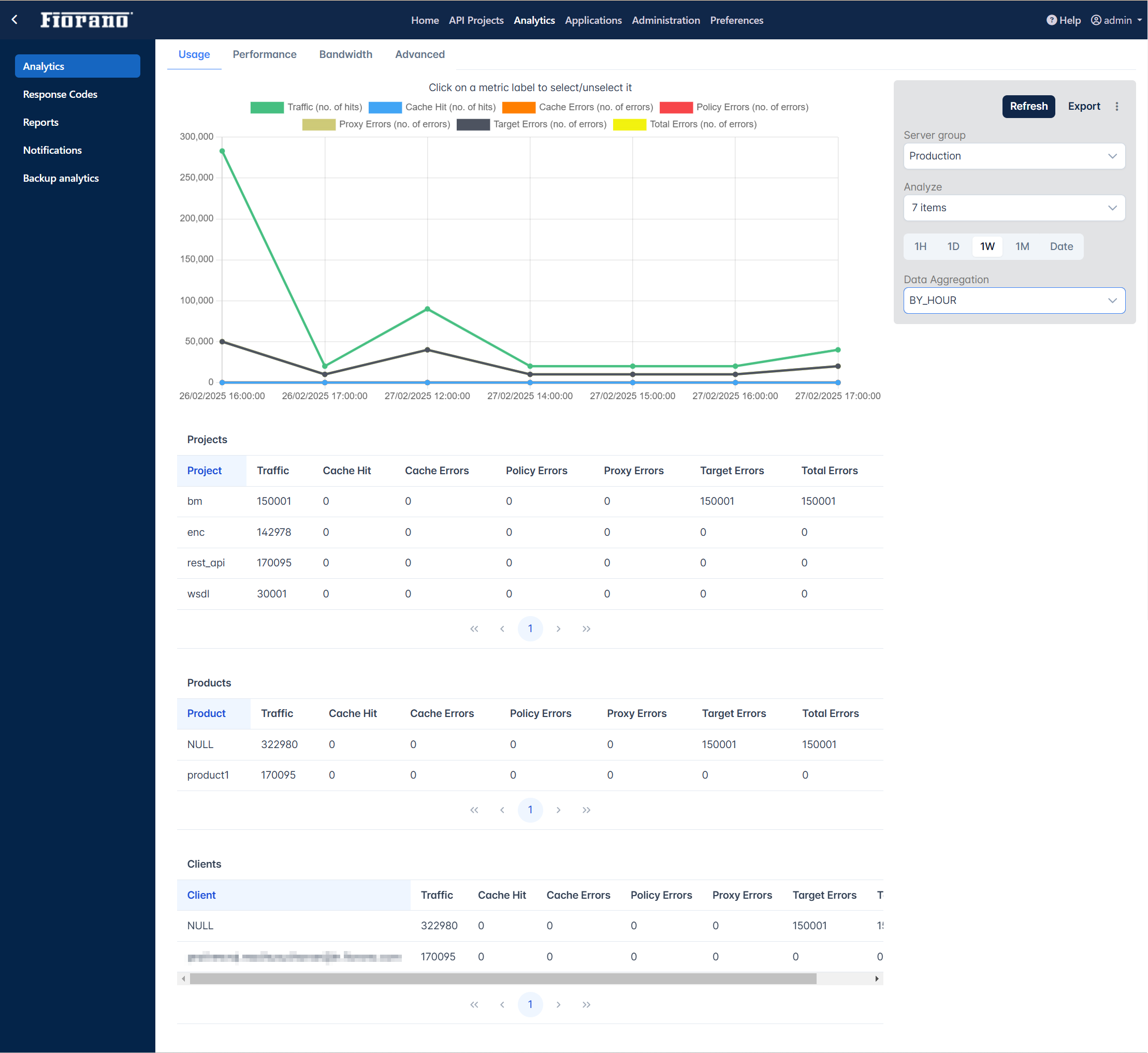

Below is a Line chart selected for 1 week and hourly data aggregation.
