Modifying the Port Number

This configuration is done in the offline mode.

For information about configuring the FioranoMQ profile through a text based file, see FioranoMQ Getting Started.

1. Launch Fiorano eStudio.


2. Select the Profile Manager pane, and open the profile whose port number is to be changed.

3. Navigate to the Connection Manager instance in the profile.

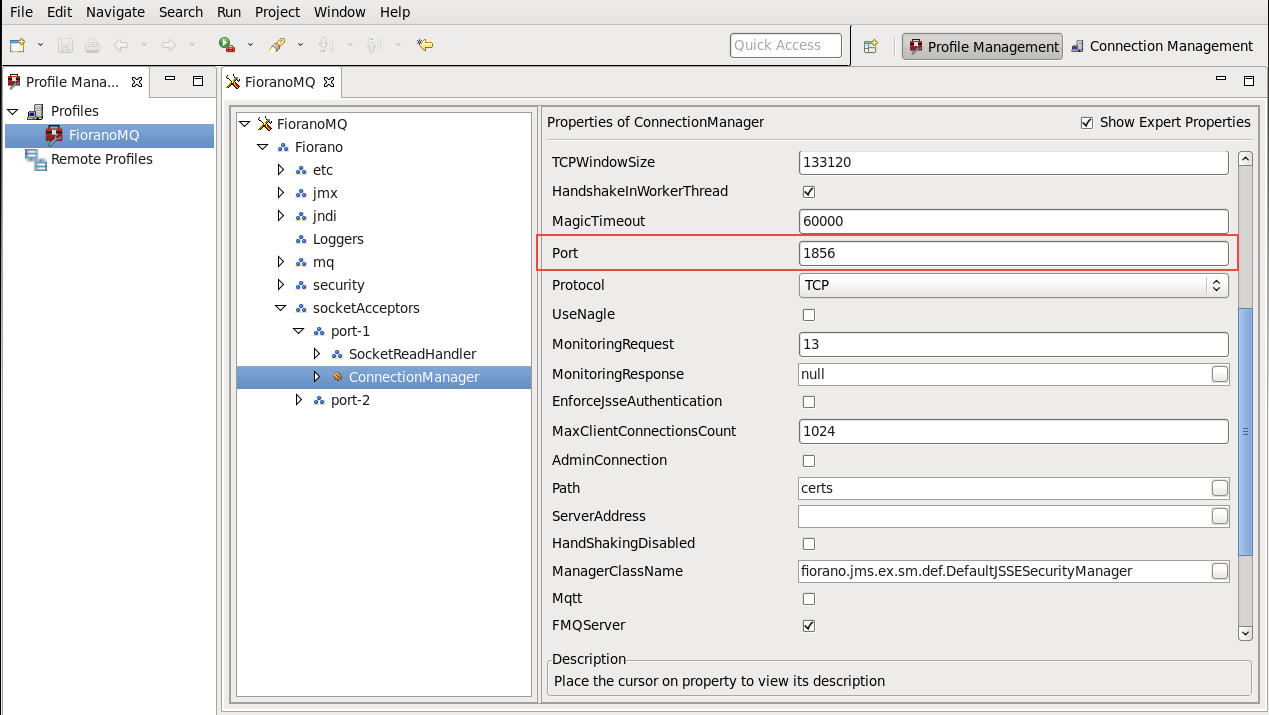

4. Edit the port number in the Properties pane.







5. Right-click the FioranoMQ node, and select the Save option from the pop-up menu.


Changing port number requires that the default connection factories created by the server be re-bound.
