MT2XML

MT2XML transforms SWIFT Message Type (MT) messages to XML conforming to the schemas issued by SWIFT in SWIFT Standards Developer Kit (SDK).

Configuration and Testing

Component Configuration

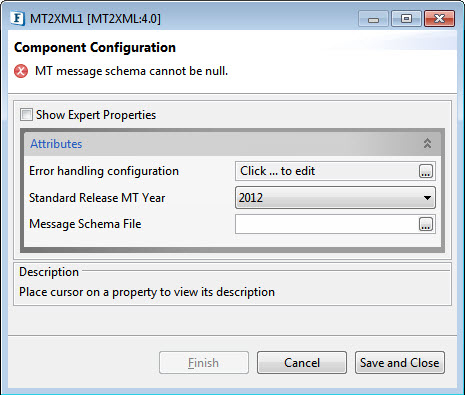

Figure 1: MT2XML configuration properties

Attributes

Error handling configuration

Please refer Error Handling section in Common Configurations page.

Standard Release MT Year

Year in which SWIFT released SDK schemas.
Standard Release Years supported by MT2XML component and available in this property are:

  • 2012
  • 2013
Message Schema File

Name of standard MT message schema present in Schema Repository, for example 'fin.202.2012.xsd. It is the Schema file according to which transformed XML conforms.

These schema files are present at the following location:
%FIORANO_HOME%\xml-catalog\fiorano\swift\mtxml\<StandardReleaseMTYear>.

The component supports MT-XML transformation of all MT messages.

Expert Properties

Enable the Expert Properties view to configure these properties.

Expert properties are meant for advanced users; use with caution.

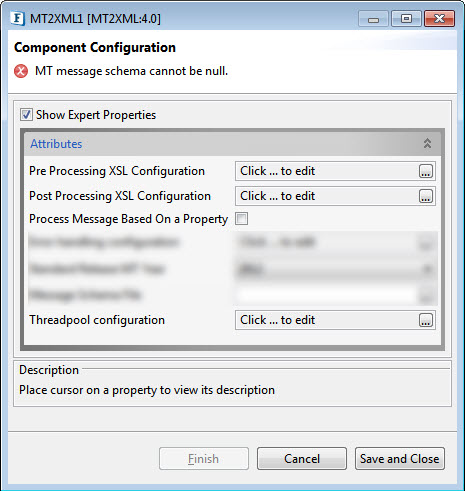

Figure 2: Expert properties for MT2XML

Pre Processing XSL Configuration

Pre Processing XSL configuration can be used to transform request message before processing it. Click the ellipses button against the property to configure the properties.

Refer to the Pre/Post Processing XSL Configuration section under the Common Configurations page for details regarding Pre Processing XSL configuration and Post Processing XSL configuration (below).

Post Processing XSL Configuration

Post Processing XSL configuration can be used to transform the response message before sending it to the output port.

Process Message Based on Property

The property helps components to skip certain messages from processing.

Refer to the Process Message Based On a Property section under the Common Configurations page.

Threadpool Configuration

This property is used when there is a need to process messages in parallel within the component, still maintaining the sequence from the external perspective.

  • Limit the usage of the Threadpool Configuration property only in circumstances as mentioned above.
  • If sequential processing is not required, please use sessions on the input port.

Click the Threadpool Configuration ellipsis button to configure the Threadpool Configuration properties.


Figure

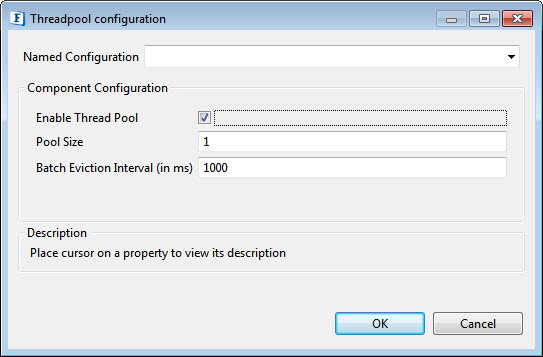

 3: Threadpool Configuration

Enable Thread Pool

Enable this option to configure the properties that appear as below.

Pool Size

Number of requests to be processed in parallel within the component. Default value is '1'.

Batch Eviction Interval (in ms)

Time in milliseconds after which the threads are evicted in case of inactivity. New threads are created in place of evicted threads when new requests are received. Default value is '1000'.

Testing

Input and Output

Sample Input

A sample of message type MT102 – Request for Transfer:

CODE
{1:F01BNKACHZZBIC00000000000}{2:I101BNKBBEBBXBICU3005}{3:{113:XXXX}}{4:
:20:5362/MPB
:23:CREDIT
:50K:/1234567890
CONSORTIA PENSION SCHEME
FRIEDRICHSTRASSE, 27
8022-ZURICH
:71A:OUR
:36:1,6
:21:ABC/123
:32B:EUR1250,
:59:/001161685134
JOHANN WILLEMS
RUE JOSEPH II, 19
1040 BRUSSELS
:70:PENSION PAYMENT SEPTEMBER 2009
:33B:CHF2000,
:71G:EUR5,
:21:ABC/124
:32B:EUR1875,
:59:/510007547061
JOAN MILLS
AVENUE LOUISE 213
1050 BRUSSELS
:70:PENSION PAYMENT SEPTEMBER 2003
:33B:CHF3000,
:71G:EUR5,
:32A:090828EUR3135,
:19:3125,
:71G:EUR10,
-}
Output

XML output of the component for the above sample input can be seen by expanding the below:

XML
<?xml version="1.0" encoding="UTF-8"?>
<FinMessage xmlns="urn:swift:xsd:mtmsg.2012"><!--line=0-->
   <Block1>
      <ApplicationIdentifier>F</ApplicationIdentifier>
      <ServiceIdentifier>01</ServiceIdentifier>
      <LogicalTerminalAddress>BNKACHZZBIC0</LogicalTerminalAddress>
      <SessionNumber>0000</SessionNumber>
      <SequenceNumber>000000</SequenceNumber>
   </Block1><!--line=0-->
   <Block2>
      <InputIdentifier>I</InputIdentifier>
      <MessageType>101</MessageType>
      <DestinationAddress>BNKBBEBBXBIC</DestinationAddress>
      <MessagePriority>U</MessagePriority>
      <DeliveryMonitoring>3</DeliveryMonitoring>
      <ObsolescencePeriod>005</ObsolescencePeriod>
   </Block2><!--line=0-->
   <Block3><!--line=0-->
      <F113>XXXX</F113>
   </Block3><!--line=0-->
   <Block4>
      <Document xmlns="urn:swift:xsd:fin.102.2012">
         <MT102>
            <SeqA>
               <F20a><!--line=1-->
                  <F20>5362/MPB</F20>
               </F20a>
               <F23a><!--line=2-->
                  <F23>CREDIT</F23>
               </F23a>
               <F50a><!--line=3-->
                  <F50K>
                     <Account>1234567890</Account>
                     <NameAndAddress>
                        <Line>CONSORTIA PENSION SCHEME</Line>
                        <Line>FRIEDRICHSTRASSE, 27</Line>
                        <Line>8022-ZURICH</Line>
                     </NameAndAddress>
                  </F50K>
               </F50a>
               <F71a><!--line=7-->
                  <F71A>OUR</F71A>
               </F71a>
               <F36a><!--line=8-->
                  <F36>1,6</F36>
               </F36a>
            </SeqA>
            <SeqB>
               <F21a><!--line=9-->
                  <F21>ABC/123</F21>
               </F21a>
               <F32a><!--line=10-->
                  <F32B>
                     <Currency>EUR</Currency>
                     <Amount>1250,</Amount>
                  </F32B>
               </F32a>
               <F59a><!--line=11-->
                  <F59>
                     <Account>001161685134</Account>
                     <NameAndAddress>
                        <Line>JOHANN WILLEMS</Line>
                        <Line>RUE JOSEPH II, 19</Line>
                        <Line>1040 BRUSSELS</Line>
                     </NameAndAddress>
                  </F59>
               </F59a>
               <F70a><!--line=15-->
                  <F70>
                     <Narrative>
                        <Line>PENSION PAYMENT SEPTEMBER 2009</Line>
                     </Narrative>
                  </F70>
               </F70a>
               <F33a><!--line=16-->
                  <F33B>
                     <Currency>CHF</Currency>
                     <Amount>2000,</Amount>
                  </F33B>
               </F33a>
               <F71a_3><!--line=17-->
                  <F71G>
                     <Currency>EUR</Currency>
                     <Amount>5,</Amount>
                  </F71G>
               </F71a_3>
            </SeqB>
            <SeqB>
               <F21a><!--line=18-->
                  <F21>ABC/124</F21>
               </F21a>
               <F32a><!--line=19-->
                  <F32B>
                     <Currency>EUR</Currency>
                     <Amount>1875,</Amount>
                  </F32B>
               </F32a>
               <F59a><!--line=20-->
                  <F59>
                     <Account>510007547061</Account>
                     <NameAndAddress>
                        <Line>JOAN MILLS</Line>
                        <Line>AVENUE LOUISE 213</Line>
                        <Line>1050 BRUSSELS</Line>
                     </NameAndAddress>
                  </F59>
               </F59a>
               <F70a><!--line=24-->
                  <F70>
                     <Narrative>
                        <Line>PENSION PAYMENT SEPTEMBER 2003</Line>
                     </Narrative>
                  </F70>
               </F70a>
               <F33a><!--line=25-->
                  <F33B>
                     <Currency>CHF</Currency>
                     <Amount>3000,</Amount>
                  </F33B>
               </F33a>
               <F71a_3><!--line=26-->
                  <F71G>
                     <Currency>EUR</Currency>
                     <Amount>5,</Amount>
                  </F71G>
               </F71a_3>
            </SeqB>
            <SeqC>
               <F32a><!--line=27-->
                  <F32A>
                     <Date>090828</Date>
                     <Currency>EUR</Currency>
                     <Amount>3135,</Amount>
                  </F32A>
               </F32a>
               <F19a><!--line=28-->
                  <F19>3125,</F19>
               </F19a>
               <F71a><!--line=29-->
                  <F71G>
                     <Currency>EUR</Currency>
                     <Amount>10,</Amount>
                  </F71G>
               </F71a>
            </SeqC>
         </MT102>
      </Document>
   </Block4>
</FinMessage>

An exception is thrown if the input is not a valid SWIFT MT message.
