FileReceiver
The FileReceiver component writes the data received on its input port to the output file specified by the user.The component provides flexible monitoring capabilities and robust acknowledgement mechanism.
FileTransmitter and FileReceiver components work together as a unit. These components should not be decoupled.
Configuration and Testing

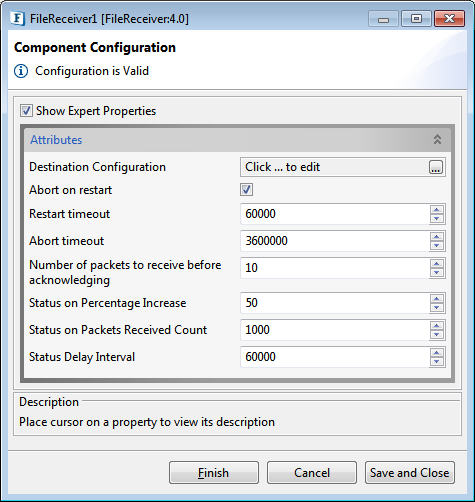

The Configuration property sheet of File Receiver is shown below.
Figure 1: Sample FileReceiver Configuration
The table below provides description for the properties in the CPS.
Property | Description |
Destination Directory | Directory where the files being received are to be put by default (in case the 'Send' command doesn't specify the destination directory). Relative destination path names specified in the 'Send' command would be evaluated under this directory. |
Abort on restart | 'Yes' aborts all file transfers in progress when the component restarts. |
Restart timeout | Time (in milliseconds) to wait before resending the receipt status of a particular file to the Transmitter. |
Abort timeout | Time (in milliseconds) to wait before sending an Abort packet to the Transmitter to abort transfer of a particular file. |
Number of packets to receive before acknowledging | Number of packets to receive before sending the chunk receipt status to the corresponding Transmitter. |
Status on Percentage Increase | Maximum increase in percentage completion before the FileReceiver sends another status report. |
Status on Packets Received Count | Maximum increase in the number of chunks received before the FileReceiver sends another status report. |
Status on Delay Interval | Maximum delay, in milliseconds, before the FileReceiver sends another status report. |
The configuration can be validated using the 'Validate' button.Note that this button doesn't check the existence of the destination directory. Successful result of the Validate operation appears as below.
Figure 2: Validating the configuration
FileReceiver Ports
Input Ports
- Data – Receives file data.
Output Ports
- Status – Sends the status of file(s) being received.
- Acknowledgement – Sends acknowledgements to the File Transmitter(s).
Functional Demonstration

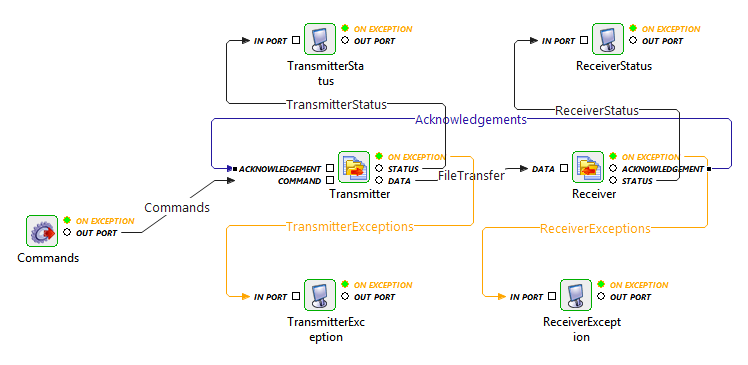

Below figure shows the event process where a FileReceiver receives files transmitted by FileTransmitter.
Figure 3: Event process showing the File Transfer microservices
Scenario 1
FileReceiver receiving a file transmitted by the FileTransmitter.
Sample Input

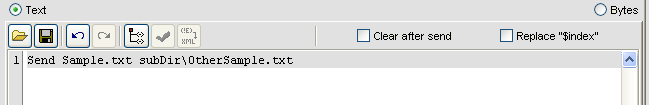

The below shown input is sent to the FileTransmitter from the Feeder.
Figure 4: Input from Feeder component
Sample Output

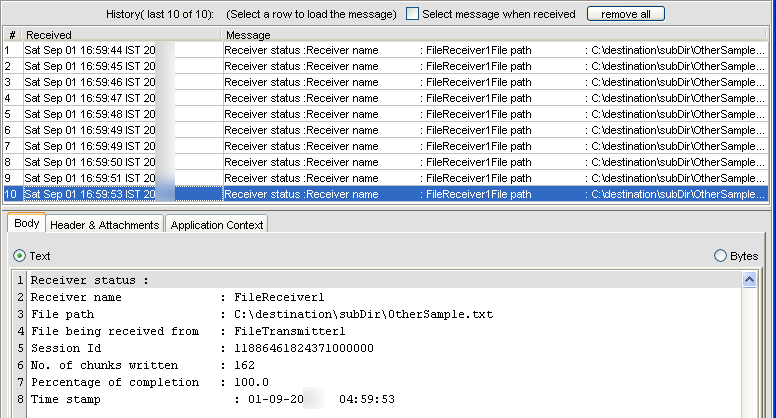

The below shown figure shows the status messages sent by the FileReceiver component.
Figure 5: Status message from FileReceiver component
Useful Tips
- Make sure that the three properties Status on Percentage Increase, Status on Packets Transmitted Count, and Status on Delay Interval are configured depending on the requirement. If all the three are set to small values, the component sends many status messages.
- If file transfer is across internet, the property Restart timeout needs to be tuned appropriately to a higher value in order to avoid FileReceiver sending additional acknowledgements unnecessarily.
- The component's cache must always be set to yes, otherwise the component will not be able to resume a transfer on restart.
To understand the service better, refer the File Transfer example which demonstrates FileReceiver service features.
