Monitoring Messages

This view allows the user to monitor pending messages, Deliverable Messages, Undeleted Messages, Active Senders, and Receivers count for the queues of applications in running state.

Prerequisite

To track messages in the Monitor Messages section, enable the EnableMessageMonitoring property under QueueingSubSystem node in the Peer Server. Refer Enable Message Monitoring in the View Message Monitoring Logs section to see how to enable this from the Profile Manager perspective in eStudio.

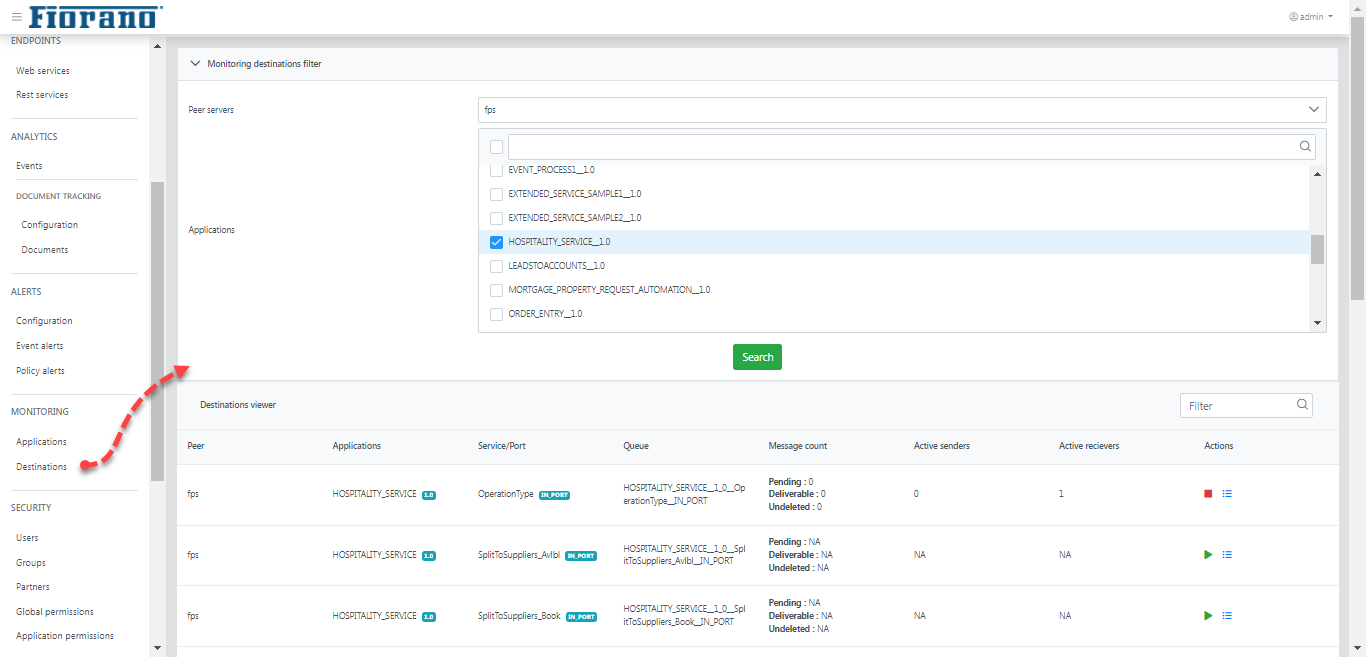

1. Go to Monitoring > Destinations
2. Select the peer server and the application(s) to be monitored
3. Click Search.

4. Click the Play icon under the Actions column of the respective queue to start monitoring



   The Play icon, when clicked, turns to a Stop icon; click the Stop icon to stop monitoring.



   It displays details such as Peer server name, Applications, Service/Port, Queue, Message count, Active senders, and Active receivers




   Setting Destination Filter
