Performing Error Handling

Handling exceptions in a uniform way is one of the critical aspects of designing business processes on the Fiorano platform.

Using the ExceptionListener Service component

This component serves as a global exception listener that subscribes to exception messages occurring in any service component of any running event process and handles them appropriately in the error handling event process.

Figures 1 and 2 illustrate how the ExceptionListener component is configured and used in a global exception handler event process.

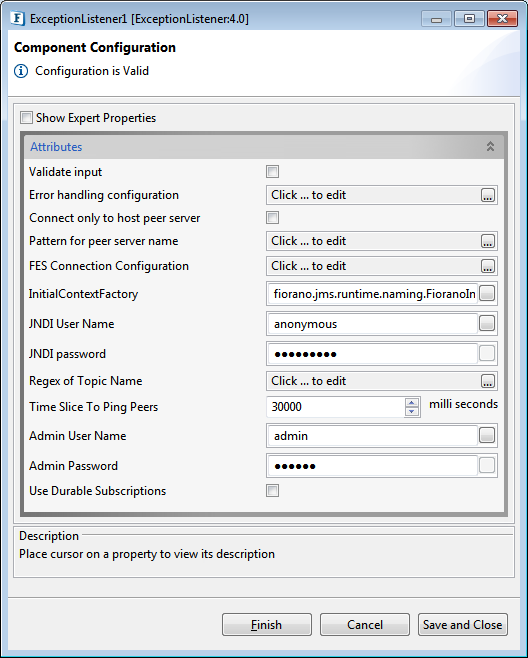

Figure 1: Configuring the Exception Listener

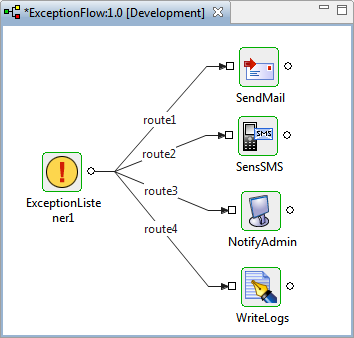

Figure 2: Designing a Global Exception Handler Event Process
