Using Password

In the password grant type, the user provides their resource server credentials (username/password) to the client, which sends across an access token request to the API management. This grant type is ideally used when the request is generated from a reliable source.

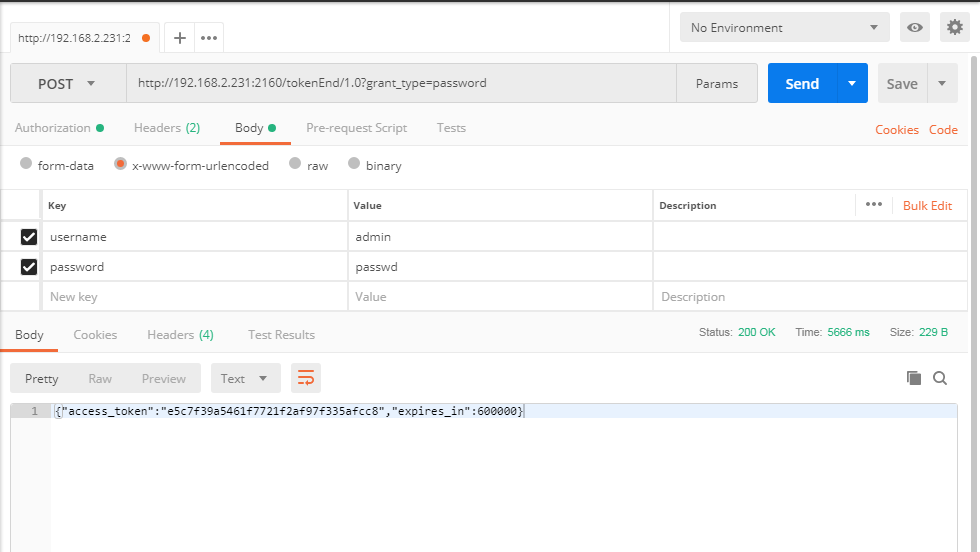

After configuring the  OAuth Token End Point policy, provide the following parameters in the Postman and click the Send button to get the access token:

• Method: POST.

• URL: Project proxy URL.

• Query Parameters:

• • form-urlencoded parameters:

    • username: The resource owner username.

    • password: The resource owner password.

  • client_id: Specify consumer key generated in client subscription.

  • client_secret: Specify consumer secret generated in client subscription.

    curl -X POST  http://192.168.2.231:2160/tokenEnd/1.0  -H 'accept: application/json'  -H 'cache-control: no-cache'   -H 'client_id: Qvf-wSSLmGfjULQrbMCmRcab'  -H 'client_secret: QpFgbhZtuILPDBrHvBujaMQwmyrRieTisdnh'   -H 'content-type: application/x-www-form-urlencoded'   -H 'grant_type: password' -d 'username=admin&password=passwd'


  • scope: The possible scope of the request. This parameter is OPTIONAL; refer to the Obtaining Access Token with Scope section to know about Scope.
