OAuth Authorization End Point
This policy is used to create an Authorization endpoint project to generate an authorization grant after verifying the identity of the resource owner.
For Authorization Code grant type request, this endpoint will generate an authorization code which the client can use to obtain an access token. If the request is the Implicit grant type, an access token is generated directly. This endpoint is not required for Password and Client Credentials grant types. Only one instance of Authorization endpoint API project is sufficient for the entire API Management Product.
Configuration

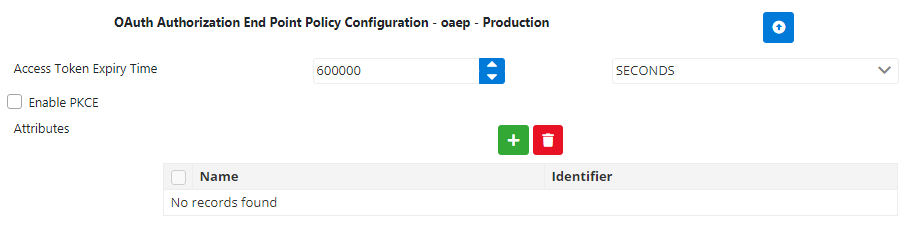

Figure 1: OAuth Auth End Policy Configuration attributes
The property that has to be configured to use the policy is described below.
| Property | Description |
| Access Token Expiry Time | Provide required expiry time (select the unit of choice from the drop-down) to the generated access token. |
| Enable PKCE | Enable this to gain additional security using the technique Proof Key for Code Exchange. |
| Attributes | Custom attributes to be added in access token or authorization code. This will be embedded with the access token that can be extracted and checked during runtime. |
Usage based on Grant Types
This policy is used only in Implicit and Authorization Code grant type requests
The Request for OAuth Authorization End Point has to be constructed with the following query parameters using GET.
| Property | Description |
| response _type | The authorization server is informed of the desired response type using this parameter(based on the chosen grant type). |
| redirect_uri | After completing the interaction with the resource owner, the authorization server directs the resource owner's user-agent back to the client's redirection endpoint. This redirection endpoint URI MUST be an absolute URI. |
| client_id | The client identifier as assigned by the authorization server, when the client was registered. |
Implicit
To configure OAuth authorization using the Implicit grant type, refer to the Using Implicit section.
The authorization endpoint redirects to the redirect_uri after adding an access token as a query parameter to it.
Authorization Code
To configure OAuth authorization using the Authorization Code grant type, refer to Step 1 in the Using Authorization Code section.
The authorization endpoint redirects to the redirect_uri after adding an authorization code as a query parameter to it.
