Generate Json Web Signature

Contents

Generate Json Web Signature policy generates a Json Web Signature with headers specified here and the payload sent along with the request.

Configuration

The properties that have to be configured to use the policy are described below.

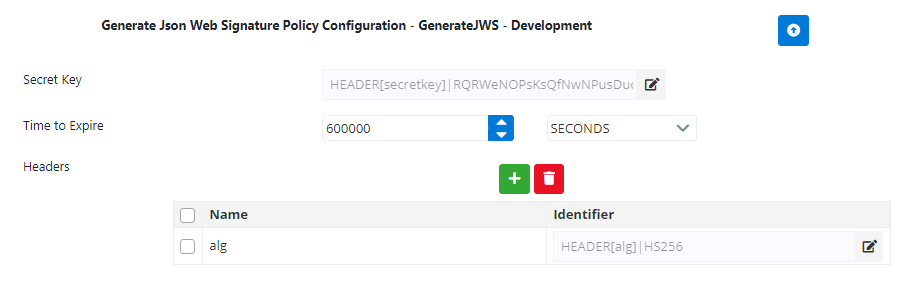

Figure 1: Generate Json Web Signature configuration attributes

Property	Description
Secret Key	Where HS256 symmetric algorithm is chosen, Secret Key has to be provided. The minimum length of the string has to be 256 bit.
Time to Expire	Specify how long the token should be valid; token expires after those many seconds.

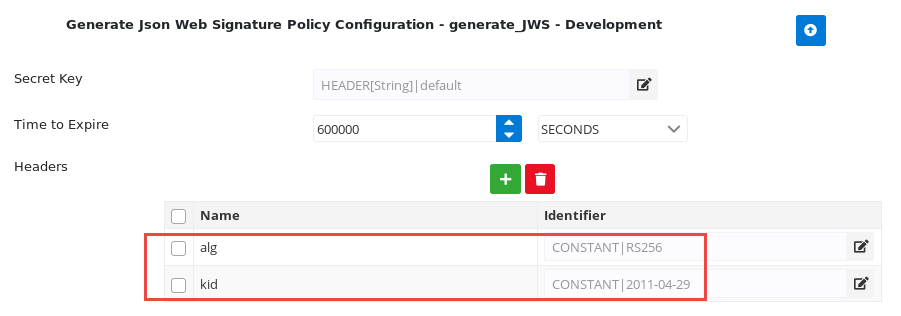

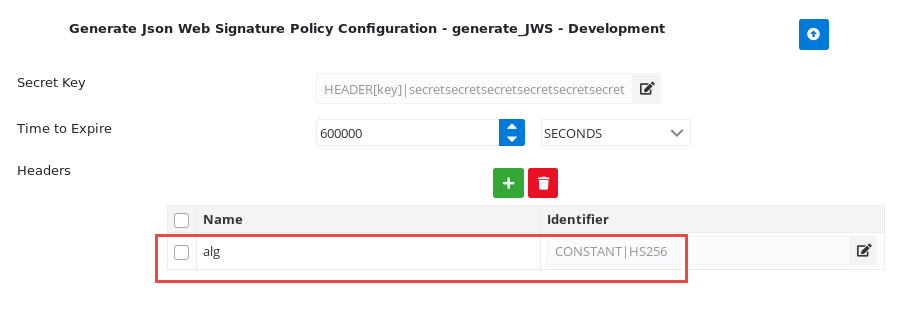

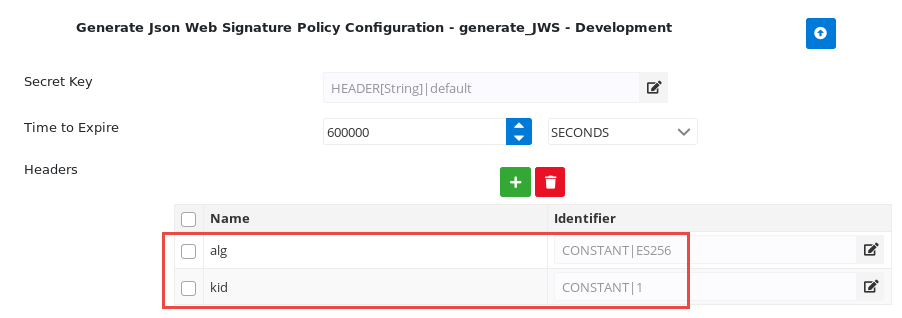

Headers	The Header table must have at least one Header bearing the name "alg". Click the Add button to add Header details. Generating JWS Symmetric algorithm While using Symmetric Algorithms like HS256, use "alg" Identifier value as "HS256". HS256 Asymmetric algorithm While using Asymmetric algorithms like ES256 or RS256, providing two headers — "alg" and "kid" is mandatory. Please refer to the Key ID description in the Json Web Token policy section to know how to set the "kid" Header value and to input the Private JSON Web keys. RS256 ES256

CODE

curl -X POST \ http://192.168.2.231:2160/generateSignature/1.0/ -d '{"iss":"fiorano"}'

Generates JWS and sets it in the context variable named "jws.signature".
