Configuring Parameters using WMT
Configure Routes contains information about the properties of the route manager. The table displays various properties of the route manager like MaxTopicBuffer, NumberOfRoutesExistingInServer, MaxCreateSessionTries, and so on.
If there are any routes already present on the server, they will be in the Route GUID list box.

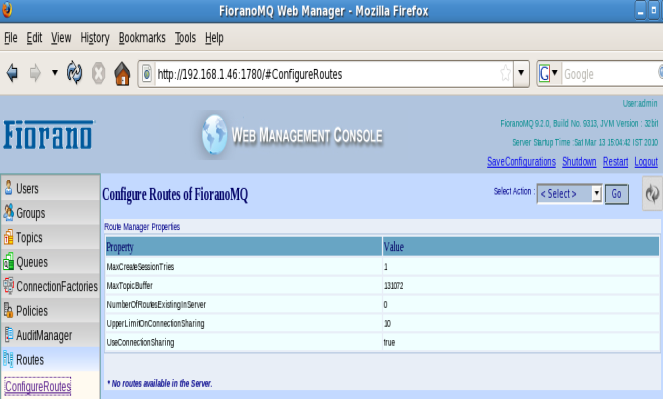

Figure: Route
To Add or delete a route from the server, the appropriate option must be chosen from the Select Action drop-down menu.

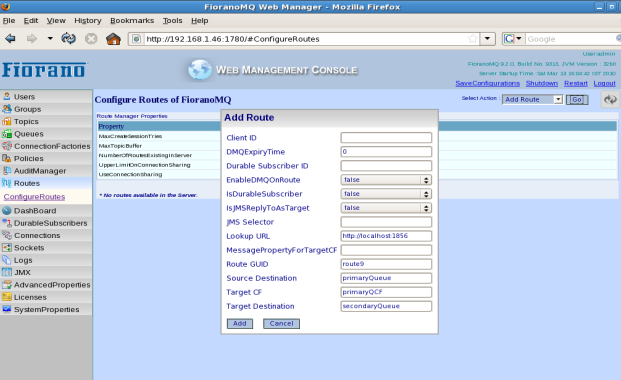

Figure: Adding Route

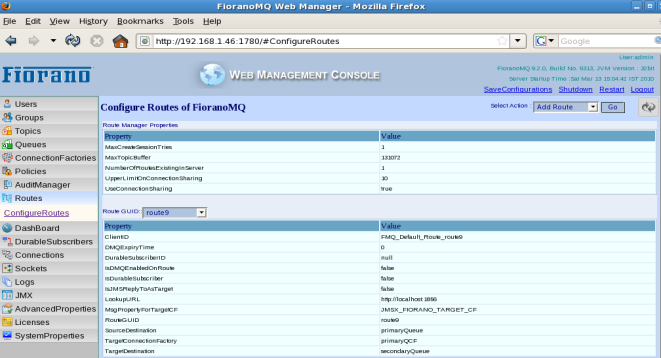

On selecting any of the routes present in the Route GUID list box the properties of the corresponding route are displayed in the table below the list box.
