Launch Fiorano eStudio and open the profile to be configured in offline mode.
-

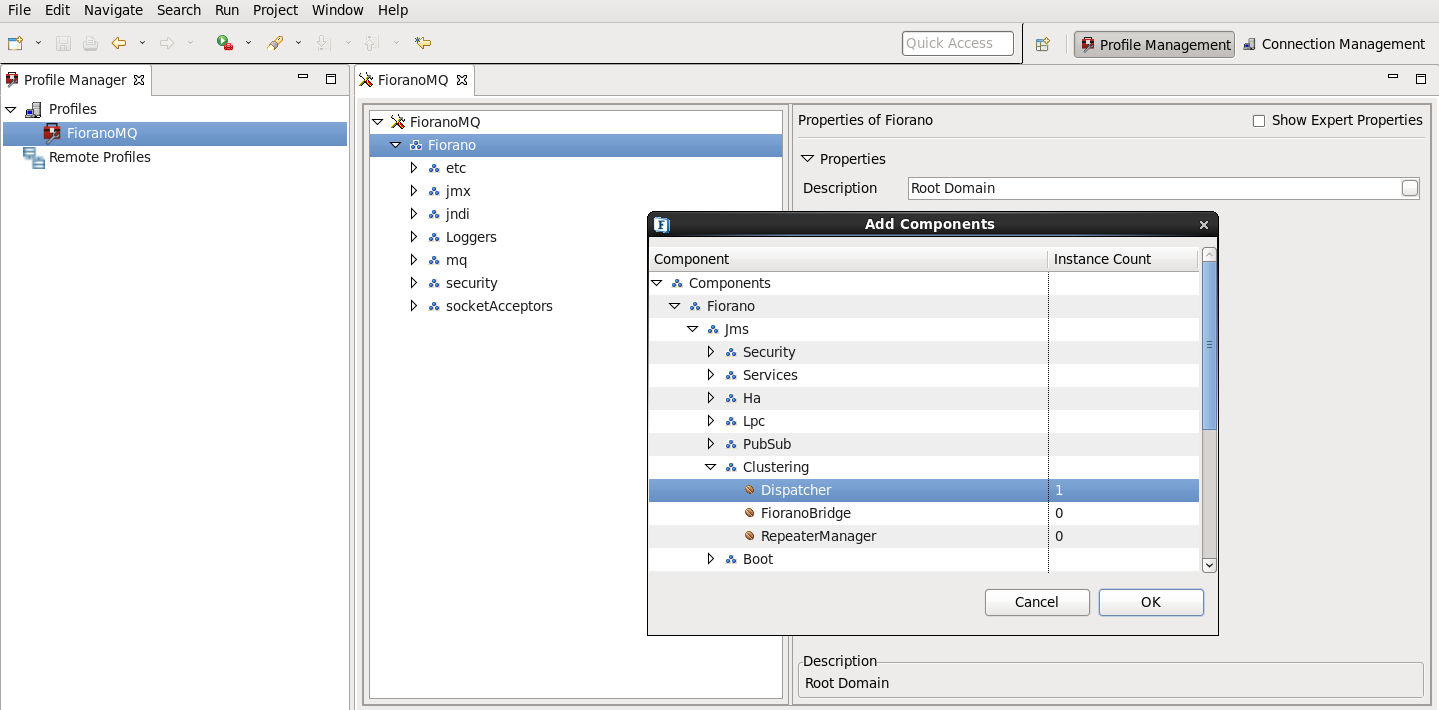

Navigate to FioranoMQ > Fiorano. Right-click and select Add Components; the Add Components to Profile window opens.
-
Navigate to Components > Fiorano > JMS > Clustering, and select Dispatcher. Click the OK button.
.png?cb=c78cf7f26c737b30c22b5d592a08a5c2)
-

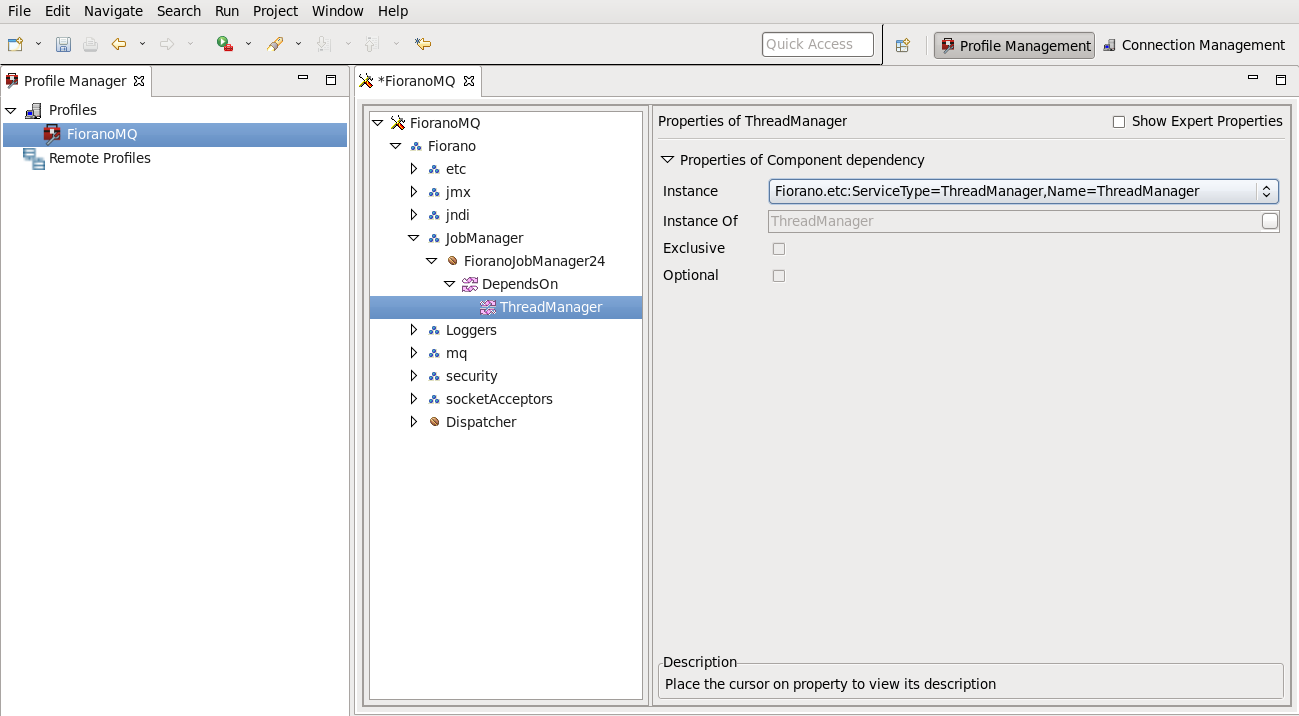

In the Fiorano Studio window, navigate to FioranoMQ > Fiorano > JobManager > FioranoJobManager25 > DependsOn > ThreadManager. In the Properties pane, navigate to the Instance property and select the ThreadManager.
.png?cb=87a4fcd1783012c6a8499c27896c1c15)
-

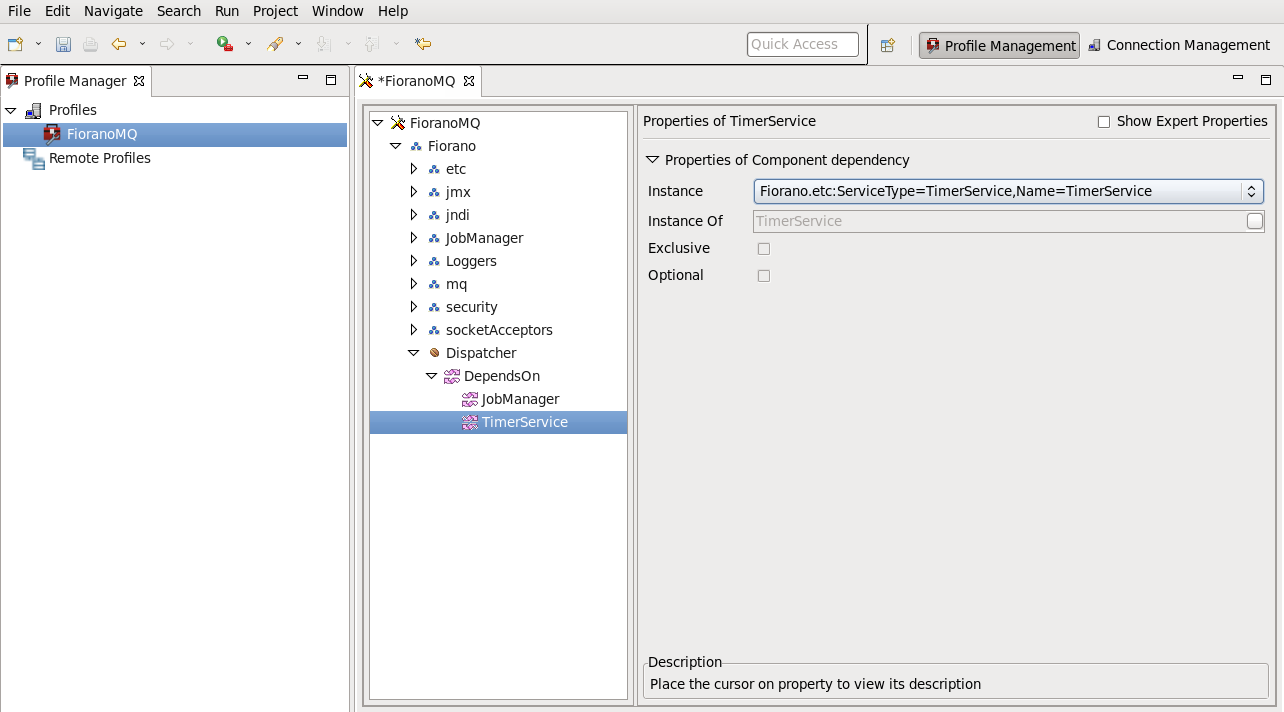

Navigate to FioranoMQ > Fiorano > Dispatcher > DependsOn > TimerService. In the properties pane, navigate to the Instance property and select the timer service.
.png?cb=ea49b74db5c184d8809e39cb48b10975)
-

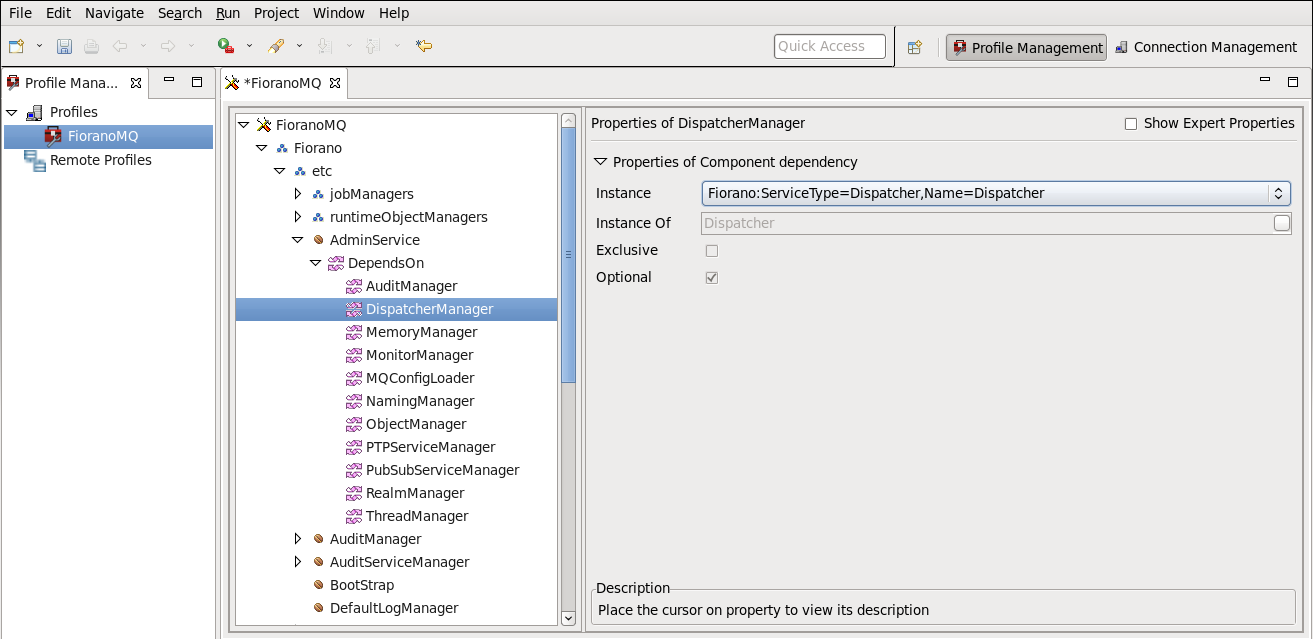

Navigate to FioranoMQ > Fiorano > etc > AdminService > DispatcherManager. In the properties pane, navigate to the Instance property and select the DispatcherManager.
.png?cb=2360bc78e03d3f20dfd4dd731449626a)
-

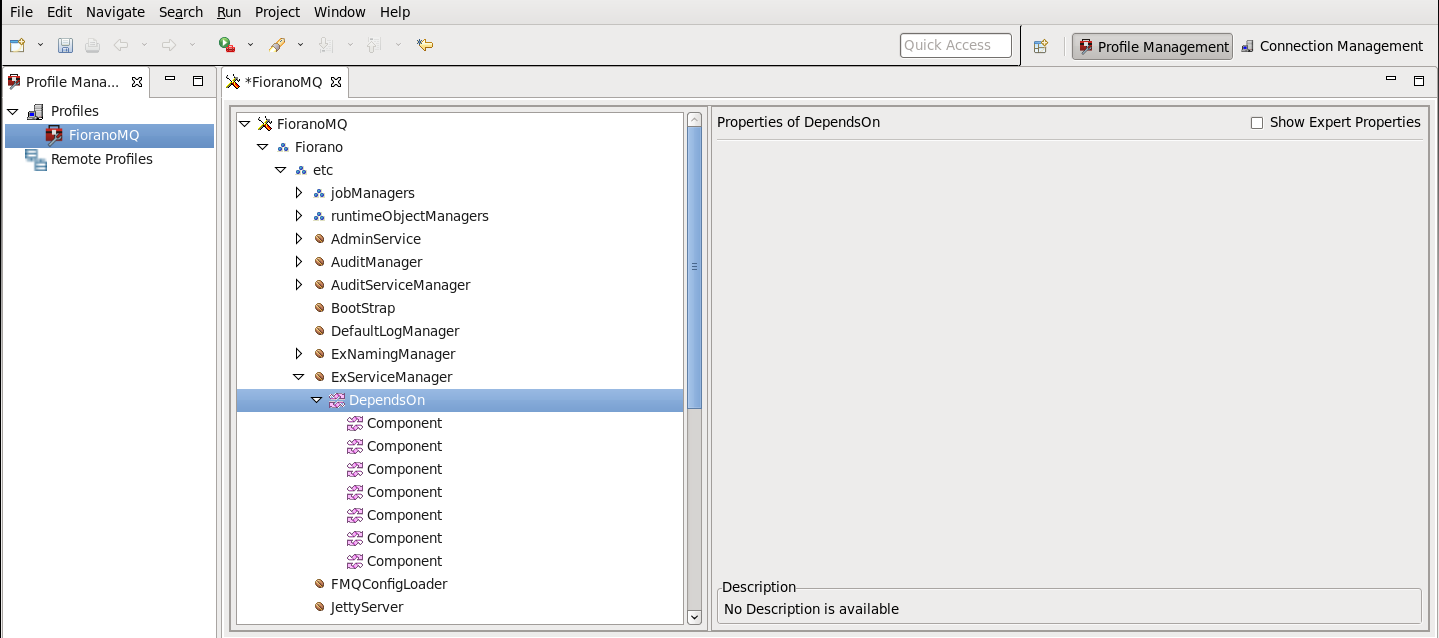

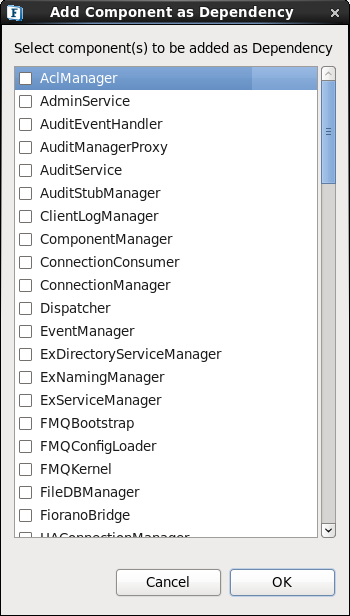

Navigate to FioranoMQ > Fiorano > etc > ExServiceMaanger > DependsOn. Right-click DependsOn and select Add Component from the drop-down list. The Add Component window appears. Select Dispatcher and click OK.
.png?cb=52ddd95bae14e6c5dc4ed0f7b6b8cd71)
.png?cb=e90640eed50607b798ca1991fd5510cb)
-

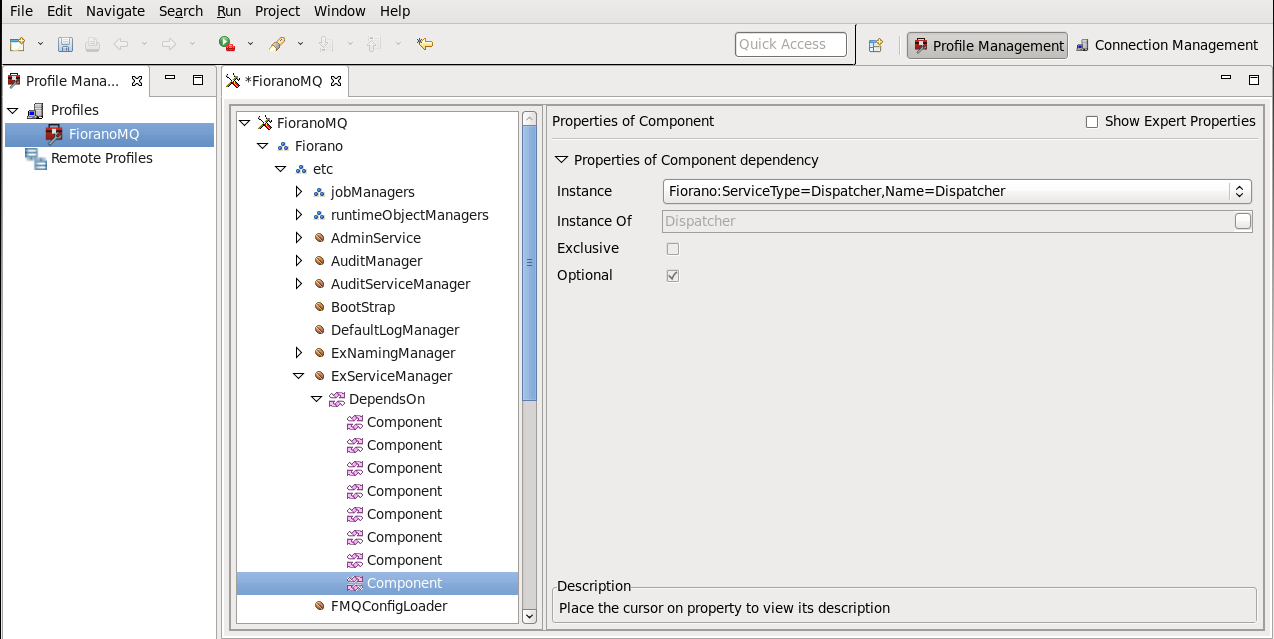

Navigate to the added Dispatcher component in the ExServiceManager. In the properties pane, navigate to the Instance property, and select Dispatcher.
.png?cb=93c8f6ec7227f02d9b8aaf6801f2e71d)
