T24Inbound
The T24Inbound component helps to receive events emitted from any T24 transaction.
The T24 components are used to perform core banking operations. It offers comprehensive and flexible business functionality for banking software applications.
The component using the interface provided in the Metadata configuration of the T24Inbound CPS (Configuration Property Sheet) fetches all the available flow names. The component receives messages the events for the selected flow names. A unique response port and request port (in case of non scheduled mode) will be created for each selected flow name.

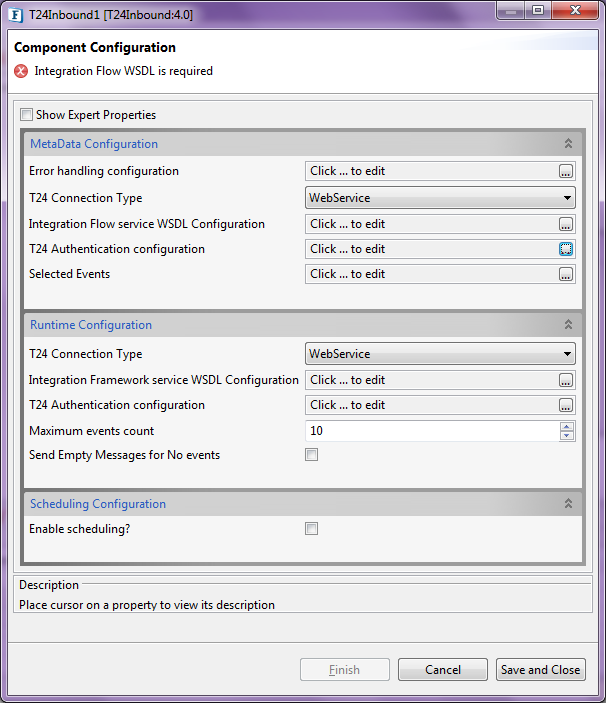

Configuration and Testing
Metadata configuration
Error handling configuration
For setting up Error Handling Configurations, please refer to the respective sections in the Common Configurations page.
T24 Connection Type
Interface to be used to connect T24 for fetching the list of all the available flow names:
Web Service
Web Service interface
TAFC
TAFC (Temenos Application Framework C-version) is a classic jBase with a JDC interface.

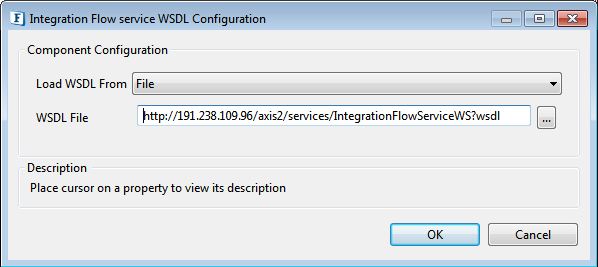

Integration Flow service WSDL Configuration
Location of the Integration Flow Service WSDL. This can be provided as a URL or attached as a file.
This can be used to get the list of flows available

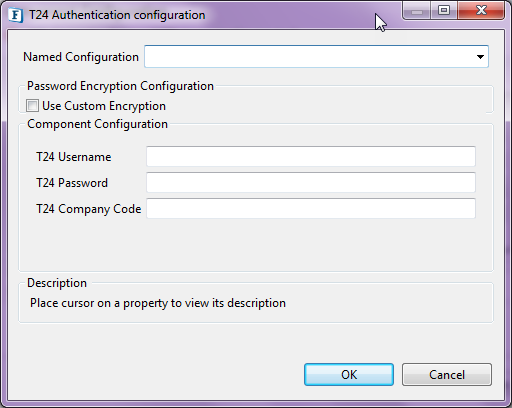

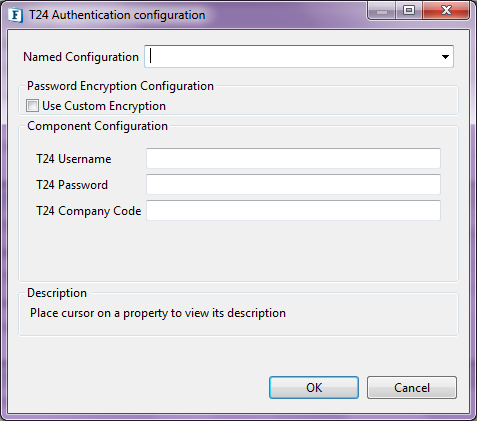

T24 Authentication Configuration
T24 User Name
The User Name with which the connection to the T24 Web Service interface is made.
T24 Password
Password for the user as specified by the property T24 User Name.
T24 Company Code
Company Code to connect T24. This property is optional.
The properties Integration Flow Service WSDL URL, T24 Username, T24 Password, T24 Company code are visible only when T24 Connection Type property is set to 'Web Service'.

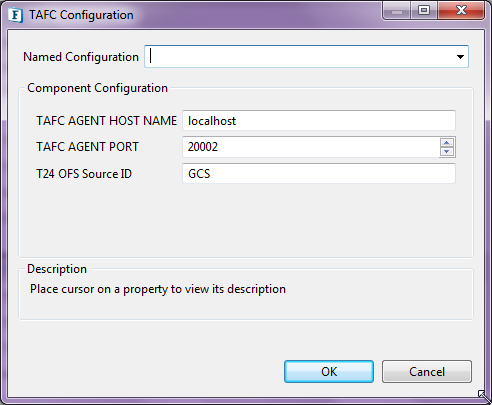

TAFC Configuration
TAFC Agent Host Name
Specify the hostname of the TAFC Agent.
TAFC Agent Port
Specify the port number of the TAFC Agent.
T24 OFS Source ID
The Source ID of the T24 OFS (Open Financial Service).
The properties TAFC Agent Hostname, TAFC Agent Port, T24 OFS Source ID are visible only when the T24 Connection type property is set to 'TAFC'.

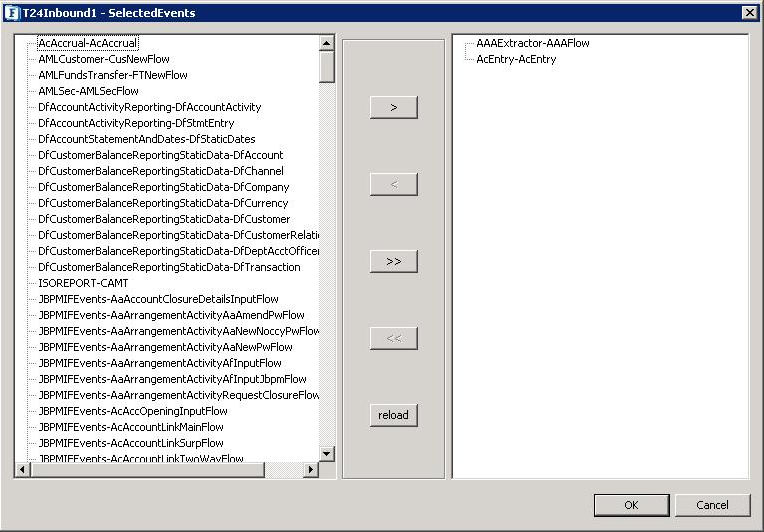

Selected Events
To select an event for polling, the following operations can be used:
| Operation | Description |
| > | To include one or more events from the list of events in the left panel. |
| < | To exclude one or more events from the list of events in the right panel. |
| >> | To include all the events in the left panel. |
| << | To exclude all the events in the right panel. |
| reload | To update the left panel for new events. |
Runtime Configuration
T24 Connection Type
Select the connection type from the following options available:
Web service
Micro Service uses the T24 Web Service interface to get the events for the selected flows.
TAFC
Micro Service connects to TAFC (Temenos Application Framework C-version) to get the events. To make this work, we have to install and run the TAFC.
TAFJ-EJB
Micro Service connects to TAFJ (Temenos Application Framework J-version) to get the events. To make this run, we have to deploy the TAFJ into JBOSS (version 7 or above).
To use this EJB approach, we have to add the following jars which are part of the TAFJ deployment:- t24-IntegrationFrameworkService-Data.jar
- t24-IntegrationFrameworkService-ejb.jar
- tComponentFramework.jar

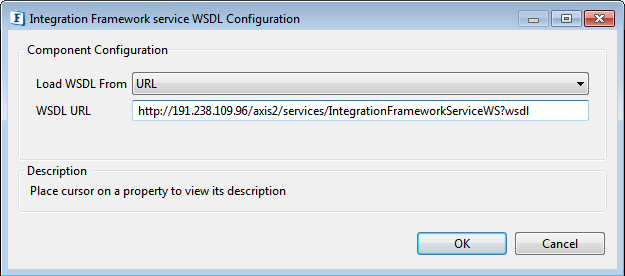

Integration Framework service WSDL Configuration
Location of the Integration Framework Service WSDL. This can be provided as a URL or attached as a file.
This can be used to poll for events of the selected flow names.
T24 Authentication Configuration for Web service
T24 Username
The User Name with which the connection to the T24 Web Service interface is made.
T24 Password
Password for the user as specified by the property T24 User Name.
T24 Company Code
Company Code to connect T24. This property is optional.
The properties Integration Framework Service WSDL URL, T24 Username, T24 Password, T24 Company code are visible only when T24 Connection Type property is set to 'Web Service'.

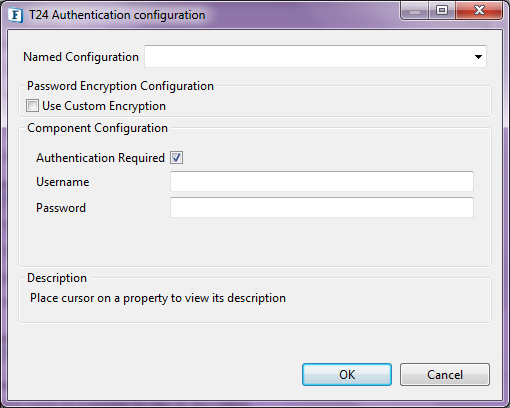

T24 Authentication Configuration for TAFC
Username and password for the T24 Sign On authentication scheme

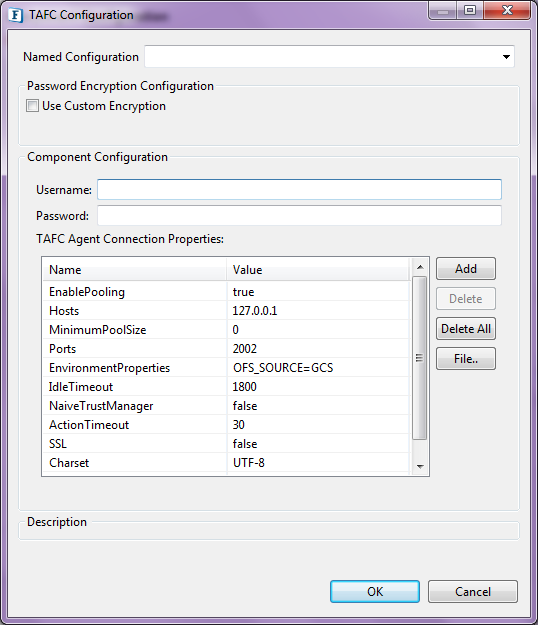

TAFC Configuration
Configuration window to provide details of TAFC Agent interface.
The properties T24 Authentication Configuration and TAFC Connection Configuration are visible only when T24 Connection Type property is set to 'TAFC'.

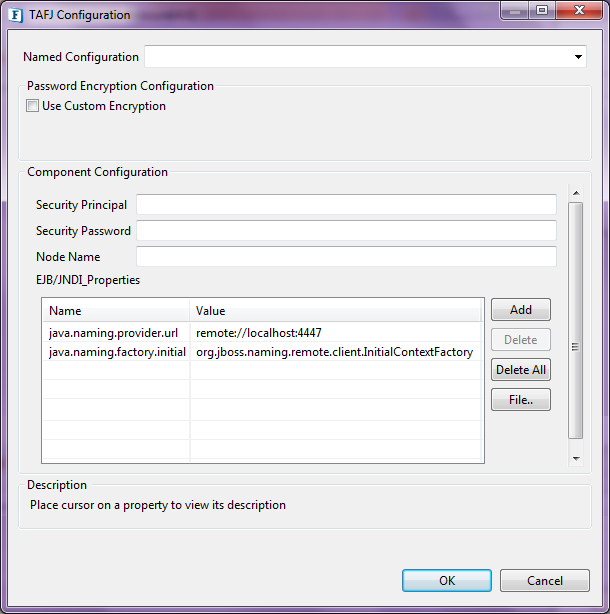

TAFJ Connection Configuration
Configuration window to provide details of the JBoss application server to use the TAFJ-EJB interface.
The TAFJ Connection Configuration property is visible only when T24 Connection Type property is set to 'TAFJ-EJB'.
Maximum events count
The maximum number of events to be polled for a particular request from the server.
Send Empty Message for No events
If this property is enabled, then an empty message is sent out for each request when there are no events on the server; no message is sent if the property is disabled.
Scheduling Configuration
Select the Enable scheduling checkbox to configure scheduling.
For setting up the Scheduling configuration, please refer to the respective section in the Common Configurations page.

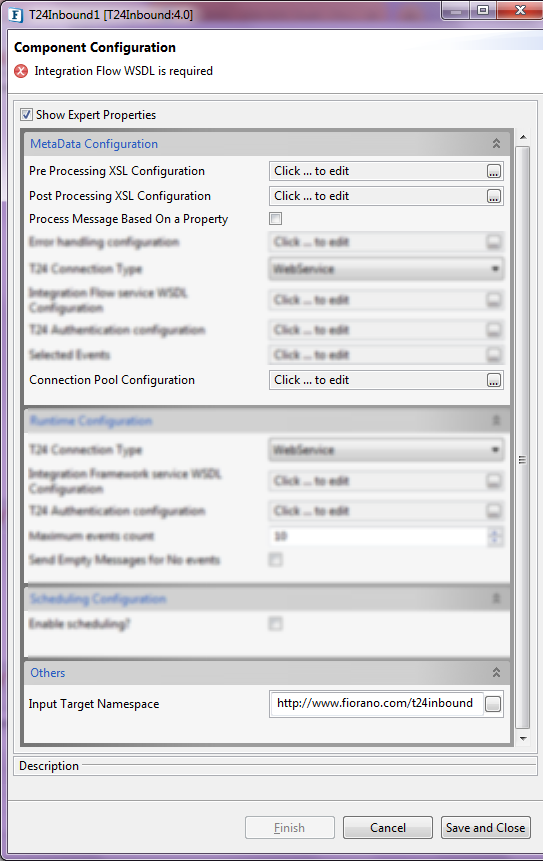

Expert Properties
Pre Processing XSL Configuration
Pre Processing XSL configuration can be used to transform the request message before processing it. Click the ellipses button against the property to configure the properties.
Refer to the Pre/Post Processing XSL Configuration section under the Common Configurations page for details regarding Pre-Processing XSL configuration and Post Processing XSL configuration (below).
Post Processing XSL Configuration
Post Processing XSL configuration can be used to transform the response message before sending it to the output port.
Process Message Based on Property
The property helps components to skip certain messages from processing.
Refer to the Process Message Based On a Property section under the Common Configurations page.
Connection Pool Configuration
Please refer the Connection Pool Params section in the Common Configurations page.
Others
Input Target Namespace
Target Namespace for the request and response XML messages.
For a description, refer to the Target Namespace section in the Common Configurations page.
Input and Output
Input
T24Inbound component takes the input in XML format as shown below when scheduling is disabled:
<ns1:Input xmlns:ns1="http://www.fiorano.com/t24inbound">
<ns1:RecordCount>1</ns1:RecordCount>
</ns1:Input>Output
Output schema is fetched based on the flow name selected and set on the respective response port.
Functional Demonstration
Scenario

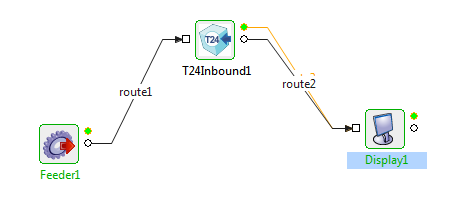

Configure the T24Inbound component as described in Configuration and Testing section to receive events of TTI-CashAccountType flowname and use Feeder and Display components to send sample input and check the response respectively.
Input Message
<ns1:Input xmlns:ns1="http://www.fiorano.com/t24inbound">
<ns1:RecordCount>1</ns1:RecordCount>
</ns1:Input>Output Message
<?xml version="1.0" encoding="UTF-8"?><tns:CashAccountType xmlns:tns="http://www.temenos.com/T24/event/TTI/CashAccountType" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.temenos.com/T24/event/TTI/CashAccountType TTI-CashAccountType.xsd"><tns:eventCommon><ns0:application xmlns:ns0="http://www.temenos.com/T24/event/Common/EventCommon">CATEGORY</ns0:application><ns0:companyId xmlns:ns0="http://www.temenos.com/T24/event/Common/EventCommon">GB0010001</ns0:companyId><ns0:operator xmlns:ns0="http://www.temenos.com/T24/event/Common/EventCommon">INPUTTER</ns0:operator><ns0:today xmlns:ns0="http://www.temenos.com/T24/event/Common/EventCommon">2015-07-22</ns0:today><ns0:transactionStage xmlns:ns0="http://www.temenos.com/T24/event/Common/EventCommon">INPUT-AUTHORISE</ns0:transactionStage></tns:eventCommon><tns:id>52902</tns:id><tns:shortNameList><tns:shortName language="GB">SY MTM Decu</tns:shortName></tns:shortNameList><tns:descriptionList><tns:description language="GB">SY MTM Decumulators</tns:description></tns:descriptionList></tns:CashAccountType>
