ExcelReader

Takes excel (.xlsx) files as input and fetches the required data from the file.

Configuration

Error Handling Configuration

The actions to be taken when a particular error occurs can be configured using this attribute.

Click the ellipsis button against this property to configure Error Handling properties for different types of Errors. By default, the actions Log to error logs, Stop service and Send to error port are enabled.

Refer the Error Handling section in the Common Configurations page for detailed information.

Response Size

Input the number of records to be aggregated in the response.

Example

If the response size is set to "1", for 10 rows, it gives 10 outputs each having output data of the respective row.

Data Index

The row from which the actual data starts.

The value must be one less than the actual row number in the excel file.

Header Data Row

The row number where the Header data is present. This row will have the Column names.

The value must be one less than the actual row number in the excel file.

Headers

Mention the names of the headers that are to be filtered.

Multiple values (Header names) must be separated by commas, where each value (Header name) must be provided without space.

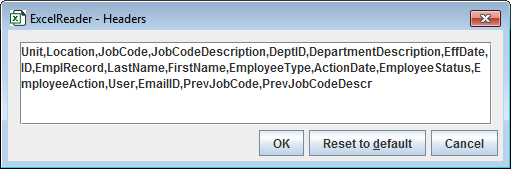

Figure 2: Comma-separated values without space

BIFF5

This property is deprecated. Please keep the value of this property as "no".

Functional Demonstration

Scenario

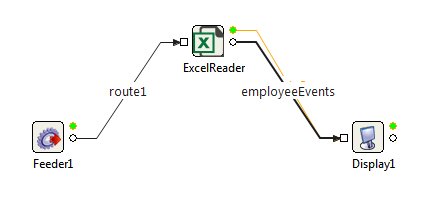

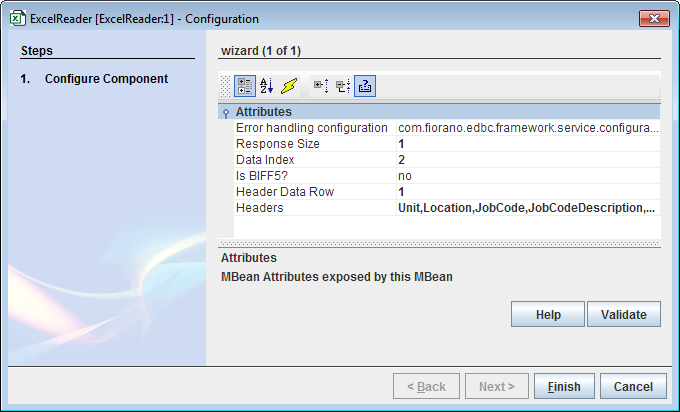

Configure the ExcelReader microservice as shown in Figure 1. Select the input file using the Feeder microservice as shown in the sample input below and display the output using the Display microservice.

Sample Input

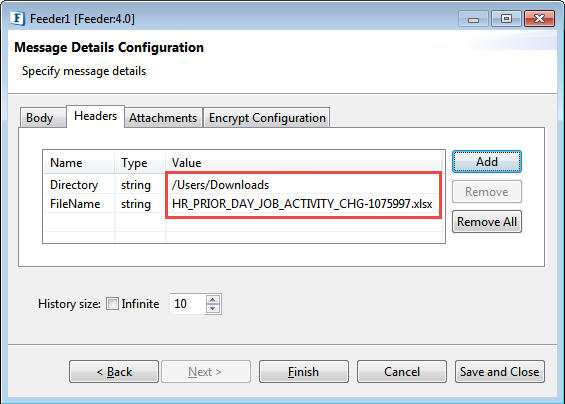

Go to the Message Details Configuration panel in the Feeder microservice and add the following values:

• Directory: Path of the excel file.
• FileName: Name of the excel file along with the extension (.xlsx).

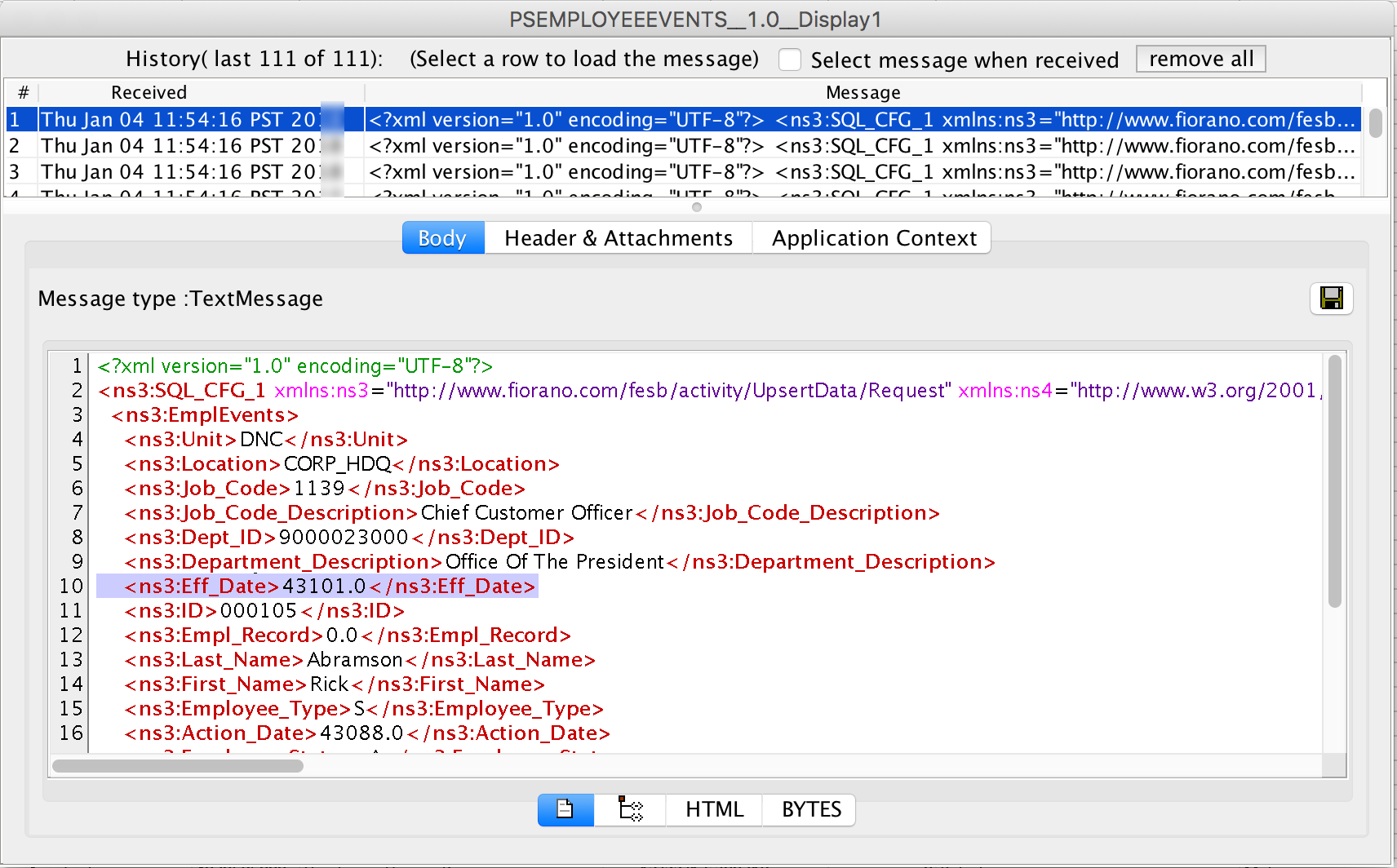

Sample Output

The data extracted from the excel file will be displayed in the Display microservice.
