To assign a specific server to a particular Service Instance (microservice), perform the actions below:
-
Select the service instance in the Fiorano eStudio Orchestrator editor.
-
Open the Properties view and select the Deployment tab.
-
Click the button against the Peer Server Node property.

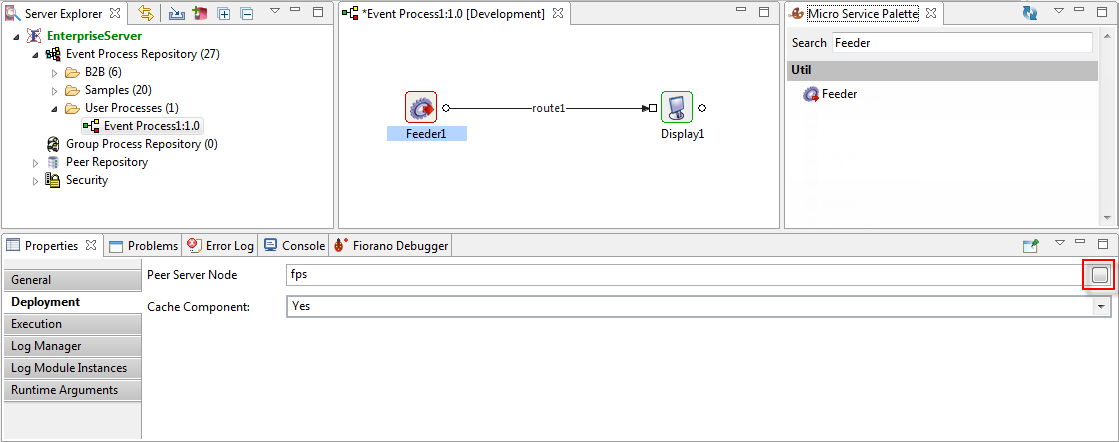

Figure 1: Nodes property for a component -
In the Select peer server node dialog box that pops up, move the required server from the list of peer servers available on the network as mentioned below and click the OK button.
-
Select the existing peer server from the Selected Nodes section to the Available Nodes section.
Use the Left and Right arrow buttons to move.

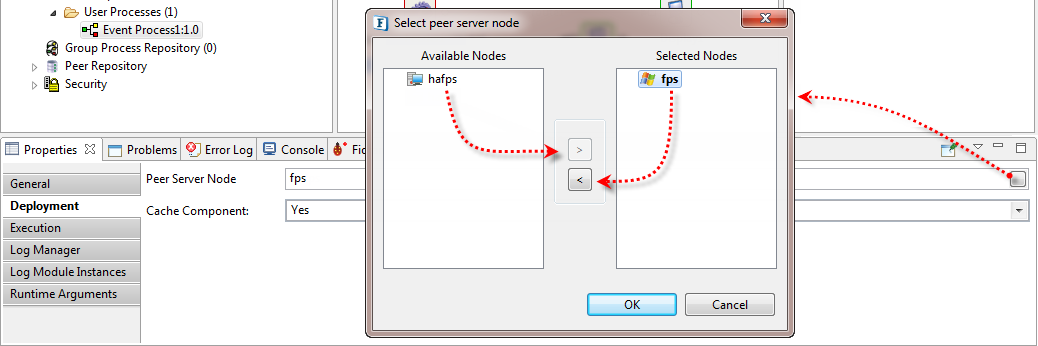

Figure 2: The Select peer server node dialog box with the currently selected Peer server and the available one which can be chosen -
Move the peer server on which the component need to be run from the Available Nodes section to the Selected Nodes section.

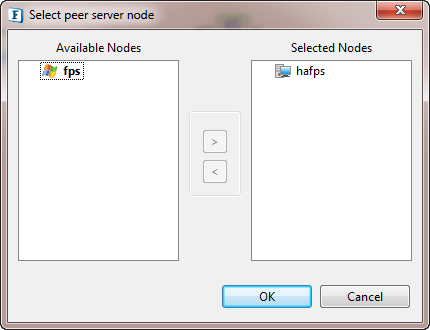

Figure 3: The Select peer server node dialog box after choosing the required peer server Operating System-specific icons assist the user in identifying the Operating System on which the Fiorano Peer Server is running.
The changed peer server name appears in the Peer Server Node property.

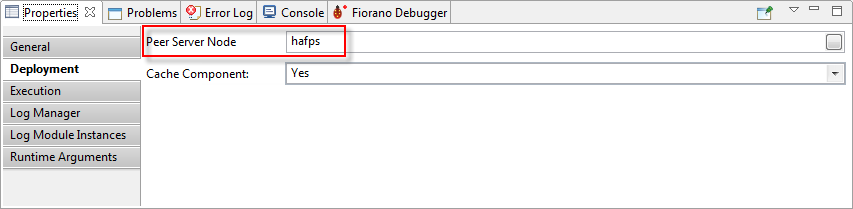

Figure 4: The chosen peer server appearing in the Peer Server Node property -
Dynamic Deployment

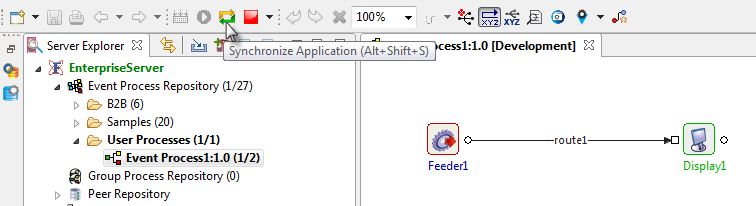

The Fiorano eStudio menu includes the Synchronize Application feature to dynamically deploy the resources and dependencies of a component from the Fiorano Enterprise Server to the Fiorano Peer Server so as to launch and execute a component locally on the peer while keeping the event process running.
After stopping the event process, the Check Resource and Connectivity icon can be used to synchronize.
