This view allows the user to monitor pending messages, Deliverable Messages, Undeleted Messages, Active Senders, and Receivers count for the queues of applications in running state.
Prerequisite
To track messages in the Monitor Messages section, enable the EnableMessageMonitoring property under QueueingSubSystem node in the Peer Server. Refer Enable Message Monitoring in the View Message Monitoring Logs section to see how to enable this from the Profile Manager perspective in eStudio.
Fiorano Esb Web Console
Go to Monitoring > Destinations
Select the peer server and the application(s) to be monitored
Click Search.
Click the Play icon under the Actions column of the respective queue to start monitoring
The Play icon, when clicked, turns to a Stop icon; click the Stop icon to stop monitoring.
It displays details such as Peer server name,Applications,Service/Port,Queue,Message count,Active senders, andActive receivers

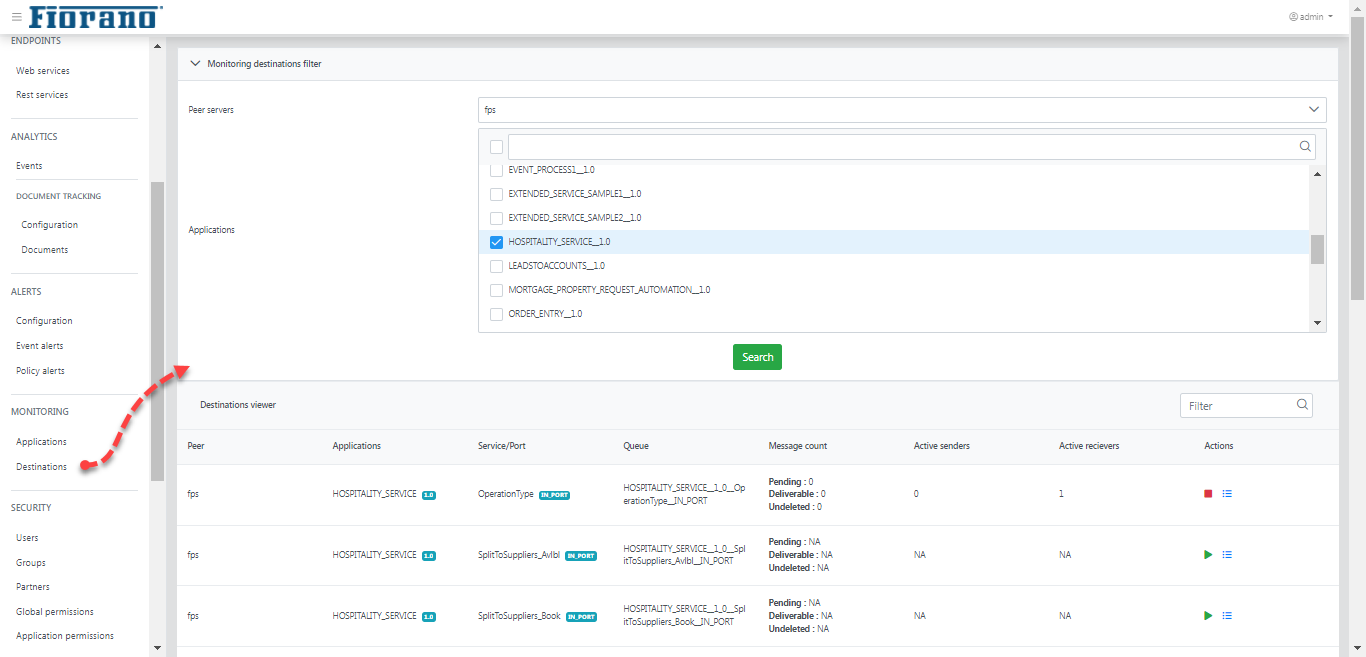

Figure 1: Setting Destination Filter
Fiorano Esb Classic Web Console
Queue Monitoring can be done from two views in Monitor Messages tab.
This view shows the Queue Information in data form.
To start monitoring the queues, perform the following actions:
Select Filter Queues button at the upper-right corner; Set Monitoring data Filters dialog box appears.

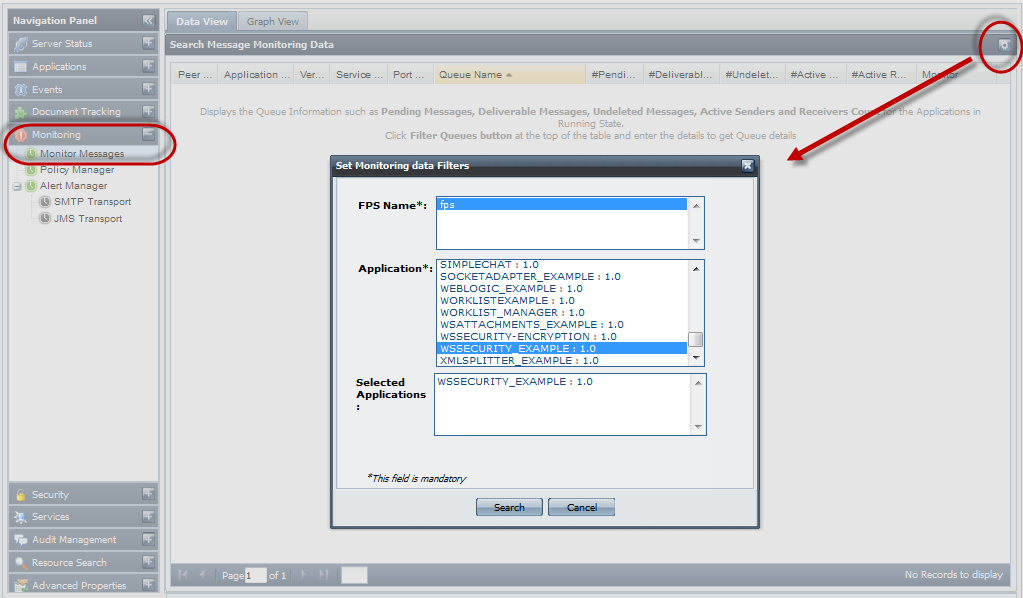

Figure 2: Setting Data Filters
Select PPS Name and Application and click the Search button as shown in the above figure; queues of the selected Applications will be displayed. Queue Information will be displayed on clicking the Enable Monitoring button
Figure 3: Enabling Message Monitoring
To stop monitoring a particular queue, click the Stop Monitoring button.

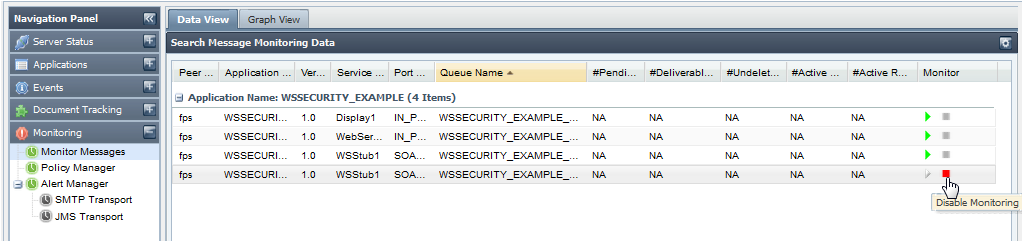

Figure 4: Disabling Message Monitoring
Graph View
Here the Queue Monitoring information is displayed in Graphical form. The Graph keeps on updating for every 5 seconds. Note that only one queue can be monitored at a time in Graph View.

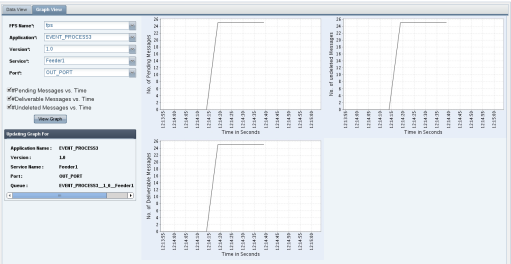

Figure 5: Graph View
