Below are the default ports configured for the given profiles:
|
Ports
|
Profiles |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FES |
FPS |
FPS1 |
FES HA Primary (Rpl) |
FES HA Secondary (Rpl) |
FPS HA Primary(Rpl) |
FPS HA Secondary(Rpl) |
FPS1 HA Primary(Rpl) |
FPS1 HA Secondary(Rpl) |
FES HA Primary(Sh) |
FES HA Secondary(Sh) |
FPS HA Primary(Sh) |
FPS HA Secondary(Sh) |
|
|
RMI Port |
2047 |
2067 |
2077 |
2047 |
2048 |
2067 |
2068 |
2077 |
2078 |
2047 |
2048 |
2087 |
2088 |
|
External Port |
1947 |
NA |
NA |
1947 |
1948 |
NA |
NA |
NA |
NA |
1947 |
1948 |
Na |
Na |
|
Internal/JMS Port |
1847 |
1867 |
1877 |
1847 |
1848 |
1867 |
1868 |
1877 |
1878 |
1847 |
1848 |
1887 |
1888 |
|
Backup Server Port |
NA |
NA |
NA |
1848 |
1847 |
1868 |
1867 |
1878 |
1877 |
1848 |
1847 |
1888 |
1887 |
|
HA Port |
NA |
NA |
NA |
1747 |
1748 |
1767 |
1768 |
1777 |
1778 |
1747 |
1748 |
1787 |
1788 |
|
Backup HA Port |
NA |
NA |
NA |
1748 |
1747 |
1768 |
1767 |
1778 |
1777 |
1748 |
1747 |
1788 |
1787 |
|
Primary FES Port |
NA |
1847 |
1847 |
NA |
NA |
1847 |
1847 |
1847 |
1847 |
Na |
Na |
1847 |
1847 |
|
Backup FES Port |
NA |
1848 |
1848 |
NA |
NA |
1848 |
1848 |
1848 |
1848 |
Na |
Na |
1848 |
1848 |
|
Jetty Port |
1980 |
1880 |
1890 |
1980 |
1980 |
1880 |
1880 |
1890 |
1890 |
1980 |
1980 |
1900 |
1900 |
-
FES: Fiorano Enterprise Server
-
FPS: Fiorano Peer Server
-
Rpl: Replicated Mode
-
Clients need to be aware of ports below:
-
1947 to connect to Fiorano Server primary from external tools.
-
1948 to connect to Fiorano Server secondary from external tools.
-
RMI Ports are used to edit server parameters in online mode.
-

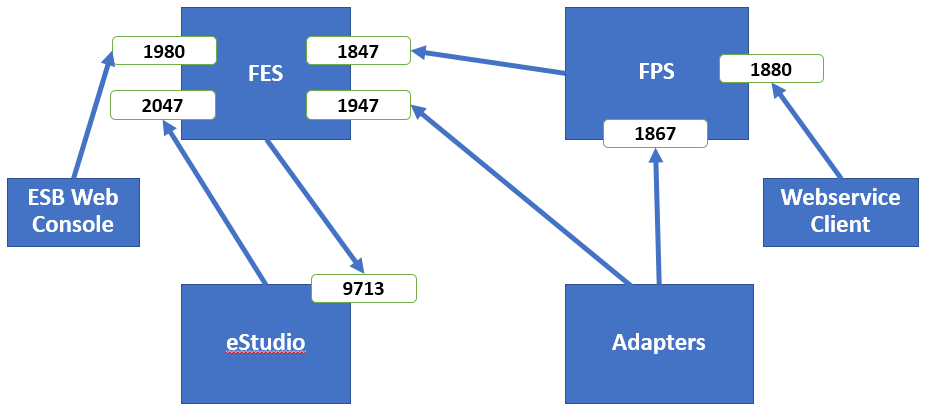

Fiorano Standalone Architecture
