Providing Named Configuration support in custom Microservices

Contents

Preliminary Steps

To provide Named Configuration support in custom Microservices, firstly, follow the steps mentioned in the Using eStudio CPS for Custom Microservices section.

Download the sample FileNamedConfig microservice zip file and import the microservice file to the Project Explorer in eStudio to refer the sample codes used, classes added etc.

After completing the above exercise, follow the below sections to add Named Configuration support in Custom Components.

New Classes to be added

New classes/files to be added to the component to support Named Configurations in UI and Runtime are:

Class	Description
FileConfiguration.java	Model named configuration class
FileConfiguration.xsd	Schema for named configuration (in the same folder as named configuration)
package-info.java	To support (de)serializing of named configuration (in the same folder as named configuration)
ConfigLauncher.java	Class to support UI for named configuration.
FileConfigurationEditor.java
FileConfigurationUI.java
resources/namedConfigurations.xml	Used to define the named configuration in Configuration Repository view.

Changes to existing classes/files

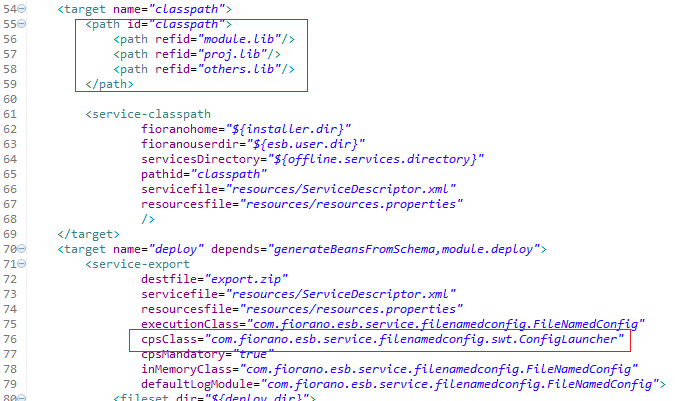

In %COMPONENT_HOME%\common.xml, modify the classpath and CPS launcher class.

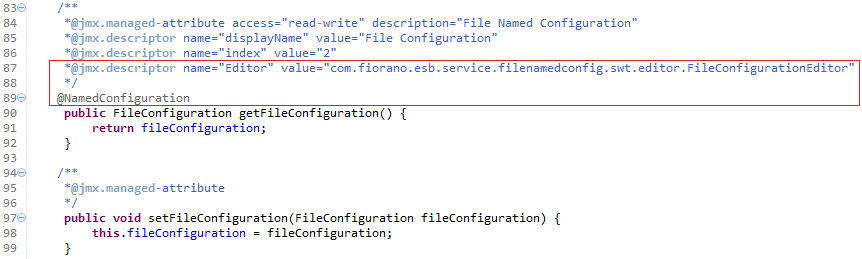

In the PM class where the named configuration is used, create getter and setter for the named configuration with usual jmx.descriptors and a new descriptor 'Editor'.
An annotation, "com.fiorano.services.common.annotations.NamedConfiguration" should be added to the getter indicating that the returned object is a Named Configuration

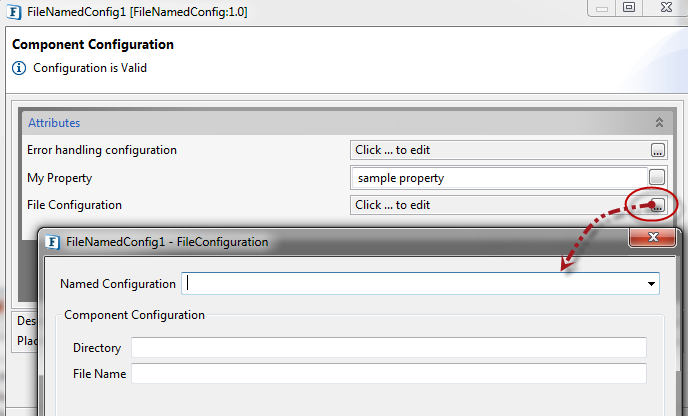

Provide the name and details of the configuration in the FileNamedConfig CPS.

For the named configuration to be used in runtime, the service class which extends com.fiorano.edbc.framework.service.AbstractInmemoryService should be modified by overriding updateNamedConfigurations() method as follows:

Java

@override
protected void updateNamedConfigurations() throws Exception {

	FileNameConfigPM config = (FileNamedConfigPM) getConfiguration();

	if(config == null) {
		return;
	}

	updateNamedConfiguration(config.getFileConfiguration(), NamedConfigConstants.RESOURCE_CONFIG_TYPE);
}

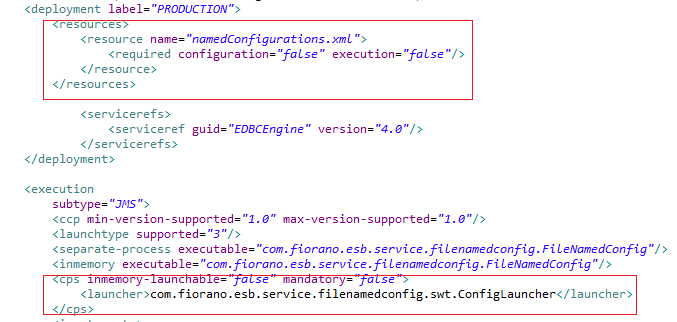

In the resources/ServiceDescriptor.xml file, make the following changes.
Register the component again to see the changes in the CPS and runtime.
