Managing Policies
Managing Policies
Managing Policies section describes the properties, variables that can be configured and illustrates how to create:
After creating the policies, refer the Managing added policies section to know how to enable/edit/delete added policies.
Backlog Policy
The Backlog Policies monitor the backlog request count and raise notifications based on them. Multiple backlog policies can be created and applied at different levels like the Event Process level, Component Level or Port level. The policy applied to an Event Process will indirectly apply to all the components within that event process and will translate automatically to all monitorable ports of the components.
Monitorable ports are the destinations over which backlog depth monitoring is possible.
- Presently, monitoring is possible only in queues. Future versions of the product may extend backlog monitoring support for topics as well.
- All the property values described below appears after creating Backlog policy.

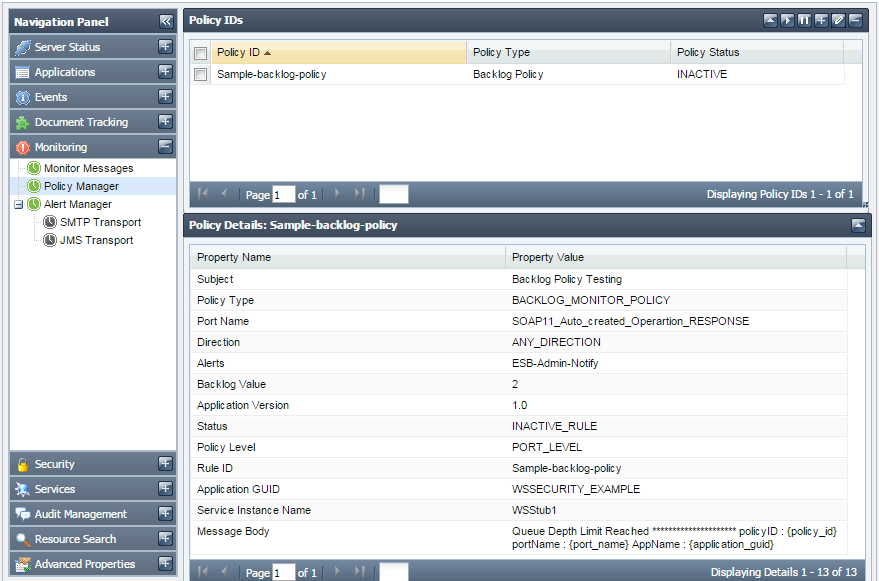

Figure 1: Policy Manager screen with Backlog Policy added
Property Name | Description |
Subject | Short description of the content/subject of the message which is sent along with the alert (Applicable only for SMTP alerts). |
Policy Type | Name of the policy. |
Port Name | The port name on which the policy is applied if the policy is applied at the PORT_LEVEL |
Direction | The direction of reaching the specified depth. This could be ANY, UP or DOWN. |
Alerts | The list of alert IDs which will be executed when the condition for this policy is satisfied. |
Backlog Value | Level of Backlog defined. |
Application Version | Version number of the selected Event Process. |
Status | The working status of the policy, whether it is in Active or Inactive state. |
Policy Level | The level at which the policy is targeted. It could be targeted for the Event Process / Component / Port level. Event Process translates to all components and component-level translates to all ports of the component. |
Rule ID | User-defined name of the policy. |
Application GUID | The event process on which the policy is applied. |
Service Instance Name | The service instance name on which the policy is applied if the policy is applied at SERVICE_LEVEL or PORT_LEVEL. |
Message Body | The Message Content to be delivered via mail. |
Depth | The integer value indicating the count of pending requests. |
Creating a Backlog Policy
To add new policies, click the Add

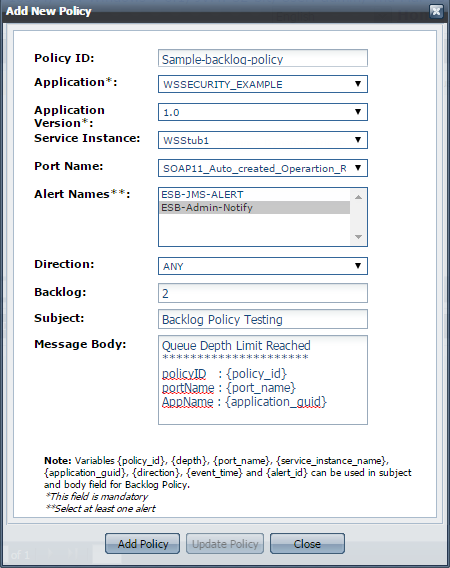

Figure 2: Setting Backlog Policy properties
Property Name | Description |
Policy ID | User-defined name of the policy. |
Application | The list of event processes. |
Application Version | Version number of the selected Event Process. |
Service Instance | The service instance name on which the policy is applied if the policy is applied at SERVICE_LEVEL or PORT_LEVEL. |
Alert Names | Alerts configured in the Alert Manager tab (refer to the Managing SMTP and JMS Alerts section) in the Dashboard. |
Direction | The direction of reaching the specified depth—ANY, UP or DOWN. If notification has to be raised when the pending requests are reducing, then DOWN will be specified otherwise UP will be specified. ANY is for both cases. |
Backlog | Level of Backlog defined. |
Subject | Short description of the content/subject of the message which is sent along with the alert (Applicable only for SMTP alerts). A subject can be made sensible by using variables as explained in the next section. However, if the subject is left blank, the message gets delivered with the default message. |
Message Body | The Message Content to be delivered via mail. The message body can be made sensible by using variables as explained in the next section. However, if the Message Body is left blank, the message gets delivered reflecting parameters and corresponding values as configured above. |
Variables
BackLog Policy has a set of variables which can be used in the Subject and MessageBody. Variables help build a context sensitive message/alert in contrast to a constant one. Variables are specific to types of policies. If there is a variable defined, which cannot be resolved by a particular kind of policy, it will remain unresolved in the final message. The table below lists the variables specific to backlog Policy.
Variable Name | Description |
{policy_id} | The Policy ID for which this Alert is getting executed. Every time this alert is executed, this variable will get resolved. |
{depth} | The count of pending requests for which the policy was configured. |
{port_name} | The Port Name at which the requests-pending count reached the {depth} level in Direction {direction}. The port name has the following format: EVENT_PROCESS_ID_SERVICE_INSTANCE_NAME_PORT_NAME |
{Service_instance_name} | The name of the service instance for which the requests-pending count reaches the {depth} level in Direction {direction}. The Service Instance has the following format: EVENT_PROCESS_ID__SERVICE_INSTANCE_NAME |
{application_guid} | The event process within which the pending requests for {service_instance_name} / {port_name} reached the {depth} level in Direction {direction}. |
{direction} | The direction in which the backlog depth was reached. |
{event_time} | The date and time at which the backlog depth reached the specified {depth} |
{alert_id} | This Alert ID can optionally be inserted in the message body and subject with this variable. |
Enabling backlog monitoring policy effect the performance on the concerned peer server (the peer on which destinations exist over which backlog monitoring policies are applied). As such, performance has to be empirically observed after turning on Backlog Monitoring.
Low Memory Policy
Low Memory Policies monitor the memory usage of servers and components and raise alerts when the specified threshold is reached. The alerts are raised when memory usage crosses the threshold in any direction.
All the property values described below appears after creating Low Memory policy.

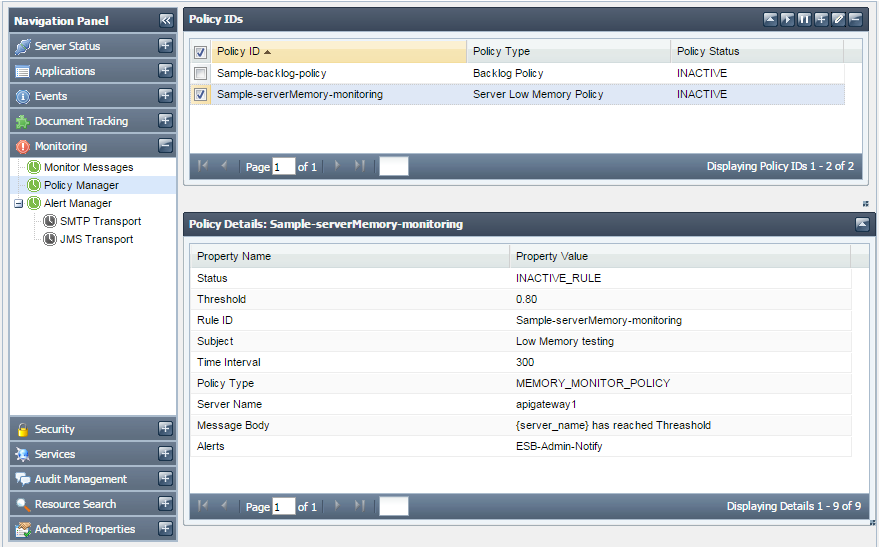

Figure 3: Policy Manager screen with Low MemoryPolicy added
Property Name | Description |
Status | The working status of the policy, whether it is in Active or Inactive state. |
Threshold | The alert is raised if the memory usage reaches this threshold value. |
Rule ID | User-defined name of the policy. |
Subject | Short description of the content/subject of the message which is sent along with the alert.(Applicable only for SMTP alerts). |
Time Interval | Time interval (in seconds) between two successive same direction alerts. |
Policy Type | Name of the policy. |
Server Name | The server on which the policy is applied. |
Message Body | The Message content delivered via mail. |
Alerts | The list of alert IDs which will be executed when the condition for this policy is satisfied. |
Application | Name of the application which has the component for which the policy is applied. |
Service Instance | Component(Service instance) name on which the policy is applied |
Creating a Low Memory Policy
To add new policies, click the Add

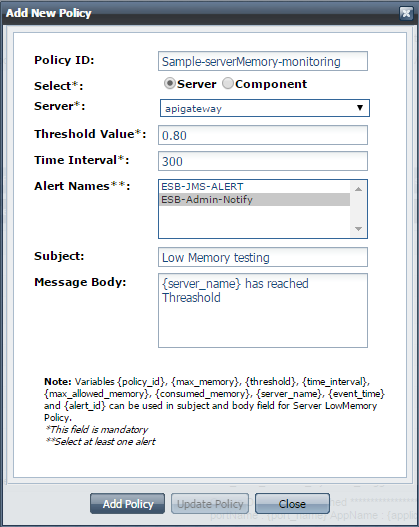

Figure 4: Setting Low Memory Policy properties
Property Name | Description |
Policy ID | User-defined name of the policy. |
Select | Whether the Server or the Component Low policy need to be added. |
Application | The list of event processes. Properties Application, Application Version and Service Instance is displayed when 'Component' is selected in the Select property above. |
Application Version | Version number of the selected Event Process. |
Service Instance | The service instance name on which the policy is applied if the policy is applied at SERVICE_LEVEL or PORT_LEVEL. |
Server | List of servers running. Select from the list. This property is displayed when 'Server' is selected in the Select property above. |
Threshold Value | The maximum value of memory usage to be used. |
Time Interval | Time interval (in seconds) between two successive same direction alerts. |
Alert Names | Alerts configured in the Alert Manager tab (refer to the Managing SMTP and JMS Alerts section) in the Dashboard. |
Subject | Short description of the content/subject of the message which is sent along with the alert (Applicable only for SMTP alerts). A subject can be made sensible by using variables as explained in the next section. However, if the subject is left blank, the message gets delivered with the default message "Server Running low on memory". |
Message Body | The Message Content to be delivered via mail. The message body can be made sensible by using variables as explained in the next section. However, if the Message Body is left blank, the message gets delivered reflecting parameters and corresponding values as configured above. |
Variables
Low Memory Policy Type has a set of variables which can be used in the Subject and MessageBody. Variables help build a context sensitive message/alert in contrast to a constant one. Variables are specific to types of policies. If there is a variable defined which cannot be resolved by a particular kind of policy, it will remain unresolved in the final message. The table below lists the variables specific to server Low memory Policy.
Variable Name | Description |
{policy_id} | The Policy ID for which this Alert is getting executed. Every time this alert is executed, this variable will get resolved. |
{max_memory} | Maximum memory available. |
{threshold} | Decimal value |
{server_name} | The name of the server. |
{time_interval} | The minimum time interval between two successive same direction alerts. |
{max_allowed_memory} | The Maximum memory allowed for the server.(max_memory*threshold) |
{consumed_memory} | The memory used by the server. |
{event_time} | The date and time at which the threshold has been reached. |
{alert_id} | This Alert ID can optionally be inserted into the message body and subject with this variable. |
The table below lists the variables specific to Component Low memory Policy.
Variable Name | Description |
{policy_id} | The Policy ID for which this Alert is getting executed. Every time this alert is executed, this variable will get resolved. |
{max_memory} | Maximum memory available. |
{threshold} | Decimal value |
{application_guid} | The name of the Application which has the component for which the policy is applied. |
{service_instance_name} | The name of the component for which the policy is applied. |
{time_interval} | The minimum time interval between two successive same direction alerts. |
{max_allowed_memory} | The Maximum memory allowed for the server (max_memory*threshold). |
{consumed_memory} | The memory used by the server. |
{event_time} | The date and time at which the threshold has been reached. |
Low Disk Policy
Low Disk Policies monitor the space usage of the system in which a specified server is running and raise alerts when the system space reaches the specified threshold. The alerts are raised when the space usage crosses the threshold in any direction.
All the property values described below appears after creating the Low Disk policy.

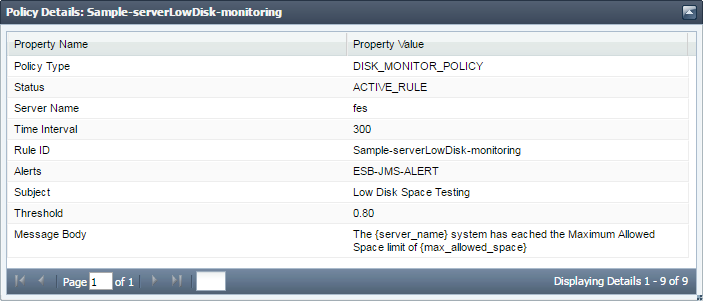

Figure 5: Policy Manager screen with Low Disk Policy added
Property Name | Description |
Policy Type | Name of the policy. |
Status | The working status of the policy, whether it is in Active or Inactive state. |
Server Name | The server on which the policy is applied. |
Time Interval | Time interval(in seconds) between two successive same direction alerts. |
Rule ID | User-defined name of the policy. |
Alerts | The list of alert IDs which will be executed when the condition for this policy is satisfied. |
Subject | Short description of the content/subject of the message which is sent along with the alert.(Applicable only for SMTP alerts). |
Threshold | The alert is raised if the memory usage reaches this threshold value. |
Message Body | The Message Content delivered via mail. |
Creating a Low Disk Policy
To add new policies, click the Add

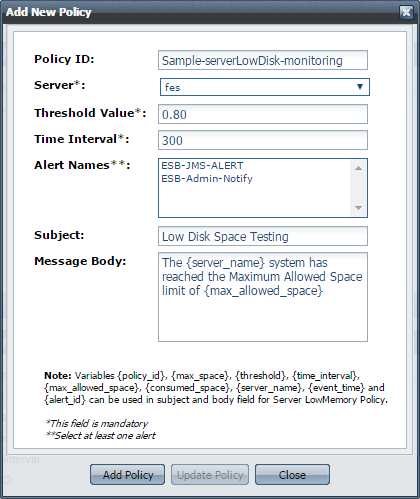

Figure 6: Setting Low Level Disk policy properties
Property Name | Description |
Policy ID | User-defined name of the policy. |
Server | List of servers running. Select from the list. |
Threshold Value | The maximum value of memory usage to be used. |
Time Interval | Time interval (in seconds) between two successive same direction alerts. |
Alert Names | Alerts configured in the Alert Manager tab (refer to the Managing SMTP and JMS Alerts section) in the Dashboard. |
Subject | Short description of the content/subject of the message which is sent along with the alert (Applicable only for SMTP alerts). A subject can be made sensible by using variables as explained in the next section. However, if the subject is left blank, the message gets delivered with the default message "Server Running low on disk space". |
Message Body | The Message Content to be delivered via mail. The message body can be made sensible by using variables as explained in the next section. However, if the Message Body is left blank, the message gets delivered reflecting parameters and corresponding values as configured above. |
Variables
Low Disk policy type has a set of variables which can be used in the Subject and MessageBody. Variables help build a context sensitive message/alert in contrast to a constant one. Variables are specific to types of policies. If there is a variable defined which cannot be resolved by a particular kind of policy, it will remain unresolved in the final message. The table below lists the variables specific to server Low Disk policy.
Variable Name | Description |
{policy_id} | The Policy ID for which this Alert is getting executed. Every time this alert is executed, this variable will get resolved. |
{max_space} | Maximum space available. |
{threshold} | Decimal value |
{time_interval} | The minimum time interval between two successive same direction alerts. |
{max_allowed_space} | The Maximum space allowed for the server. |
{consumed_space} | The space used by the server. |
{server_name} | The name of the server. |
{event_time} | The date and time at which the threshold has been reached. |
{alert_id} | This Alert ID can optionally be inserted into the message body and subject with this variable. |
Managing added Policies
Enabling a policy
Once policies are added, the Policy Manager panel lists the policies together with the type and the running status of each policy at a given pont of time (see Figure 1). A policy can be in one of three states as below:
- ACTIVE: When a policy is successfully applied, it is in ACTIVE state.
- INACTIVE: When the user has suspended the policy execution, the policy becomes INACTIVE.
A policy could be applied to the system by clicking the Apply Policy
The Active policy can be suspended by clicking the Suspend Policy
The policy details will be fetched and refreshed with every activated action. Multiple policies can be selected and activated/suspended simultaneously.
The policy details displayed in the Dashboard is a paged data grid where the pages can be navigated by using the next
Editing a Policy
Policies can be edited by clicking on the edit
Removing a Policy
Policies can be removed by clicking the remove
The same ID of a policy can be used for a different type of policy only after the previous one is deleted.
