Configuring B2B Settings in eStudio
After configuring B2B Dashboard, to complete the B2B setup, follow the steps mentioned in the below sections.
Log on to eStudio
Log on to the EnterpriseServer using the Fiorano B2B credentials.
If you had previously logged in using the default eStudio credentials, then you need to change the RMI Connection details in the Properties panel before logging on to eStudio. Provide the B2B credentials in the Properties panel and log on to Enterprise Server.

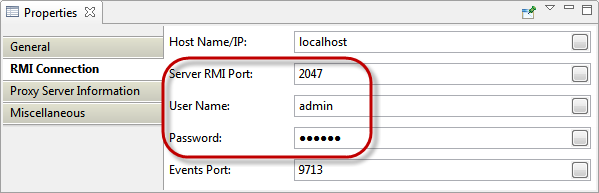

Figure 1: Adding RMI Connection properties before logging on to eStudio

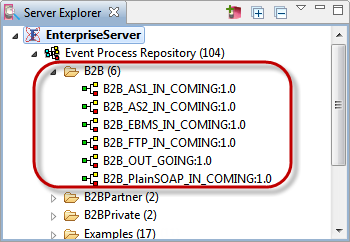

After logging on to eStudio Enterprise Server as 'admin', note that the B2B applications that are required to run FioranoB2B appear under Event Process Repository in the Server Explorer pane.
Figure 2: Confirmation message saying that Trading Party details are saved
Add Database Driver Jar to the Microservice
Add the DB driver jars (saved in the extlib folder) to the jdbc service (present in Microservice Repository > System Lib > jdbc) to use the database.
Please follow the steps mentioned in Adding Resources to a Microservice section to understand how to add jars.
