Configuring Rule

Configuring rules defines conditions based on which it is possible to determine whether a policy has to be executed or not at runtime.

For example, the XML to JSON policy can be applied only if the Accept Header is set as application/json.

The Add/Edit Rule button at the lower-right part of each Policy Configuration page allows the API author to add additional rules to a policy before a message is passed to a policy.

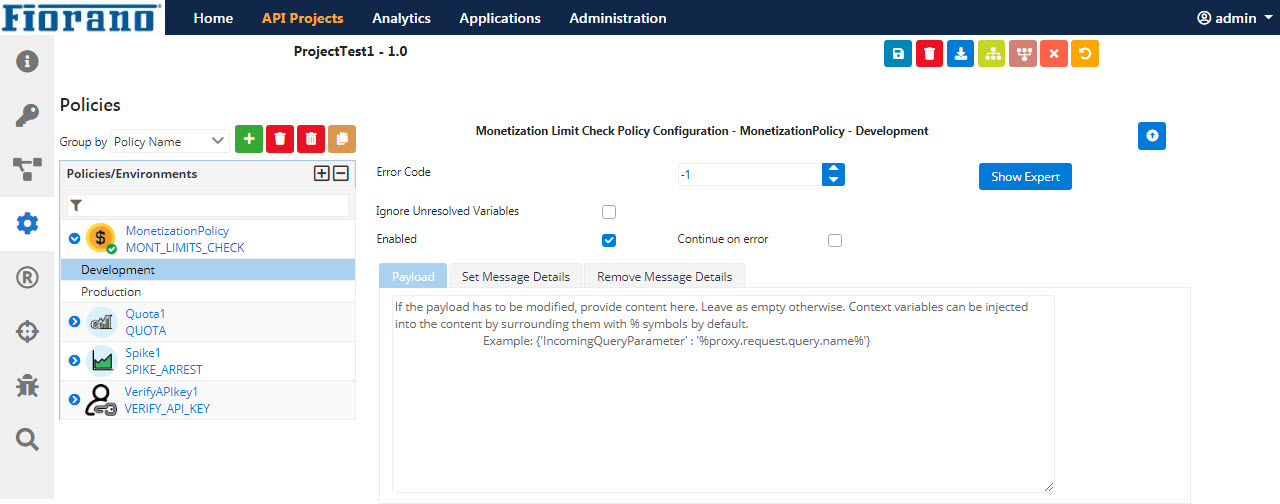

A sample snapshot of the Monetization Limit Check Policy Configuration page is provided below.

Adding Rule

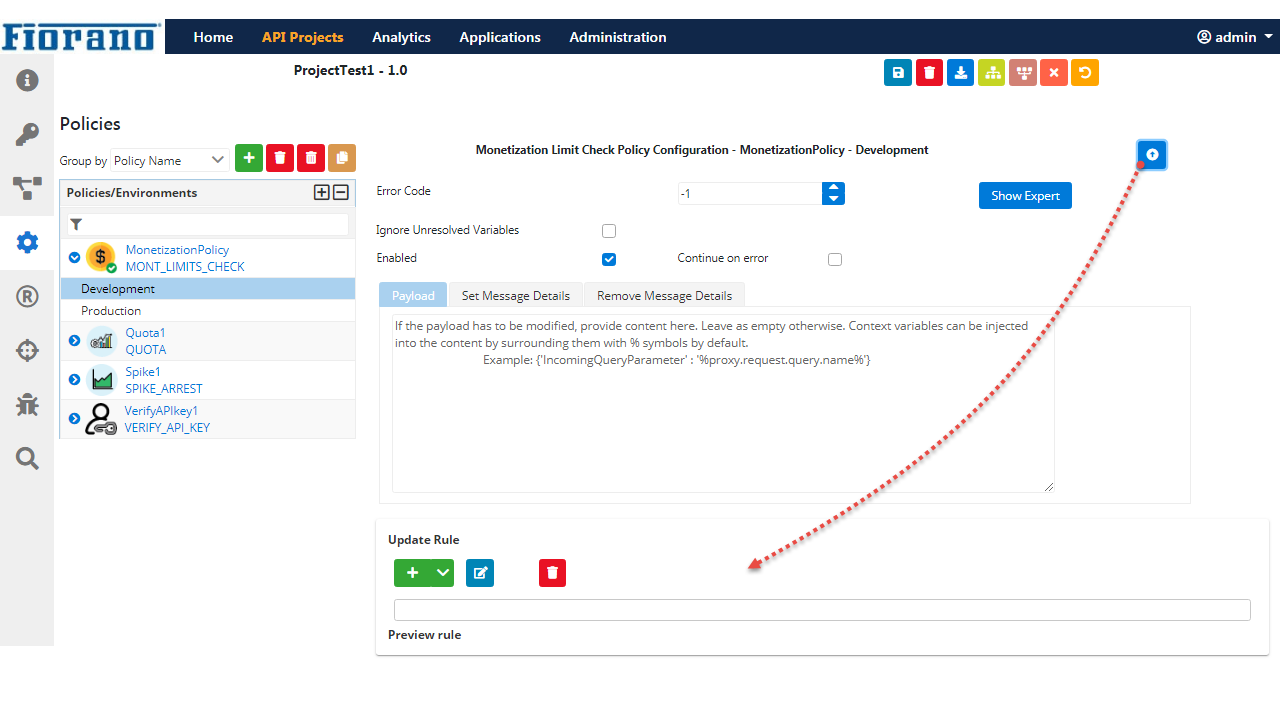

Click the Add/Edit Rule button to start configuring a rule.

Adding a statement

To add a statement, perform the following actions in the Update Rule dialog box

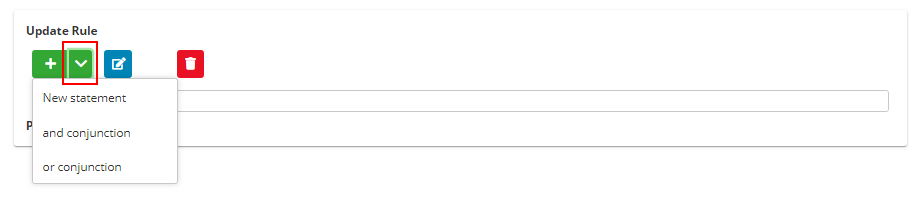

1. Click the Down arrow
2. Click the New statement option.

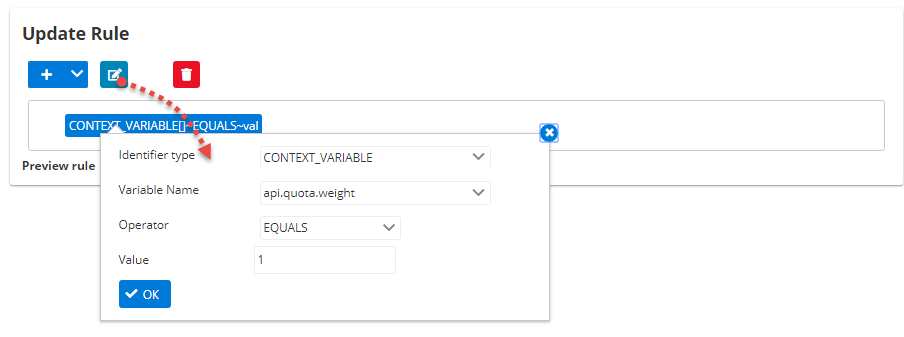

3. Click the Edit Statement button. Edit the rule by changing the properties present in the dialog box.



   Each property in the dialog box is explained in the table after the steps.







4. Click OK and then click the Save button on top of the screen to apply the changes.

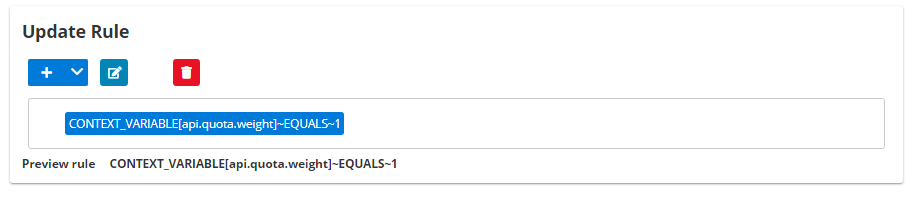

   The Preview option helps in cross-verifying whether or not the rule is defined as intended.

Rule parameters

Parameters	Description
Identifier Type	Specify the Message Part Identifier type. Specify the part of the message from where the policy needs to check and validate the condition or criteria specified. Options available are: Context Variable Header Parameter Constant
Variable Name	Select the flow variable from the list of options available in the drop-down list. Example  api.quota.weight, client.ip, proxy.request.method
Operator	Choose the operator from the options below to form a condition: Equals Not Equals Like Not Like One of Not one of Each operator is described with an example in the next section.
Value	Provide the value that is expected from the condition specified.

Operator options

Choose the operator from the options below to form a condition.

Equals

Compares two strings and returns true if the strings are the same and false if not.

Example

CONTEXT_VARIABLE[api.project.name]~EQUALS~project1

Not Equals

Compares two strings and returns true if the strings are not the same and else false.

Example

CONTEXT_VARIABLE[api.project.name]~EQUALS~project1

Like

Matches whole string or substring in a string. Use wildcard characters to match the substring.

To match a substring "test" in "testthistring", for a

• prefix substring, use test.*
• suffix substring, use .*test
• in-between substring, use .*test.*

Example for a string "project1"

• CONTEXT_VARIABLE[api.project.name]~LIKE~proj.*
• CONTEXT_VARIABLE[api.project.name]~LIKE~.*ject1
• CONTEXT_VARIABLE[api.project.name]~LIKE~.*jec.*

Not Like

The whole string or substring should not be present in a string. Use wildcard characters to match the substring.

Example for a string "project1"

• CONTEXT_VARIABLE[api.project.name]~NOT_LIKE~proj.*
• CONTEXT_VARIABLE[api.project.name]~NOT_LIKE~.*ject1
• CONTEXT_VARIABLE[api.project.name]~NOT_LIKE~.*jec.*

One of

Matches any one string added using commma-seperated values and returns true, otherwise false.

Example

CONTEXT_VARIABLE[api.project.name]~ONE_OF~project1,project2,project3

Not one of

Not matching any string added using comma-separated values return true, otherwise false.

Example

CONTEXT_VARIABLE[api.project.name]~NOT_ONE_OF~project1,project2,project3

Adding more statements

For using conditional statements using conjunctions in the rule, add the conjunction (OR/AND) that needs to be used between the statements and then add those statements.

1. Click the Down arrow in the Update Rule section
2. Click any one of the following:
   1. add conjunction
   2. or conjunction









3. Follow the steps in the Adding a statement section.




   Click the Edit button to edit the statements added.
