Below are the default ports configured in given profiles:
|
Ports |
Profiles |
||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FES
|
FPS
|
FPS1
|
FES
|
FPS
|
FPS
|
AMS
|
AGS
|
AGS1
|
FES HA Primary (Rpl)
|
FES HA Secondary (Rpl)
|
FPS HA Primary (Rpl)
|
FPS HA Secondary (Rpl)
|
FPS1 HA Primary
|
FPS1 HA Secondary (Rpl)
|
FES HA Primary (Rpl)
|
FES HA Secondary (Rpl)
|
FPS HA Primary (Rpl)
|
FPS HA Secondary (Rpl)
|
FPS1 HA Primary (Rpl)
|
FPS1 HA Secondary (Rpl)
|
FES HA
|
FES HA
|
FPS HA
|
FPS HA
|
AMS HA Primary
|
AMS HA Secondary
|
AGS HA Primary
|
AGS HA Secondary
|
|
|
RMI Port |
2047 |
2067 |
2077 |
2047 |
2067 |
2077 |
2347 |
2367 |
2377 |
2047 |
2048 |
2067 |
2068 |
2077 |
2078 |
2047 |
2048 |
2067 |
2068 |
2077 |
2078 |
2047 |
2048 |
2087 |
NA |
2347 |
2348 |
2367 |
2368 |
|
External Port |
1947 |
NA |
NA |
1947 |
NA |
NA |
2248 |
NA |
NA |
1947 |
1948 |
NA |
NA |
NA |
NA |
1947 |
1948 |
NA |
NA |
NA |
NA |
1947 |
1948 |
NA |
NA |
2247 |
2248 |
NA |
NA |
|
Internal Port |
1847 |
1867 |
1877 |
1847 |
1867 |
1877 |
2147 |
2167 |
2177 |
1847 |
1848 |
1867 |
1868 |
1877 |
1878 |
1847 |
1848 |
1867 |
1868 |
1877 |
1878 |
1847 |
1848 |
1887 |
1888 |
2147 |
2148 |
2167 |
2168 |
|
Backup Server Port |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
1848 |
1847 |
1868 |
1867 |
1878 |
1877 |
1848 |
1847 |
1868 |
1867 |
1878 |
1877 |
1848 |
1847 |
1888 |
1887 |
2148 |
2147 |
2168 |
2167 |
|
HA Port |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
1747 |
1748 |
1767 |
1768 |
1777 |
1778 |
1747 |
1748 |
1767 |
1768 |
1777 |
1778 |
1747 |
1748 |
1787 |
1788 |
1757 |
1758 |
1787 |
1788 |
|
Backup HA Port |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
1748 |
1747 |
1768 |
1767 |
1778 |
1777 |
1748 |
1747 |
1768 |
1767 |
1778 |
1777 |
1748 |
1747 |
1788 |
1787 |
1758 |
1757 |
1788 |
1787 |
|
Primary FES Port |
NA |
1847 |
1847 |
NA |
1847 |
1847 |
NA |
2147 |
2147 |
NA |
NA |
1847 |
1847 |
1847 |
1847 |
NA |
NA |
1847 |
1847 |
1847 |
1847 |
Na |
Na |
1847 |
1847 |
NA |
NA |
2147 |
2147 |
|
Backup FES Port |
NA |
1848 |
1848 |
NA |
1848 |
1848 |
NA |
2148 |
2148 |
NA |
NA |
1848 |
1848 |
1848 |
1848 |
NA |
NA |
1848 |
1848 |
1848 |
1848 |
Na |
Na |
1848 |
1848 |
NA |
NA |
2148 |
2148 |
|
Jetty Port |
1980 |
1880 |
1890 |
1980 |
1880 |
1890 |
NA |
NA |
NA |
1980 |
1980 |
1880 |
1880 |
1890 |
1890 |
1980 |
1980 |
1880 |
1880 |
1890 |
1890 |
1980 |
1980 |
1900 |
1900 |
NA |
NA |
NA |
NA |
|
API Jetty Port |
NA |
NA |
NA |
1981 |
1860 |
2170 |
1981 |
2160 |
2170 |
1981 |
1981 |
1860 |
1860 |
2170 |
2170 |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
1981 |
1981 |
2160 |
2160 |
|
Cassandra DB Port |
NA |
NA |
NA |
9042 |
9042 |
9042 |
9042 |
9042 |
9042 |
9042 |
9042 |
9042 |
9042 |
9042 |
9042 |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
NA |
9042 |
9042 |
9042 |
9042 |
-
FES: Fiorano Enterprise Server
-
FPS: Fiorano Peer Server
-
AMS: API Management Server
-
AGS: API Gateway Server
-
Rpl: Replicated Mode
-
Clients only need to be aware of the ports below; details of other ports are for informational purposes:
-
1947 to connect to the Primary Fiorano Server from external tools.
-
1948 to connect to Secondary Fiorano Server from external tools.
-
RMI Ports are used to edit server parameters in the online mode.
-

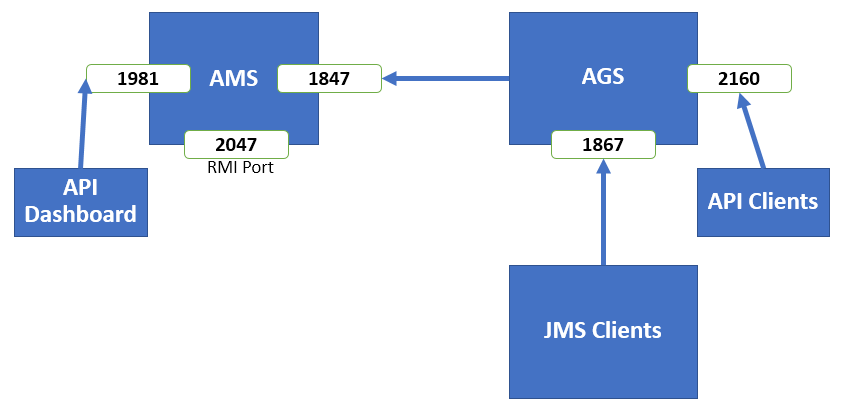

API Management Standalone Architecture
