From OpenAPI

Contents

To add an OpenAPI project, click the Add

icon and click the From OpenAPI option.

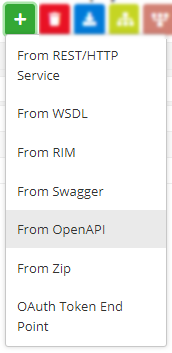

Figure 1: Navigating to create a project using OpenAPI

Enter values for attributes following descriptions in the table below.

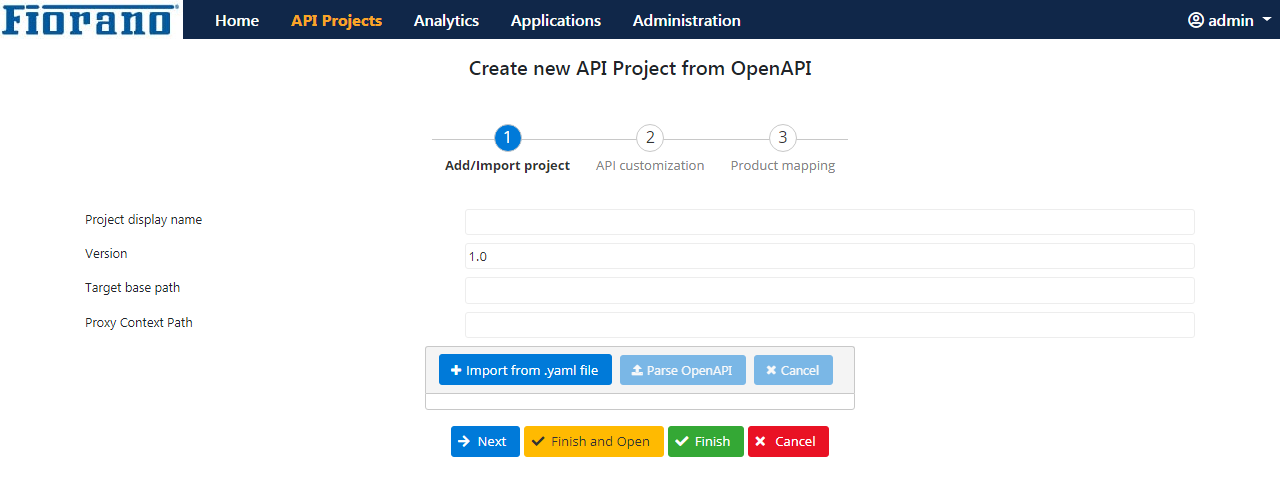

Figure 2: New WSDL Project dialog box to enter details of WSDL Service

Property	Description
Project display name	A name to act as Project ID to identify the WSDL project.
Version	Revision number of the project. For example, 1.0 for a project being newly added and 1.1 or 2.0 for the next revision.
Target base path	Target server URL where the application needs to use the service.
Proxy context path	This is a text used to combine with the version number to act as an identifier to map a particular deployed project. The proxy resolves context path mappings prior to applying any matching policies (explained in subsequent topics). Proxy Context Path combined with version number must be unique for every project. Different versions of the same project (same project name with different version number) can have the same Context Path.
Import from .yaml file	Click the button to browse and choose the OpenAPI file with .yaml extension. OpenAPI accepts only yaml files of version 3.0.

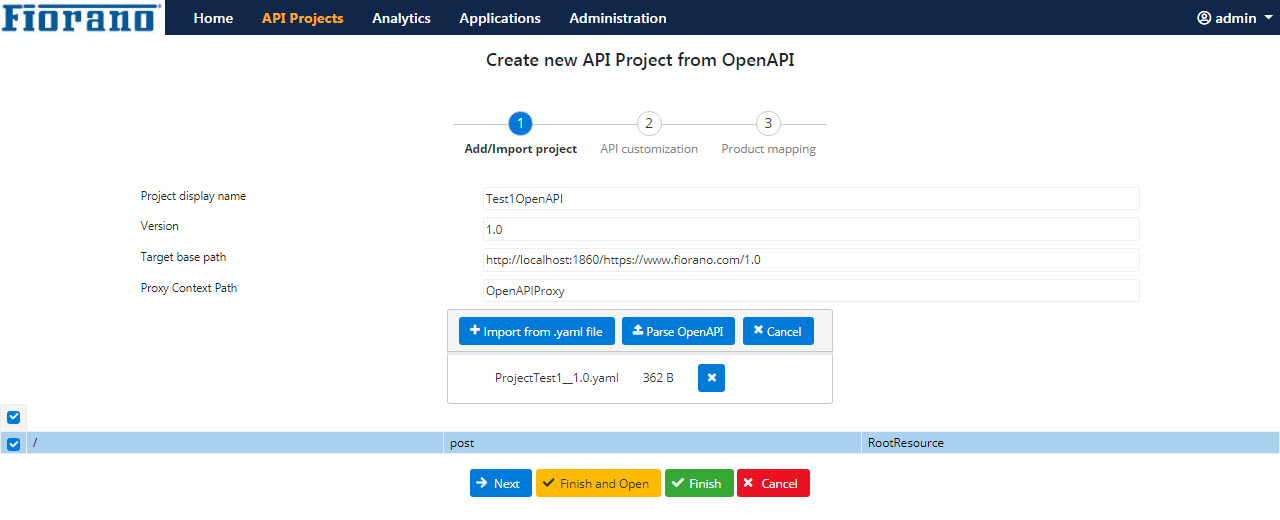

Click the Import from .yaml file button and add the file from where it is saved.
Click the Parse OpenAPI button to load the resources present in the RIM file.
Resources that are part of the project gets listed; choose the resources that need to be part of the project.
Click Finish and click Save or press Next for API customization and product mapping.

Click Finish to create the project, or click Next to:

After clicking the Next button, perform API Customization and Product Mapping in the subsequent screens.

While importing, an option is provided to decide if the customization must be done at the project level or resource level.
