Creating a Server Group for Project Deployments

To develop and deploy API projects, a new Server Group needs to be created by performing the following actions:

  1. Go to the API Management Dashboard and click the Admin prompt.

    image2015-10-17 15:56:26.png

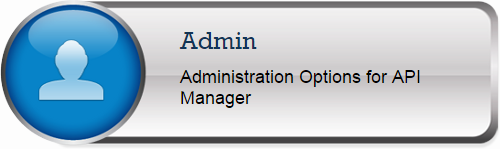

    Figure 1: Admin prompt in API Dashboard

  2. In the Server Groups tab, click the Add  image2014-8-20 11:48:36.png button to add a new server group under the Server Groups section.

  3. After the Server Group name which is provided gets added under the Server Group section (provide a preferred name for the server if required), select this newly added server group. It will show a Servers selection box where the server on which the projects belonging to the server group have to be deployed can be defined.

  4. Click the Edit image2014-8-20 11:49:1.png button to see the servers:

    • Servers: Lists the servers already added.

    • Available Servers: Lists the servers available that may be added.

  5. Add a running Gateway Server from the Available Servers section to the Servers list and click Save to save the new server group.

    Use the Left/Right arrow buttons effectively to move servers or just drag the servers.

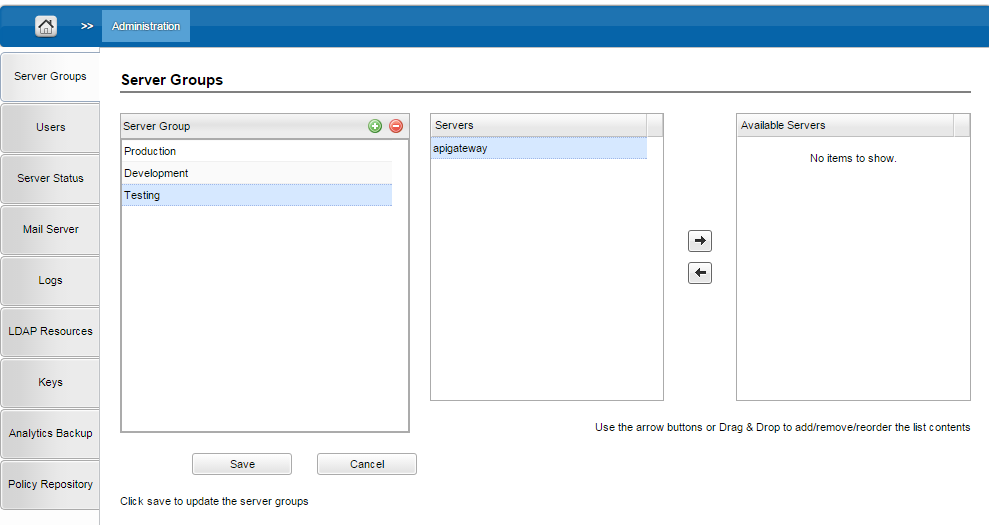

    Figure 2: Adding a Gateway Server from the Available Servers section

Refer Server Groups section to know why a Server Group is needed.
