T24Outbound5.0
The T24Outbound component sends an OFS message to the T24 server and sends the received response to the output port.
Component Configuration
The T24Outbound5.0 microservice can be configured using the Custom Property Sheet (CPS).

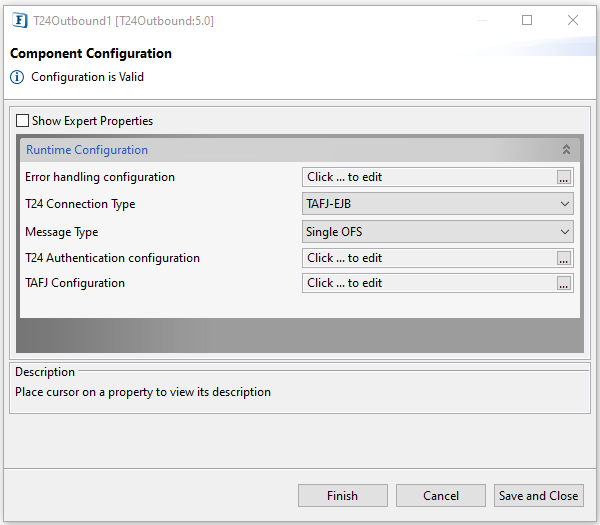

Figure 1: Component Configurations
Runtime configuration
Error handling configuration
For setting up Error Handling Configurations, please refer to the respective sections in the Common Configurations page.
T24 Connection Type
TAFJ-EJB
Micro Service connects to the TAFJ (Temenos Application Framework J-version) to publish the OFS message.
To make this run, we have to deploy the TAFJ into JBOSS (version 7 or above).
To use this EJB approach, add the following jars which are part of the TAFJ deployment:
t24-OFSConnectorService-Data.jar
t24-OFSConnectorService-ejb.jar
t24-adapter-common-22.0.0.jar
TAFJ Configuration
The Tafj Connection Configuration window helps to provide details of the JBoss application server to use the TAFJ-EJB interface.

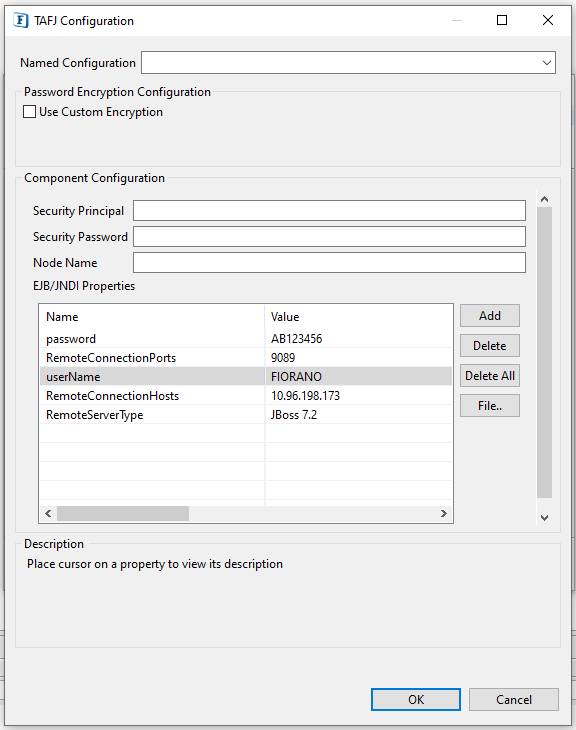

Figure 2: TAFJ Connection Configuration
Message Type
The list of message types supported under the TAFJ-EJB interface:
Single OFS
Single OFSML
Batch OFS
Batch OFSML
Service XML
Service XML
Selected Events

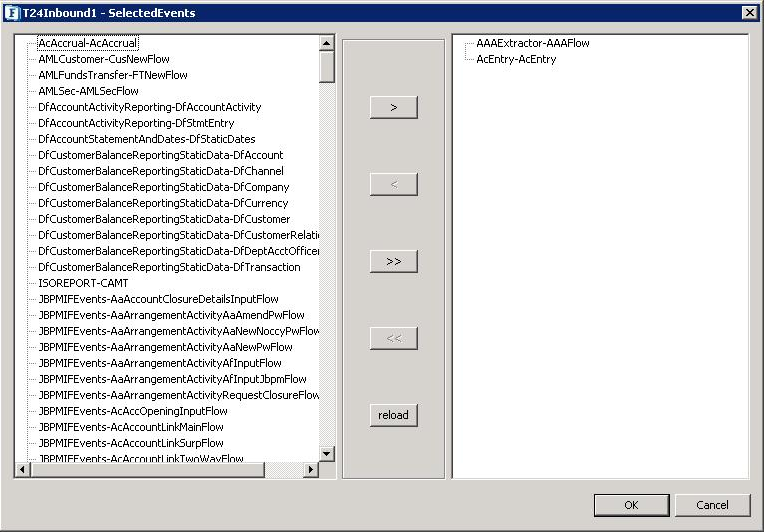

Figure 3: Event Selection
Selected Child

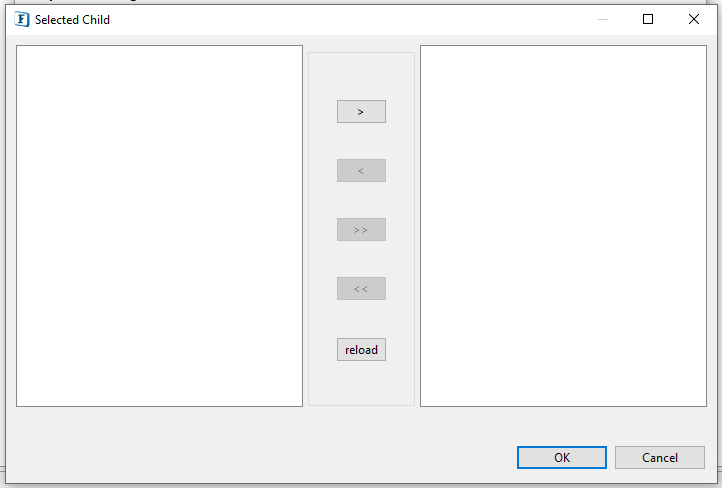

Figure 4: Child Selection
To select an event/child, the following operations can be used.
Operation | Description |
> | To include one or more events from the list of events in the left panel. |
< | To exclude one or more events from the list of events in the right panel. |
>> | To include all the events in the left panel. |
<< | To exclude all the events in the right panel. |
reload | To update the left panel for new events. |
The properties Selected Events and Selected Children are visible only when Message Type property is set to 'Service XML'.
Expert Properties
Enable the Expert Properties view to configure these properties.
Expert properties are meant for advanced users. Use with caution!

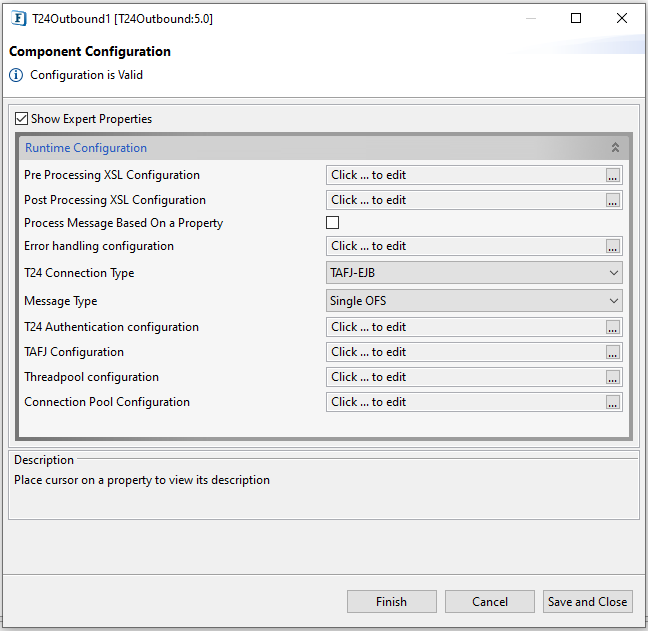

Figure 5: Expert Properties
Runtime Configuration
Pre Processing XSL Configuration
Pre Processing XSL configuration can be used to transform request message before processing it. Click the ellipses button against the property to configure the properties.
Refer to the Pre/Post Processing XSL Configuration section under the Common Configurations page for details regarding Pre Processing XSL configuration and Post Processing XSL configuration (below).
Post Processing XSL Configuration
Post Processing XSL configuration can be used to transform the response message before sending it to the output port.
Process Message Based on Property
The property helps components to skip certain messages from processing.
Refer to the Process Message Based On a Property section under the Common Configurations page.
Threadpool Configuration
This property is used when there is a need to process messages in parallel within the component, still maintaining the sequence from the external perspective.
Refer to the Threadpool Configuration section under the Common Configurations page.
Connection Pool Configuration
Please refer the Connection Pool Params section in the Common Configurations page.
Functional Demonstration
Scenario

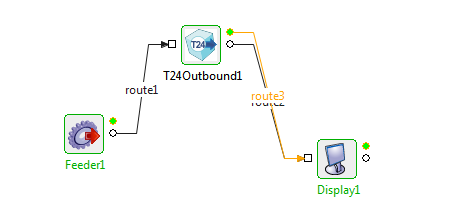

Figure 6: Demonstrating scenario with sample input and output
Configure the T24Outbound component as described in the Configuration and Testing section to process the OFS message and use the Feeder and Display components to send sample input and check the response respectively.
Input Message
Single OFS
CUSTOMER,INPUT/I/PROCESS,USER1/******,,SHORT.NAME:1:1=Peter,NAME.1:1:1=Peter Jhonson,SECTOR:1:1=1001,GENDER:1:1=MALE,MNEMONIC:1:1=C10000092
