Starting Servers and Deploying Services

 Starting server

1. Open a command prompt.

2. Navigate to %FIORANO_HOME%/esb/server/bin

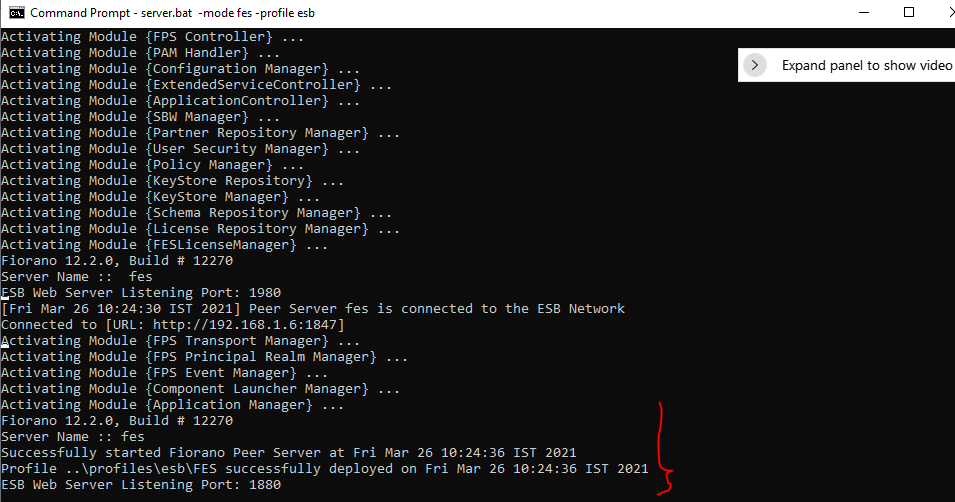

3. Start the server using the command below:

   fiorano.bat/sh -mode fes -profile esb




Accessing eStudio

• Go to %FIORANO_HOME%/eStudio/bin

• Use the 32-bit exe file "eStudio-win-x86.exe" to open eStudio.

• Open the Online Event Process Development Repository view.

• From the Server Explorer panel, right-click the Enterprise Server node and click Login.

  The default username and password are admin and passwd respectively.




  Refer to the Online Event Process Development views section.




FIA Translation flows

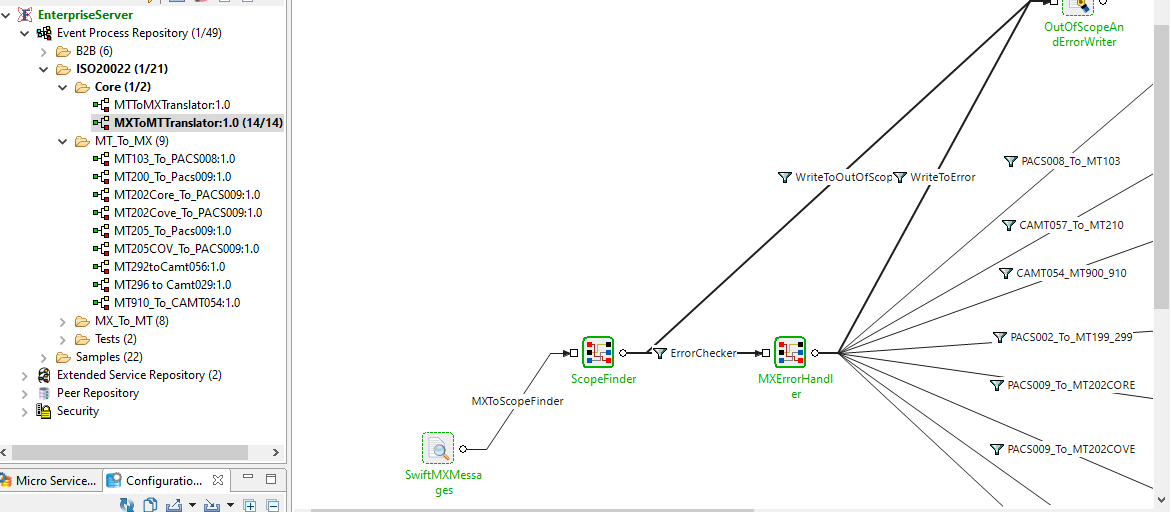

MX-MT and MT-MX event processes for translation are packaged with the product. These are loaded to eStudio as shown below.

Deploying Event Processes

To deploy the translation processes,

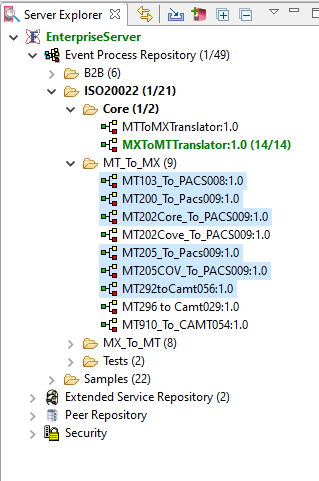

1. Select all the processes.

2. Right-click and click the Check Resources and Connectivity option.

3. Right-click and click Run.

   • The processes that got deployed will be shown in Bold.

   • The number of components deployed is shown within braces. Ideally, all microservices should get deployed.

   • On opening the flows, the microservices within the flows will be in green color.





Once all the flows are deployed, it can translate MX to MT and vice-versa.
