Using EDBC Templates

1. Simple JMS
2. Multi Threaded
3. POJO (Plain Old Java Object)

Scripts

The scripts required for generation of these services are present in the following location:

Windows: edbctemplates.bat file present in %FIORANO_HOME%\esb\tools\templates
Linux: edbctemplates.sh file present in %FIORANO_HOME%/esb/tools/templates

Simple JMS

Generating Template

1. Execute %FIORANO_HOME%\esb\tools\templates\templates-console.bat [sh]



2. From the command prompt, launch the wizard using %FIORANO_HOME%/esb/tools/templates/edbctemplates.bat [sh]
   Syntax: edbctemplates.bat [sh] –dest <dir>



   <dir> represents the target directory where the component code is generated.

   Example

   CODE

   edbctemplates.bat -dest C:\SampleComponents\EDBC\SimpleJMS

3. Provide service details in Service Information panel and click Next.

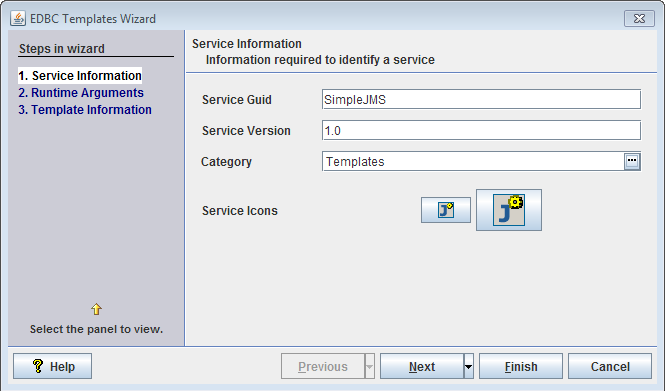

   Figure 1: Details of service

4. In Runtime Arguments panel, add the required runtime arguments.

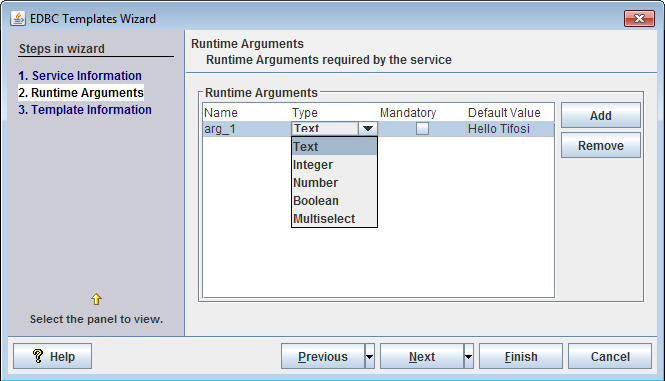

   Figure 2: Adding runtime arguments

5. In the Template Information panel, select 'SimpleJMS' from the Select the template to be used drop-down.

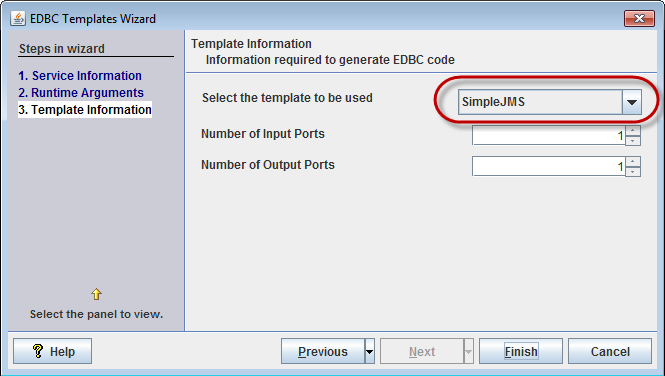

   Figure 3: Specifying template to use


6. Specify the required number of input and output ports and click Finish.

Component Development

Adding Business Logic

Business logic should be added in onMessage(Message msg) method of ${ServiceGUID}MessageListener (in the above example SimpleJMSMessageListener) class

/**
 *Listens for messages on input port.
 *@param msg message received on input port
 */
public void onMessage(Message msg) {
	/**
		* todo: add the business logic here.
		*/
}

Accessing Runtime Arguments

Runtime arguments passed to the service can be accessed using runtimeArguments.getParameter("<runtime argument>")

/**
 *Listens for messages on input port.
 *@param msg message received on input port
 */
public void onMessage(Message msg) {
	String value = runtimeArguments.getParameter("reportInterval");
	/**
	 * todo: add the business logic here.
	 */
}

Sending Messages on Output Port

Messages can be sent to the required output port using producer.send((Destination) outputDestinations.get("<output port name>"), <message>);

 /**
 *Listens for messages on input port.
 *@param msg message received on input port
 */
public void onMessage(Message msg) {

	/**
	 * todo: add the business logic here.
	 */
	try {
    	producer.send(Destination) outputDestinations.get("OUT_PORT_1"),msg);
	} catch (JMSException e) {
    	e.printStackTrace( );
	}
}

Multi Threaded

Generating Template

1. Execute %FIORANO_HOME%\esb\tools\templates\templates-console.bat [sh].



2. From the command prompt, launch the wizard using %FIORANO_HOME%\esb\tools\templates\edbctemplates.bat [sh].
   Syntax: edbctemplates.bat [sh] –dest <dir>



   <dir> represents the target directory where the component code is generated.

   Example

   CODE

   edbctemplates.bat -dest C:\SampleComponents\EDBC\MultiThreaded

3. Provide service details in theService Information panel and click Next.

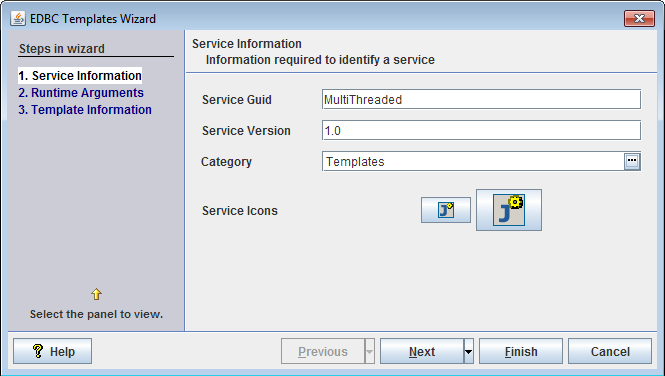

   Figure 4: Details of service

4. In Runtime Arguments panel, add required runtime arguments.






   Figure 5: Adding runtime arguments

5. In the Template Information panel, select MultiThreaded, specify the required number of input and output ports, and then click Finish.

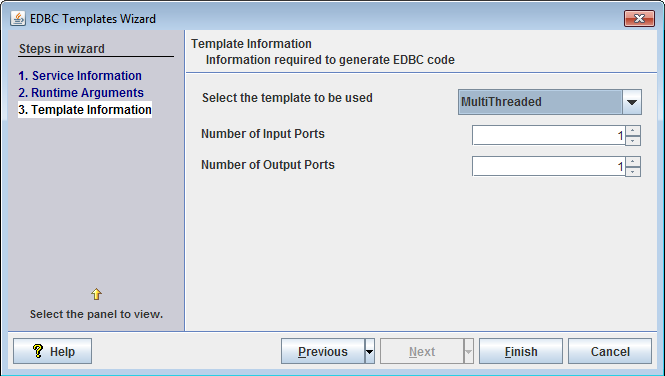

   Figure 6: Specifying template to use

Component Development

Adding Business Logic

Business logic should be added in the execute() method of the ${ServiceGUID}Job (in the above example MultiThreadedJob) class

/**
 * This method contains business. To send message onto output port a call to {@Link #send(javax.jms.Message)}
 *should be made from this method.
 *
 *@throws TifosiException
 */
public void execute( ) throws TifosiException {

	//todo: add the business logic here
	//input message is available as "request" object
	//output message with all properties copied from input message can be fetched using getResponseDoc( )

	super.execute( );
}

Accessing Runtime Arguments

Runtime arguments passed to the service can be accessed using runtimeArguments.getParameter("<runtime argument>")

 /**
 * This method contains business. To send message onto output port a call to {@Link #send(javax.jms.Message)}
 *should be made from this method.
 *
 *@throws TifosiException
 */
public void execute( ) throws TifosiException {

	runtimeArguments.getParameter("reportInterval");
	 //todo: add the business logic here
	 //input message is available as "request" object
	 //output message with all properties copied from input message can be fetched using getResponseDoc( )
	 //send(Message) must be called here

	super.execute( );
}

Sending Messages on Output Port

Messages can be sent oto the required output port using sender.send((<message>,"<output port name>");

/**
 * Sends message onto output port
 *
 *@param message <code>javax.jms.Message<code> that has to be sent on output port
 *@throws JMSEception exception thrown when sending fails
 */
private void send(Message message) throws JMSExeception {
	synchronized(sender) {
		//todo add the send logic here
		sender.send(message,"OUT_PORT_1);
		sender.transactionComplete( );
   }
}

 POJO

Generating Template

1. Execute %FIORANO_HOME%\esb\tools\templates\templates-console.bat [sh].



2. From the command prompt launch the wizard using FIORANO_HOME%\esb\tools\templates\edbctemplates.bat [sh]
   Syntax: edbctemplates.bat [sh] –dest <dir>



   <dir> represents the target directory where the component code is generated.

   Example

   CODE

   edbctemplates.bat -dest C:\SampleComponents\EDBC\POJO

3. Provide the service details in the Service Information panel and click Next.

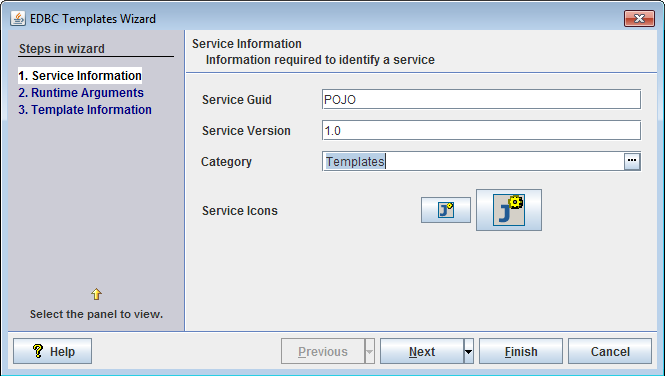

   Figure 7: Details of service

4. In the Runtime Arguments panel, add the required runtime arguments.

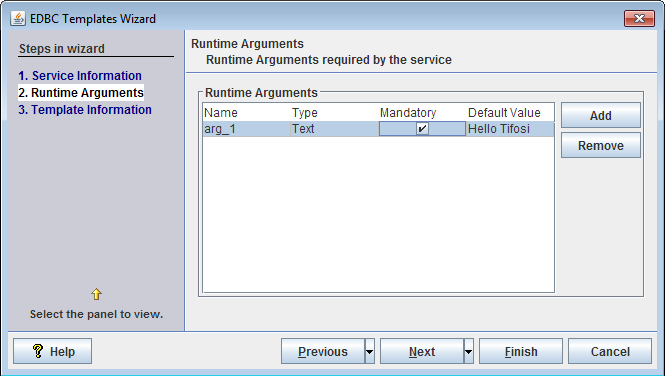

   Figure 8: Adding runtime arguments

5. In the Template Information panel, select POJO.

6. Select jar file containing the required POJO class.

7. Select the required method from the list of methods displayed.
   Methods with the following signatures alone appear:
   • public static void <method_name>(String)
   • public static void <method_name>(Message)
   • public static Message <method_name>(Message)
   • public static Message <method_name>(String)
   • public static String <method_name>(Message)
   • public static String <method_name>(String)

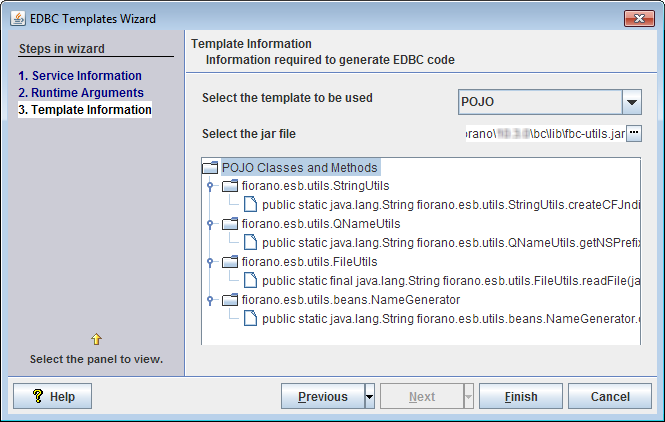

   Figure 9: Specifying template to use and selecting required method


Component generated for a POJO contains one input-output pair for each method selected. However, if the return type is void, output port will not be generated for that method.

When a message arrives at an input port, the associated method is invoked, and the response is sent to the respective output port if present.

Component Development

Business logic is generated into component and can be used as it is.
