Manual Deployment

Fiorano Microservices can be configured and launched using different modes as per requirement, which can be referred in the Configuring Execution Type section.

When end-user wishes to control the launch and stop of the components in a Fiorano application, specific components can be set to launch in manual mode. When a component is set to launch in the manual mode, the Fiorano Peer Server does not try to launch the component. The end-user can use the Fiorano scriptgen tool present in <fiorano_install_dir>/esb/tools/scriptgen as illustrated in Figure 1 to generate a script that launches the component. Alternatively, the end-user can use the Fiorano Enterprise Server API to launch this component from another application.

To change a component's Launch Mode, click the component first and then change the Execution Type to 'Manual' in the Execution tab of the Properties window.

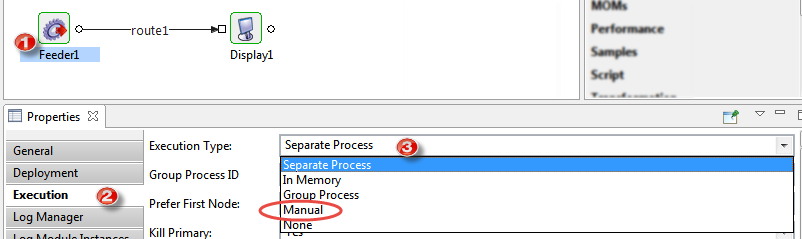

Figure 1: Choosing 'Manual' Execution Type

Manual launch is a mode in which the Fiorano peer server does not control the launch and stop of components.

For Manual execution type, the border of the component appears as a dotted border.

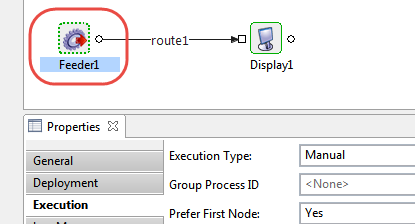

Figure 2: Component border changed to a dotted border

In case of XSLT component, when the Execution Type is set to "Manual", the parameter "GLOBAL_FUNCLET_PATH" needs to be added to it's generated properties file present at esb/tools/scriptgen/component_properties as follows:

CODE
GLOBAL_FUNCLET_PATH=D:/Fiorano_sources/trunk/installer/runtimedata/repository/peerfunclets/userdefined.xsl

Use the path separator as /

Scriptgen Tool

Manual launch can be achieved via a launch script that can be generated via Fiorano Studio. The scriptgen tool is present at the location <fiorano_install_dir>/esb/tools/scriptgen

Manual launch should only be done after the Event Process (within which the Manual launch type component is an instance) has been launched.

To generate a Manual Launch Script from the Fiorano Studio

  1. Right-click the component, go to the Execution option, select the Save Manual Launch Script option and save the script in the component_properties folder that is automatically created.

    These properties are used to launch the component using the scriptgen tool.

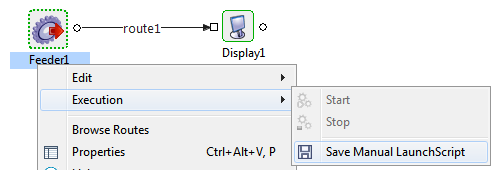

    Figure 3: Menu to save the manual launch script using Fiorano Studio


    Ensure to change the Launch Mode of the selected component to 'Manual' in the Fiorano eStudio.

  2. After saving the generated script, a dialog box is displayed with instruction to run the manual script. Click OK.

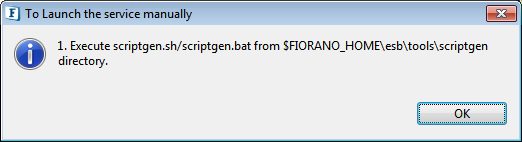

    Figure 4: Dialog box showing the steps to execute a component using the scriptgen tool

    The instruction reads, "Execute scriptgen.sh/scriptgen.bat from $FIORANO_HOME\esb\tools\scriptgen directory"

    When this option is selected, properties Debug Mode is not visible and the value for property JVM_PARAMS is ignored.

  3. Executing the scriptgen.bat file (on Windows platform) or scriptgen.sh file (UNIX platform) sets the environment variables. In UNIX, type the command ant and press Enter to start the Launch Configuration UI (Figure 5) to configure the launch script saved above. Perform the following actions in the Launch Configuration dialog box:

    1. Click the ellipsis

       button present under the Properties File text box and choose the properties file saved previously (Step 1); the path gets displayed in the text box.

    2. Click the Load button to set the appropriate properties. Vvalues saved in the properties file get displayed in the Launch Configuration window.

    3. Click OK to launch the component.

    Components that have the Manual execution type will not be launched when the application is launched, since they need to be started manually, as described earlier.

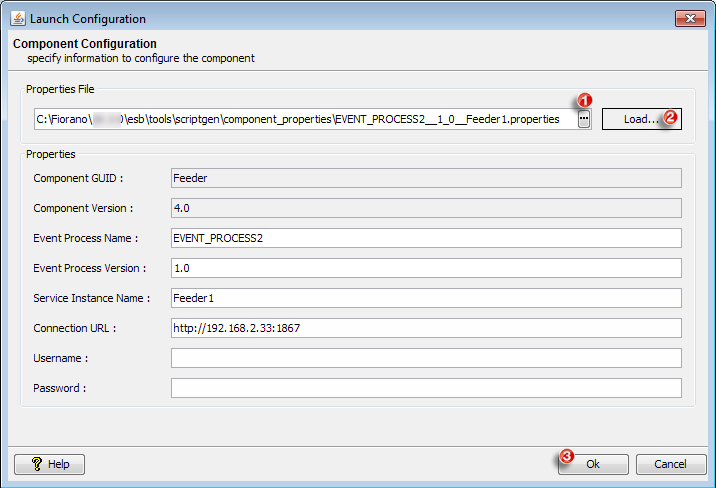

    Figure 5: Launch Configuration UI to load the component properties for manual launch


  4. The console shows the progress of the component launch with log statements.

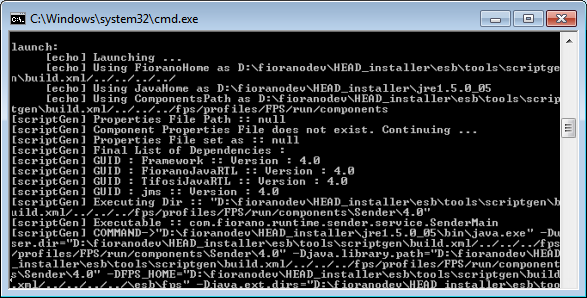

    Figure 6: Console displaying the details of the launch of the component

    Subsequently, the component gets launched, which can be further used in the flow.

    Closing the console kills the component.
