Deploying Servers in Cloud

While using the cloud environment to run Fiorano, some changes in the profiles/properties/files to setup different modules in Fiorano may be required. Possible changes to be made are explained in the sections below.

FES Profile Changes

Managing Connectivity with eStudio

To enable login to eStudio from a local machine while FES is running in the cloud machine that has a public IP, set the Public IP of the cloud machine in the Hostname property in the FES profile. Perform the following actions to enable the same:

  1. Stop the FES server if it is running and then open the FES profile in eStudio on the cloud machine.

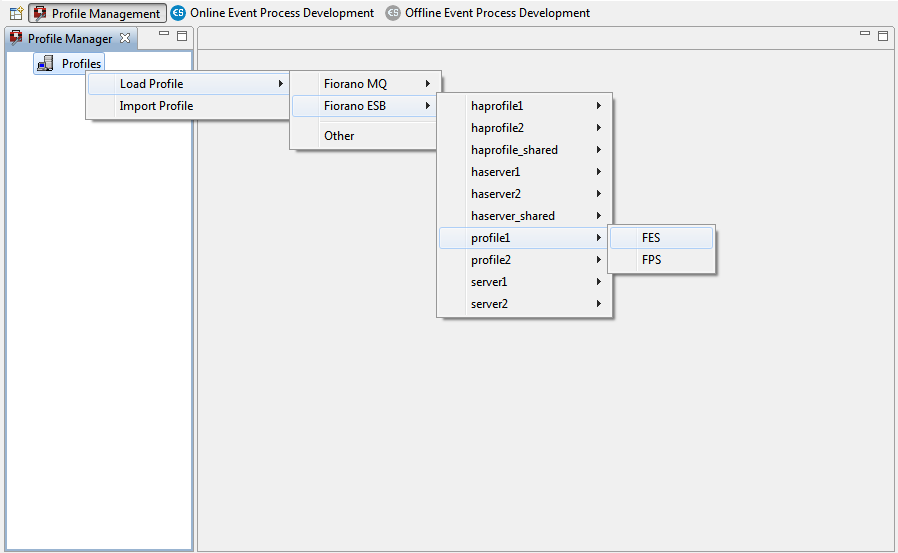

    Figure 1: Opening FES profile

  2. Navigate through to Fiorano > jmx > connector > RMIBasesJMXConnector and make the changes below:
    1. Set the Hostname to Public IP.
    2. Provide the RMIPortExportObjects property with the value of the RMIServerPort (2047 in the figure below) property.

      Default value for RMIPortExportObjects property is 2047.

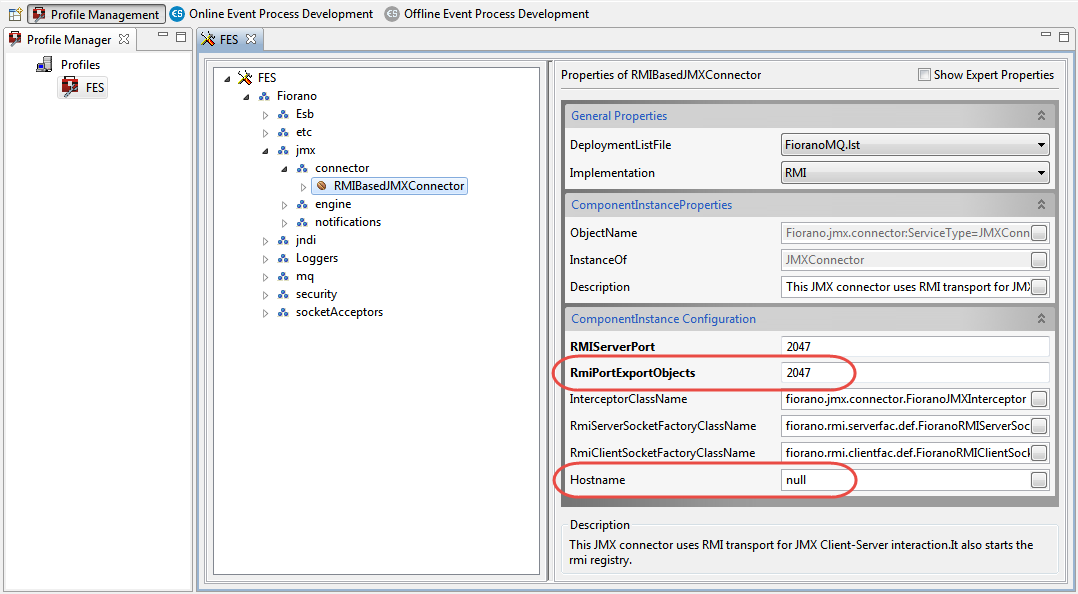

      Figure 2: Set Hostname and RmiPortExportObject

  3. Right-click the FES node and click Save to save the changes made in the FES Profile.

  4. Start the FES server.

If HA profiles are used, set the hostname in both primary and secondary server profiles with their corresponding Public IP addreses (or the private static IP in case of a Virtual Private Cloud).

Enabling Peer Connectivity and allowing Breakpoints/Reinjections

When the FPS server is started in the local machine and the FES server is running in the cloud, following issues occur:

  • The FPS server will not connect to the FES server and will not start properly.

    The following error message will be displayed on the peer console:

    Connected to [URL: null]

  • Addition of break points and reinjection of documents will not work.

Map the FES public IP in the FES Profile to manage the above by following the steps below:

  1. Open eStudio in the FES machine.
  2. Go to the Profile Management perspective and open the FES profile.
  3. Navigate through to Fiorano > esb > Transport  > FESTransportManager and set the MappedPublicAddress property to the FES machine public IP.

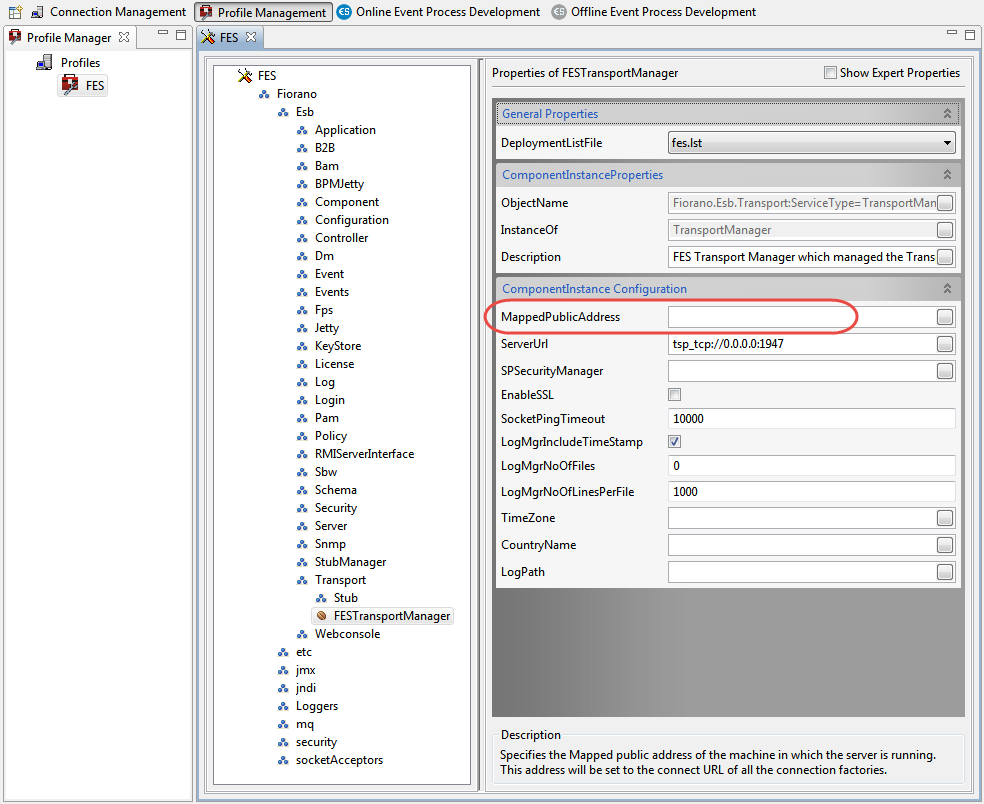

    Figure 3: Configuring MappedPublicAddress property


If HA profiles are used, we need to set the MappedPublicAddress in both primary and secondary server profiles with their corresponding Public IP (or private static IP in case of VPC).

FPS Profile Changes

Running Event Processes while using Multiple Peers

When there is a route between a component in the fps running in a local machine and a component in the fps1 running in a cloud machine, event process (EP) will not start. Perform the following actions to make the EPs rn:

  1. Open the FPS profile in the Peer machine eStudio.
  2. Navigate through to Fiorano > esb > Peer > Configuration > FPSCommonConfigLoader and set the MappedPublicAddress property to the public IP of the peer machine.

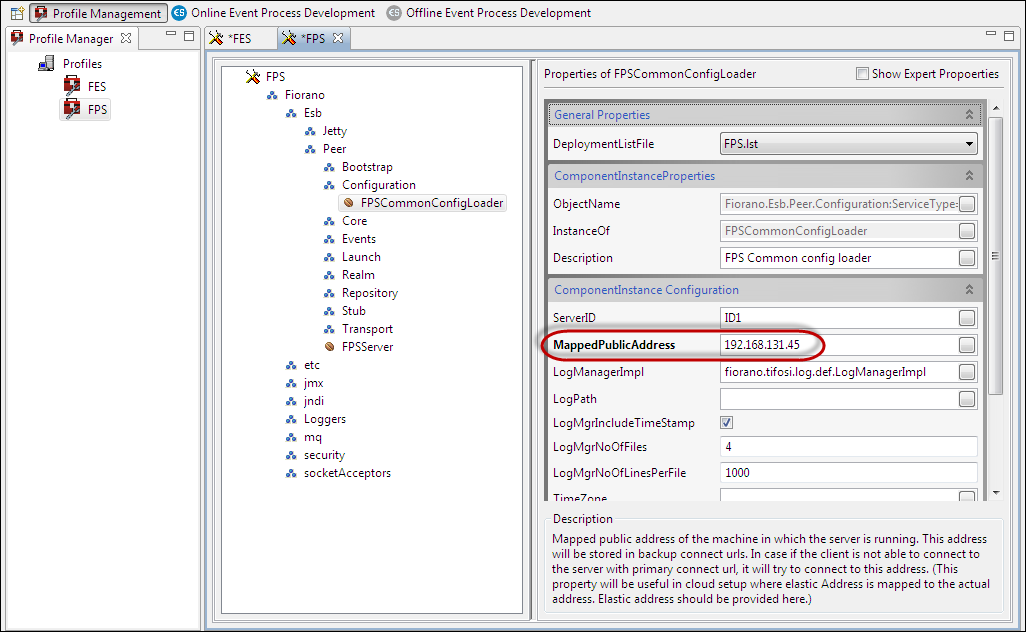

    Figure 4: Setting Mapped Public IP Address

  3. Navigate through to Fiorano > Esb jmx Connector > RMIBasedJMXConnector and set the Hostname to public or private static IP address.

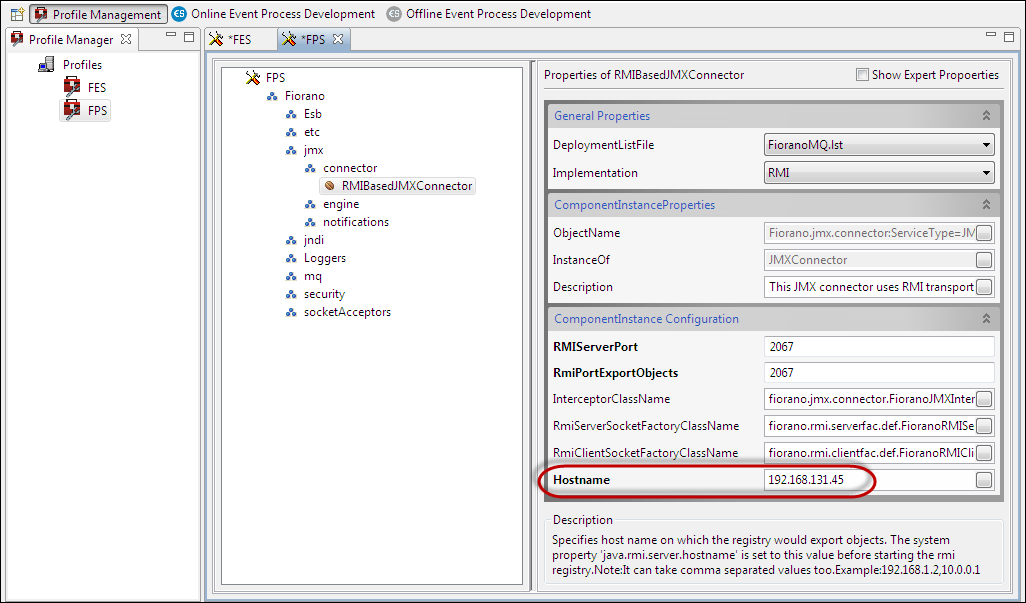

    Figure 5: Providing the Hostname


If HA profiles are used, set the hostname and MappedPublicAddress in both primary and secondary server profiles with their corresponding Public IP (or private static IP in case of VPC).

Local eStudio.ini file Changes

Components colors may not change while connecting to the FES server running in the cloud machine from local eStudio. To rectify this, add the script below to the FIORANO_HOME/eStudio/eStudio.ini file:

CODE
-Djava.rmi.server.hostname=<PUBLIC_IP_OF_eStudio_MACHINE>

Provide the public IP of the local eStudio machine.

Port 9713 (configurable), which is used to connect to FES, should be NATed to receive events from FES.

Ports

The following ports should be opened from the firewall in their respective machines and if a public IP is used, they should be NATed from the public machine to the local machine.

Below is a list of ports that should be opened in the respective machines.

Machine

Port

Description



FES

1847

FES MQ Server listens on this port. This port is used for JMS communication by the underlying MQ server in the FES server.
1947Server listens on to this port for studio and adapter connections.
2047This port is used for RMI communication between the FES server and tools the tools such as eStudio.
9713The eStudio listens on this port for events from the FES server. This port is not required if the eStudio is not launched in the FES server machine.
1980This port is used by the Jetty Web Server for the Dashboard.



FESHA

1848JMS port of the FES backup (Secondary) server.
1948Server listens on to this port for studio and adapter connections.
2048RMI port of the FES backup (Secondary) Server.
1747Primary FES server listens on to this port for data replication.
1748Secondary FES server listens on to this port for data replication



FPSHA

1868JMS port of the Peer backup(Secondary) server.
2068RMI port of the Peer backup(Secondary) Server.
1767Primary Peer server listens on to this port for data replication
1768Secondary Peer server listens on to this port for data replication




FPS

1867

The FPS MQ Server listens on this port. This port is used for JMS communication by the underlying MQ server in the FPS server.
2067This port is used for RMI communication between a peer server and tools such as estudio.
1880

This port is used by WSStub and RestStub components.

Opening this port is not required if the above components are not used.

eStudio

9713

The eStudio listens on this port for events from the FES server.
