Configuring the Jetty Server with SSL Support

As SSL support is provided for Jetty, you can configure the SSL parameters for Jetty running with FES/FPS by editing the corresponding profiles.

Configure SSL parameters for Jetty

By default, the SSL property for Jetty is disabled. To enable this property, perform the following actions:

1. Go to the eStudio application and open the FES profile from Profile Management perspective before starting the FES server.

2. Navigate to Esb > Jetty, and select the SSLEnabled properties checkbox.

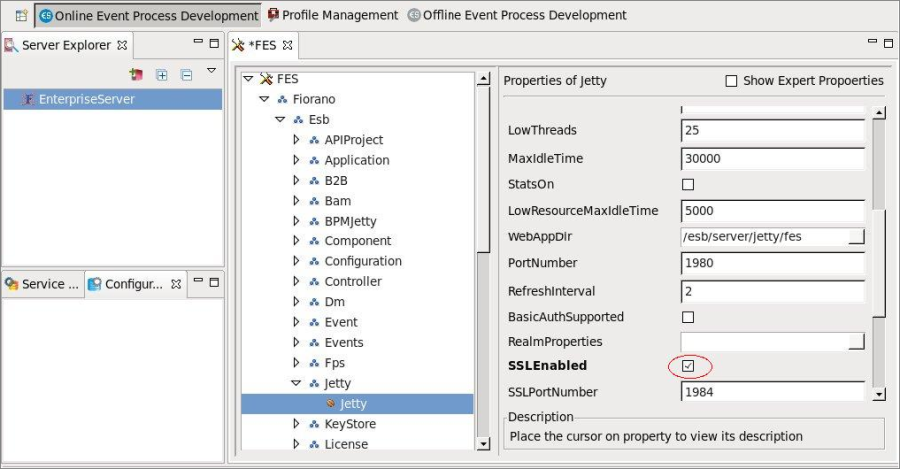

   Figure 1: Configuring Jetty for FES

3. Specify the values for KeyStoreLocation, KeyStorePassword, KeyPassword, TrustStore, TrustStorePasswd and save the FES profile.

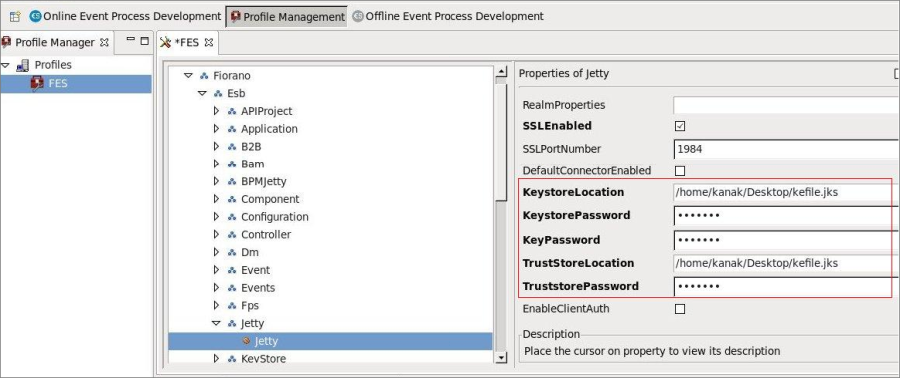

   Figure 2: Configuring Jetty for FES

4. Start the servers. Jetty gets started with the SSL enabled.

To apply the same configuration in FPS server, open the FPS profile and follow the same steps as mentioned above.
