Adding an Event Process

An Event Process (EP) project can be developed to meet customized requirements.

To create a new Event Process Project, log on to eStudio and open one of the panels below:

• Server Explorer panel in the Online Event Process Development perspective
  Window > Show View > Other > Fiorano > Server Explorer
• Event Process Repository panel in the Offline Application Development perspective
  Window > Show View > Fiorano > Event Process Repository

Perform the actions below in any one of the panels:

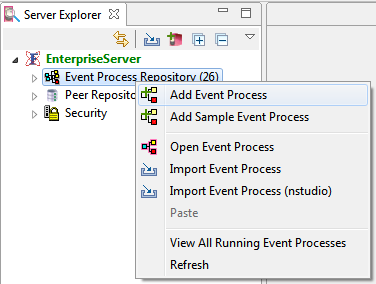

1. Right-click Event Process Repository, and then click Add Event Process.






   Figure 1: Adding an Event Process

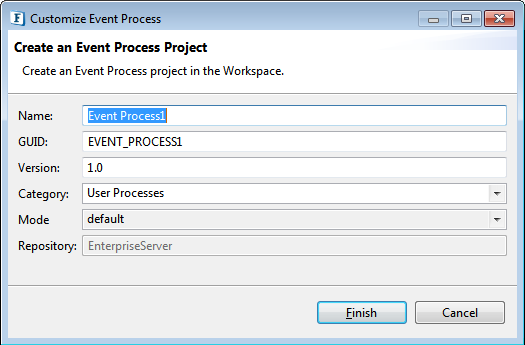

2. In the Customize Event Process dialog box, provide an appropriate name, choose the category (under which the Event Process falls) from the Category drop-down menu and click Finish.






   Figure 2: Editable attributes while adding an Event Process project


• Names will appear in sequential order by default such as Event Process1, Event Process2, Event Process3 etc.
• To create a new category under Event Process Repository, enter a new name in the Category drop-down field.

Refer the Composing an Event Process section for detailed steps.
