Setting up Kubernetes Cluster on Google Cloud with Istio

Creating Kubernetes Cluster on Google Cloud

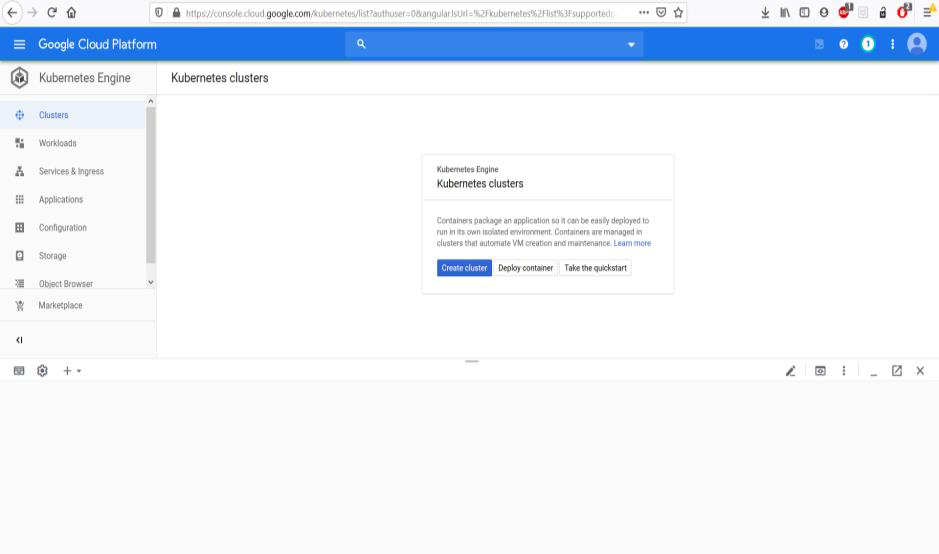

Login and Select Kubernetes Engine on the Google Cloud Platform

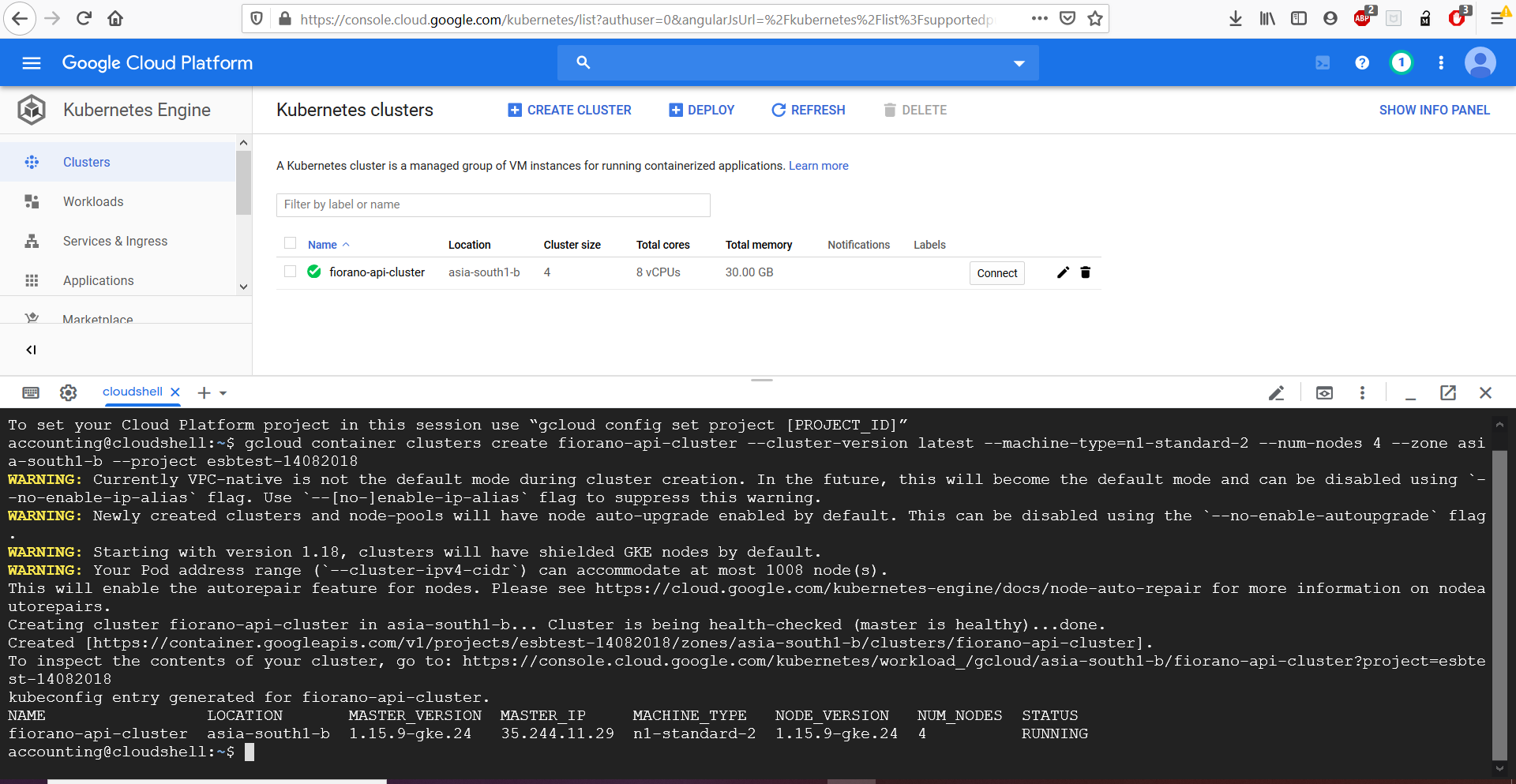

Create a cluster by running the following command on the cloud shell

$ gcloud container clusters create fiorano-api-cluster --cluster-version latest --machine-type=n1-standard-2 --num-nodes 4 --zone asia-south1-b --project esbtest-14082018

Retrieve credentials for kubectl

$ gcloud container clusters get-credentials fiorano-api-cluster --zone asia-south1-b --project esbtest-14082018

Grant cluster administrator (admin) permissions to the current user

To create the necessary RBAC rules for Istio, the current user requires admin permissions.

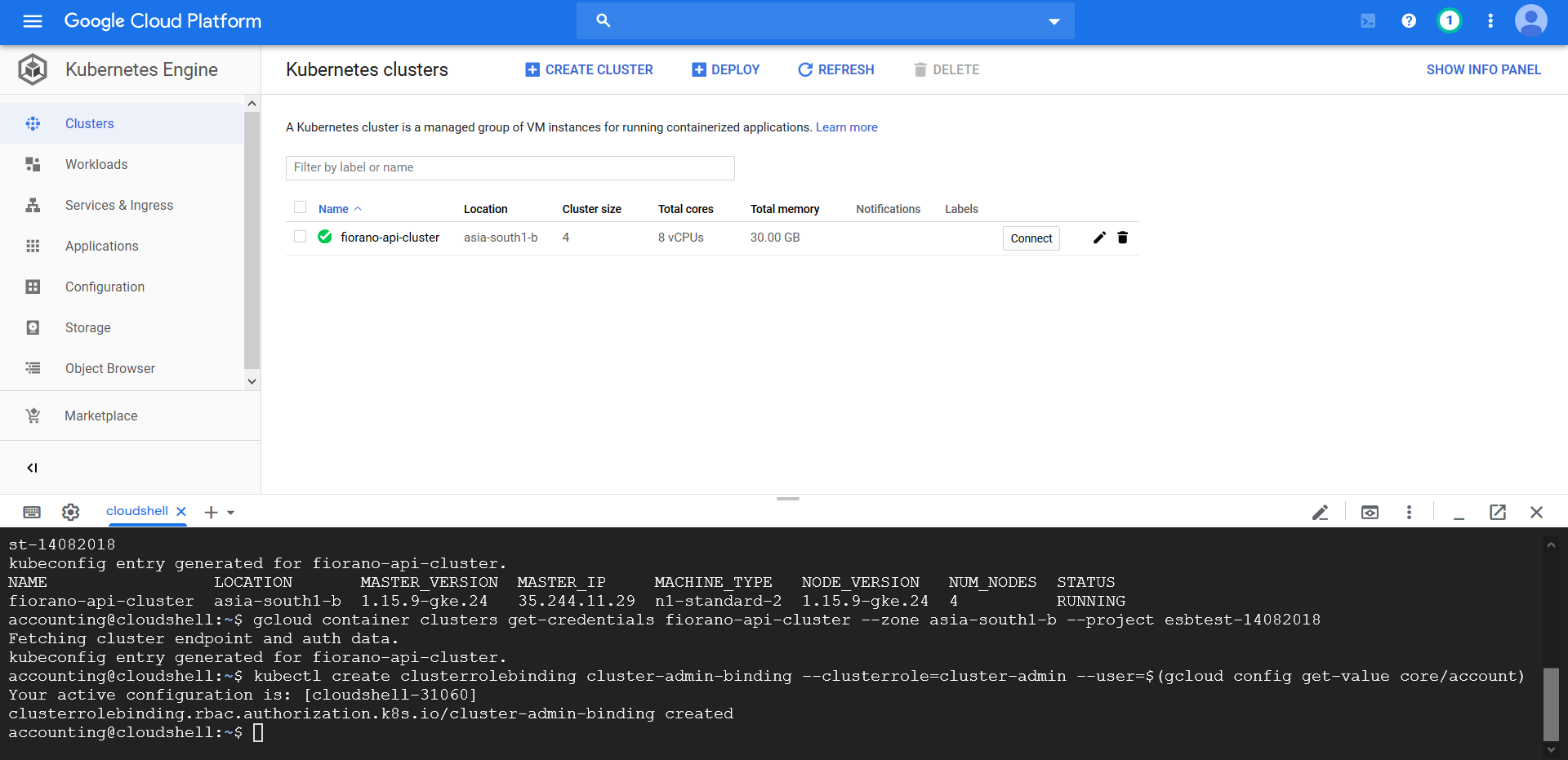

$ kubectl create clusterrolebinding cluster-admin-binding --clusterrole=cluster-admin --user=$(gcloud config get-value core/account)

Configuring Istio

Downloading Istio

Go to the Istio release page to download the installation file for your OS, or download and extract the latest release automatically (Linux or macOS) as mentioned in https://istio.io/docs/setup/getting-started/

Run the following in the cloud shell

$ curl -L https://istio.io/downloadIstio | sh -

Adding istioctl client to your cloud system path

Please use the version of istio you downloaded and correct the paths below to suit your version

$ cd istio-1.5.0
$ export ISTIO_HOME="/path/to/istio/istio-1.5.0"
$ export PATH=$IedxzSTIO_HOME/bin:$PATH

Configuring Istio Profile

For this installation, we use the demo configuration profile. It’s selected to have a good set of defaults for testing along with dashboards like kiali, prometheus etc.

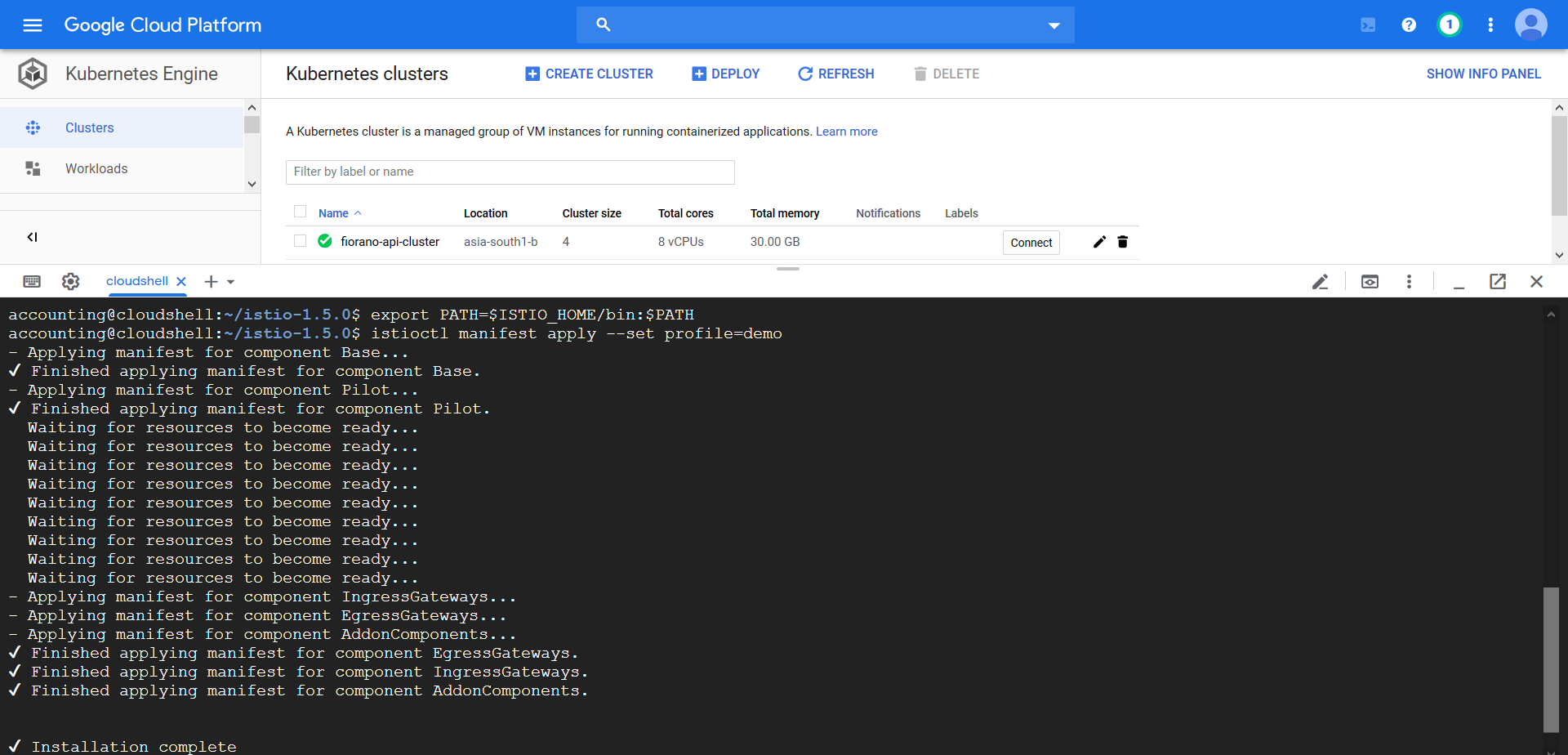

$ istioctl manifest apply --set profile=demo

Configuring Istio Namespace to allow injection

Add a namespace label to instruct Istio to automatically inject Envoy sidecar proxies when you deploy your application later

$ kubectl label namespace default istio-injection=enabled

Configuration changes to Fiorano installer for cloud setup

In the Fiorano Latest installer, change the IP for Cassandra, Primary and Secondary URL as 10.35.240.20 (configured cluster IP for AMS) in config deployer in for server1 profile AGS.

Configuring the Docker image

1. Upload the tar files created for AMS and AGS compressed as zip to the Google Cloud console, after upload extract the same.
2. Change the directory and go to the directory containing the docker images using Cloud shell

3. Run the following code blocks to load docker images to the cloud docker


   CODE

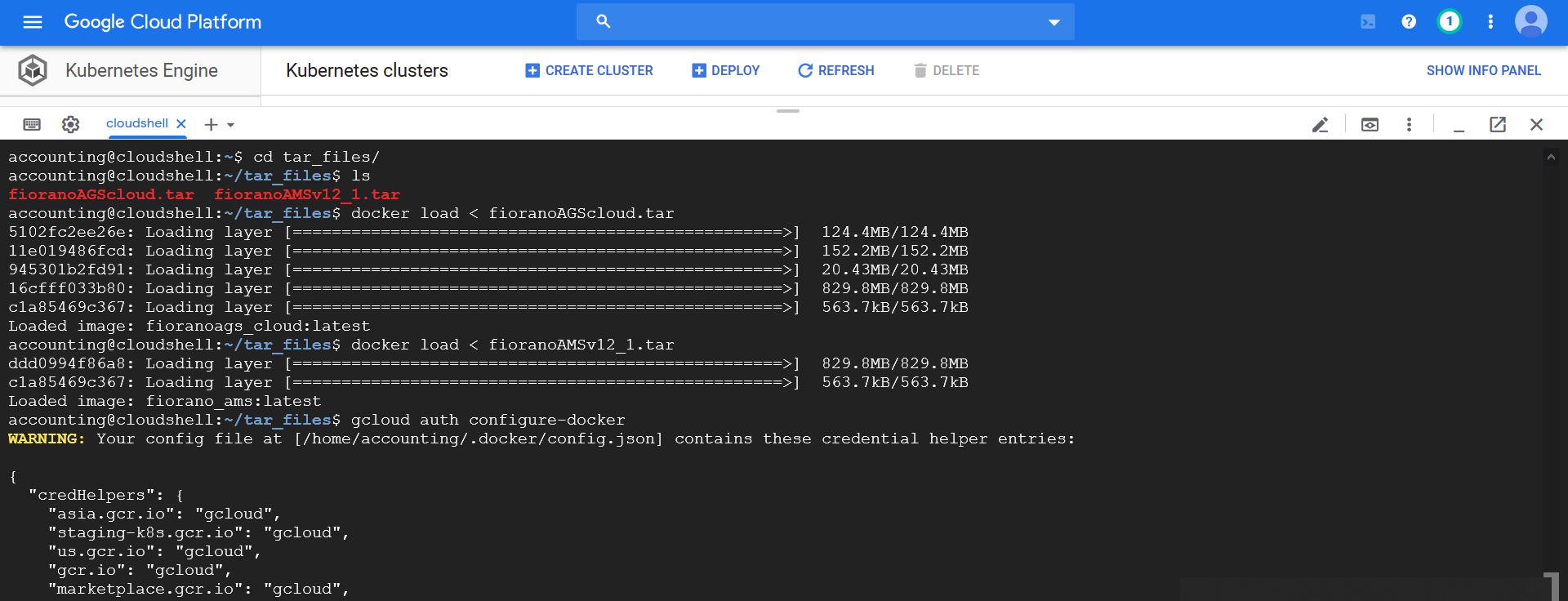

   $ docker load < FIORANO_DOCKER_IMAGE



   Change the FIORANO_DOCKER_IMAGE to the actual docker image file name for both AMS and AGS

4. Add Cred Helper
   Add the Docker credHelper entry to Docker's configuration file, or create the file if it doesn't exist. This will register gcloud as the credential helper for all Google-supported Docker registries. ( refer to https://cloud.google.com/container-registry/docs/pushing-and-pulling)


   CODE

   $ gcloud auth configure-docker



5. Create tags with registry name

   Example

   CODE

   $ docker tag fiorano_ams gcr.io/esbtest-14082019/fiorano_ams:latest
   $ docker tag fiorano_ags gcr.io/esbtest-14082019/fiorano_ags:latest

6. Push the tagged images to container registry


   Example

   CODE

   $ docker push gcr.io/esbtest-14082018/fiorano_ams:latest
   $ docker push gcr.io/esbtest-14082018/fiorano_ags:latest

Create Persistent Volume Claims

Run the following command to execute the yaml files for persistent volume claim configuration, please navigate to the folder containing the yamls before executing

Click on the file name to download a sample template for the respective yaml.

1. cassandra_pv_pvc.yaml

   CODE

   $ kubectl apply -f cassandra_pv_pvc.yaml

2. postgres_pv_pvc.yaml

   CODE

   $ kubectl apply -f postgres_pv_pvc.yaml

3. fiorano_pv_pvc.yaml

   CODE

   $ kubectl apply -f fiorano_pv_pvc.yaml

Configure Postgres Login

Apply the postgres configuration file for login credentials

The template of the file can be found here.

$ kubectl apply -f postgres-config.yaml

Create the Load Balancer Services

Please update the Cluster IP field in services.yaml and ags-services.yaml based on your setup. For services.yaml use the same cluster IP that we had set in the Fiorano profile while creating the docker image for AGS.

Load Balancer Configuration for AMS

Sample services.yaml can be found here

$ kubectl apply -f services.yaml

Load Balancer Configuration for AGS

Sample ags-services.yaml can be found here

$ kubectl apply -f ags-services.yaml

Wait for a few minutes for the Loadbalancer endpoint to get assigned.

Configuring Ingress hosts and ports

$ export INGRESS_HOST=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
$ export INGRESS_PORT=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="http2")].port}')
$ export SECURE_INGRESS_PORT=$(kubectl -n istio-system get service istio-ingressgateway -o jsonpath='{.spec.ports[?(@.name=="https")].port}')

Create AMS, Cassandra and postgres deployment

Check if the image name in yaml is the same as tagged in the gcloud registry otherwise pods may fail

Sample yaml file can be found here.

$ kubectl apply -f fiorano-cass-post-deployment.yaml

Wait for a few minutes to get the pods running

Create AGS Stateful set deployment

Check if the image name in yaml is the same as tagged in the gcloud registry otherwise pods may fail

Sample yaml file can be found here.

$ kubectl apply -f ags-stateful.yaml

Create the Kubernetes Gateway Service to access services outside a cluster

Check if hosts field is "*" or specify the Ingressgateway IP which is in INGRESS_HOST )

Sample yaml file can be found here.

$ kubectl apply -f gateway.yaml

Create the Kubernetes Virtual Services which would specify the Host URI

Check for /api in prefix and check if hosts field is the Ingressgateway IP which is in INGRESS_HOST

Click the file names to get sample virtual.yaml and resource.yaml files

$ kubectl apply -f virtual.yaml
$ kubectl apply -f resource.yaml

Now check if external access works by opening the browser and giving the URL as: http://$INGRESS_HOST:$INGRESS_PORT/apimgmt

To check INGRESS_HOST and PORT give the following command in the cloud shell

echo $INGRESS_HOST:$INGRESS_PORT

Load Kiali Dashboard

$ istioctl dashboard kiali
