LDAP Resources | Documentation

LDAP Server connection details can be configured in the LDAP Resources panel. This configuration enables to use of the LDAP Policy.

Click the LDAP Resources icon on the left side of the Administration screen to manage LDAP Resources.

Click the Add icon to add an LDAP resource and assign values for the parameters that appear on the right side when the newly added resource name is selected.

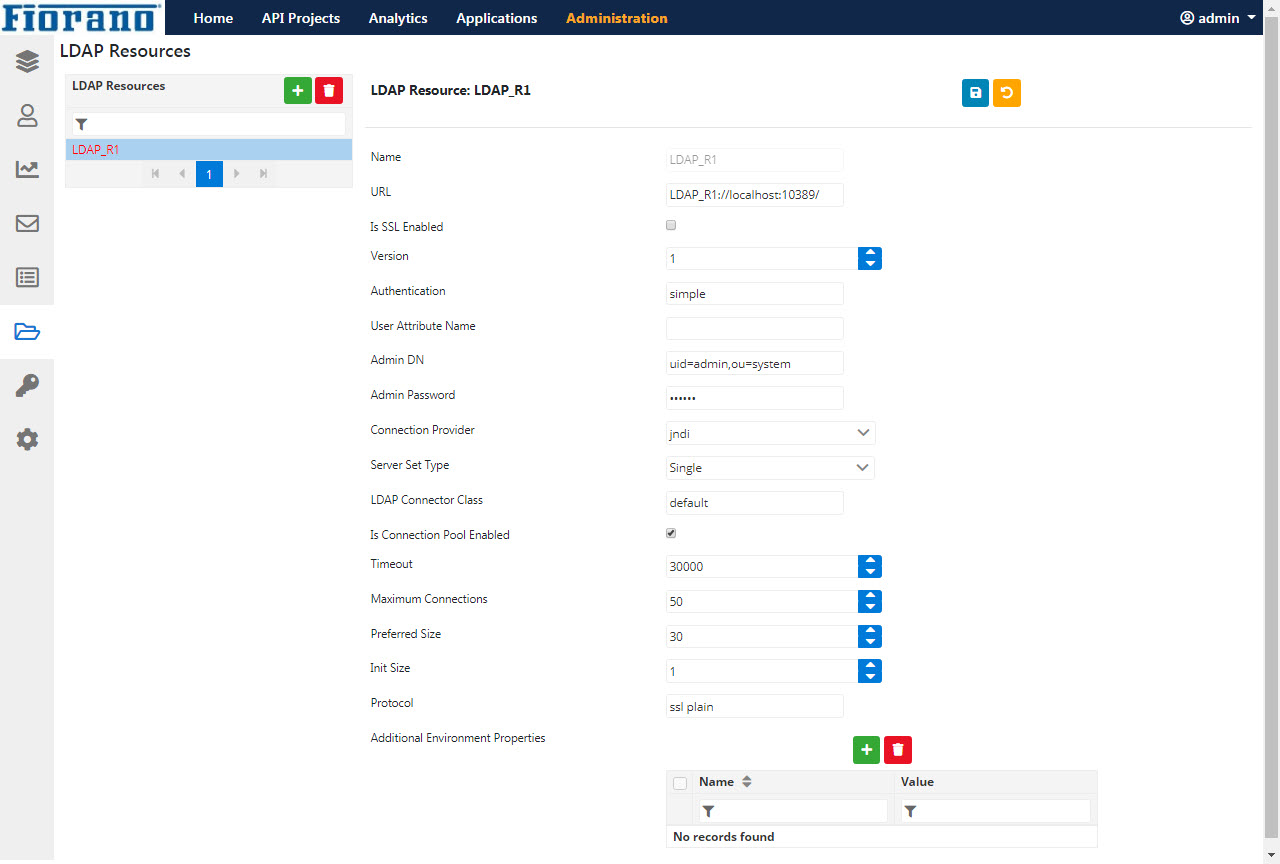

Figure 1: Properties of a newly added LDAP Resource

After configuring the LDAP Resource with the properties described below, the resource can be used while configuring the LDAP policy.

Property	Description
Name	Unique Name of LDAP Resource
URL	URL to connect to LDAP Server
Is SSL Enabled	Enable if SSL security is required
Version	LDAP Server version
Authentication	The Authentication type to be used
User Attribute Name	Provide the name of the user-defined attribute.
Admin DN	LDAP System user name
Admin Password	LDAP System password
Connection Provider	Connection Providers are: jndi unboundid
Server Set Type	Server Set Types are: single roundrobin failover Not Applicable for JNDI
LDAP Connector Class	Default option uses the built-in LDAP Connector. If LDAP Policy with a custom LDAP provider is being used, specify the fully qualified LDAP connector class, that is, the class in which the LdapConnectionProvider interface is implemented.
Is Connection Pool Enabled	Enable if connection pooling is required
Timeout	Connection timeout value
Maximum Connections	Maximum number of connections when connection pooling is enabled
Preferred Size	Preferred size of the pool when connection pooling is enabled
Init Size	Initial number of connections when connection pooling is enabled
Protocol	Protocol used to connect to the LDAP server
Additional Environment Properties	The Environment properties that can be used while creating the LDAP server context. Click the Add icon to assign additional parameters.

Refer to the LDAP Policy section to understand LDAP policy implementation.
