Attaching Policy to a Resource

A proxy flow is comprised of four endpoints as below:

• Proxy Request
• Target Request
• Target Response
• Proxy Response

To attach a policy to an endpoint, perform the following actions:

1. Open the project.

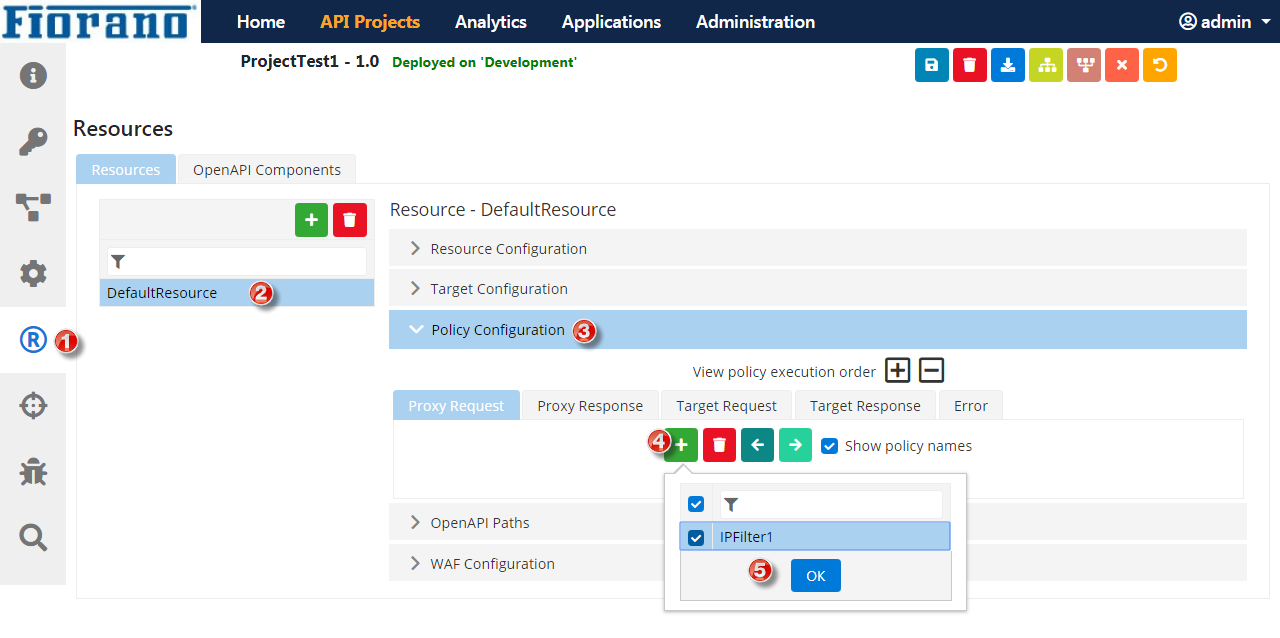

2. Click the Resources icon on the left side of the screen.

3. A resource named 'DefaultResource' will already be present under the tab.



   A new resource can be added by clicking the Add icon. Refer the Adding a Resource section in the Resources section.

4. Click the resource and expand the Policy Configuration tab.
5. Click one of the four endpoints to which the policy needs to be added.
6. Click the Add icon to add the policy, select the policies to be added and click OK.

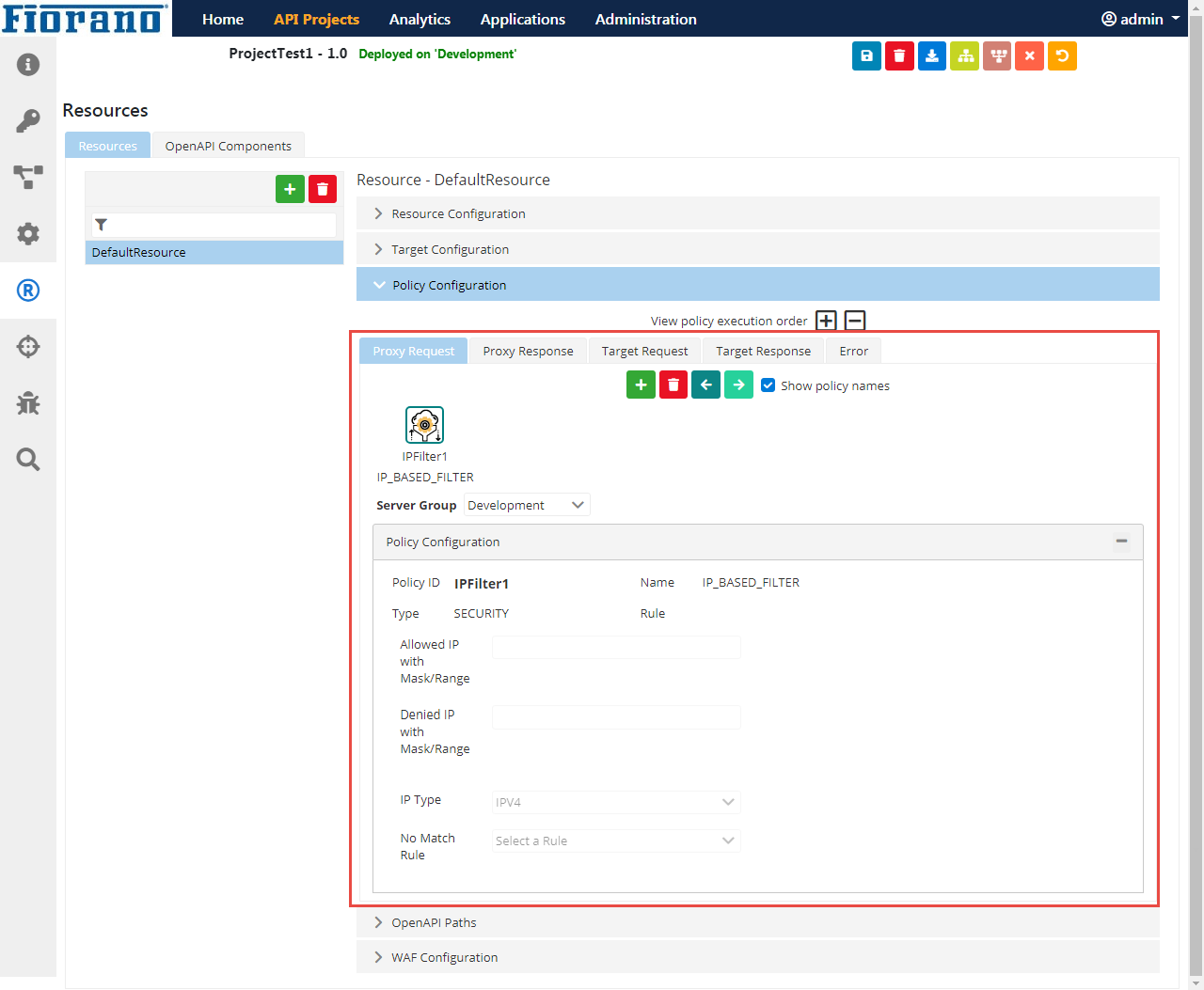

7. The policy gets added. Click the Save icon to apply the changes and thereby attach the policy to the required resource endpoint.









Refer to the Resources section to understand the various options available in this section of the API Manager.
