Server Status

Contents

Server Status page

  • displays the system details of the Management Servers and Gateway Servers
  • provides a graphical view of the CPU utilization and memory usage statistics
  • enables stopping and restarting of a running Active/Passive server

Click the Server Status

 icon in the Administration section to open the page in the Administration section with the Server Details displayed on the right side of the screen.

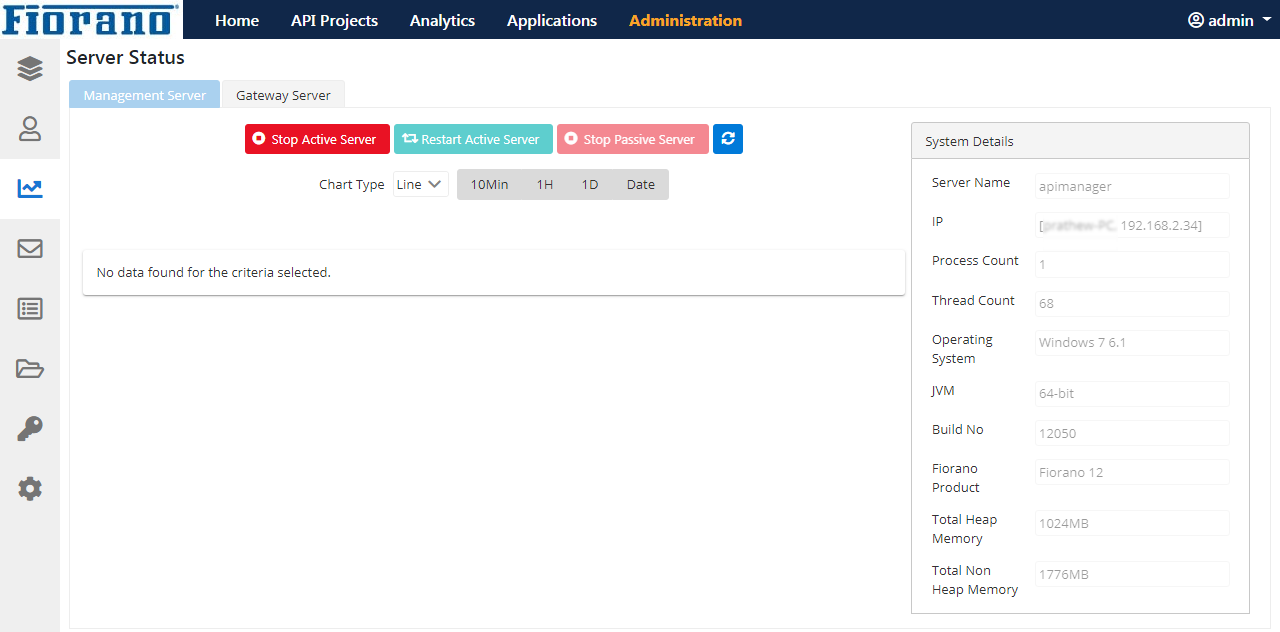

Figure 1: Server Status page in the Administration section

Analyzing CPU and Memory Utilisation using Graphs

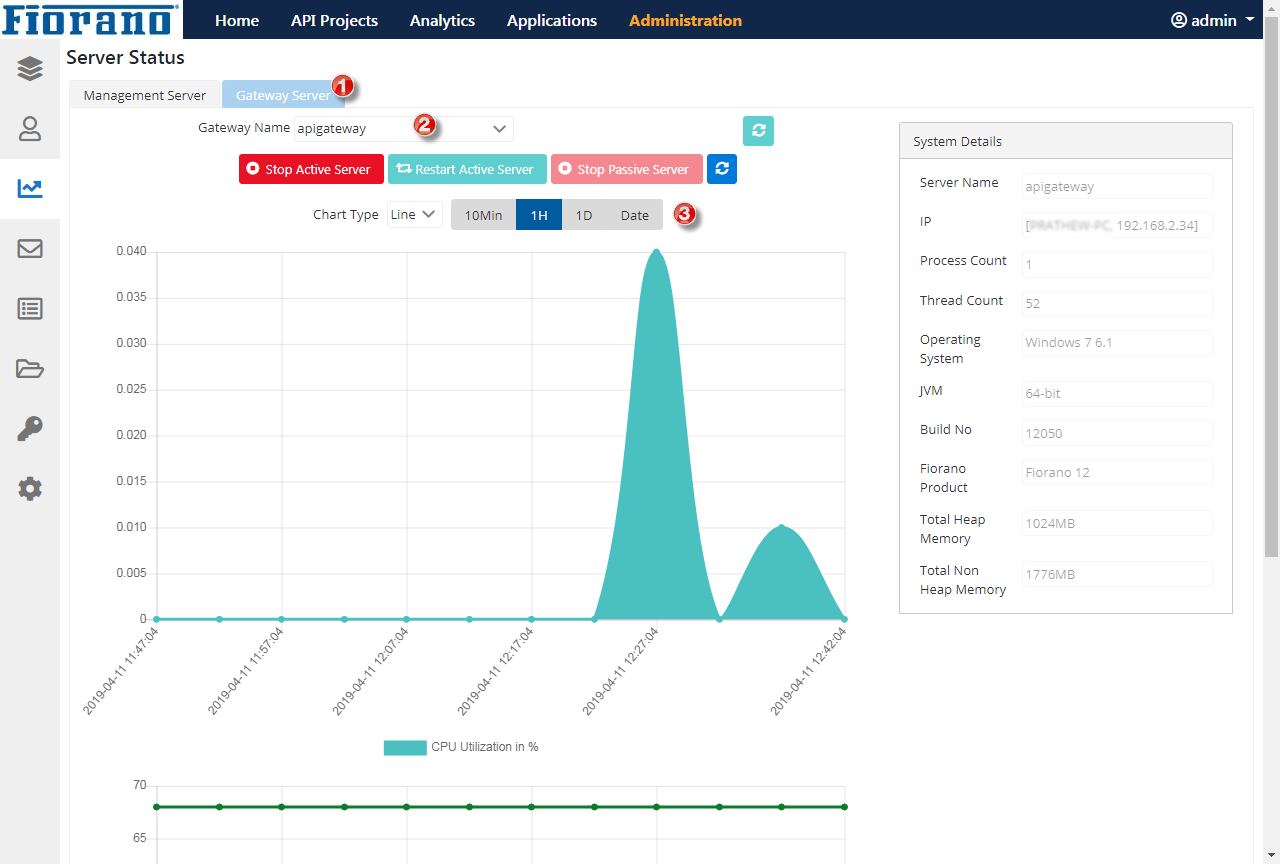

Select the Time Interval and Graph Type to generate graphs for the respective period after clicking the Management Server or Gateway Server tab (select the server name also for Gateway server).

  • Refresh icon
    near the Stop Passive Server button refreshes the graph.
  • Refresh icon
    near the Gateway Name drop-down clears the graph altogether.

Time Interval

To analyze CPU utilization and memory, select the given set of time intervals to see the performance during that time. Select the Time Interval from the following options:

  • 10 min (minute)
  • 1 H (hour)
  • 1 D (day)
  • Date

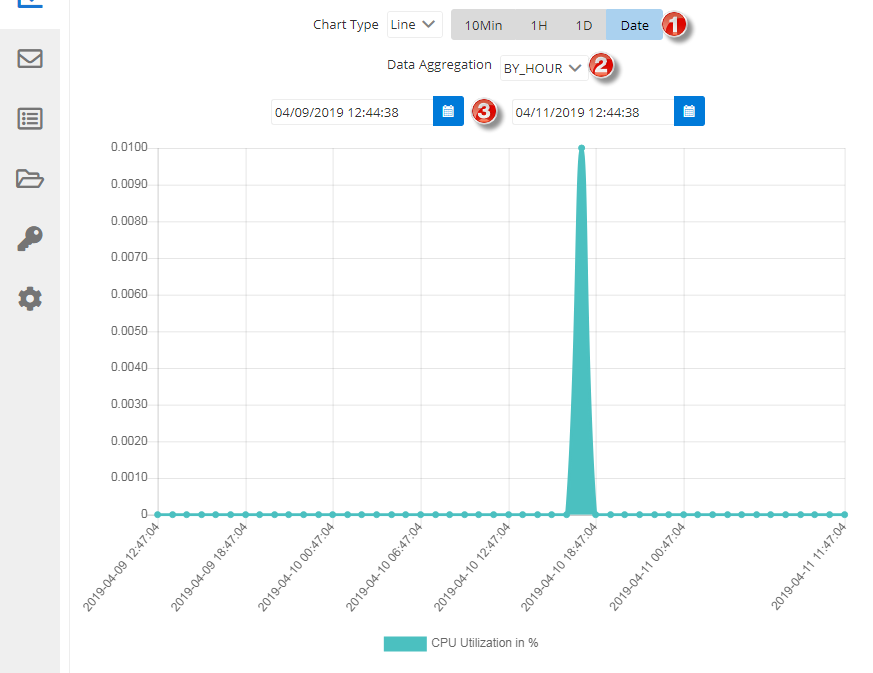

Date option

Set the start and end timing and choose the Data Aggression option from the below:

  • By Day
    This option is available only if the time interval is above 1 day. This will be the only option available after 3 days interval.
  • By Hour
    This option is available only if the time interval is 1-2 days.
  • By Minute
    This option is available only if the time interval is 1 day.

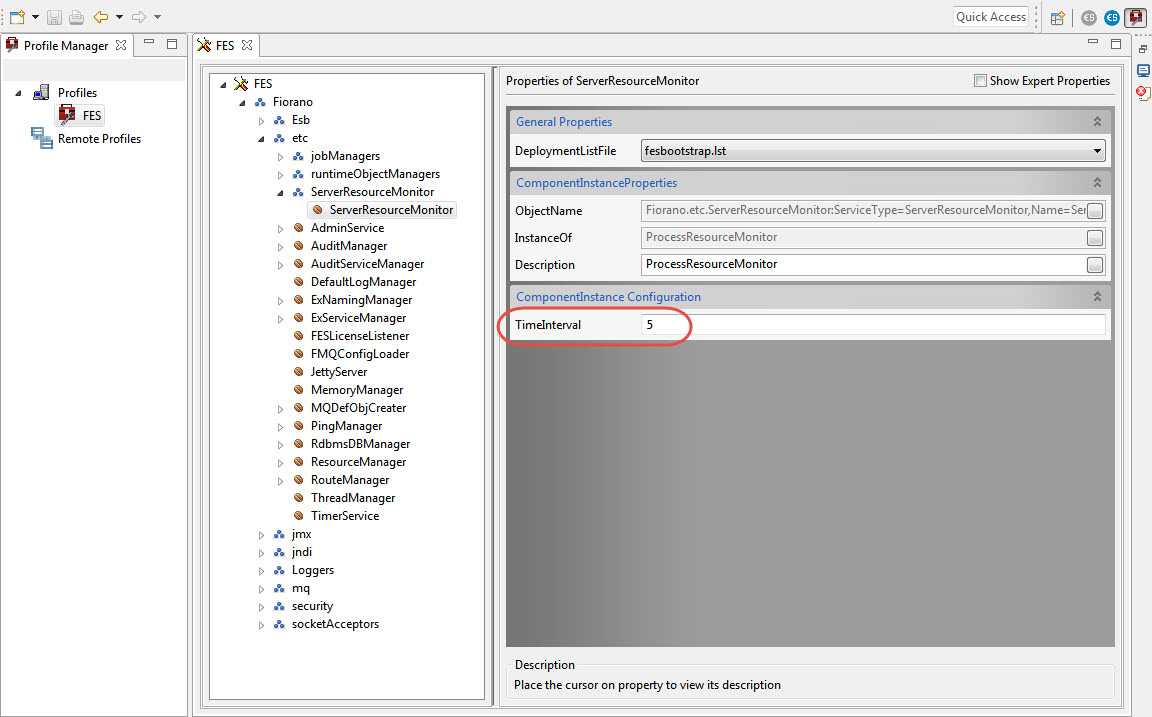

The default time interval for logging server memory details is 5 minutes. This can be changed in eStudio Profile Management Fiorano > etc > ServerResourceMonitor.

Graph Type

Choose the Graph Type from the below options (the sample graphs are generated with 1 Hour criteria):

  • Line

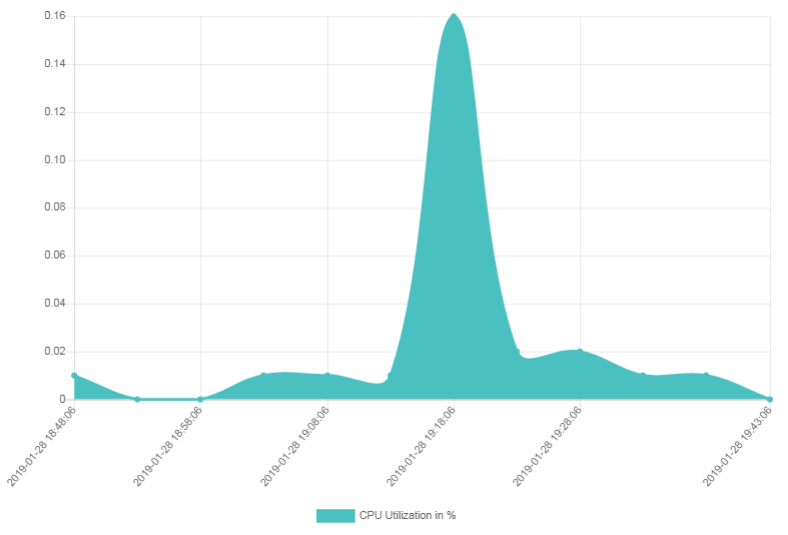

    CPU Utilization Graph

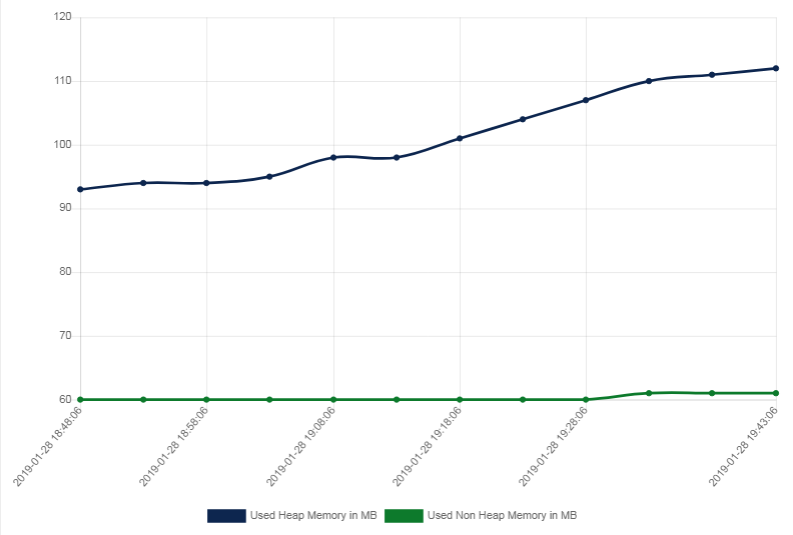

    Memory Usage Graph

  • Bar

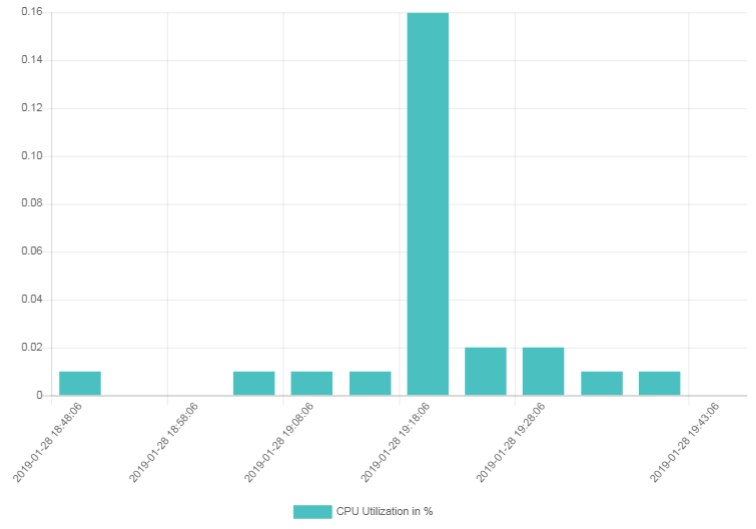

    CPU Utilization Graph

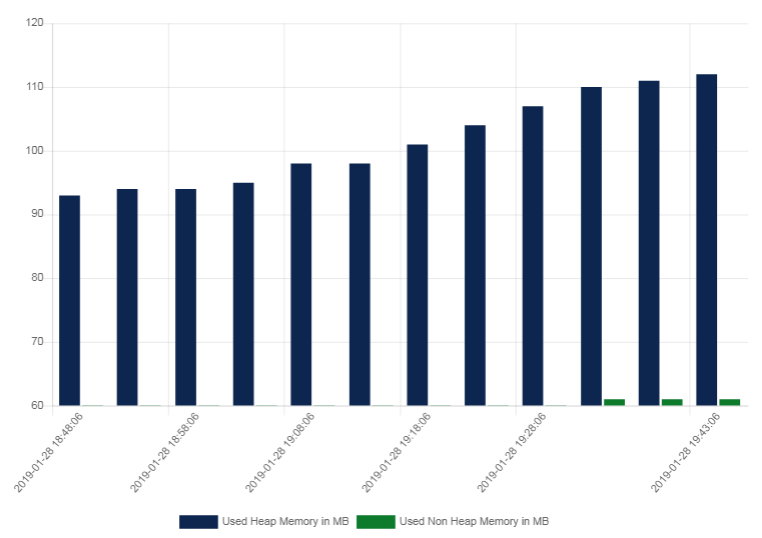

    Memory Usage Graph

  • Radar

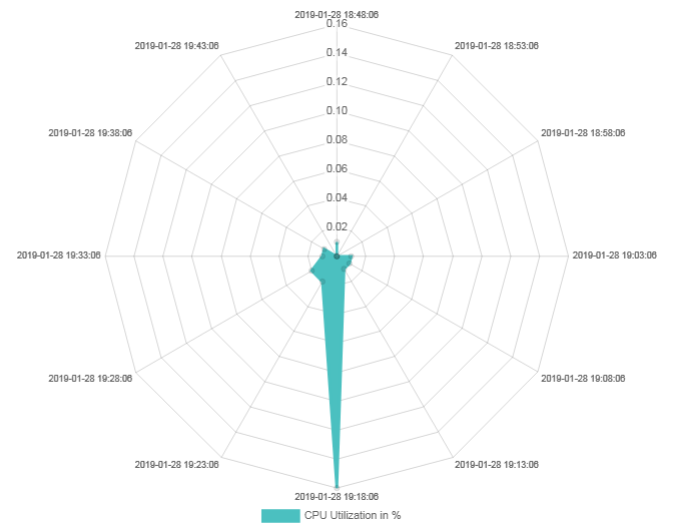

    CPU Utilization Graph

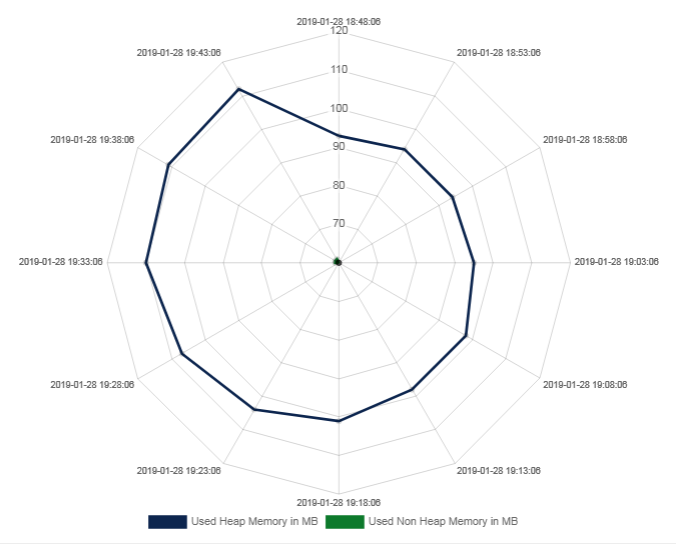

    Memory Usage Graph

  • Horizontal Bar

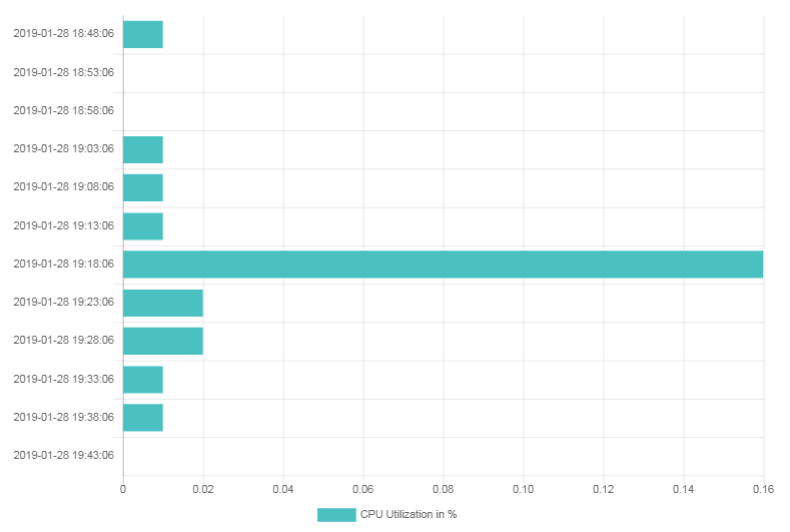

    CPU Utilization Graph

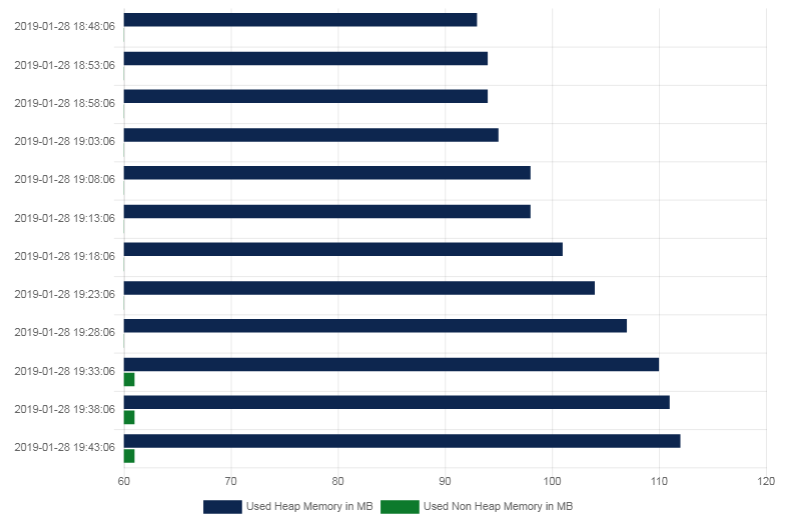

    Memory Usage Graph

Stopping and Restarting Servers

Stopping Servers

Refer the Shutting down servers section to know how to stop active/passive servers.

Restarting Servers

Management Server: Click the Management Server tab and click the Restart Active Server button to restart an active server.

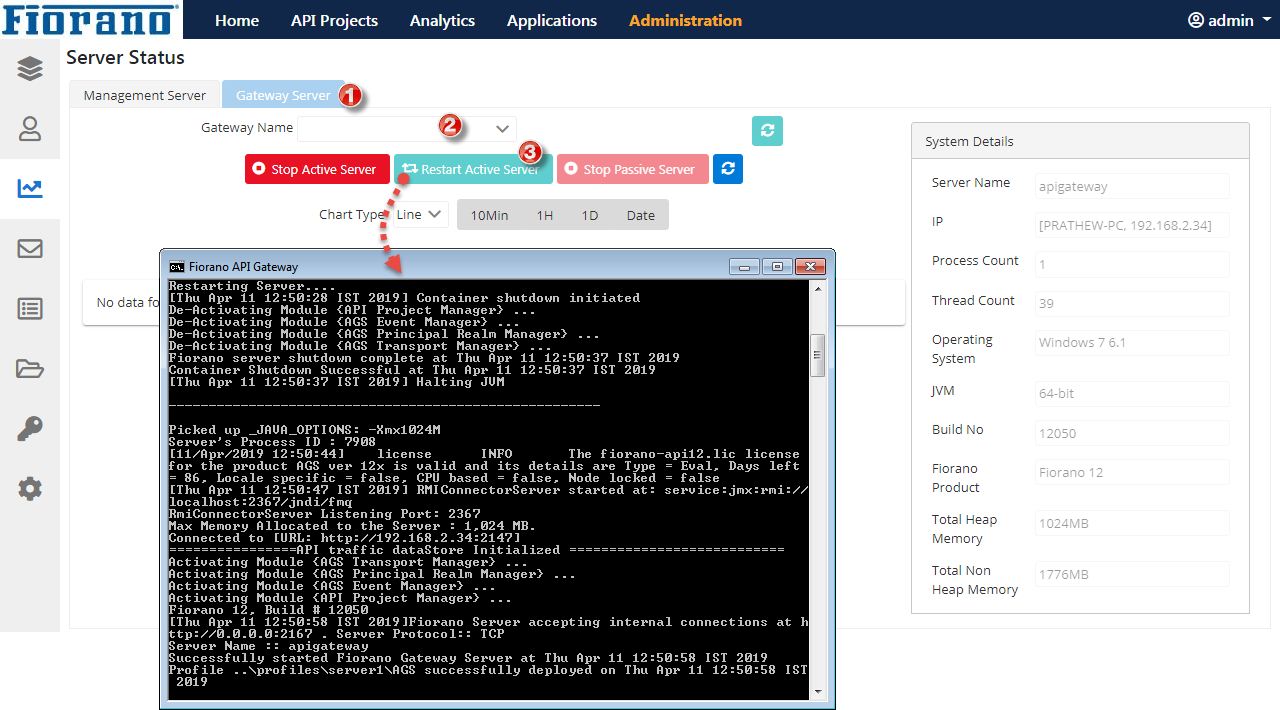

Gateway Servers: Click the Gateway Server tab, select the server name from the Gateway Name drop-down, and click the Restart Active Server button to restart an active server.

Saving Charts

Right-click the graph and click the Save image as option or the Copy Image option to save the graph.
