Installing the Developer Portal Drupal

Copying the FioranoDeveloperPortal folder to the Webserver

1. Go to the DeveloperPortalDrupal folder at $FioranoAPIManagement_Home/APIManagement/DeveloperPortalDrupal and copy the FioranoDeveloperPortal folder.

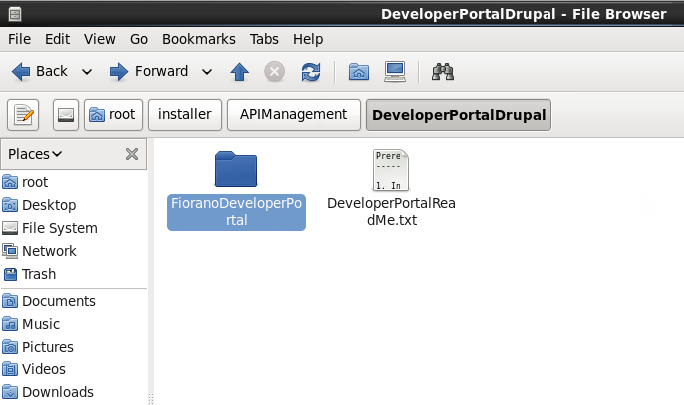

   Figure 3: Copying the FioranoDeveloperPortal folder from the API Management directory in Linux


2. Paste the copied folder into the <AMP stack folder>/apache2/htdocs folder.

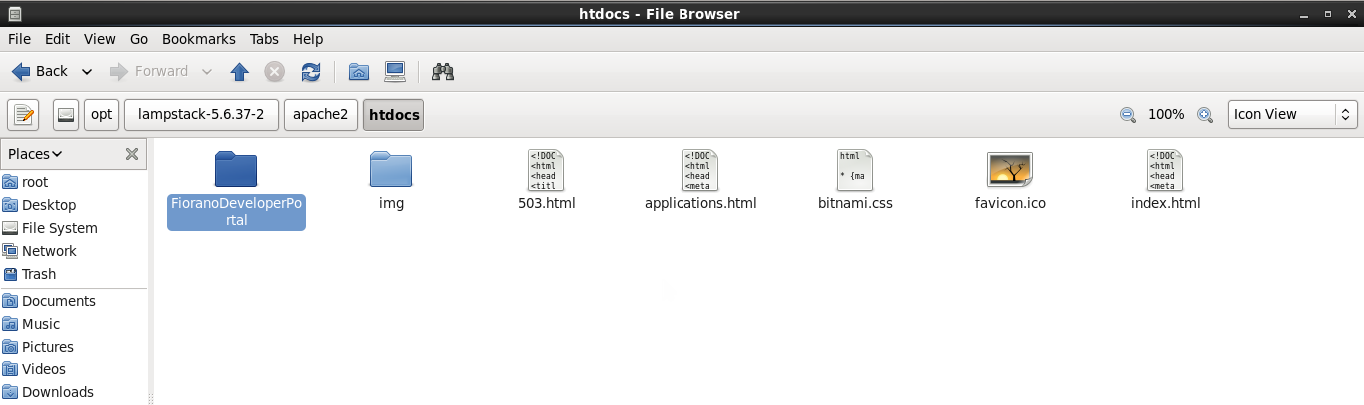

   Figure 4: Copying the FioranoDeveloperPortal folder to the  <AMP stack folder>/apache2/htdocs folder


Granting Write permissions for files in Linux

Give Write permissions on the “files” folder and “settings.php” file at "FioranoDeveloperPortal/sites/default/" directory so that the webserver gets the permission to write.

To enable Write permissions, type the following commands in the command line:

cd <path/to/FioranoDeveloperPortal/sites/default/>
chmod a+w files/
chmod a+w settings.php

In case the files folder is missing at FioranoDeveloperPortal/sites/default, please use the command below before enabling Write permissions:

CODE

cd <path/to/FioranoDeveloperPortal/sites/default/>
mkdir files

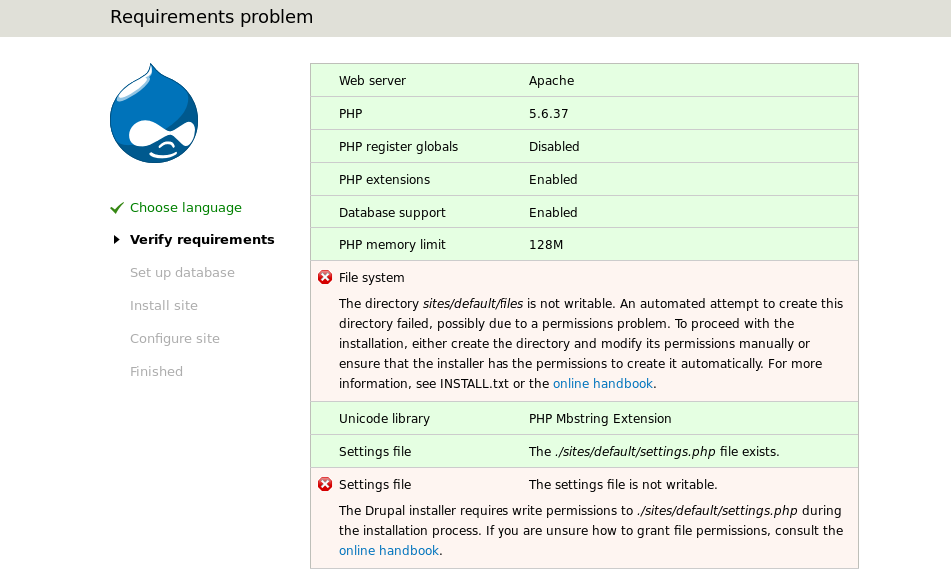

If the write permissions are not set, then an error is thrown during installation.

Disable the Write permissions after installation to avoid security risks.

To disable write permissions, use the following command:

CODE

cd <path/to/FioranoDeveloperPortal/sites/default/>
chmod a-w files/
chmod a-w settings.php

Refer to the following link for a better understanding of file permissions in Linux, Unix, Mac: https://www.drupal.org/node/202483

Setting up the Access Level permissions (optional)

Edit the DeveloperPortalConfig.ini properties file present at FioranoDeveloperPortal/config/ with relevant details.

The Access Level for products may be preconfigured in this properties file.

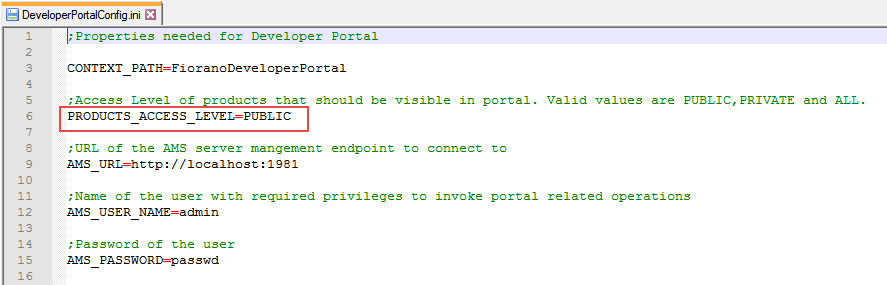

Figure 6: Properties that can be pre-configured

Other details like Context Path used for the portal and AMS URL details and credentials also can be preconfigured before installation

The settings above reflects in the API Management Products section as below.

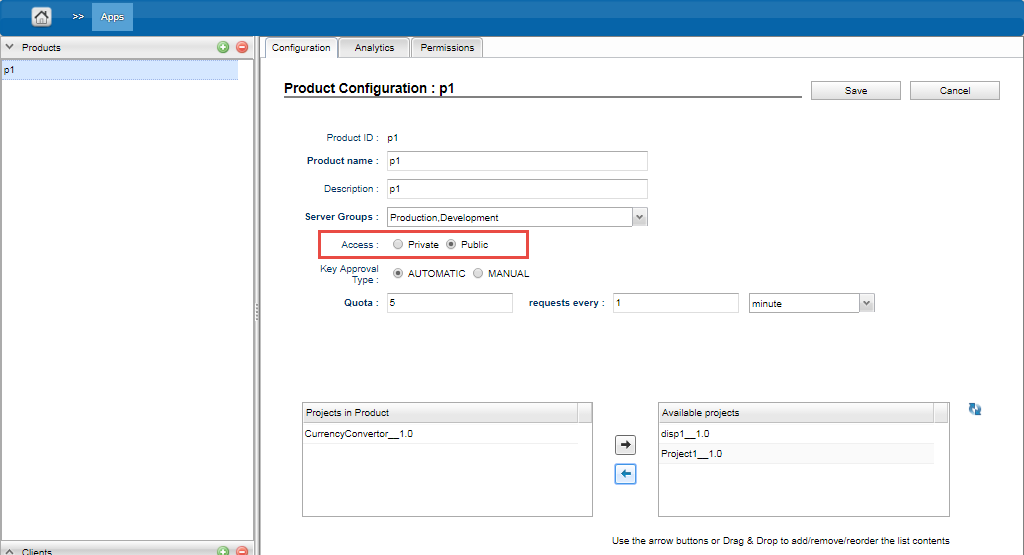

Figure 7: Access Level permissions appearing in the API MAnagement Product Configuration page

Installing the Developer Portal Drupal

1. Open the URLhttp://<hostname>:<port>/FioranoDeveloperPortal (hostname and port corresponding to the webserver).
2. Enter the following:
   1. Database name: The name of the database created by following the steps in the section above.

   2. Database username: root



      Leave the password blank.

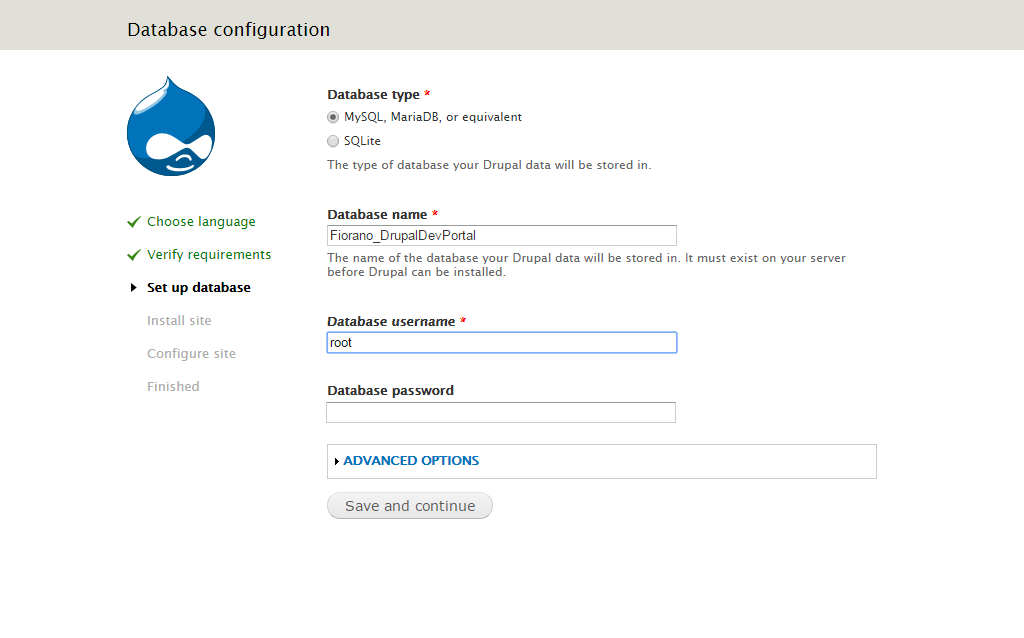

      Figure 8: Providing the default database user name



3. Provide username "admin" as well as a valid mail ID and password that conforms to the Mail Server configuration and also fill-in other general information.

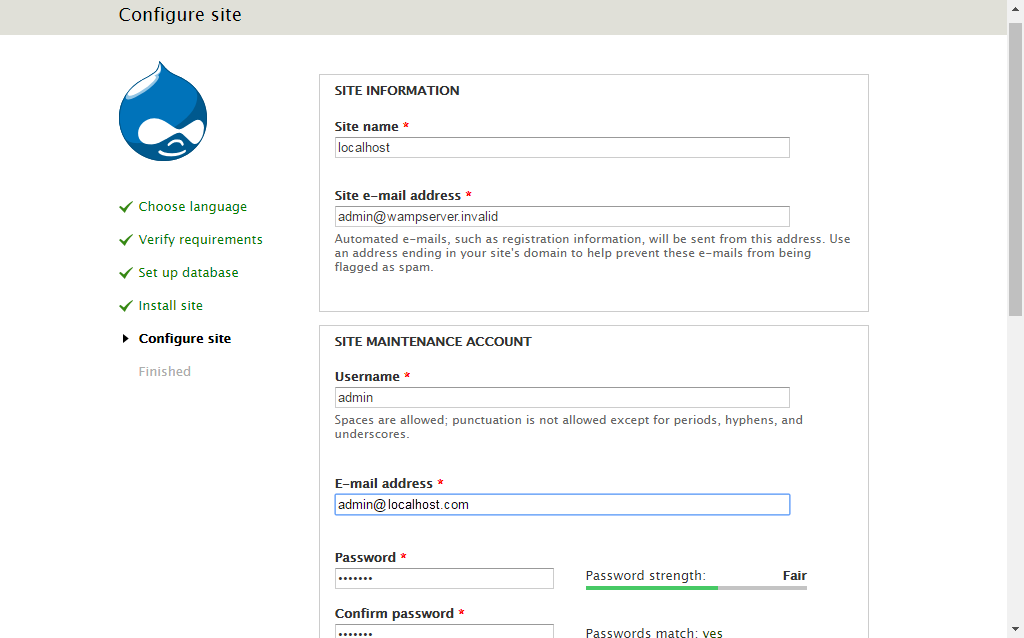

   Figure 9: Providing Site Maintenance Account details

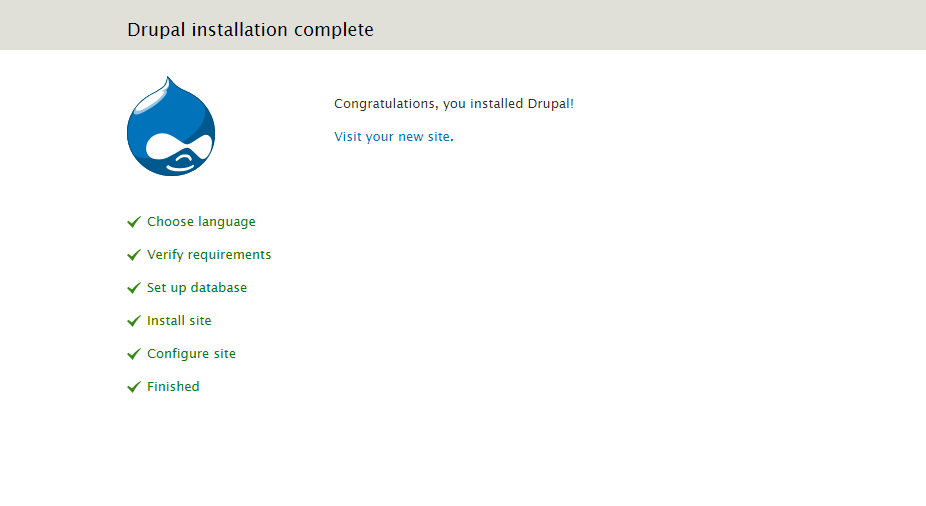

   Figure 10: Acknowledgement message as Installation completes



4. Click the Visit your new site link (see the figure above) to see the Developer Portal Drupal logged in as the default admin user.

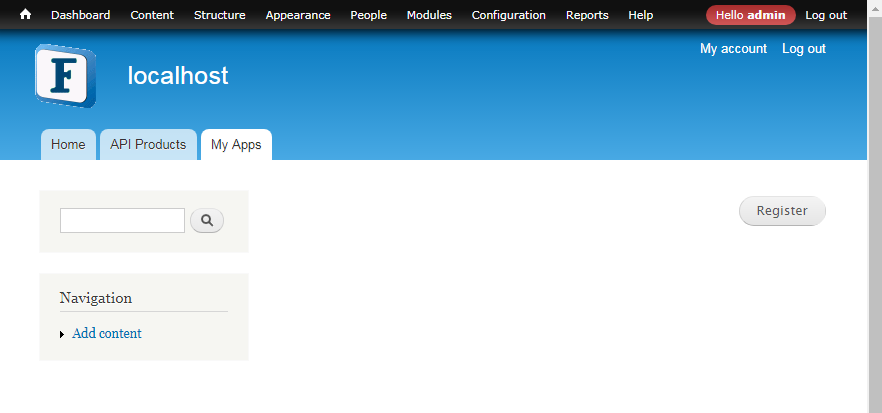

   Figure 11: Developer Portal Drupal logged in as the default admin user
