Certificate Management

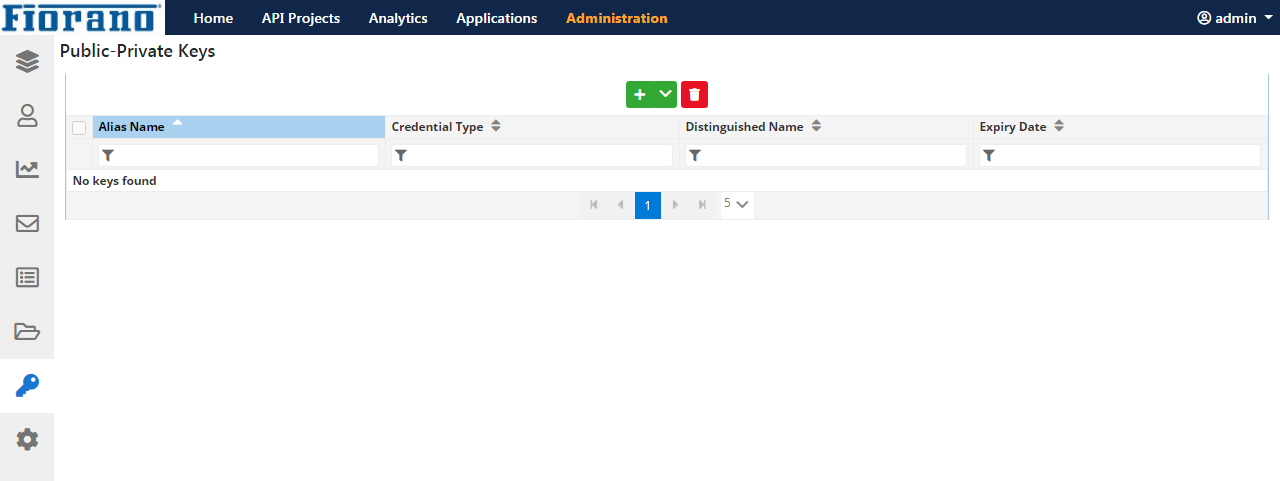

Keys section displays the list of keys (Public and Private) of the server's trust store, and allows to add or remove keys to the Server trust store.

Click the Keys

Public Key Store Configuration

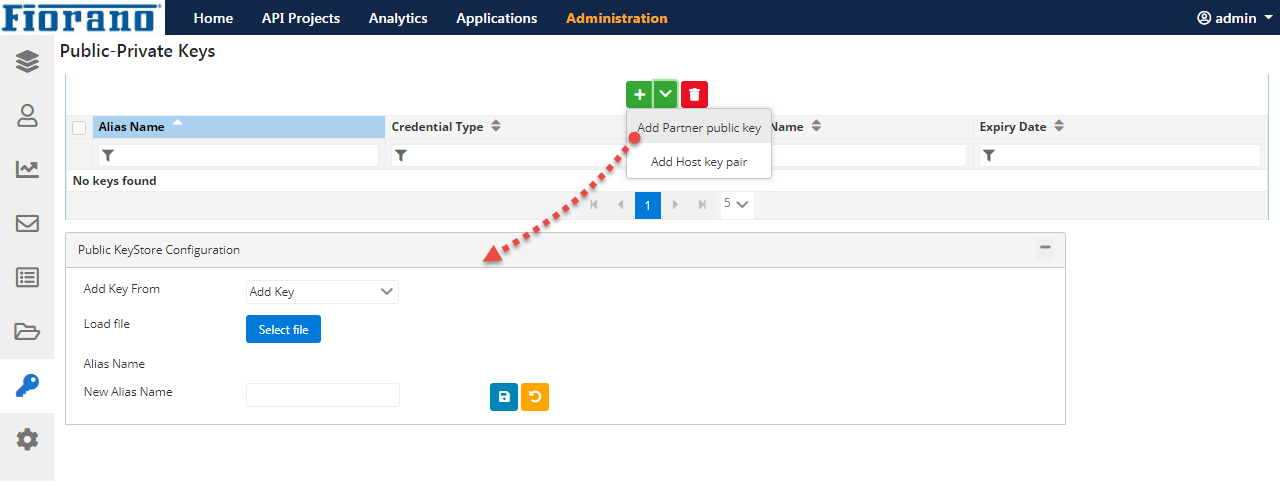

Adding Partner's Public Key

from Keystore

1. Click the Down



   arrow in the Add



   icon and click Add Partner Public Key to add the Public Key Store Configuration section.








2. In the Public Key Store Configuration section, provide the following:
   1. Add key From: Select "KeyStore".
   2. Load File: Click the Select file button and add the Public Keystore file stored in the system.
   3. Alias Name: Select the name that populates in the drop-down after adding the Keystore file.
   4. New Alias Name: Provide a new alias name.

3. Click the Save



    icon. After successful saving, details appear in the Public-Private keys section.


   To remove a key from the list, click the Delete



    icon.

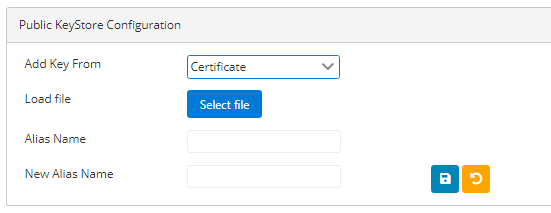

Adding Partner's Public Key

From Certificates

Perform the same actions as in the above section, but select "Certificate" from the Add Key From drop-down.

Private Key Store Configuration

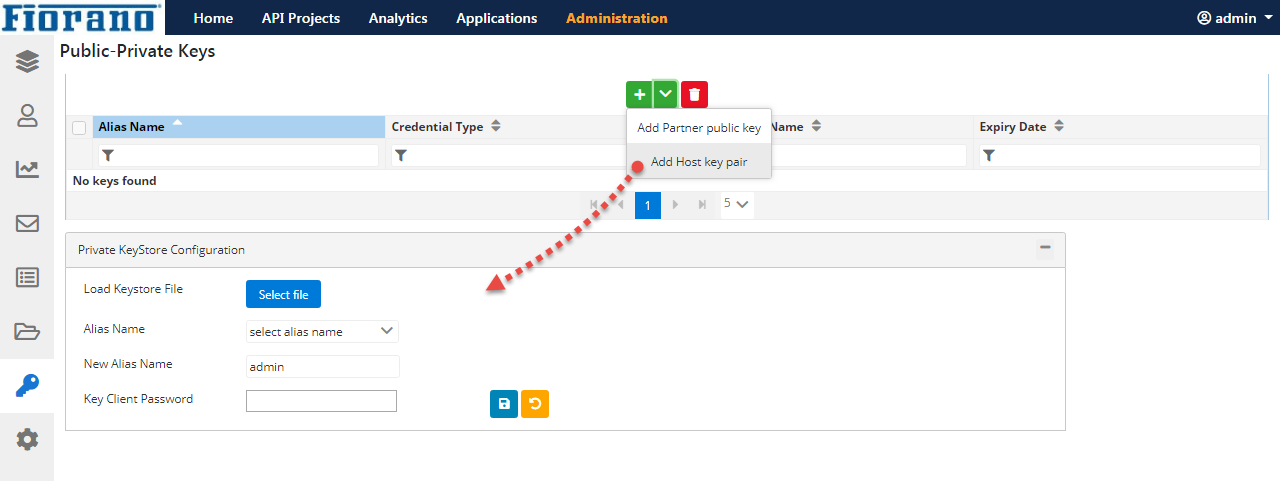

Adding Host-Key Pair

1. Click the Down



    arrow in the Add



    icon and click Add Partner Public Key to add the Public Key Store Configuration section.








2. In the Public Key Store Configuration section, provide the following:
   1. Load Keystore File: Click the Select file button and add the Private Keystore file stored in the system.
   2. Alias Name: Select the name that populates in the drop-down after adding the Keystore file.
   3. New Alias Name: Provide a new alias name.
   4. Key Client Password: Password to authenticate the key.

3. Click the Save



    icon. After successful saving, details appear in the Public-Private keys section.

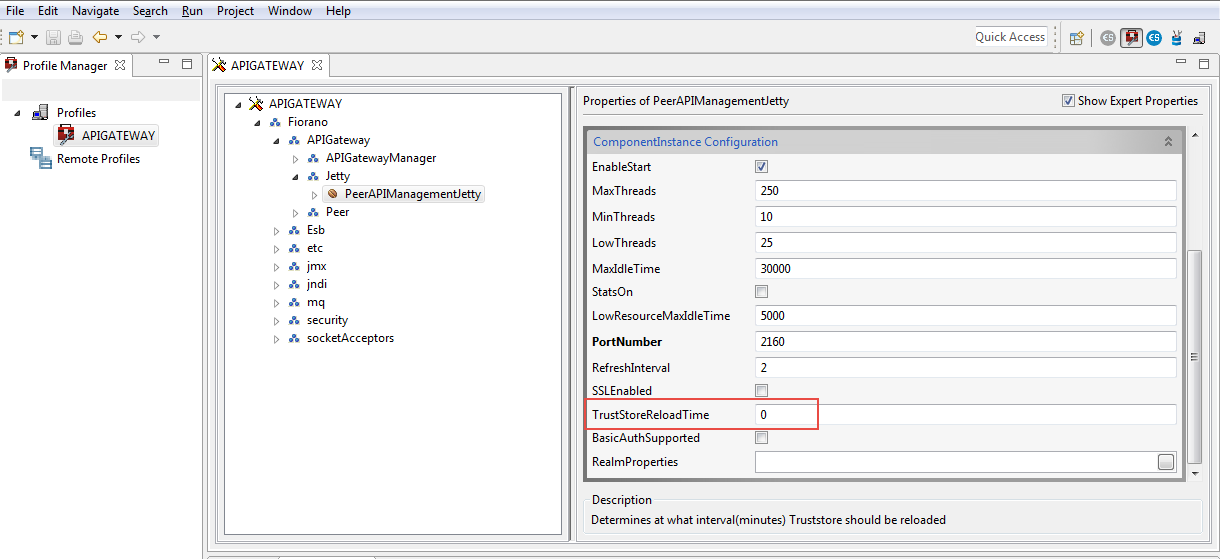

Setting TrustStore reload-time in Jetty Server Profile configuration

For new certificates to be reloaded into the server, Trust store reload time needs to be set.

Jetty server running in the gateway server will be reloaded with new certificates within this interval.

To set the Trust Store reload time, perform the following actions:

1. Open eStudio and open the Profile Management perspective.
2. Open APIGateway Server profile.
3. Go to APIGateway > Fiorano > APIGateway > Jetty > PeerAPIManagementJetty.

4. Set the TrustStoreReload time to the required time interval.



   By default, the Truststore Reload time is set to 0 due to which the Trust store does not load.
