Shutting down the AMS server

The AMS can be stopped by using the API dashboard, the REST API or through the shutdown-server script:

Using API dashboard

1. Login to the API dashboard.
2. Navigate to Admin > Server Status.
3. Click the Management Server tab and click the Stop Active Server button.

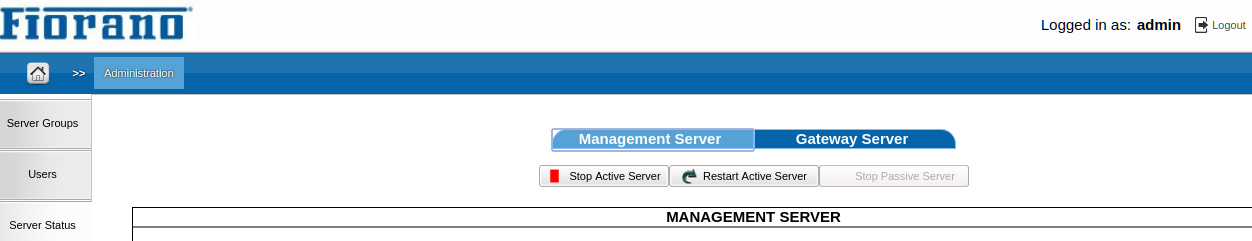

   Figure 1: Stopping AMS from the dashboard

Using REST API

1. Use the default SwaggerUI: http://localhost:1981/swaggerui/
2. Navigate to Servers Resource.
3. Look for API "/servers/shutdown-restart" with the description "Perform action (RESTART, SHUTDOWN)".
4. Provide the API Access Key and action as "shutdown" in the Action object.

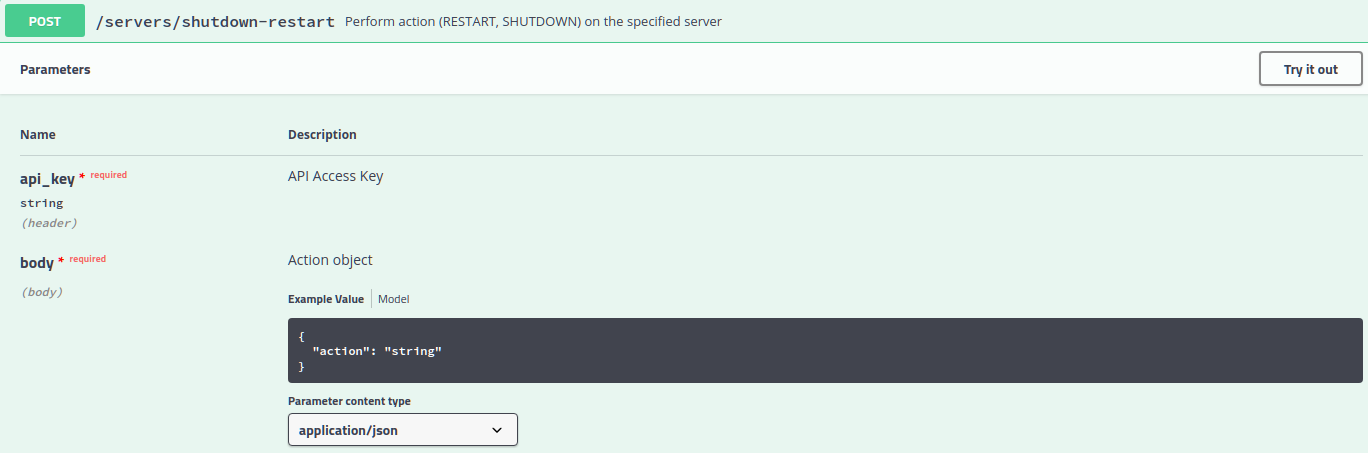

   Figure 2: Stopping AMS using the REST API

This API can be executed from any other client as well and execute the URL: http://localhost:1981/api/ams/servers/shutdown-restart

For this POST method,

• api_key is passed as a header parameter

• in the body, provide the json:

  CODE

  {
  "action": "shutdown"
  }

Using Script

The AMS can be shut down using the shutdown-server script present in the <fiorano_installation_dir>/esb/server/bin folder.

shutdown-server -connectorType RMI -user admin -passwd passwd -address localhost -rmiPort 2347

This makes use of an RMI connection to the AMS to initiate the shutdown.

• -connectorType: Connection type to server. Pass RMI for shutting down servers using RMI connection.
• -address: IP Address of server
• -rmiPort: RMI port of server
