LDAP Resources

LDAP Server connection details can be configured in the LDAP Resources panel. This configuration enables to use the LDAP Policy.

Use the Add

button to add an LDAP resource and provide values for the parameters that appear on the right side when the newly added resource name is selected. After configuring the LDAP Resource with the properties as described below, the resource can be used while configuring the LDAP policy.

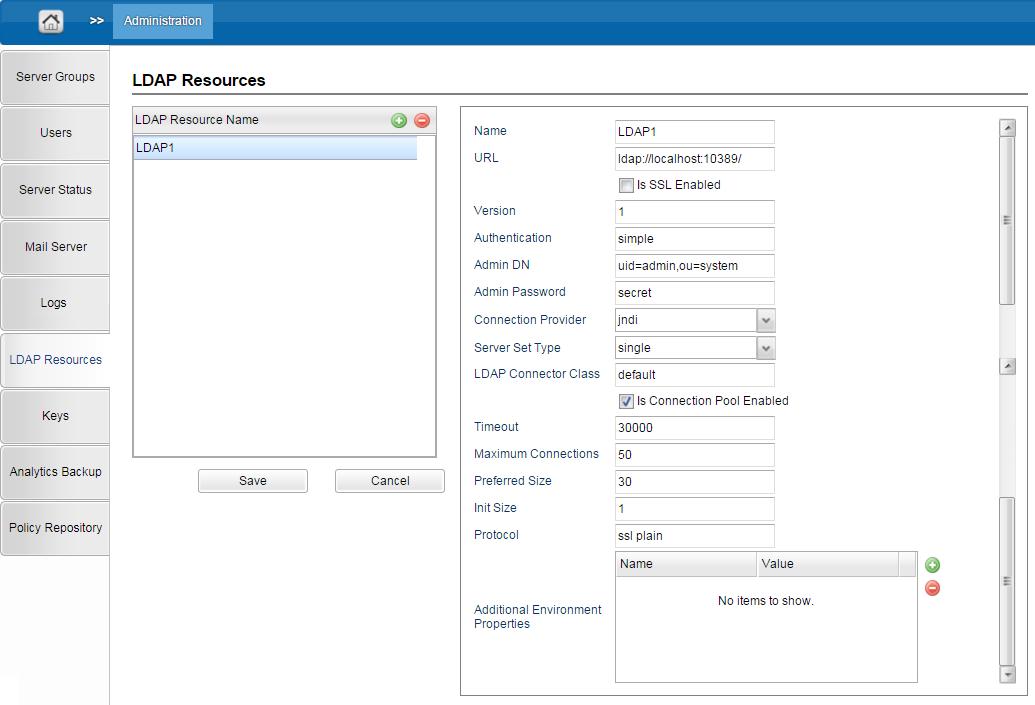

Figure 1: Properties of a newly added LDAP Resource

Property	Description
Name	Unique Name of LDAP Resource
URL	URL to connect to LDAP Server
Version	LDAP Server version
Authentication	The Authentication type to be used
Admin DN	LDAP System user name
Admin Password	LDAP System password
Connection Provider	Connection Providers are: jndi unboundid
Server Set Type	Server Set Types are: single roundrobin failover Not Applicable for JNDI
LDAP Connector Class	Default option uses the built-in LDAP Connector. If LDAP Policy with a custom LDAP provider is being used, specify the fully qualified LDAP connector class, that is, the class in which the LdapConnectionProvider interface is implemented.
Is Connection Pool Enabled	Enable if connection pooling is required
Timeout	Connection timeout value
Maximum Connections	Maximum number of connections when connection pooling is enabled
Preferred Size	Preferred size of the pool when connection pooling is enabled
Init Size	Initial number of connections when connection pooling is enabled
Protocol	Protocol used to connect to the LDAP server
Additional Environment Properties	The Environment properties that can be used while creating the LDAP server context

Refer to the LDAP Policy section to understand LDAP policy implementation.
